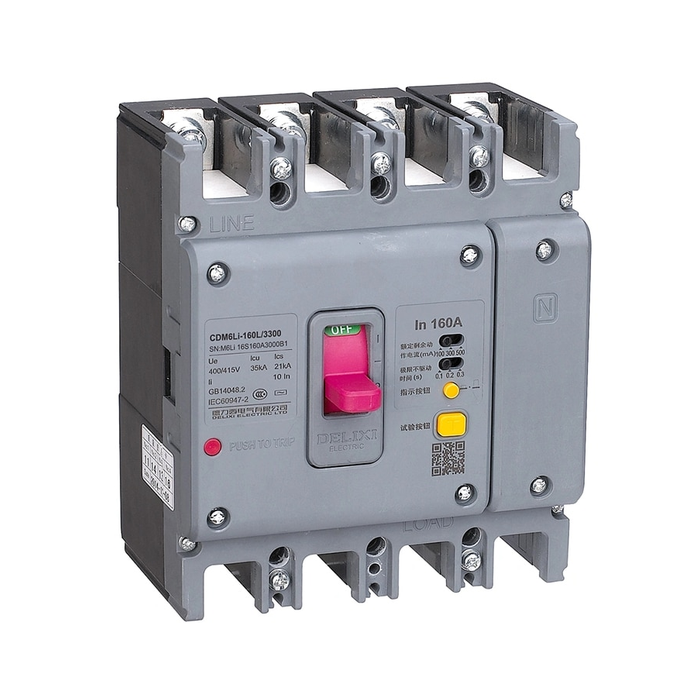

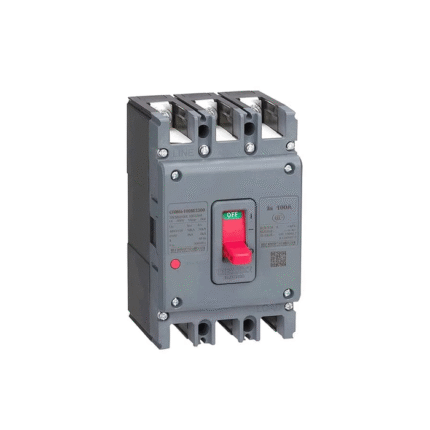

The DELIXI CDM6Li combines thermomagnetic circuit protection with residual-current protection for power distribution or motor circuits. The selection reference below covers the CDM6Li-125 and CDM6Li-160 frames associated with this page. Choose the rated current, breaking grade and leakage-protection version together.
Technical selection summary
| Brand and series | DELIXI ELECTRIC CDM6Li |
|---|---|
| Product type | Thermomagnetic moulded-case circuit breaker with residual-current protection |
| Frame references covered here | CDM6Li-125 and CDM6Li-160; frame size and rated current must be specified separately |
| Rated-current reference by frame | CDM6Li-125: 16, 20, 25, 32, 40, 50, 63, 80, 100 and 125 A. CDM6Li-160: 100, 125, 140 and 160 A. |
| Rated operating voltage Ue | 400 / 415 V |
| Poles and neutral version | 3P or 4P; confirm the A/B neutral configuration for a 4P order |
| Rated insulation / impulse withstand | Ui 800 V; Uimp 8 kV |
| Residual-current selection | 30 / 100 / 300 mA adjustment group: non-delay version. 100 / 300 / 500 mA adjustment group: non-delay or delayed versions, according to the complete order code. |
| Non-delay breaking time | ≤ 0.1 s |
| Breaking performance at 415 V, 50 Hz | C: Icu 25 kA / Ics 15 kA; L: Icu 35 kA / Ics 25 kA; M: Icu 50 kA / Ics 35 kA |
| Protection application | Power distribution or motor protection; specify the required release version |
| Reference dimensions (W × H × D) | 125 frame: 3P 92 × 150 × 93.5 mm; 4P 122 × 150 × 93.5 mm. 160 frame: 3P 107 × 165 × 94 mm; 4P 142 × 165 × 94 mm. |
A 125 or 160 frame designation is not a statement of the selected rated current. Residual-current settings, delay mode, poles, neutral configuration and breaking grade are version-dependent: the 30/100/300 mA adjustment group is non-delay only. Confirm the complete CDM6Li code and nameplate before ordering; do not substitute the standard CDM6i without residual-current protection.
Typical applications
- Low-voltage distribution circuits requiring residual-current protection
- Motor circuits using the matching motor-protection release
