DELIXI ELECTRIC · Moulded case circuit breaker
Product overview

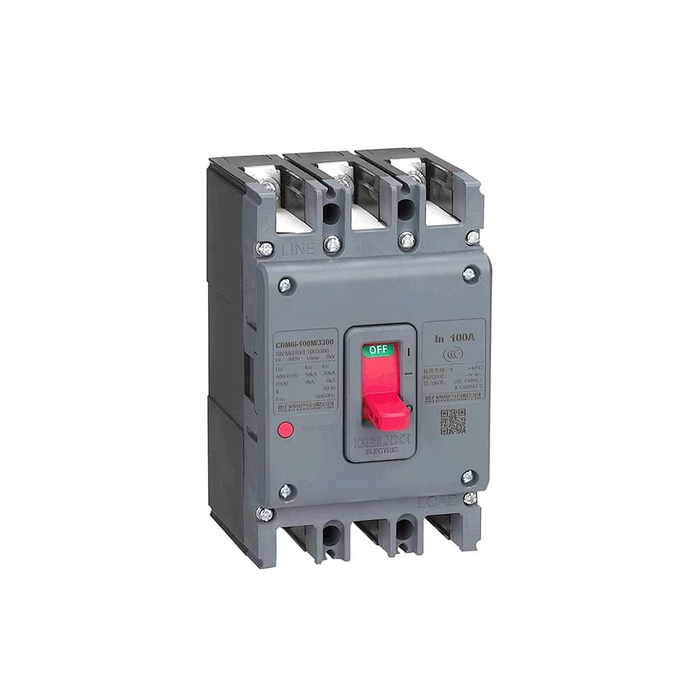

The DELIXI CDM6i provides low-voltage circuit protection in distribution assemblies. This page covers the documented 125–800 A frame group with thermal-magnetic release. The frame number does not identify the actual rated current, breaking-capacity suffix or neutral-pole construction.
Technical selection summary
| Series and page scope | CDM6i; 125, 160, 250, 400, 630 and 800 A frames |
|---|---|
| Actual rated current In | Select the rating listed for the exact frame; it can be lower than the frame current |
| Frequency | 50/60 Hz |
| Voltage selection | 400/415 V references for the smaller documented frames; the 800 A table lists 400 V. 690 V ratings exist only for the specified suffixes shown below. |
| Poles | Frame/suffix dependent: CDM6i-125 reference is 3P; other listed frames include 3P/4P subject to the exact version |
| Release scope | Thermal-magnetic distribution or motor-protection version; match the complete code |
| Insulation reference | Ui 800 V; impulse withstand 8 kV |
| Reference standards | IEC 60947-1 and IEC 60947-2; GB/T 14048.1 and GB/T 14048.2 |
| Installation environment | Normal altitude ≤2000 m; −40 to +70°C catalogue range, with derating/manufacturer confirmation outside the normal temperature band |

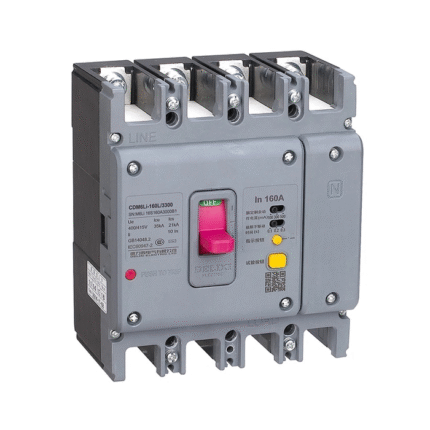

Do not treat frame current, rated current and breaking capacity as interchangeable. H-suffix 400/630/800 A entries in the retained catalogue are 3P; 4P neutral arrangements A and B differ. Do not substitute CDM6Li residual-current, electronic-release or single-magnetic/alarm-only versions for a thermal-magnetic request. Confirm the exact supplied revision and full model before ordering.
Frame and breaking-capacity reference
Values below follow the retained manufacturer selection catalogue. A dash means no rating is stated for that combination. Higher voltage does not retain the lower-voltage breaking capacity.
| Frame | Listed In (A) | Poles reference | Icu at 400/415 V (kA) | Icu at 690 V (kA) |
|---|---|---|---|---|
| CDM6i-125 | 10–125 | 3P | L: 35 | — |
| CDM6i-160 | 100–160 | 3P/4P; verify suffix | L: 35; M: 50; S: 70 | L: 8; M: 8; S: — |
| CDM6i-250 | 100–250 | 3P/4P; verify suffix | L: 35; M: 50; S: 70 | L: 8; M: 8; S: — |
| CDM6i-400 | 200–400 | L/M: 3P/4P; H: 3P | L: 50; M: 70; H: 100 | L: 8; M: 10; H: — |
| CDM6i-630 | 400 / 500 / 630 | L/M: 3P/4P; H: 3P | L: 50; M: 70; H: 100 | L: 8; M: 10; H: — |
| CDM6i-800 | 630 / 700 / 800 | L/M: 3P/4P; H: 3P | At 400 V: L: 50; M: 70; H: 100 | L: —; M: 30; H: — |
Typical applications
- Power distribution assemblies using the exact documented frame and release
- Motor circuits with the correct protection and accessory configuration
