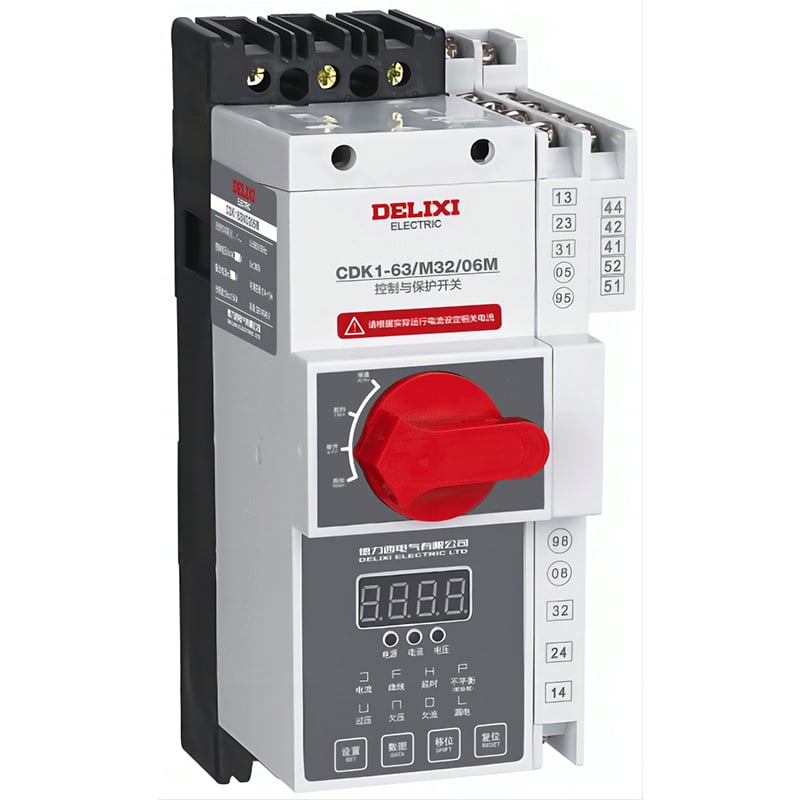

The DELIXI CDK1 combines motor switching and protection in a modular device. This summary focuses on the illustrated CDK1-63/M32/06M and the 63 A frame selection table in the manufacturer manual.

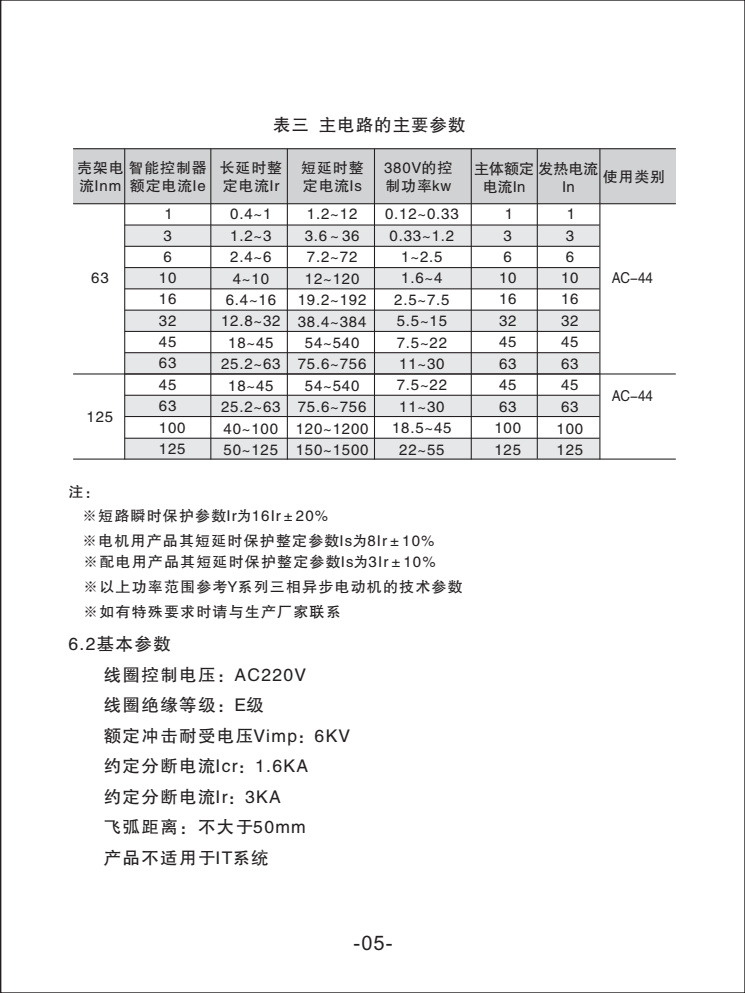

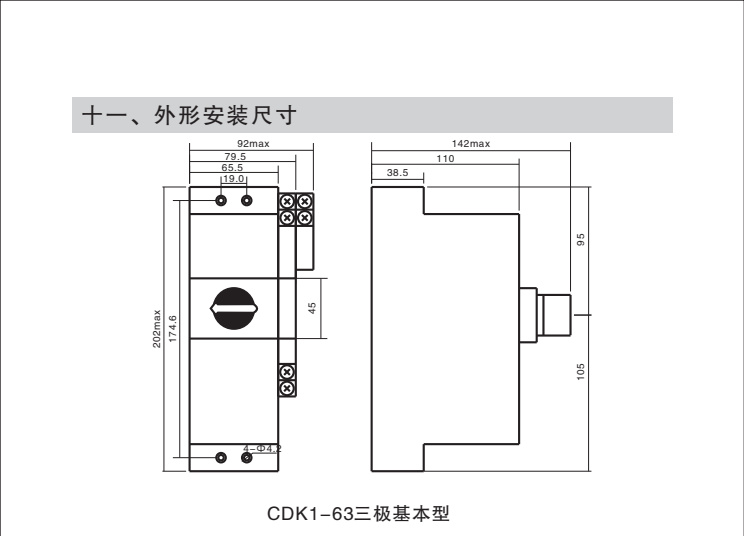

Technical selection summary
| Manufacturer / model | DELIXI CDK1 |
|---|---|
| Illustrated frame / controller | 63 A frame with M32 controller; controller rated current 32 A |
| Illustrated adjustable current | 12.8–32 A long-time current setting for the 32 A controller |
| 380 V motor reference | 5.5–15 kW for the 32 A controller, referenced to the Y-series three-phase asynchronous motors in the manual |
| 63 A frame controller ratings | 1, 3, 6, 10, 16, 32, 45 or 63 A; setting ranges depend on controller rating |
| Example setting ranges | 16 A controller: 6.4–16 A; 32 A: 12.8–32 A; 45 A: 18–45 A; 63 A: 25.2–63 A |
| Control supply code | M: AC 220 V; Q: AC 380 V in the model definition; the illustrated model ends in M |
| Switching category | AC-44 in the main-circuit controller table |

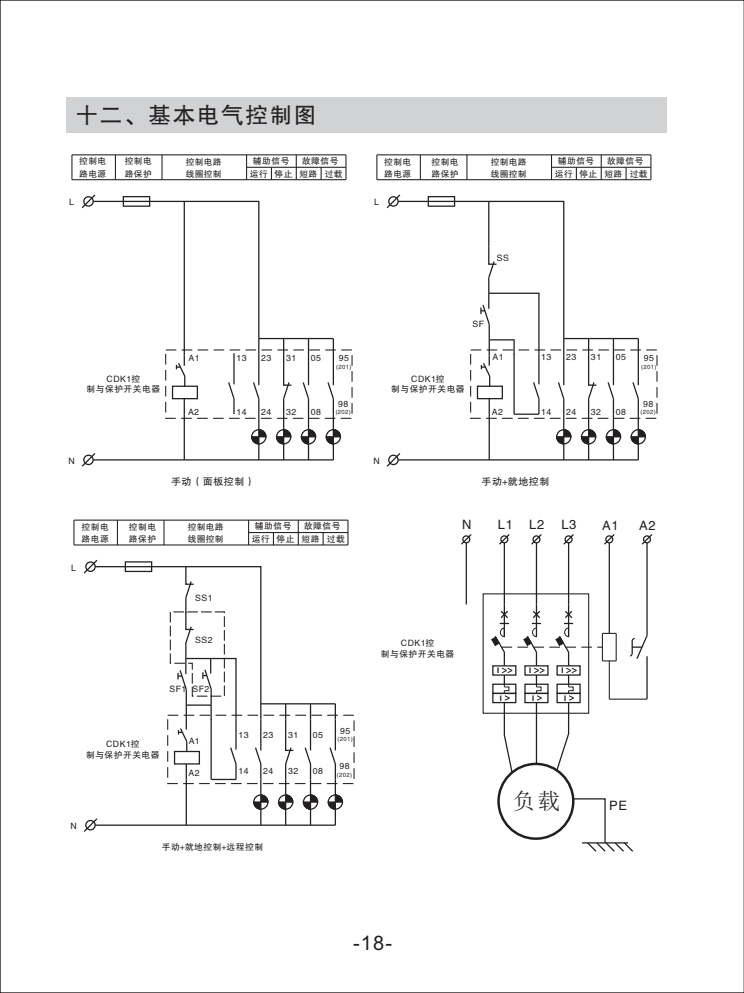

| Operation / functions | Local manual and remote control; overload, short-circuit, phase-loss and voltage protection according to fitted controller and modules |
| System restriction | Not suitable for IT systems, according to the cited manual |
| Standards | IEC 60947-6-2 and GB 14048.9 in the manufacturer manual |
Frame current and controller current are different values. The illustrated 63 A frame must not be treated as a 63 A motor setting when fitted with the M32 controller. This table covers the 63 A frame example; 125 A frame selections and optional protection modules require their own matched configuration. Confirm the complete code and wiring before ordering.
Specify your enquiry
For a focused quotation, include the complete model and suffix, control supply, load or timing requirements, installation details and quantity.
DELIXI CDK1 manufacturer technical document (PDF)
The selectable configurations use the 63 A three-pole frame, M controller, auxiliary code 06 and AC 220 V control supply M. Each controller current is linked to its own setting range. The 125 A frame, four-pole versions and other controller or accessory codes are excluded from these selections.
