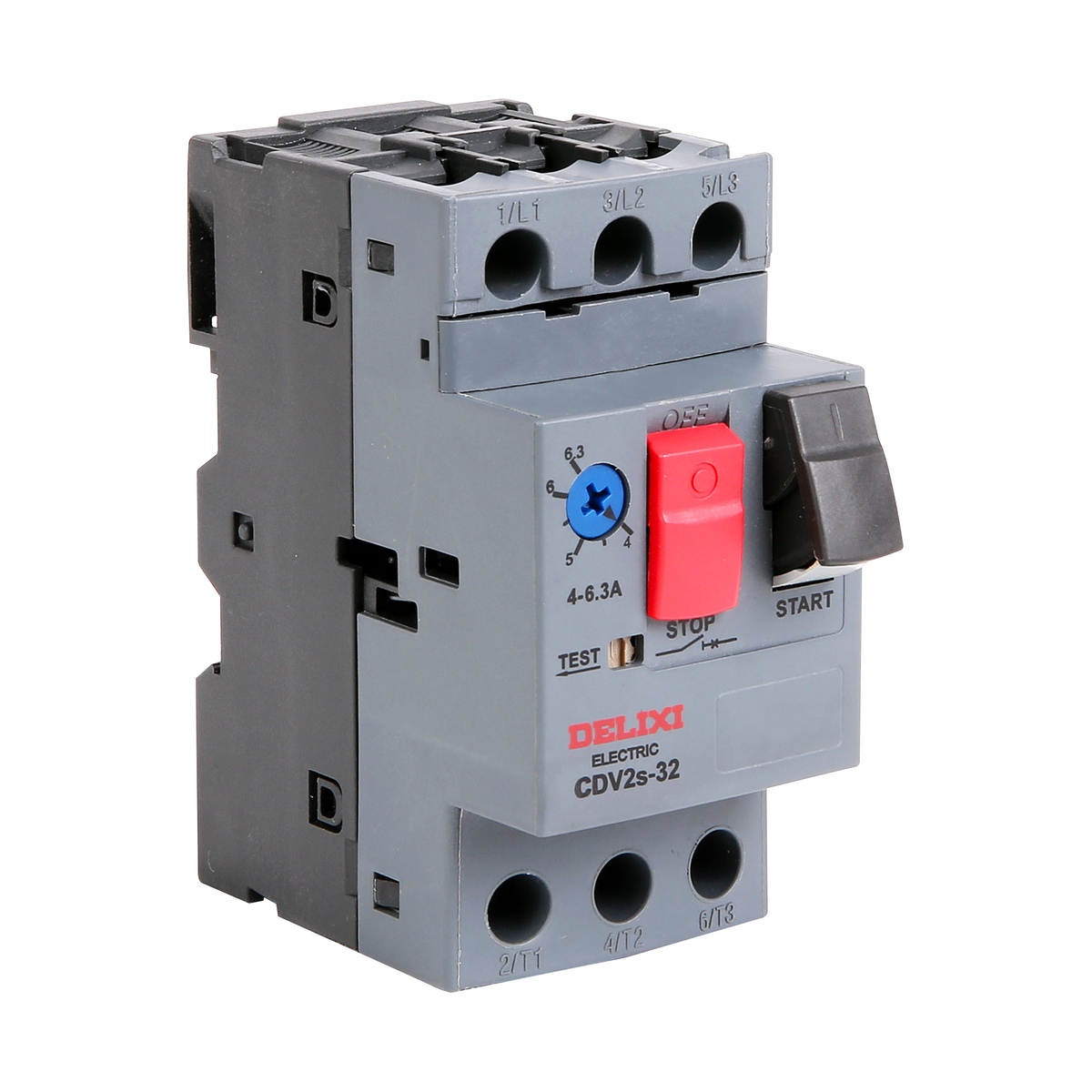

DELIXI CDV2s/CDV2sX 3P Motor Protection Breaker, 0.1–32A

DELIXI CDV2s motor protection circuit breakers combine thermal overload, phase-failure and short-circuit protection. Select the current-setting range and pushbutton or rotary operation.

Model
Poles
Current Setting Range
Operation
Add to Enquiry
Categories: Electrical Accessories, Delixi Contactor & Overload Relays
  • Description
  • Catalog
Description

DELIXI ELECTRIC · CDV2s / CDV2sX

Product overview

DELIXI CDV2s motor protection circuit breakers combine thermal overload, phase-failure and short-circuit protection. Select the current-setting range and pushbutton or rotary operation.

Technical selection summary

Setting ranges0.1–0.16A, 0.16–0.25A, 0.25–0.4A, 0.4–0.63A, 0.63–1A, 1–1.6A, 1.6–2.5A, 2.5–4A, 4–6.3A, 6–10A, 9–14A, 13–18A, 17–23A, 20–25A, 24–32A
Construction3P; 32A frame; pushbutton CDV2s orrotary CDV2sX
Duty / frequencyAC-3; 50/60Hz; up to690V subject to the exact current/voltage breaking table
Trip class10A; magnetic setting depends on current range
Breaking capacityCurrent- and voltage-specific Icu/Ics; use the attached manufacturer table, not a universal100kA rating
CoordinationMatch motor current, CJX2s contactor and backup fuse to the exact catalogue row

The catalogue setting-range row0.16–0.25A is corroborated by its breaking table; an obvious1.06 typo in the order table is not reproduced. Icu/Ics fall substantially with voltage and current; use the exact table for coordination. Accessories require their actual control voltage.

Typical applications

  • Electrical distribution or control circuits within the selected manufacturer ratings.

Product reference images and drawings

CDV2s-CDV2sX official English technical catalogue page 140CDV2s-CDV2sX official English technical catalogue page 141CDV2s-CDV2sX official English technical catalogue page 142CDV2s-CDV2sX official English technical catalogue page 144CDV2s-CDV2sX official English technical catalogue page 145
Catalog
NameSizeRelease timeOperate
Delixi CDV2s CDV2sX 3P Motor Protection Breaker.pdf423.70 KB2026-10-28Download
