CHINT · Phase protection relay
Product overview
The CHINT XJ3 family monitors a three-phase control supply. Select XJ3-G, XJ3-G1 or XJ3-D by the required protection function; their functions and response times differ.
Technical selection summary
| Manufacturer models | XJ3-G / XJ3-G1 / XJ3-D |
|---|---|
| Control supply | AC 380 V, 50/60 Hz in this manufacturer reference |
| XJ3-G | Phase failure, phase sequence and three-phase unbalance; listed unbalance range 8–13% |
| XJ3-G1 | Phase failure and phase sequence |
| XJ3-D | Phase failure, phase sequence, adjustable overvoltage AC 380–460 V and undervoltage AC 300–380 V |
| Response reference | Phase failure/sequence: G/G1 ≤2 s; D ≤1 s. D overvoltage delay 1.5–4 s; undervoltage delay 2–9 s |
| Output and mounting | One changeover contact; match the model-specific AC-15 duty and terminal drawing. DIN rail / soleplate arrangement by model |
| Standard | IEC/EN 60947-5-1 manufacturer reference |
A 400 V selector or a generic 0.1 s response is not established by this AC 380 V reference. The relay monitors the documented supply terminals; installation and fault coverage must follow the wiring diagram. Contact current is signal duty, not motor main-circuit current.
Typical applications
- Three-phase motor control monitoring
- Phase-sequence and supply-fault supervision
Product reference images and drawings

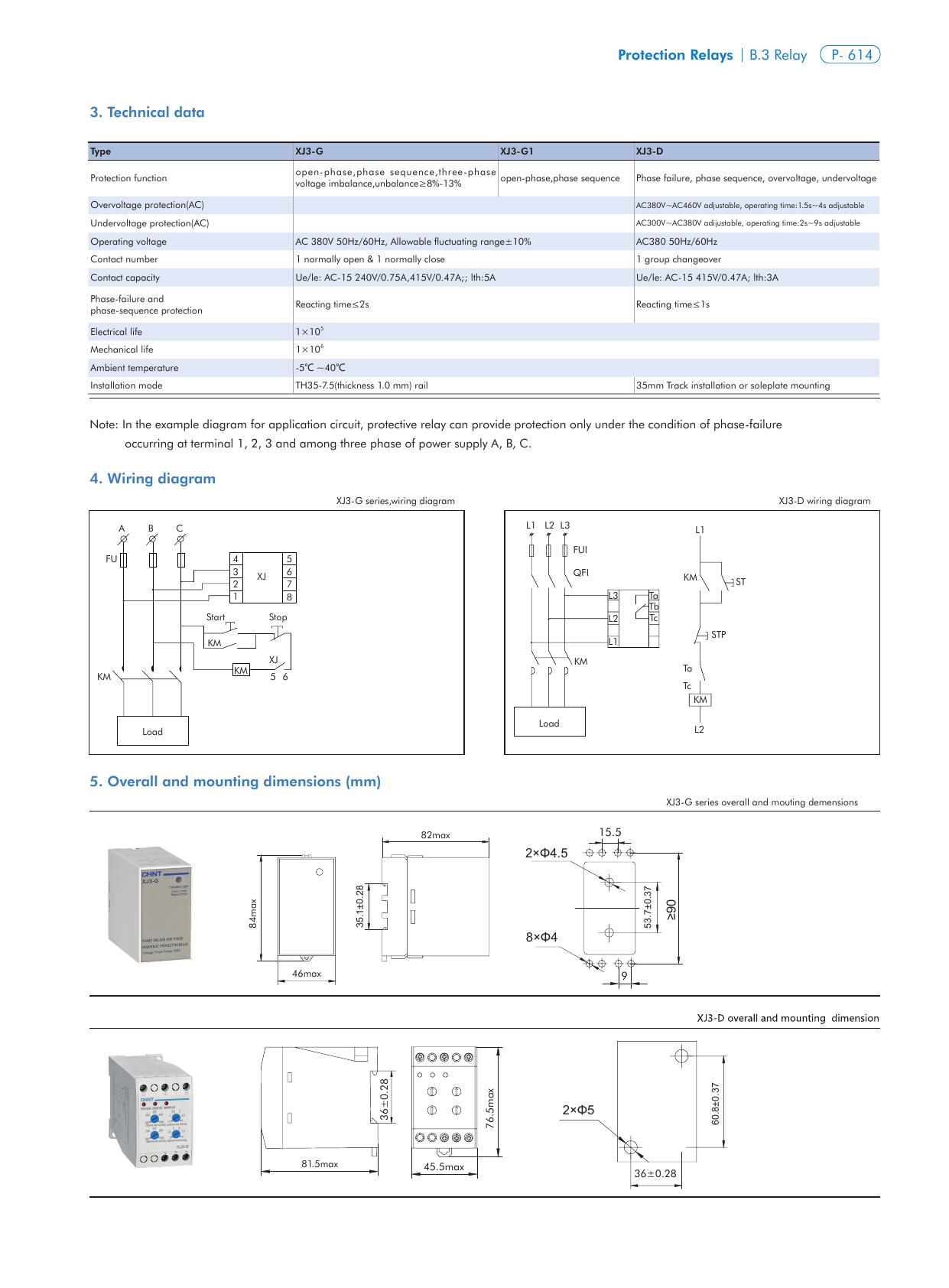

Use the drawing and rating row for the complete manufacturer model and supplied version. Family references may show other constructions.
