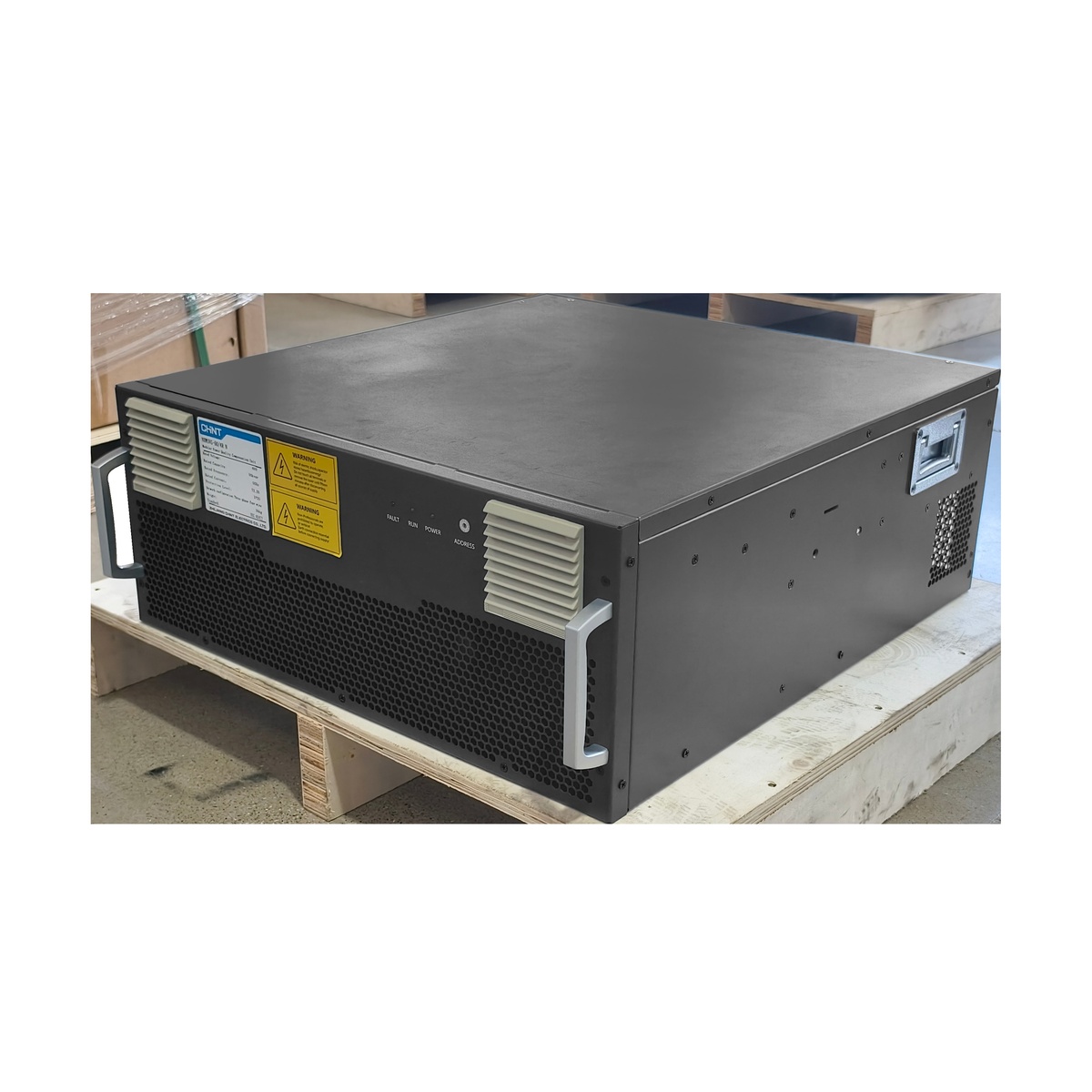

CHINT NXW Series Power Quality Module (APF/SVG)

Power quality module adopting latest power electronic converter technology for reactive power compensation, harmonic filtering, and three-phase unbalance management.

Add to Enquiry
SKU: NXW Category: Others
  • Description
  • Catalog
Description

CHINT · Modular power quality compensation unit

Product overview

The CHINT NXW series modular power quality unit integrates advanced power electronics and digital control algorithms to deliver reactive power compensation, harmonic filtering, and three-phase unbalance correction. Available in active power filter (NXWAPF) and static var generator (NXWSVG) configurations for rack or wall mounting.

Technical selection summary

Manufacturer / seriesCHINT NXW modular power quality power unit family
Configuration modulesNXWAPF (Active Power Filter) and NXWSVG (Static Var Generator)
Rated input line voltageAC 380 V (-20% to +20%)
Grid frequency50 Hz (±5%)
System topologyThree-level power conversion topology; overall efficiency ≥97%
NXWAPF compensation current50 A, 75 A, 100 A, 150 A rated compensation capacity
NXWAPF harmonic filteringFilters 2nd to 50th harmonic orders; filtering compensation rate ≥95%
NXWSVG reactive capacity30 kvar, 50 kvar, 75 kvar, 100 kvar rated reactive power capacity
NXWSVG power factor regulationContinuously adjustable power factor from -1 to +1 (inductive to capacitive)
Response timeFull response time <5 ms; intelligent FFT and instantaneous reactive power algorithms
Cooling & acoustic noiseIntelligent variable-speed fan air-cooling; noise ≤65 dB
Communication interfaceRS485 interface with Modbus protocol; compatible with NXWK touch-screen controller
Protection functionsComprehensive overvoltage, undervoltage, output current limiting, overcurrent, overtemperature, and DC bus protection
Mounting & standardRack-mounted or wall-mounted modular installation; complies with DL/T 1216 and JB/T 11067

Verify system configuration (APF harmonic filtering vs SVG reactive compensation), required current/kvar rating, rack or wall enclosure constraints, and CT secondary rating (5 A) before ordering. Dedicated NXWK touch screen controller and parallel expansion available.

Typical applications

  • Power quality optimization in commercial buildings, data centers, and manufacturing plants
  • Harmonic mitigation and power factor correction for non-linear industrial loads

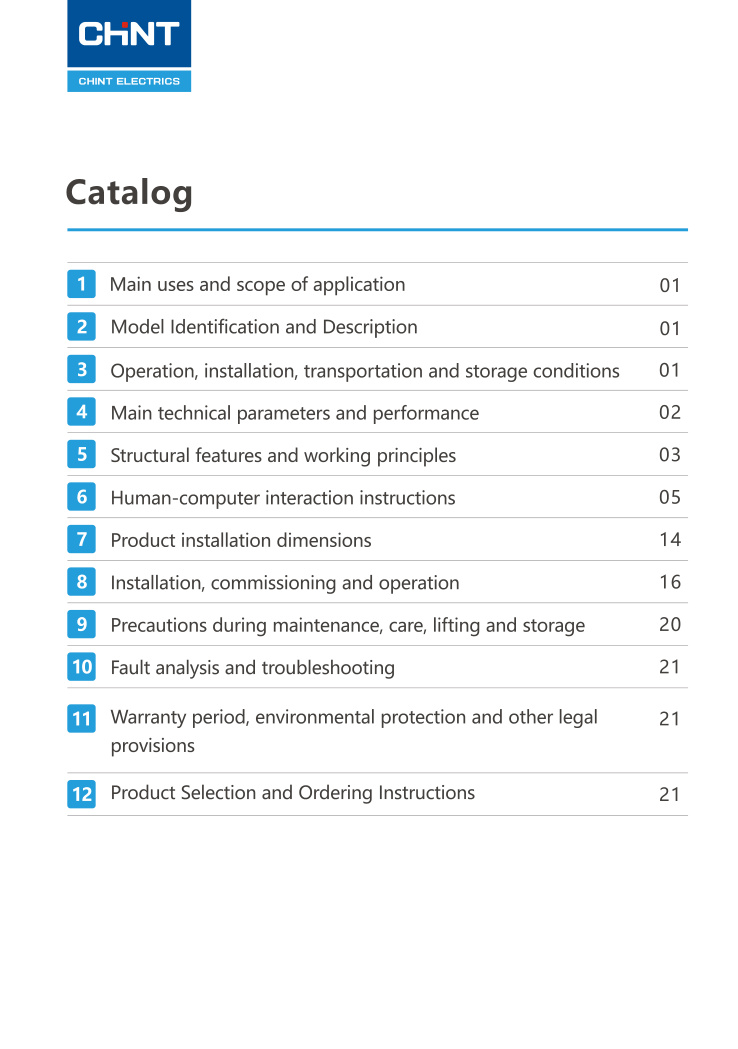

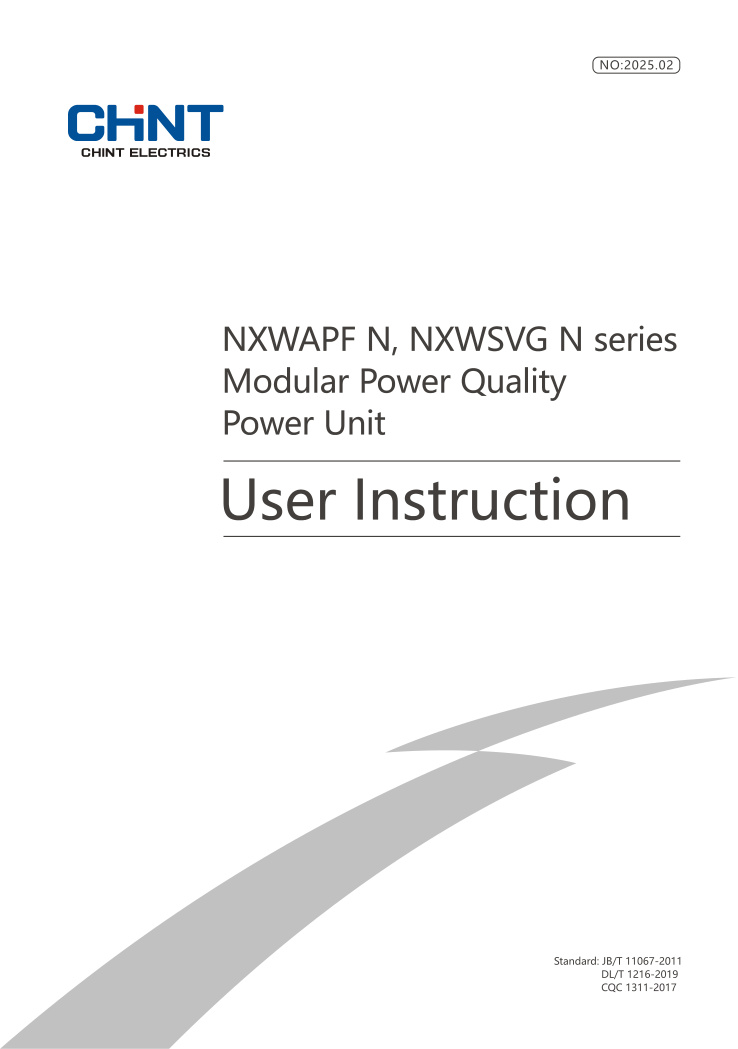

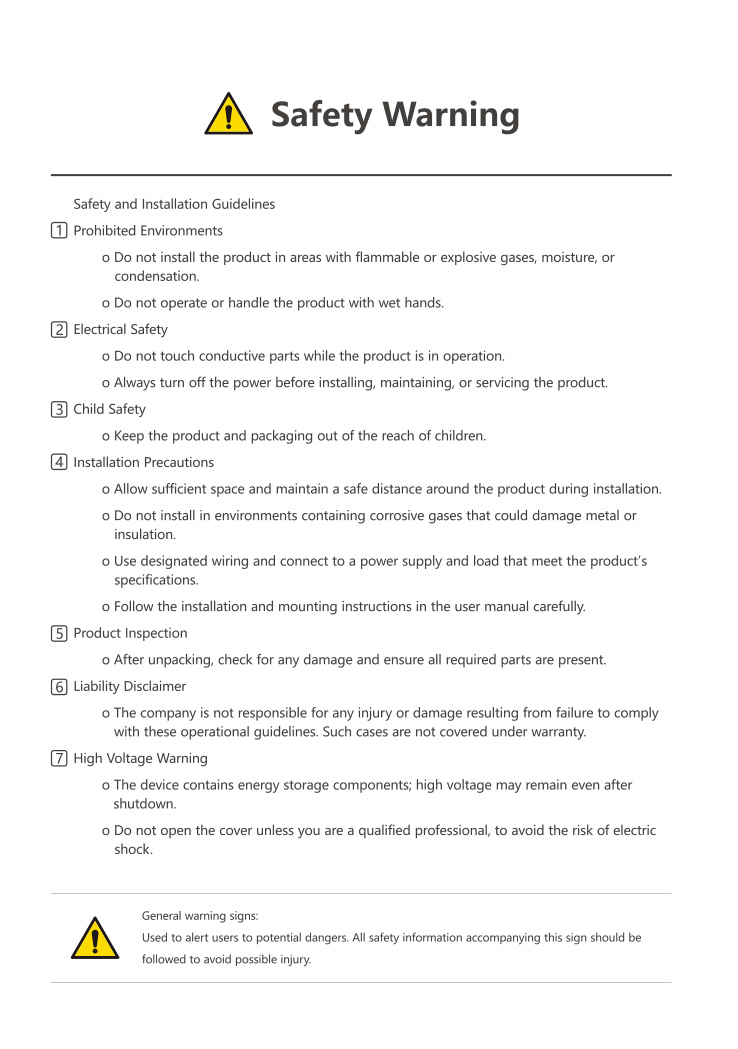

NXW manufacturer product documents

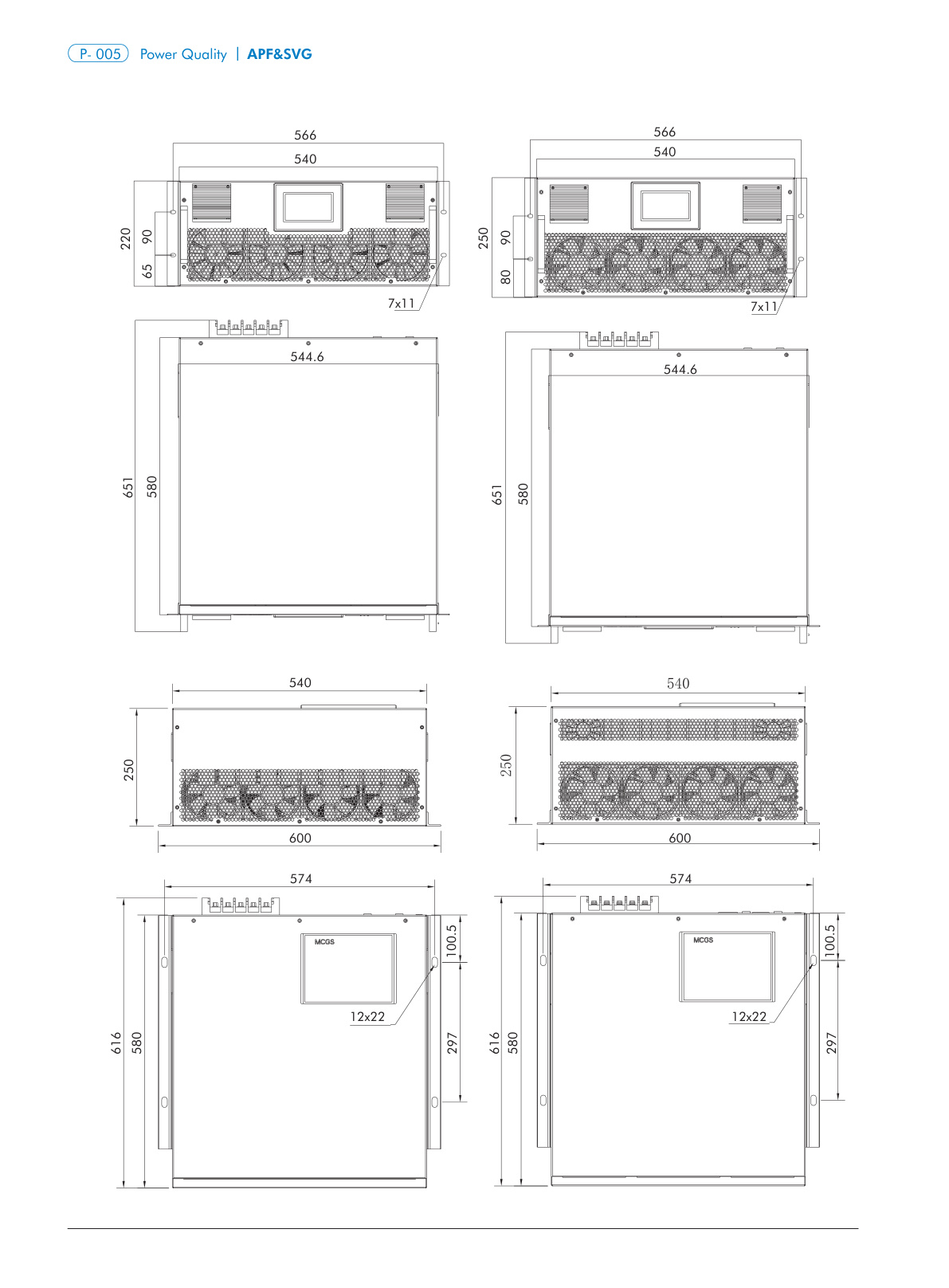

Product reference images and drawings

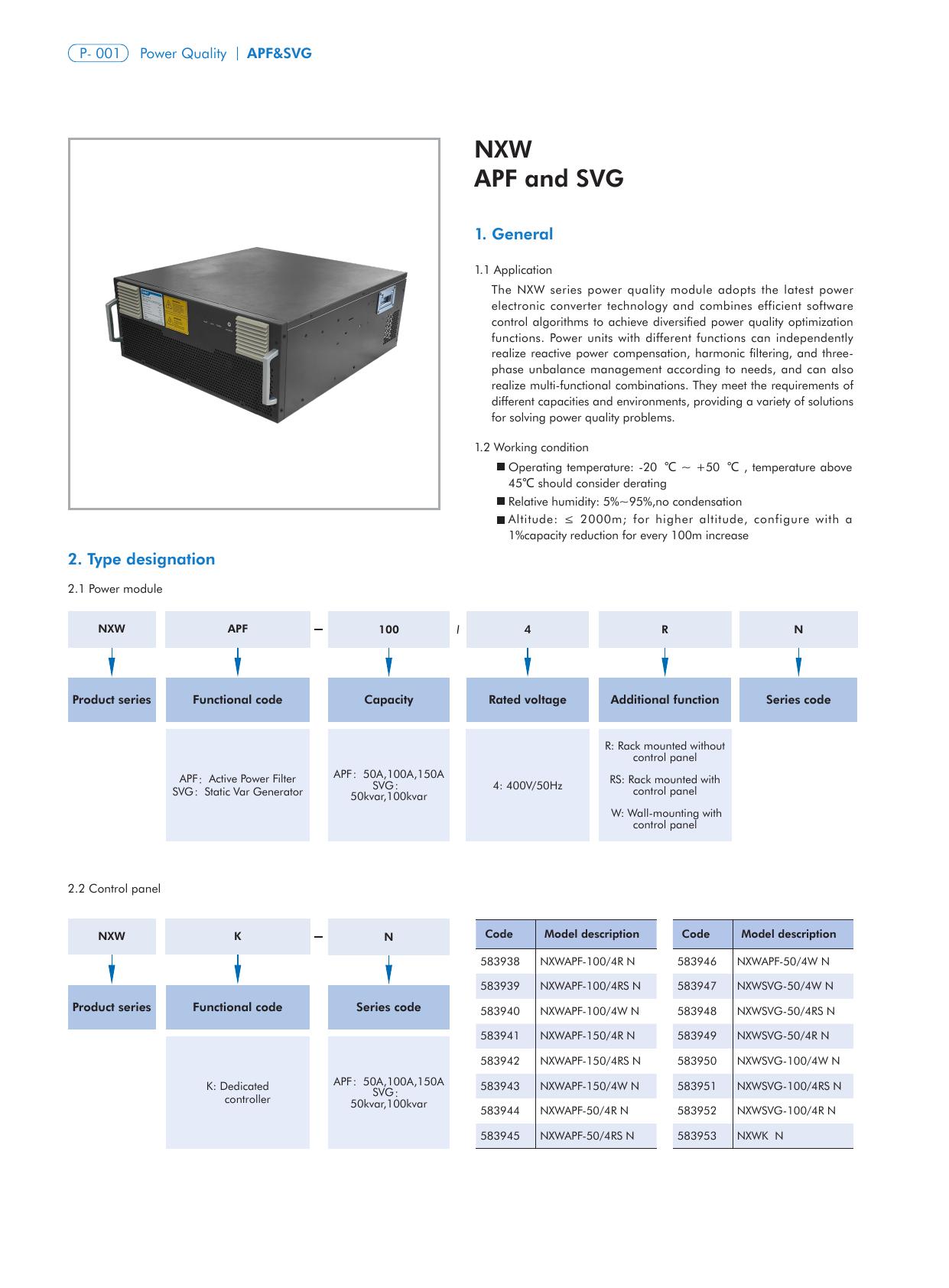

CHINT NXW original catalogue overview
Catalog
NameSizeRelease timeOperate
