DELIXI JRS1 Thermal Overload Relay, 0.1–80A
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi Contactor & Overload Relays DELIXI JRS1 Thermal Overload Relay, 0.1–80A
People Electric JRS8 Thermal Overload Relay, 0.1–500A
People Electric JRS8 Thermal Overload Relay, 0.1–500A
Back to products
DELIXI HR17 Fuse-Switch Disconnector, 32–800A
DELIXI HR17 Fuse-Switch Disconnector, 32–800A

DELIXI JRS1 Thermal Overload Relay, 0.1–80A

DELIXI JRS1 provides motor overload and phase-failure protection. Choose the current-setting range first,then the matching frame where more than one is listed.

Model
Current Setting Range
Frame
Contact Form
Add to Enquiry
Category: Delixi Contactor & Overload Relays
  • Description
  • Additional information
  • Technical Documents
  • Selection & Ordering
Description

DELIXI ELECTRIC · JRS1

Product overview

DELIXI JRS1 provides motor overload and phase-failure protection. Choose the current-setting range first, then the matching frame where more than one is listed.

Technical selection summary

Frames / current scope25 and 80; 20 exact frame/range rows from0.1–80A
Trip classJRS1-25:10A; JRS1-80:10
Main insulationUi660V
FunctionsOverload and phase failure; manual reset and stop; automatic reset and test button not provided in this table
Auxiliary contacts1NO+1NC; AC-15:220V1.64A, 380V0.95A; Ith6A
Contactor / mountingUse exact CJX2 matching row; 63–80A is the independent JRS1 80 80F row

JRS1 is not JRS1D, JRS1Ds orJRS1Dsp. Keep its exact10–13A, 13–18A, 18–25A and 80-frame ranges; do not substitute another relay family setting range.

Typical applications

  • Motor overload and phase-failure control circuits.

JRS1 manufacturer selection reference (PDF)

Product reference images and drawings

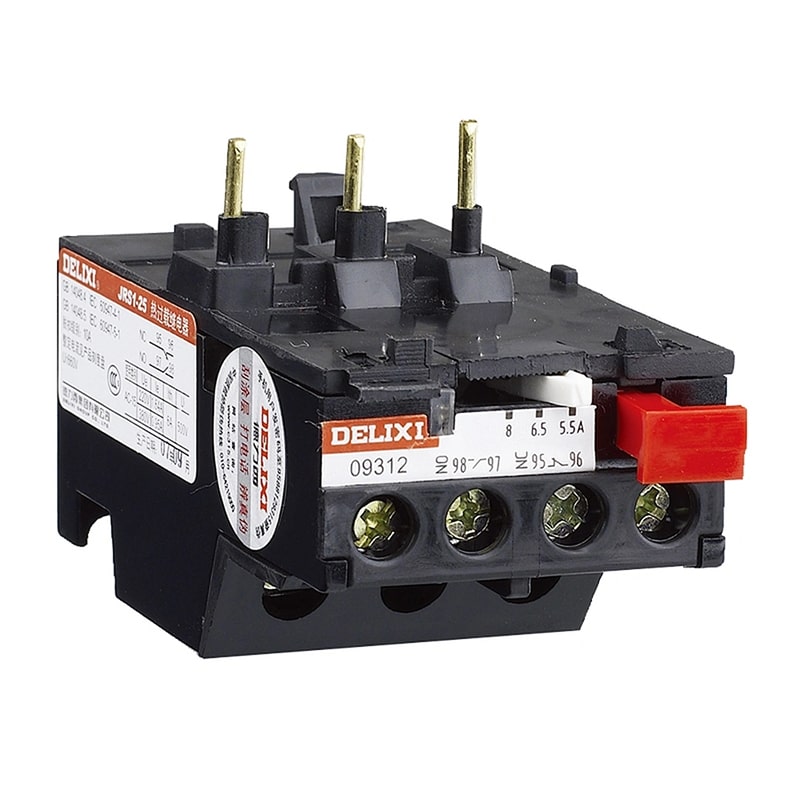

JRS1 exact manufacturer selection and ratings page 1JRS1 exact manufacturer selection and ratings page 2JRS1 exact manufacturer selection and ratings page 3
Additional information
Model

JRS1

Current Setting Range

0.1–0.16A, 0.16–0.25A, 0.25–0.4A, 0.4–0.63A, 0.63–1A, 1–1.6A, 1.6–2.5A, 2.5–4A, 4–6A, 5.5–8A, 7–10A, 10–13A, 13–18A, 18–25A, 23–32A, 30–40A, 38–50A, 48–57A, 57–66A, 63–80A

Frame

25, 80

Contact Form

1NO+1NC

Technical Documents

TECHNICAL RESOURCES

Documents for DELIXI JRS1 Thermal Overload Relay, 0.1–80A

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.

Related products

DELIXI CDC19s Capacitor Contactor, 12–90 kvar at 400V
DELIXI CDC19s Capacitor Contactor, 12–90 kvar at 400V

DELIXI CDC19s Capacitor Contactor, 12–90 kvar at 400V

DELIXI CDC19s switches capacitor banks for power-factor correction. Select the linked frame/capacitor-duty and auxiliary-contact version, then choose its control coil.
DELIXI JRS1Ds Thermal Overload Relay, 0.1–93A

DELIXI JRS1Ds Thermal Overload Relay, 0.1–93A

DELIXI JRS1Ds protects motors against overload and phase failure. Select the current-setting range first, then a matching 25, 36 or 93 frame.
DELIXI CDC6H AC Contactor

DELIXI CDC6H AC Contactor

DELIXI AC contactor for motor control and industrial switching applications.
DELIXI JQX-10F/JTX Plug-in Relay, 10A

DELIXI JQX-10F/JTX Plug-in Relay, 10A

DELIXI JQX-10F and JTX are plug-in electromagnetic relays. Select the documented contact construction and coil voltage.
DELIXI CJX2H-Z DC Control Contactor

DELIXI CJX2H-Z DC Control Contactor

DELIXI DC control contactor for motor control and switching applications.
DELIXI CJX2M 3-Pole Mini Contactor, 6–12A

DELIXI CJX2M 3-Pole Mini Contactor, 6–12A

DELIXI CJX2M is a compact three-pole contactor for motor control. Select its AC-3 current at 380V, built-in auxiliary contact and AC or DC coil voltage.
DELIXI CJX2-N Reversing AC Contactor

DELIXI CJX2-N Reversing AC Contactor

Series illustration. DELIXI CJX2-N provides interlocked reversing control. Model size and AC-4 rated operating current are separate selections; the model numeral is not the AC-4 current.

DELIXI CDS2s Electromagnetic Starter

DELIXI CDS2s Electromagnetic Starter

DELIXI motor control and protection product for industrial control, switching, starter and motor protection applications.
