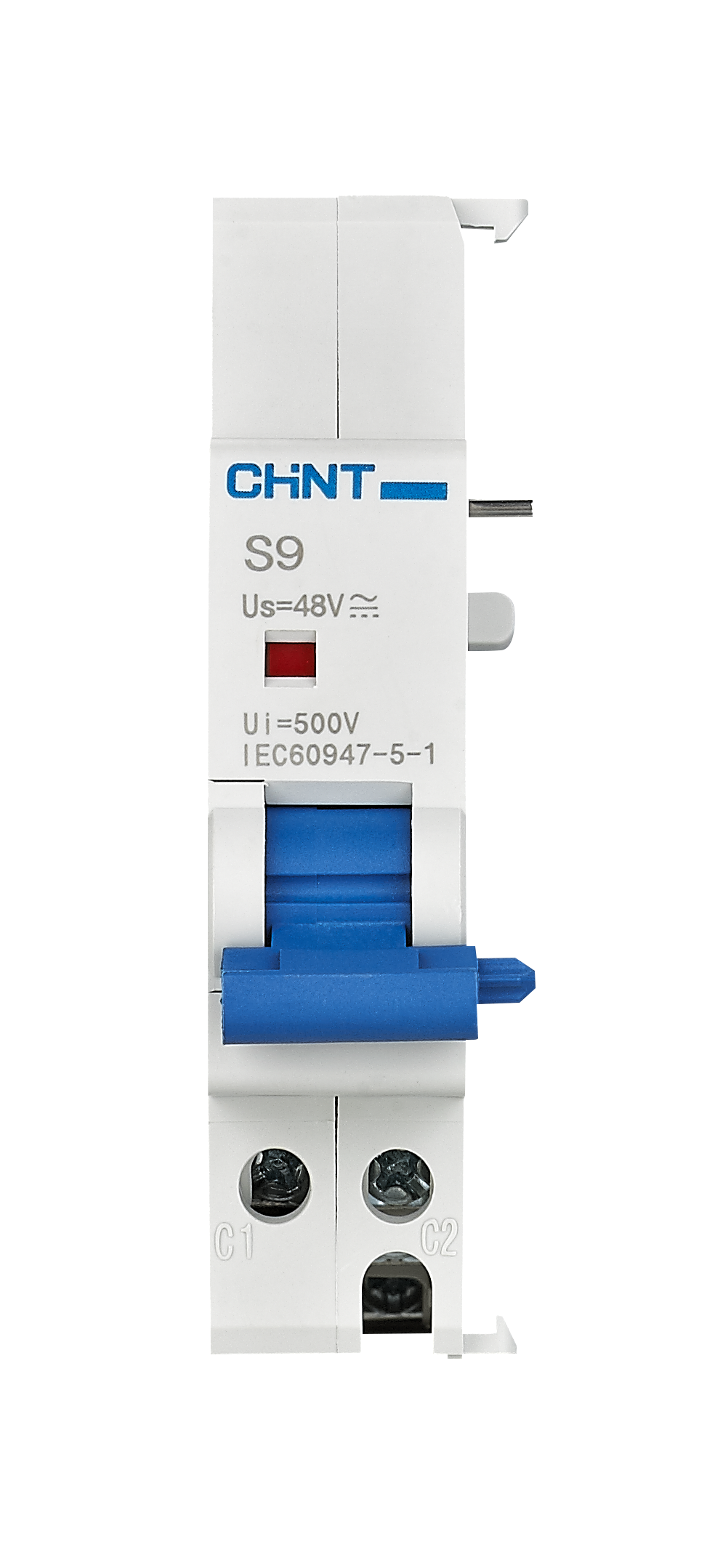

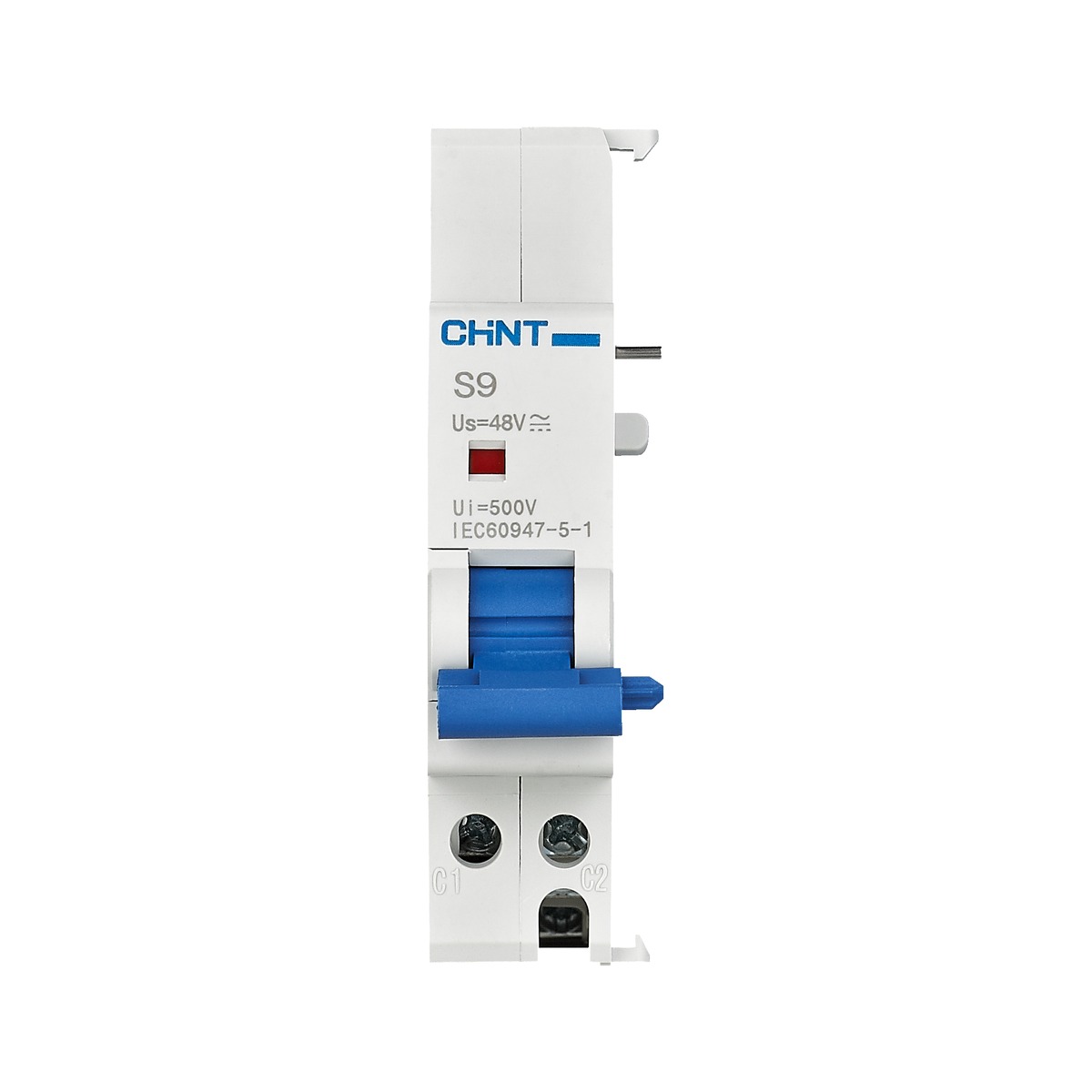

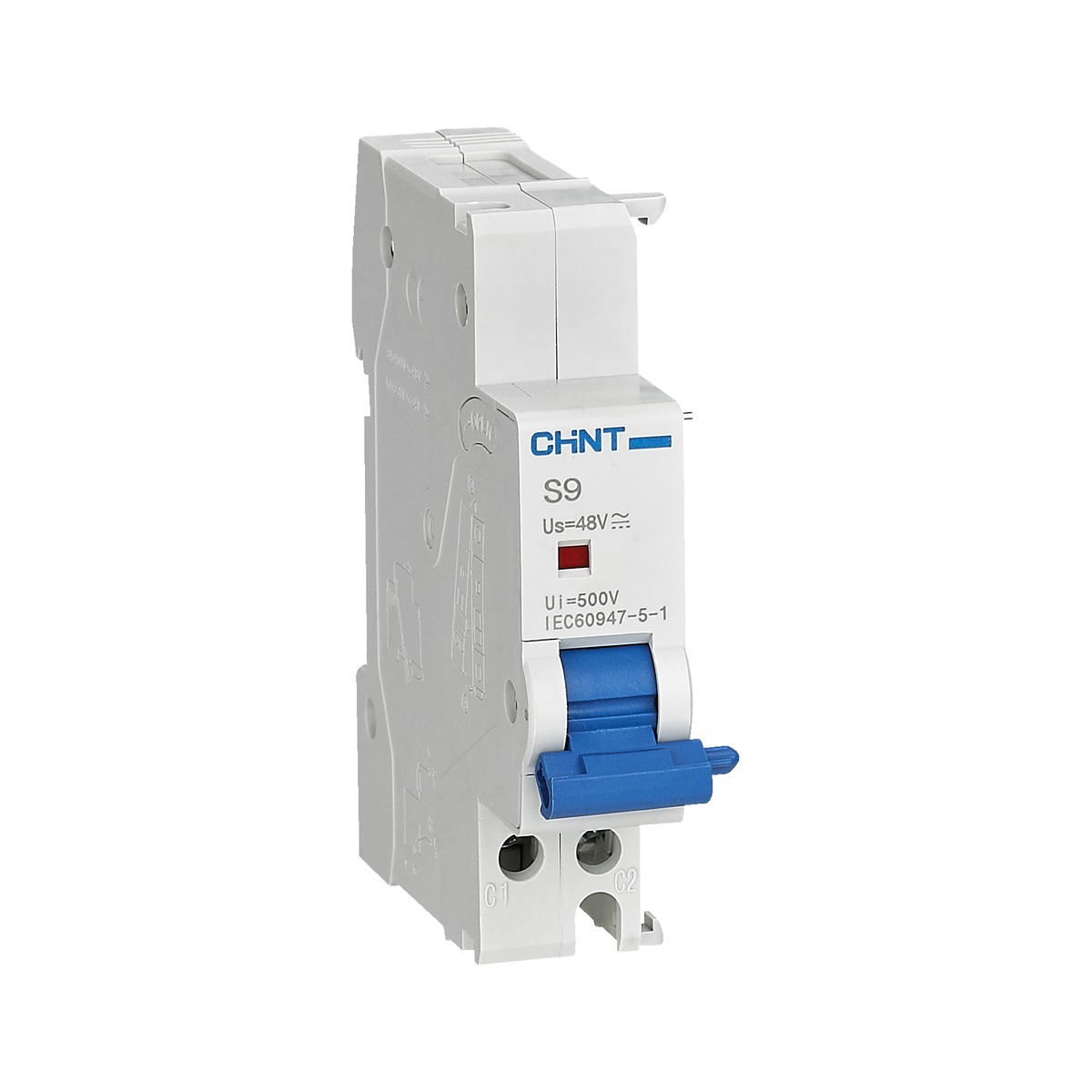

CHINT S9 Shunt Release for Circuit Breakers

CHINT S9 remotely opens a compatible circuit breaker when its rated control voltage is applied. Choose the exact release supply voltage.

Model
Configuration
Add to Enquiry
Category: Chint MCB

What is Chint Shunt Release?

The CHINT S9 Shunt Release for Circuit Breakers is a shunt trip release - an electrical accessory that mounts on MCBs (Miniature Circuit Breakers) to enable remote tripping. When control voltage (230V / 400V) is applied, the shunt release instantly trips the MCB, disconnecting the circuit.

Common Applications

  • Emergency Stop - Central emergency shutdown of multiple circuits
  • Fire Safety Systems - Interface with fire alarm to cut non-essential power
  • Remote Control - Switch off circuits from control room
  • Automation Integration - Controlled by BMS or PLC systems
  • Alarm Integration - Trip on security/intrusion alarms

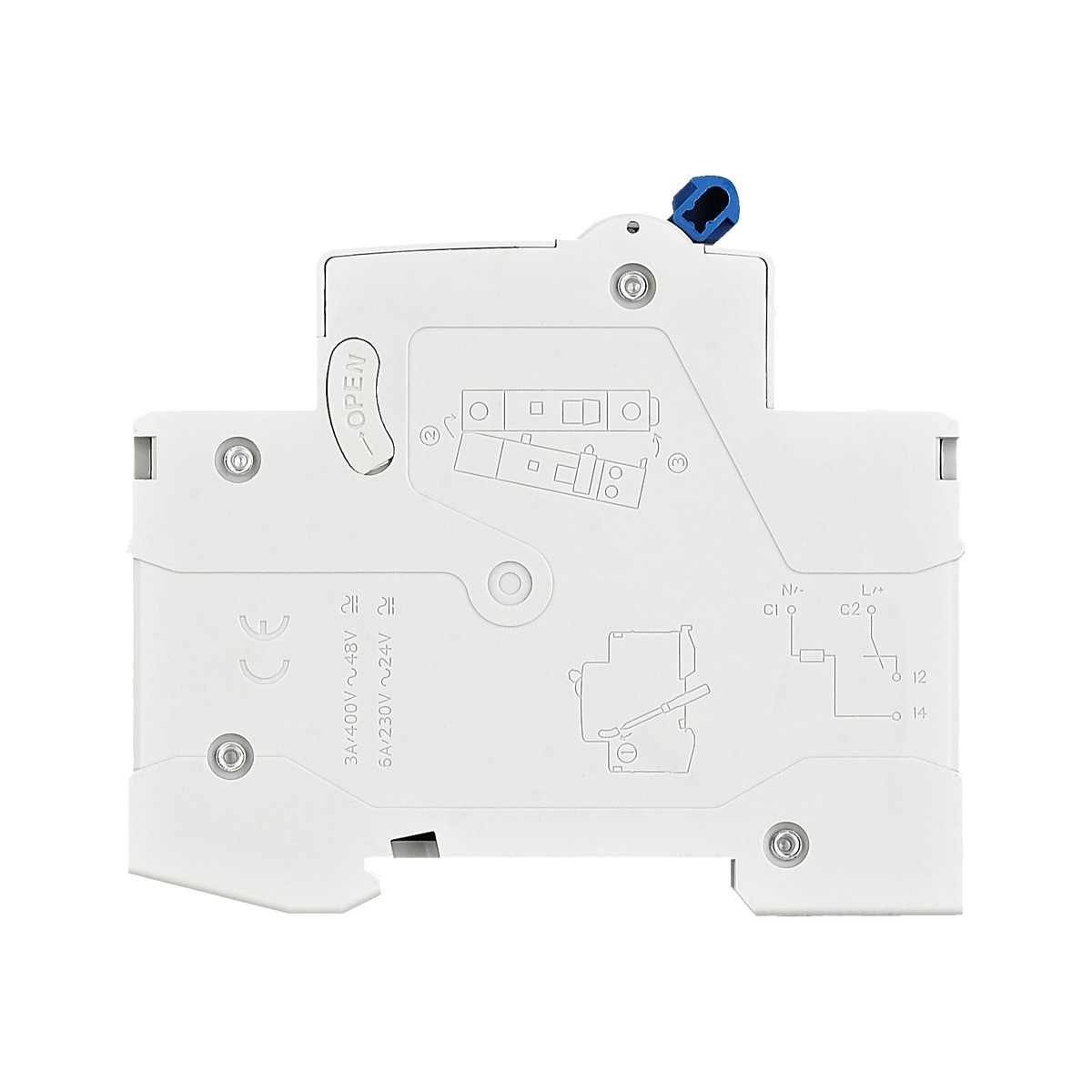

How It Works

The shunt release contains an electromagnet coil. When energized with control voltage, the coil creates a magnetic field that mechanically trips the MCB's operating mechanism. The MCB latches in the OFF position until manually reset.

Technical Specifications

ModelChint
Control Voltage230V / 400V
CompatibilityChint NXB, NB1, NBH8 series MCBs
MountingLeft side mounting on MCB
OperationInstant trip on voltage application

Installation Note

The Chint mounts on the left side of compatible MCBs. It requires a control voltage source (separate from the protected circuit). For emergency stop applications, use normally-open push buttons in series with the control voltage supply.

  • Description
  • Catalog
Description

CHINT · S9 Shunt Release for Circuit Breakers

Product overview

CHINT S9 remotely opens a compatible circuit breaker when its rated control voltage is applied. Choose the exact release supply voltage.

Technical selection summary

FunctionRemote opening / shunt trip
Supply versionsAC230/400 V or AC/DC12, 24, 48 V
MountingLeft side of a compatible MCB/RCBO

S9 is a shunt release, not a signal contact. Confirm host compatibility and the control supply before wiring.

Typical applications

  • CHINT S9 remotely opens a compatible circuit breaker when its rated control voltage is applied.

Product reference images and drawings

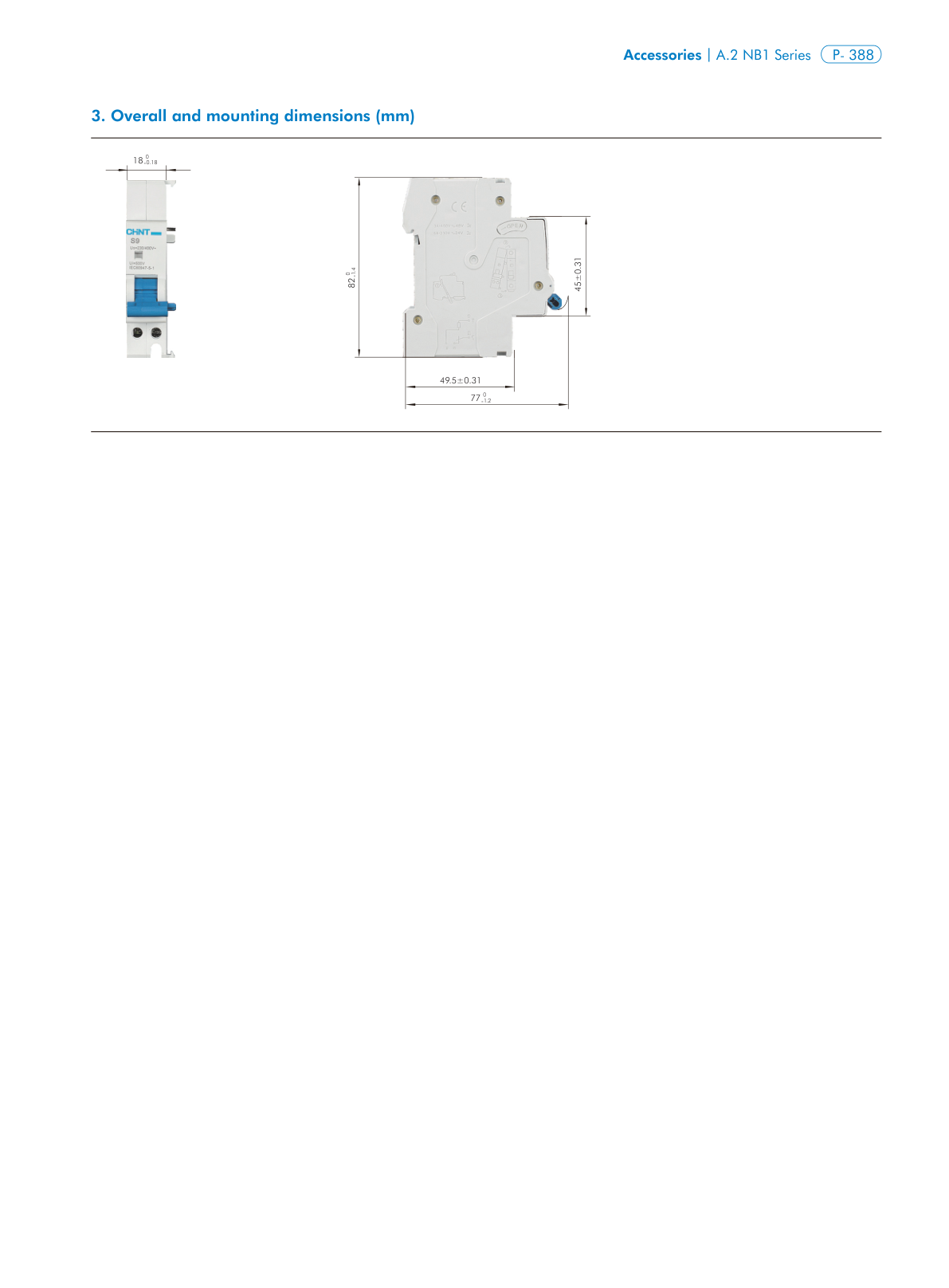

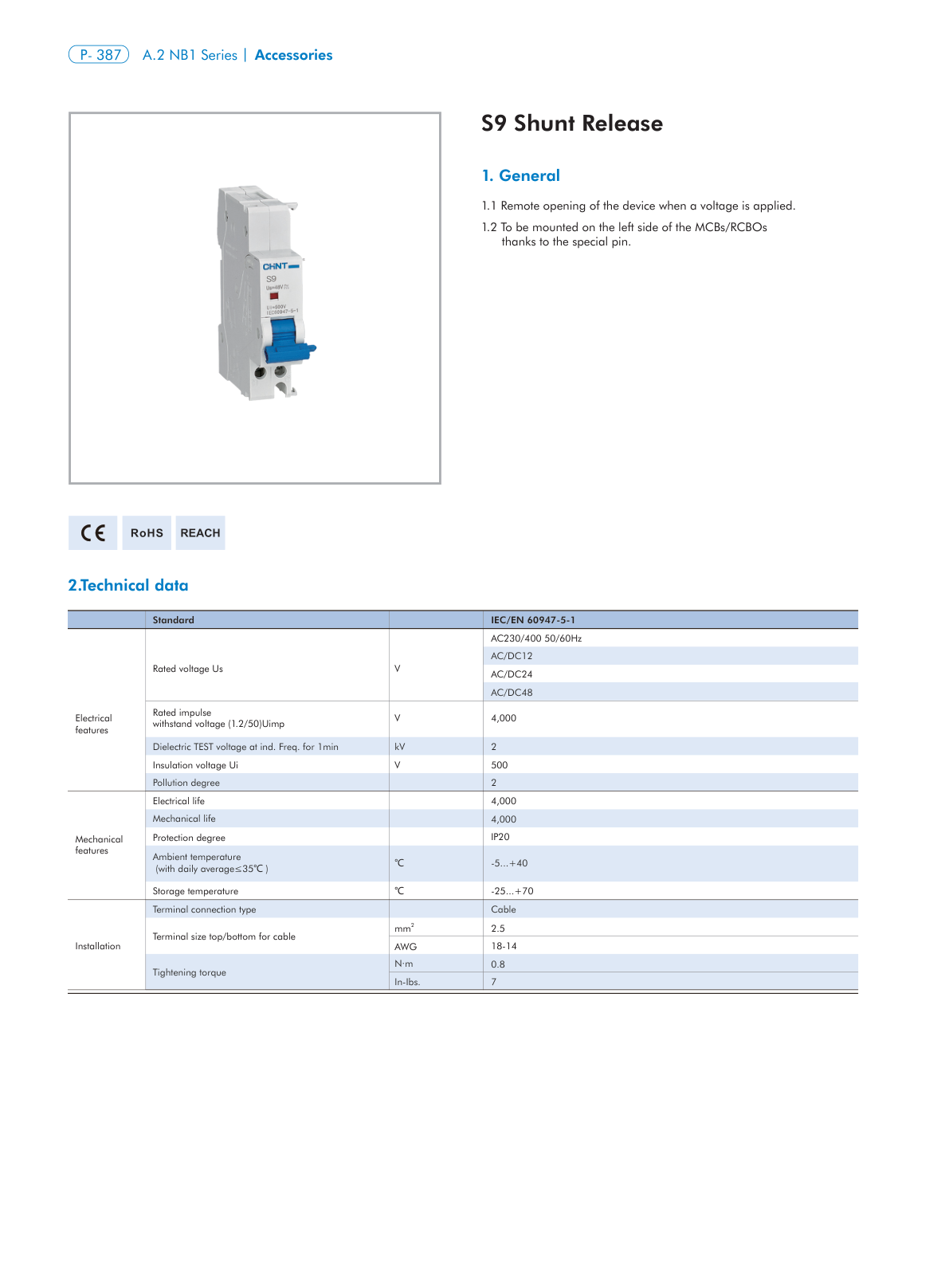

S9 manufacturer reference page 1S9 manufacturer reference page 2
Catalog
NameSizeRelease timeOperate
Chint S9 Shunt Release for Circuit Breakers.pdf240.95 KB2026-11-14Download
