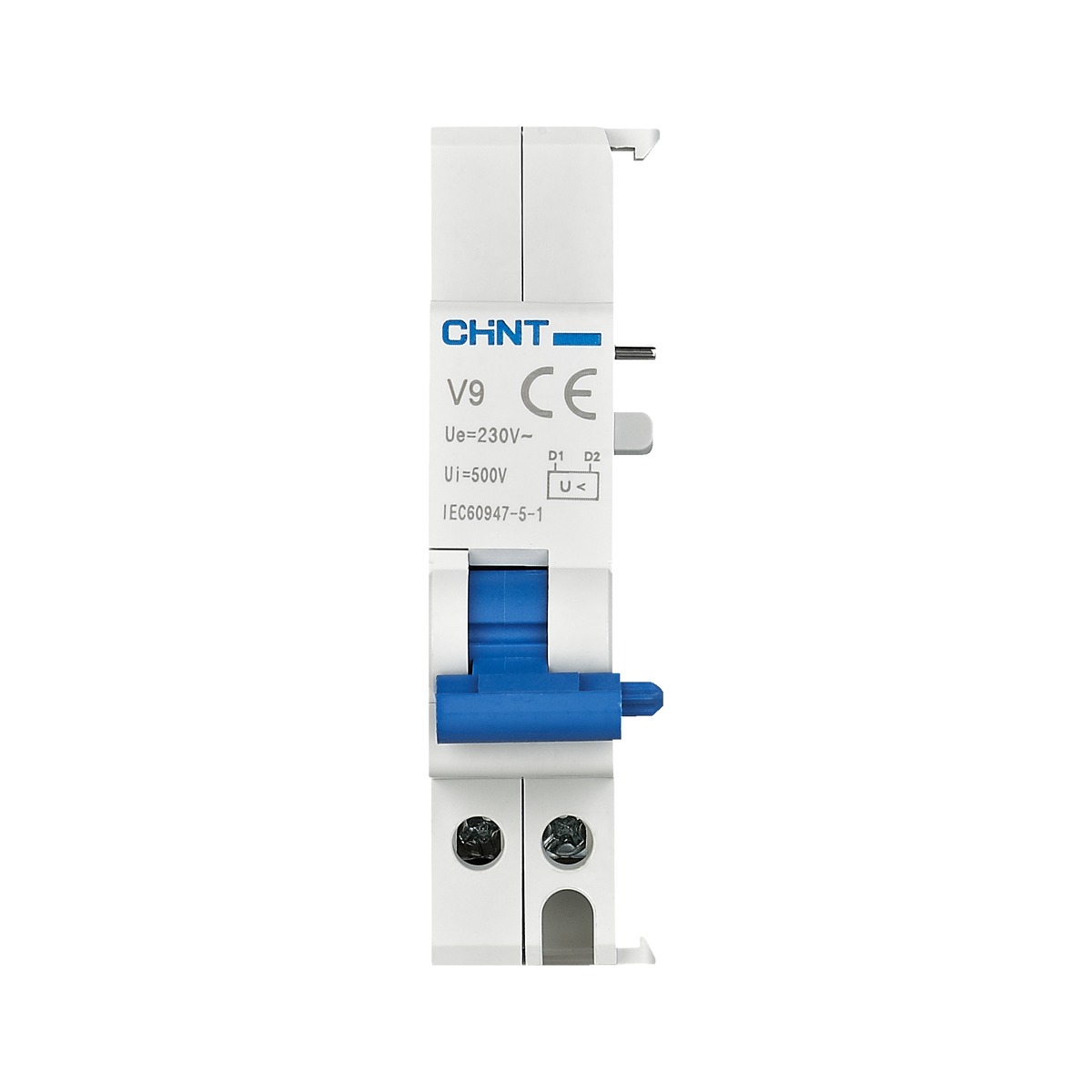

CHINT V9 Voltage Release Accessory for MCB

Brand Name: CHINT
Product Type: Voltage Release Accessory
Model: V9
Compatible Series: CHINT breaker systems
Application: Low-voltage breaker accessory for panel and distribution systems
Model
Add to Enquiry
Category: Chint MCB
  • Description
  • Catalog
Description

CHINT · Undervoltage release

Product overview

The CHINT V9 is an undervoltage-release accessory for the documented NB1-family circuit-breaker assembly. It trips the matched breaker when supply voltage falls into its action range.

Technical selection summary

Exact modelV9
FunctionUndervoltage release; AC 230 V, 50/60 Hz reference
Signal / action reference35–70% Ue: action range; below 35% Ue: prevents making; 85–110% Ue: normal operating range
Assembly referenceNB1 / NBH8 / NB1L / NBH8LE families in the manufacturer accessory table; verify exact breaker revision
InstallationLeft-side attachment using the documented pin arrangement; follow the terminal and assembly diagram
Manufacturer standardIEC/EN 60947-5-1

V9 is not the NXB-family UVT-X1. Confirm voltage, fail-safe action, compatible breaker and terminal diagram; it is not a voltage regulator.

Typical applications

  • Distribution or control panels matched to the exact device
  • Replacement procurement using complete CHINT model and assembly information

Product reference images and drawings

Match the exact manufacturer model, pole construction, voltage and connection drawing. Retained family images may show other versions.

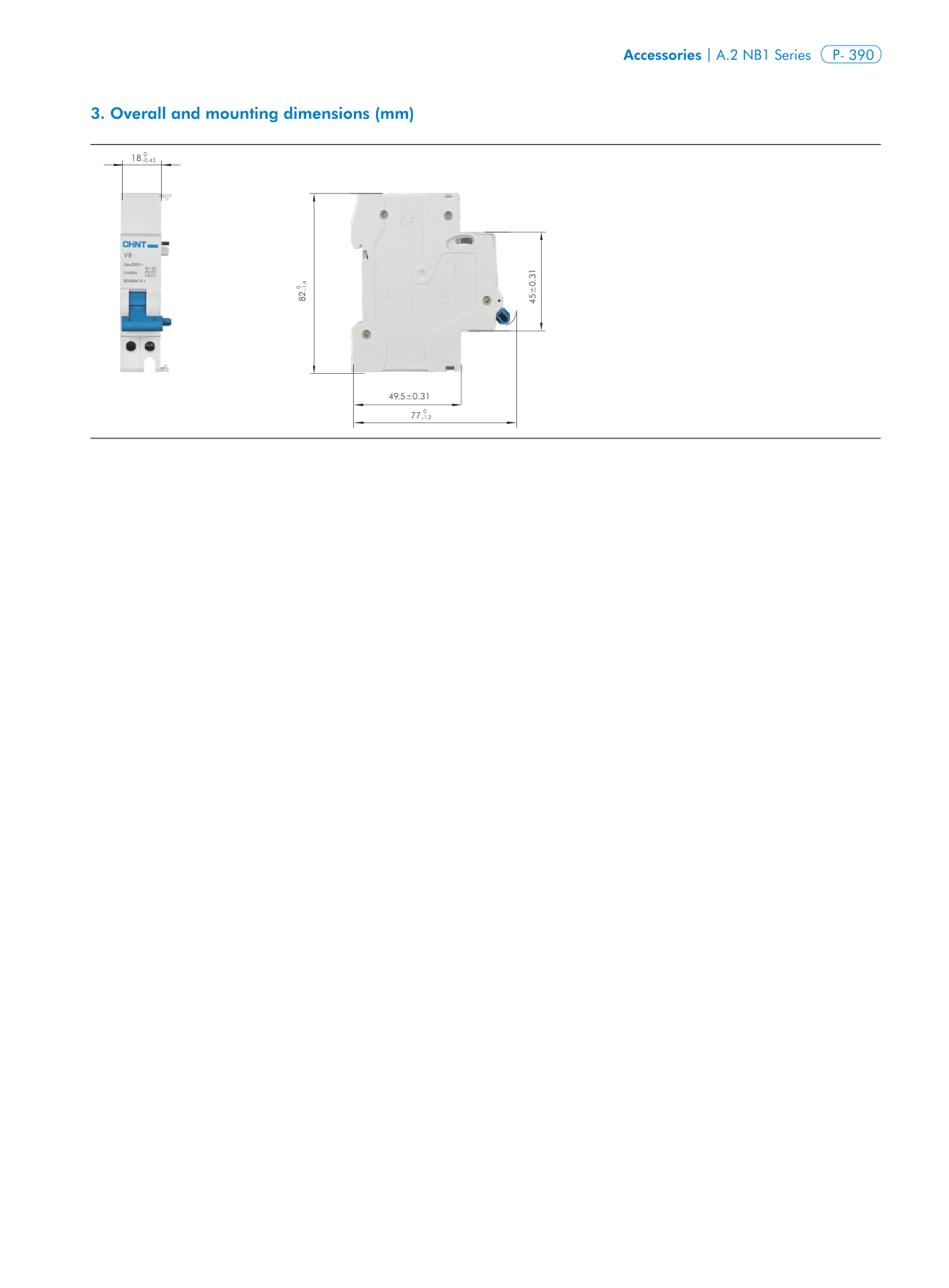

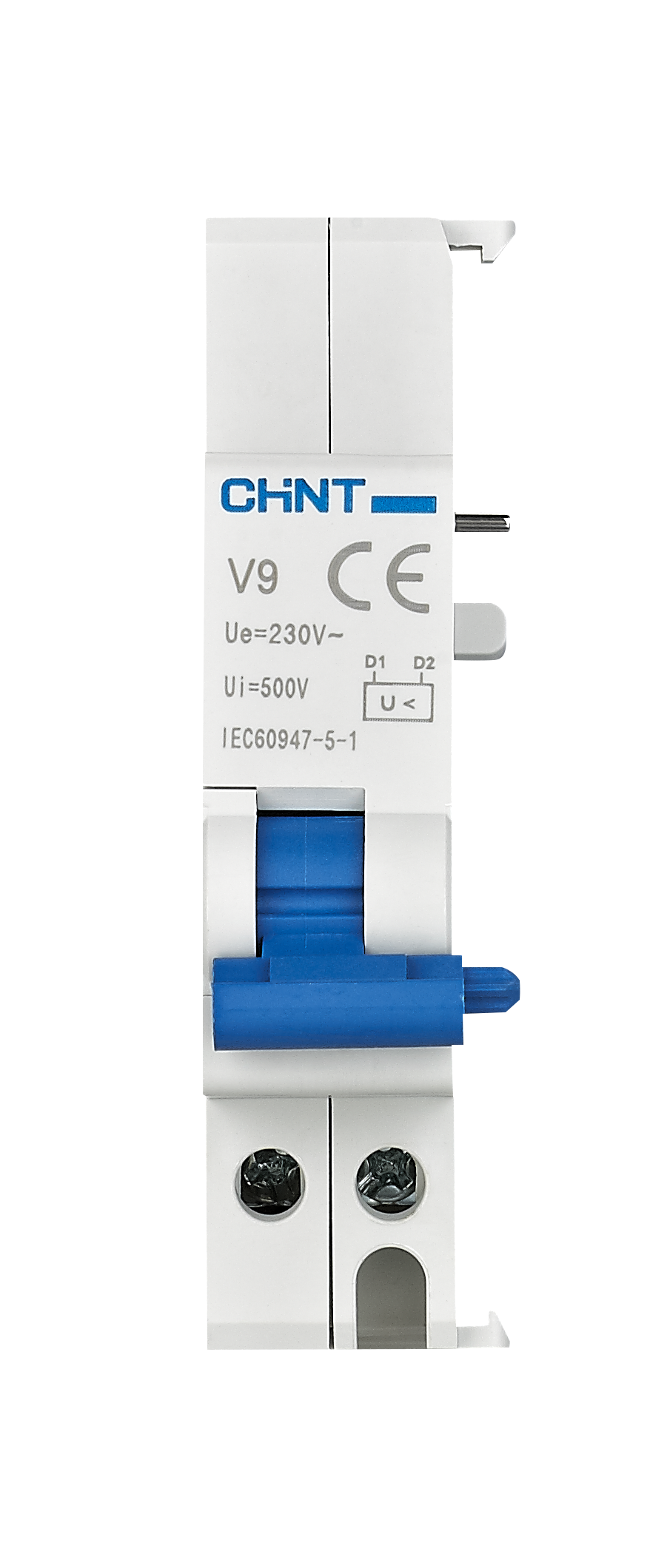

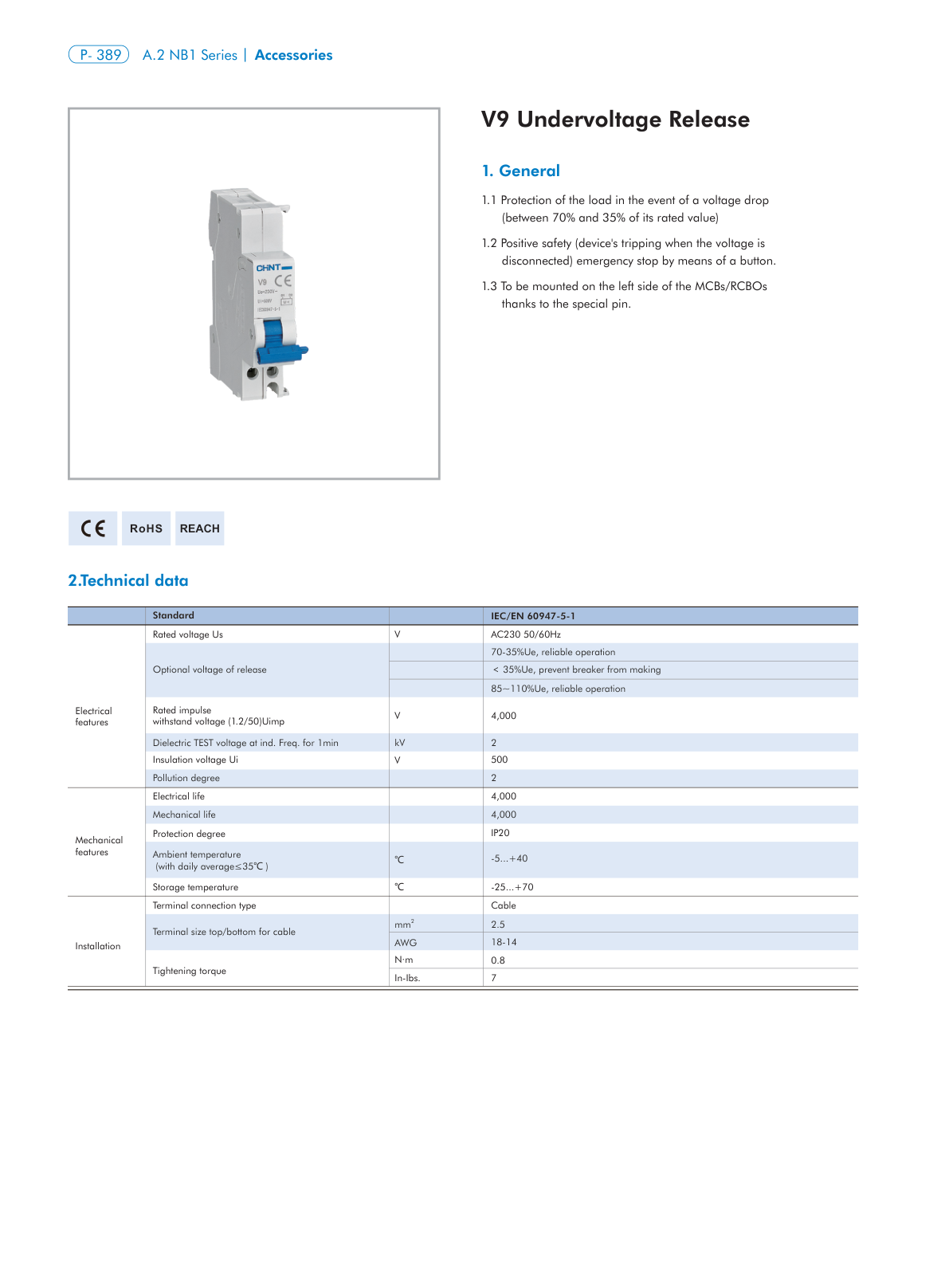

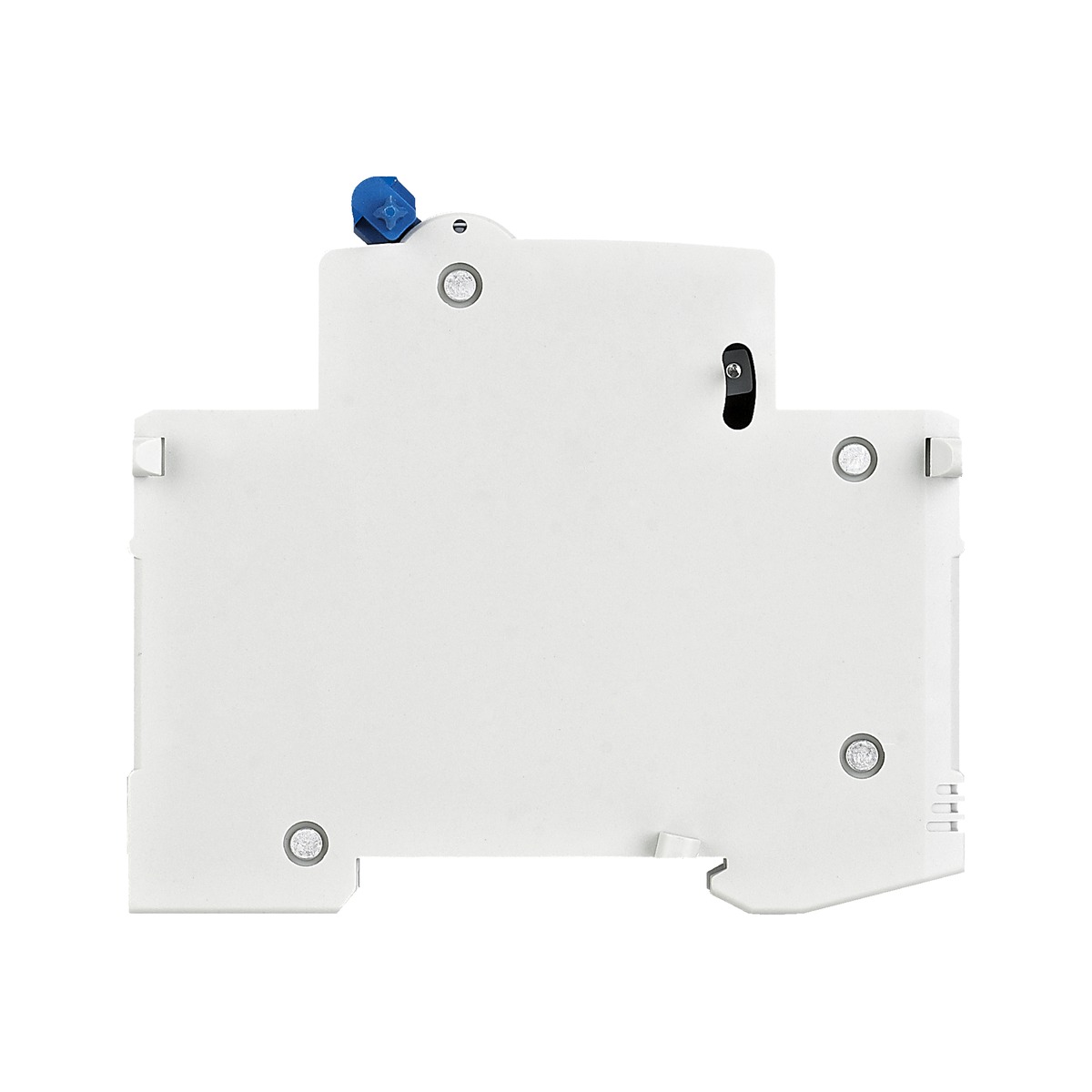

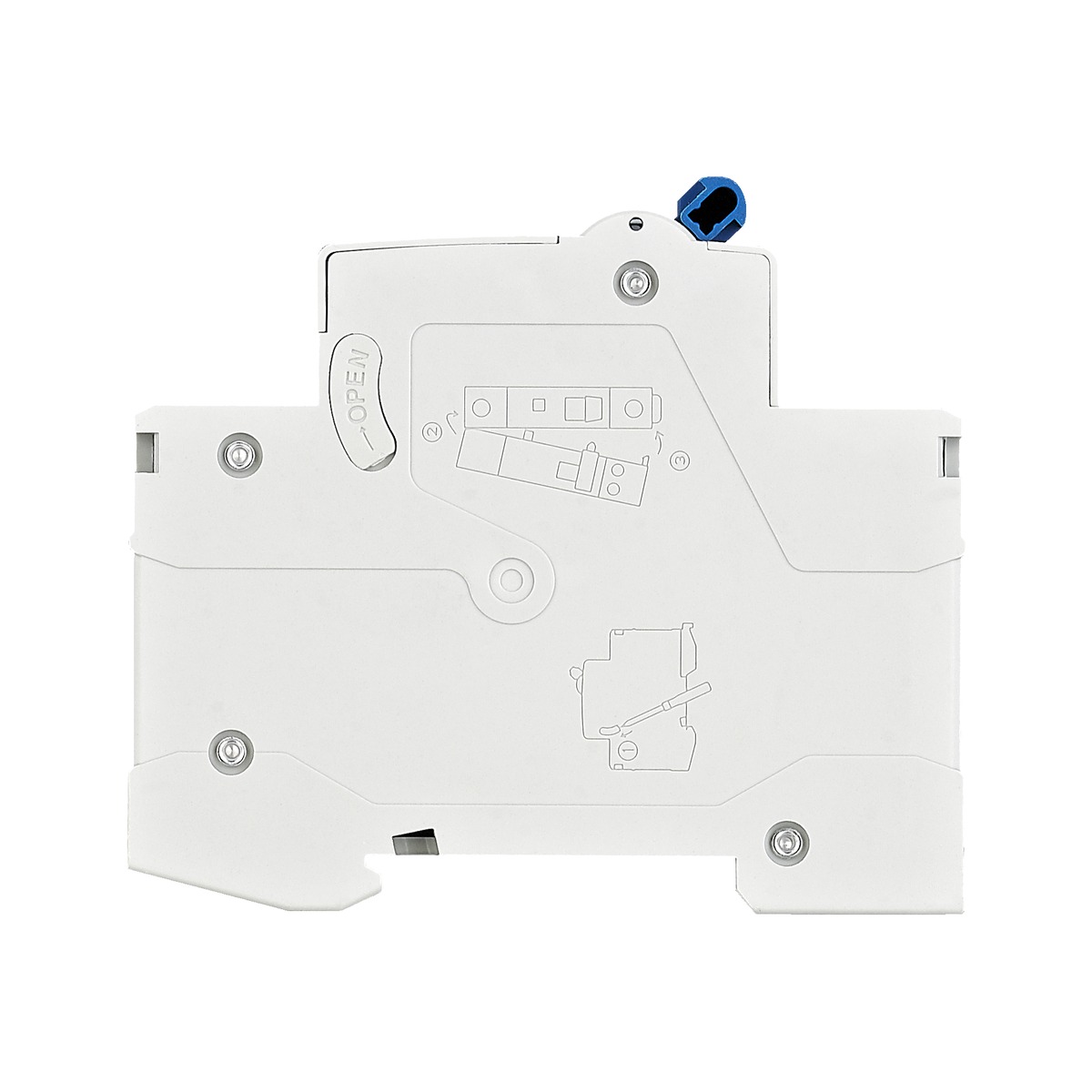

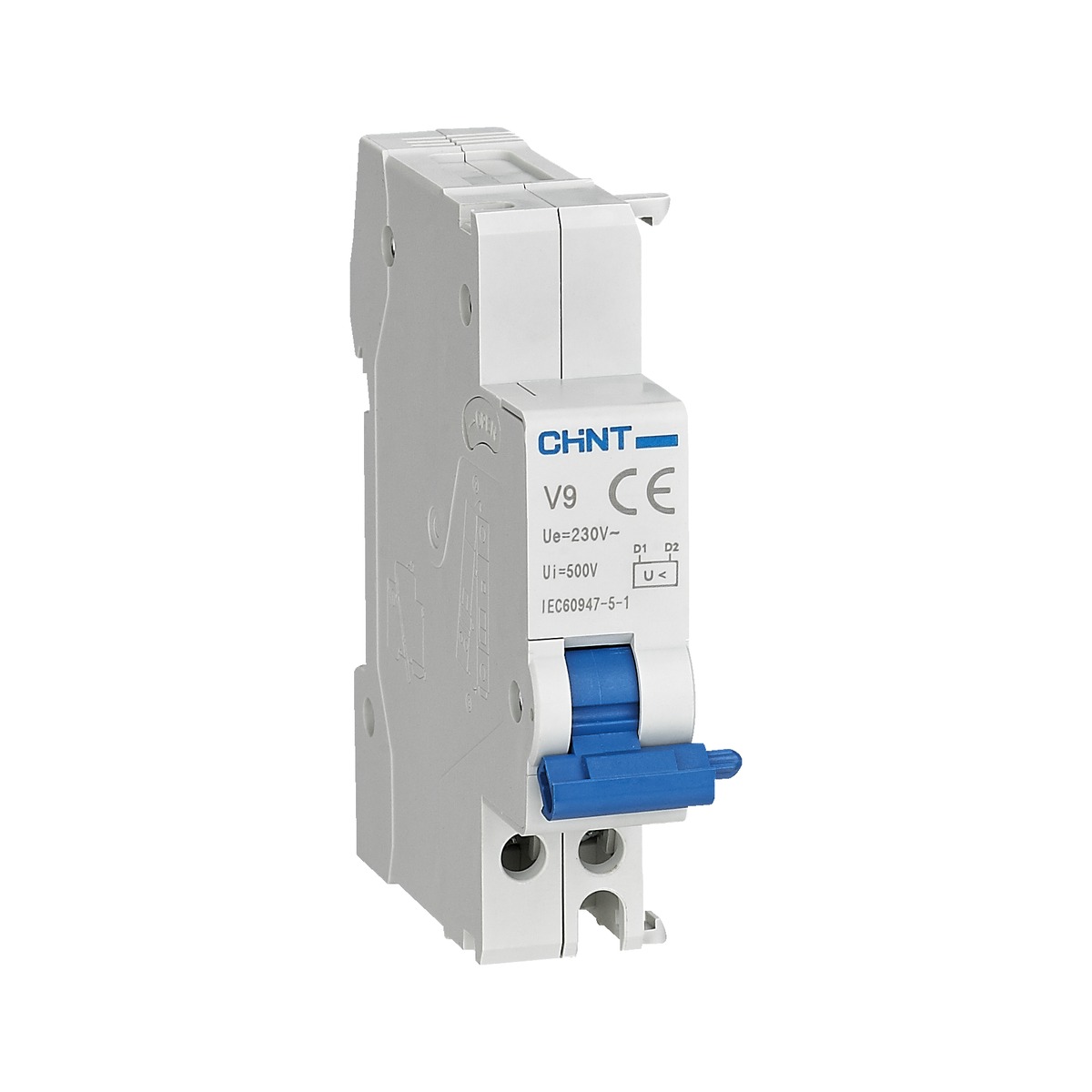

V9 technical reference 1V9 technical reference 2
Catalog
NameSizeRelease timeOperate
Chint V9 Voltage Release Accessory for MCB.pdf233.84 KB2026-11-14Download

Related products

Chint SHT-X3 Shunt Release
Chint SHT-X3 Shunt Release

Chint SHT-X3 Shunt Release

Brand Name:Chint
Place of Origin:China
Model Number:SHT-X3
rated voltage:AC 230V 400V AC DC 24V 48V
Catalogue operating current (voltage-dependent):3A, 6A

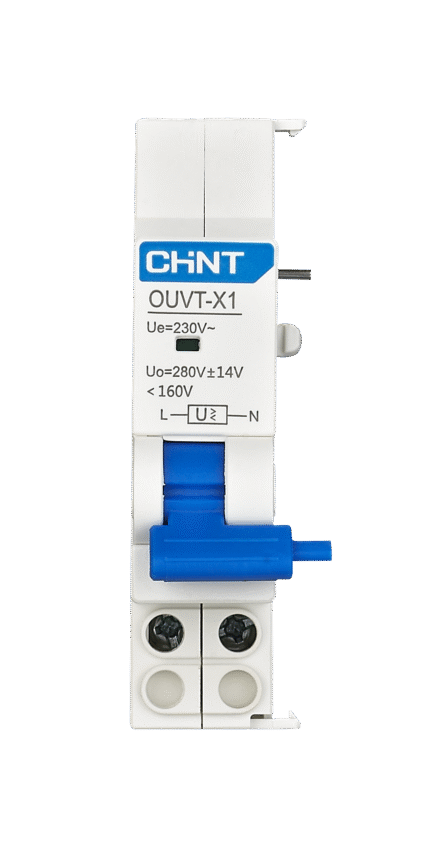

CHINT OUVT-X1 Over/Under Voltage Release, AC230V
