CHINT · Alarm auxiliary contact
Product overview
The CHINT XF9J indicates automatic MCB/RCBO release after overload or short-circuit tripping. It is a signal accessory for the documented NB1-family assembly.
Technical selection summary
| Exact model | XF9J |
|---|---|
| Function | Alarm after automatic protective release; 1NO + 1NC contact configuration |
| Signal / action reference | AC 240 V: 6 A; AC 415 V: 3 A. DC 24 V: 6 A; DC 48 V: 2 A; DC 130 V: 1 A |
| Assembly reference | NB1 / NBH8 / NB1L / NBH8LE families in the manufacturer accessory table; verify exact breaker revision |
| Installation | Left-side attachment using the documented pin arrangement; follow the terminal and assembly diagram |
| Manufacturer standard | IEC/EN 60947-5-1 |
Signal-contact duty is separate from the breaker main current. Confirm the alarm behaviour and exact terminal diagram.
Typical applications
- Distribution or control panels matched to the exact device
- Replacement procurement using complete CHINT model and assembly information

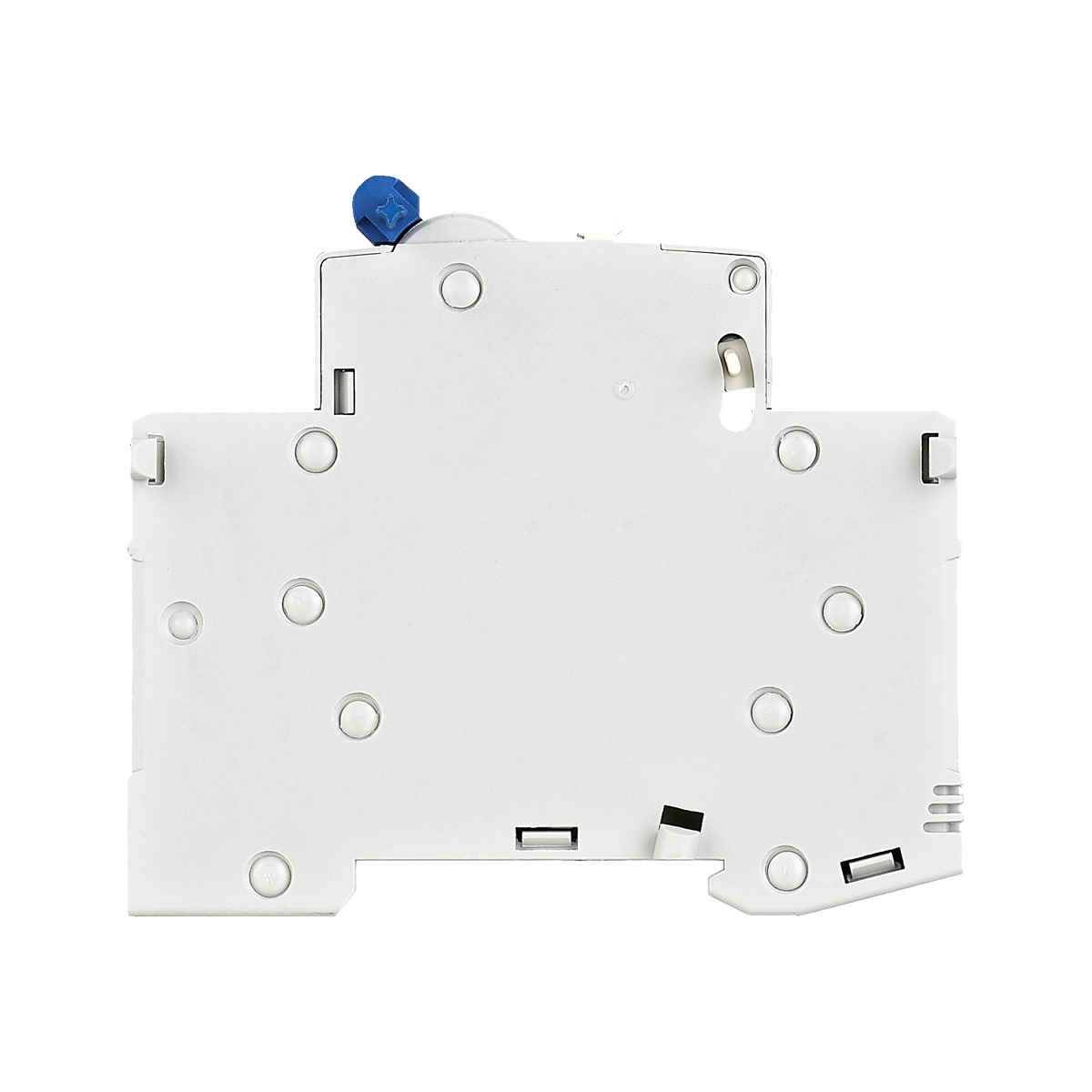

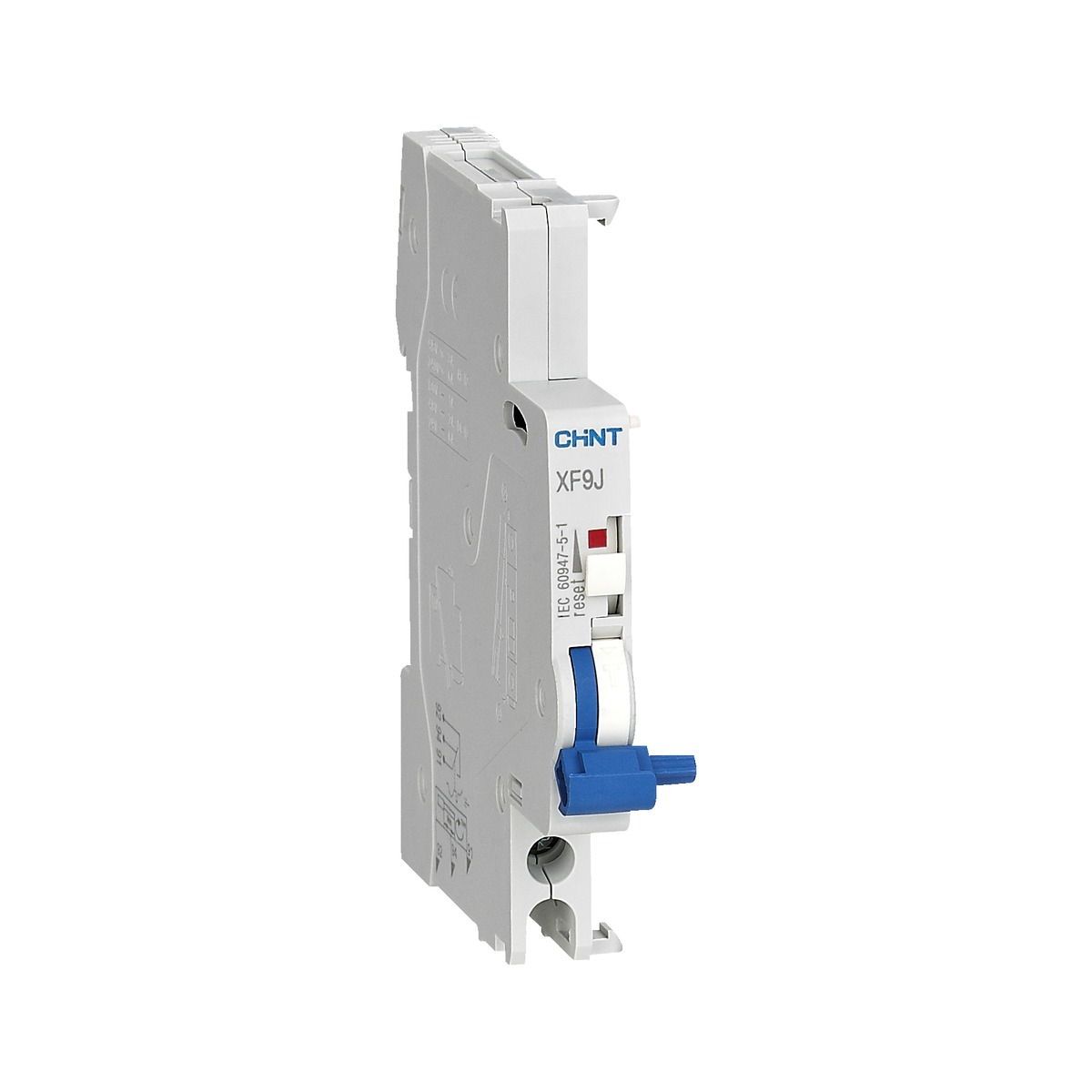

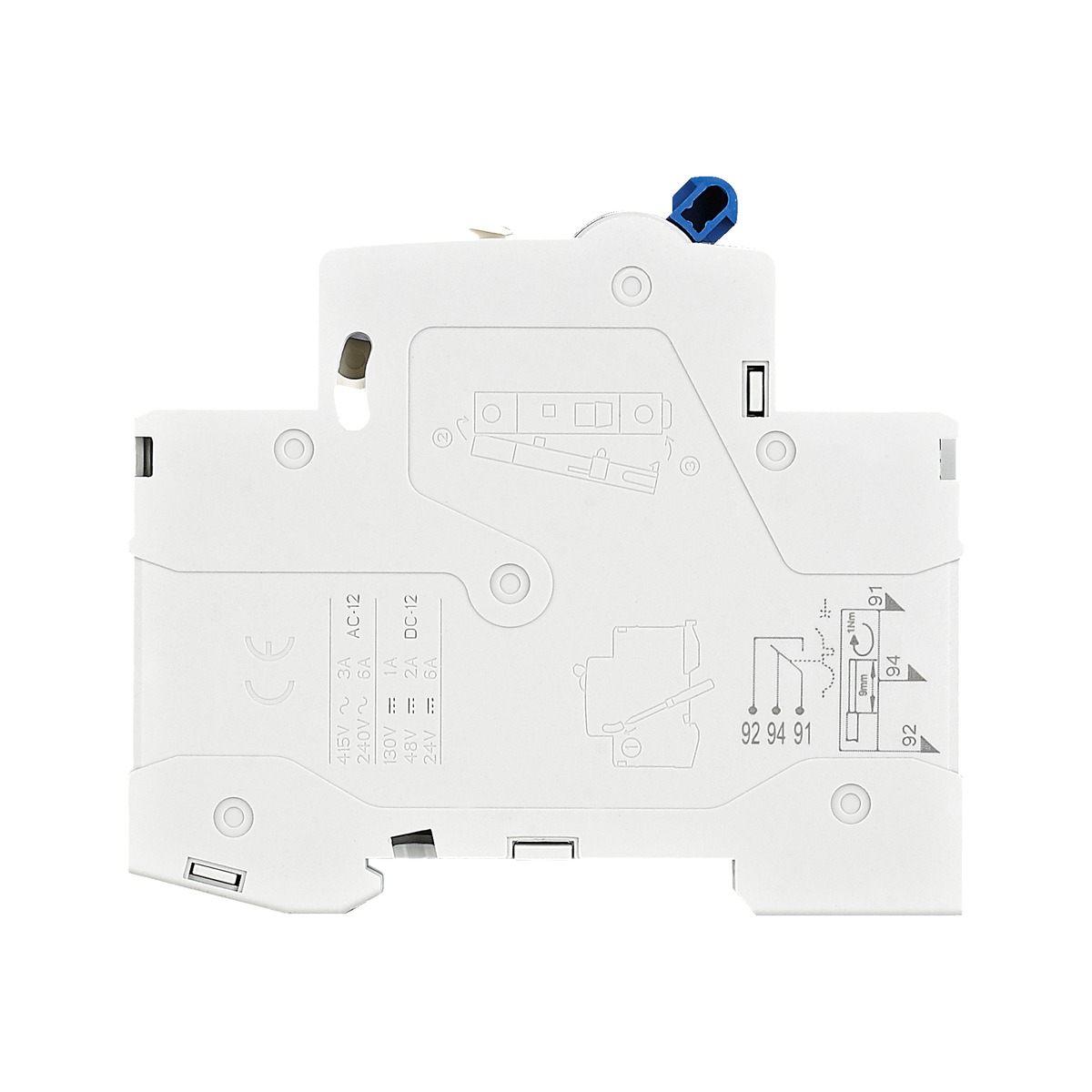

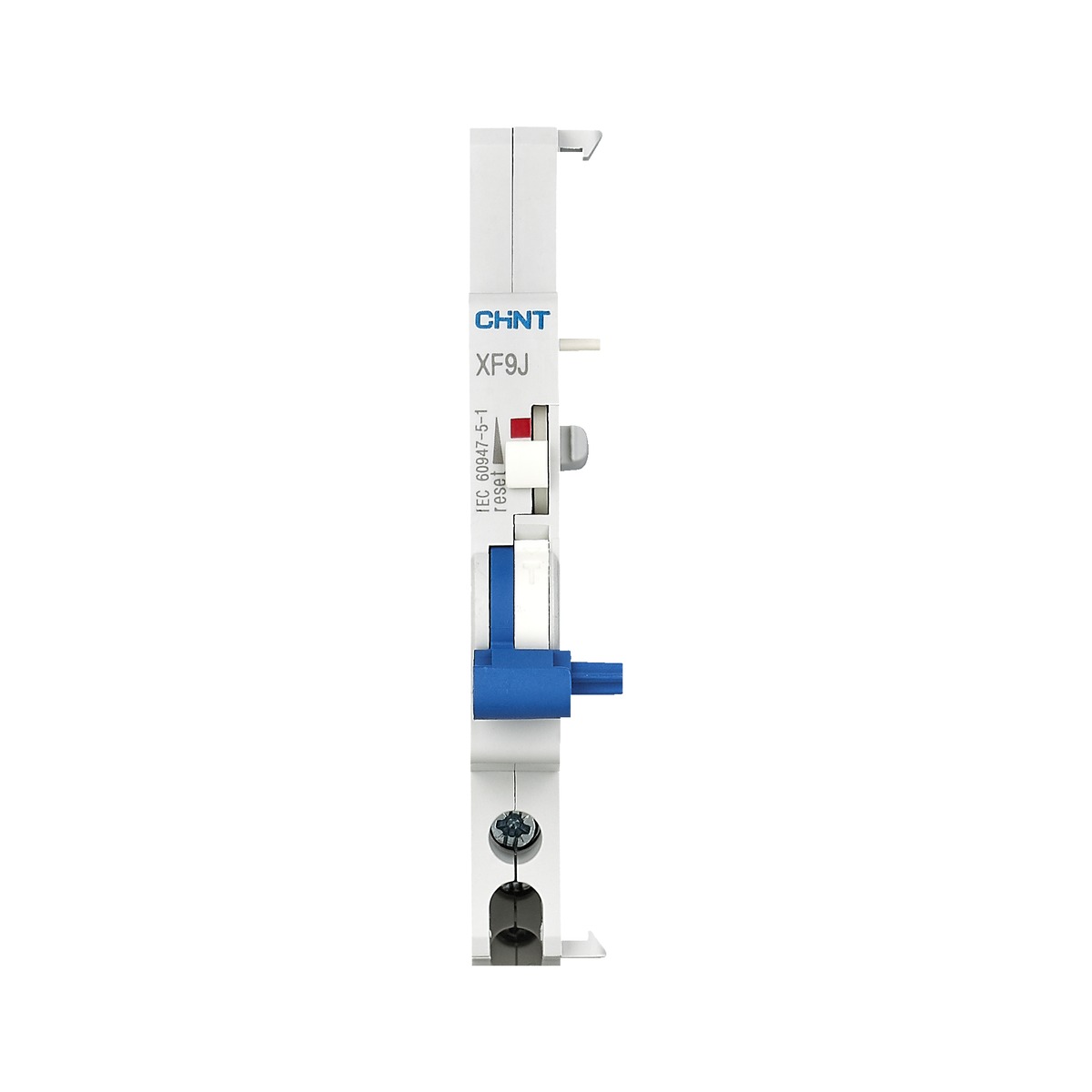

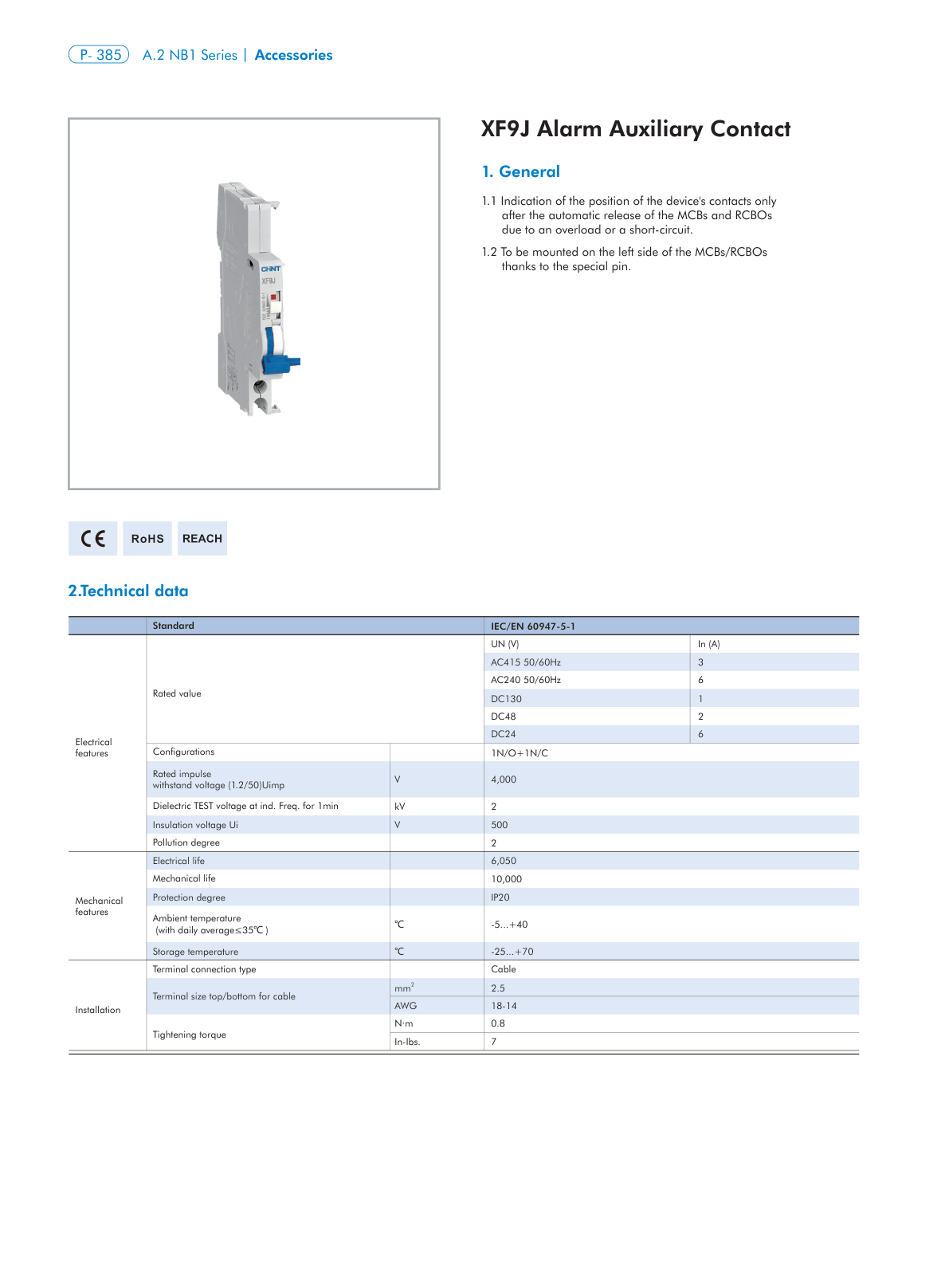

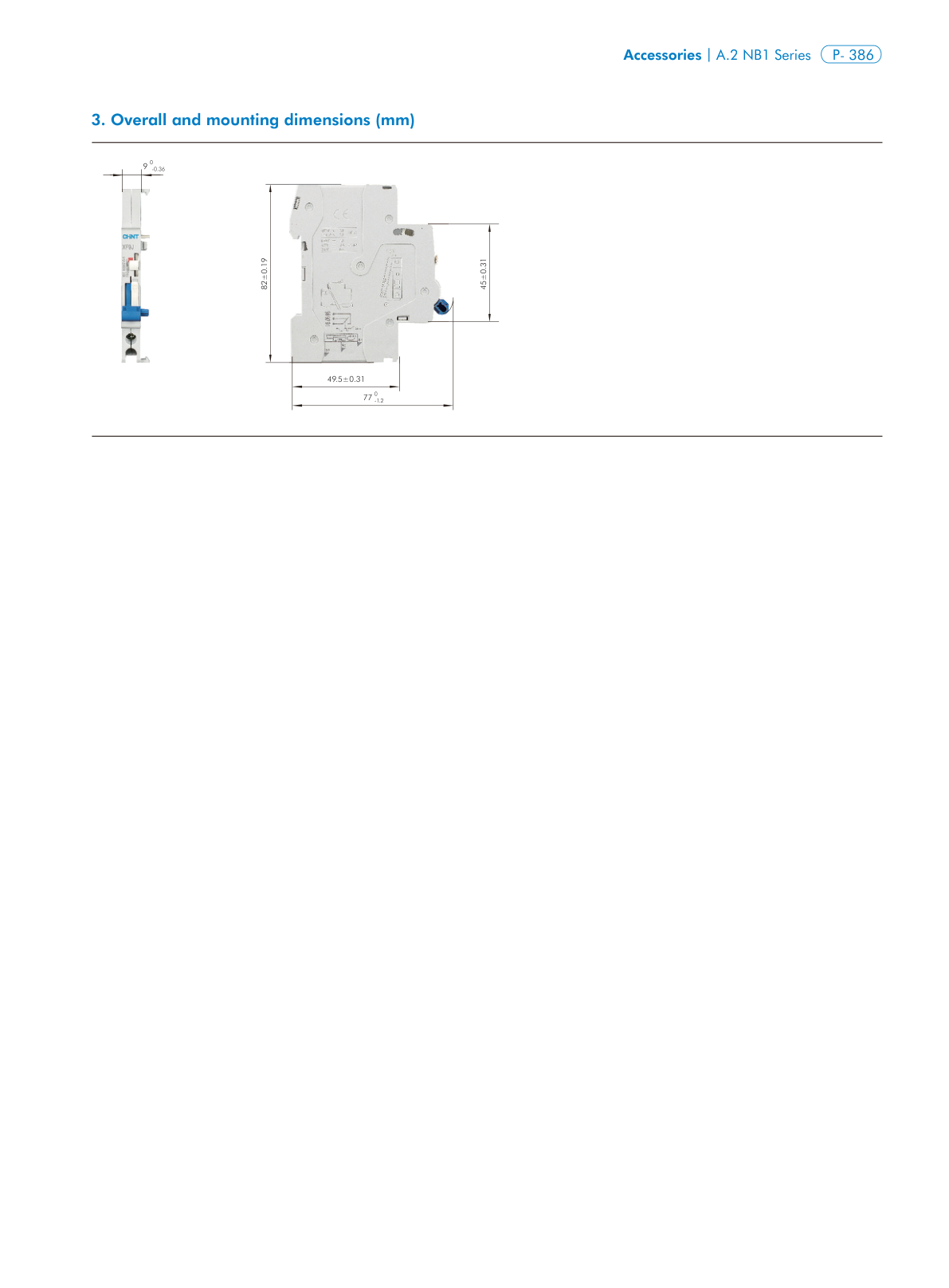

Product reference images and drawings
Match the exact manufacturer model, pole construction, voltage and connection drawing. Retained family images may show other versions.
