CHINT XF9 Auxiliary Contact for Breaker Position Indication

CHINT XF9 provides remote indication of a compatible circuit breaker contact position. It is an auxiliary contact, distinct from the XF9J alarm contact.

Model
Add to Enquiry
Category: Chint MCB
  • Description
  • Catalog
Description

CHINT · XF9 Auxiliary Contact for Breaker Position Indication

Product overview

CHINT XF9 provides remote indication of a compatible circuit breaker contact position. It is an auxiliary contact, distinct from the XF9J alarm contact.

Technical selection summary

Contact arrangement1NO + 1NC
AC contact rating240 V / 6 A; 415 V / 3 A
DC contact rating24 V / 6 A; 48 V / 2 A; 130 V / 1 A

Confirm the exact breaker and left-side mounting arrangement. XF9 does not replace the XF9J trip-alarm function.

Typical applications

  • CHINT XF9 provides remote indication of a compatible circuit breaker contact position.

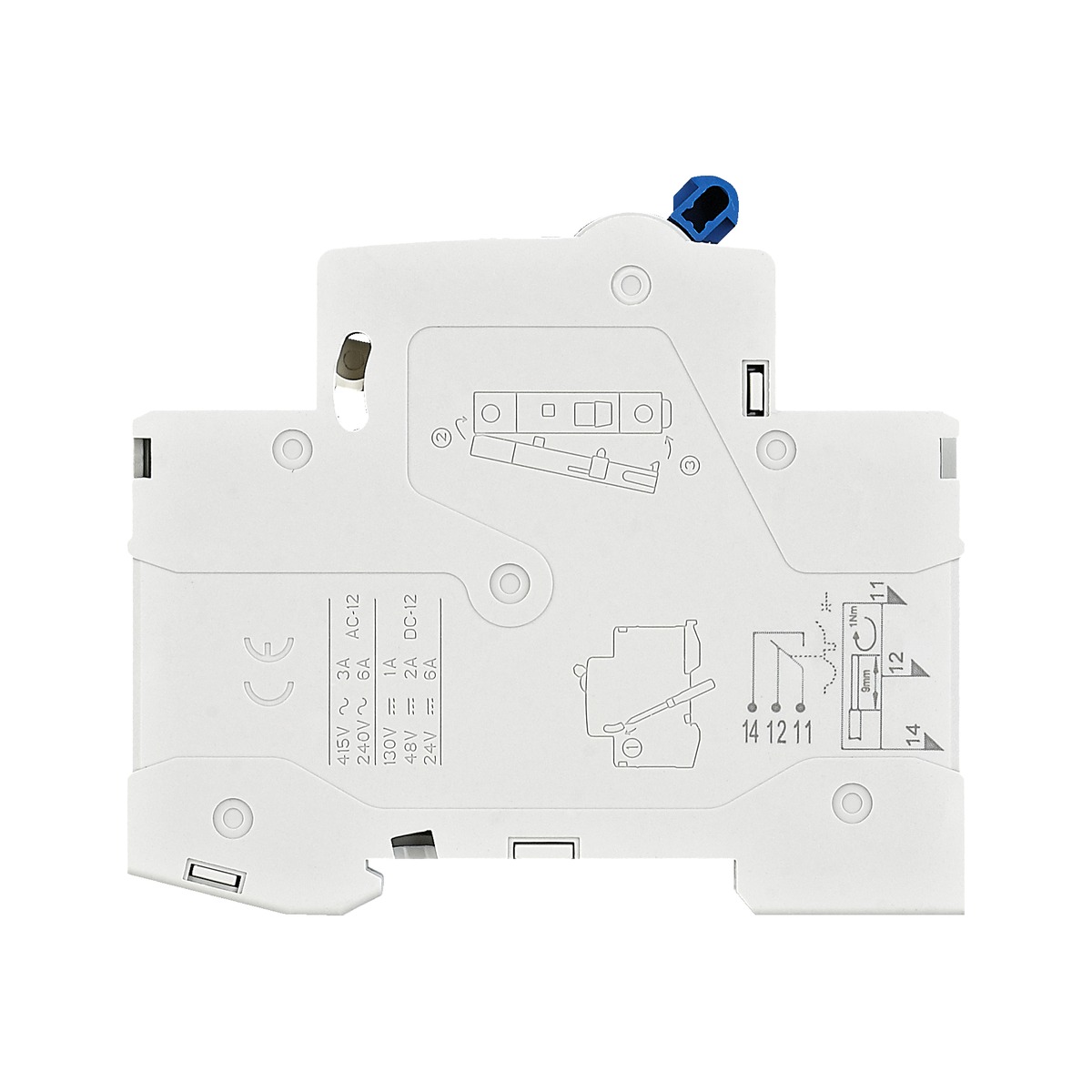

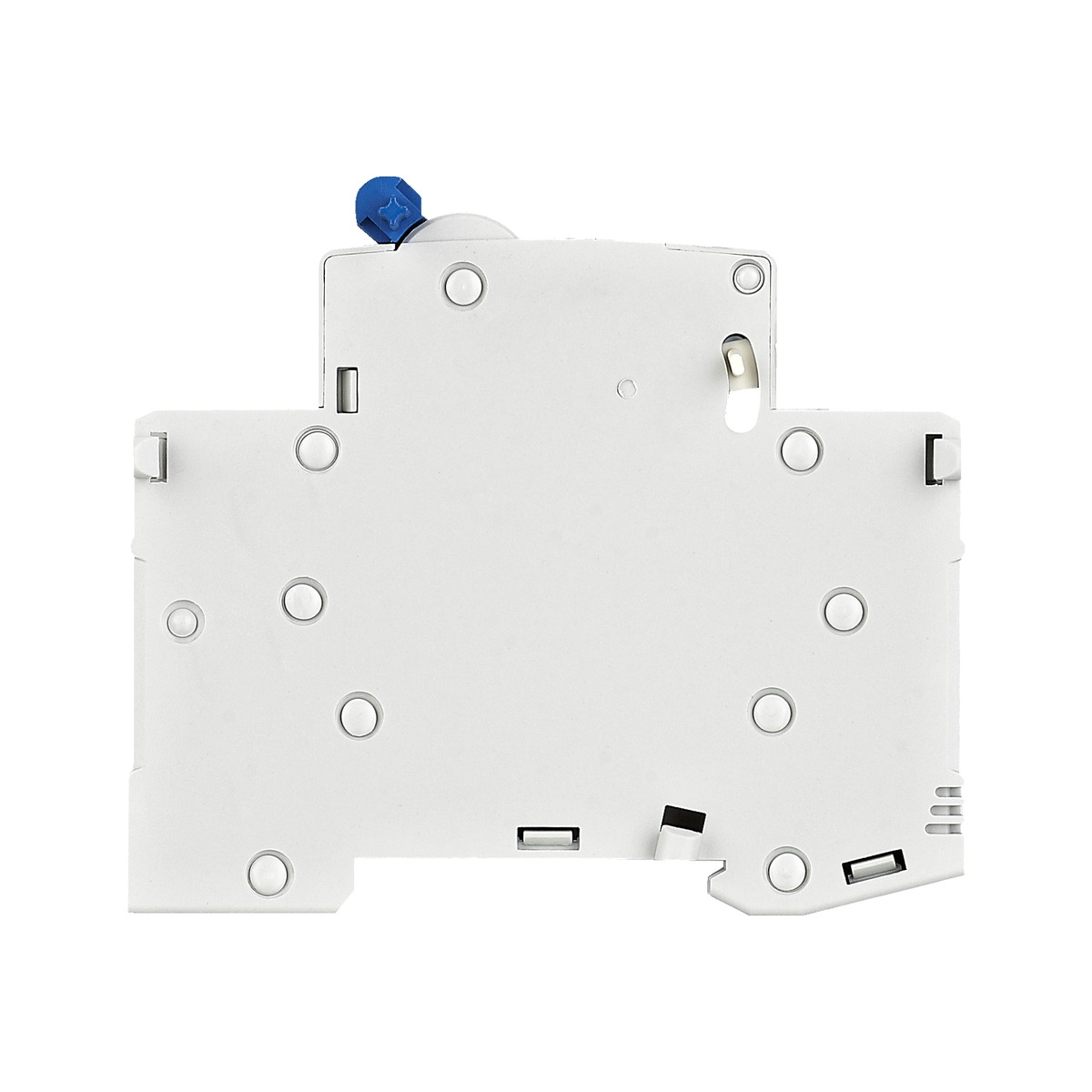

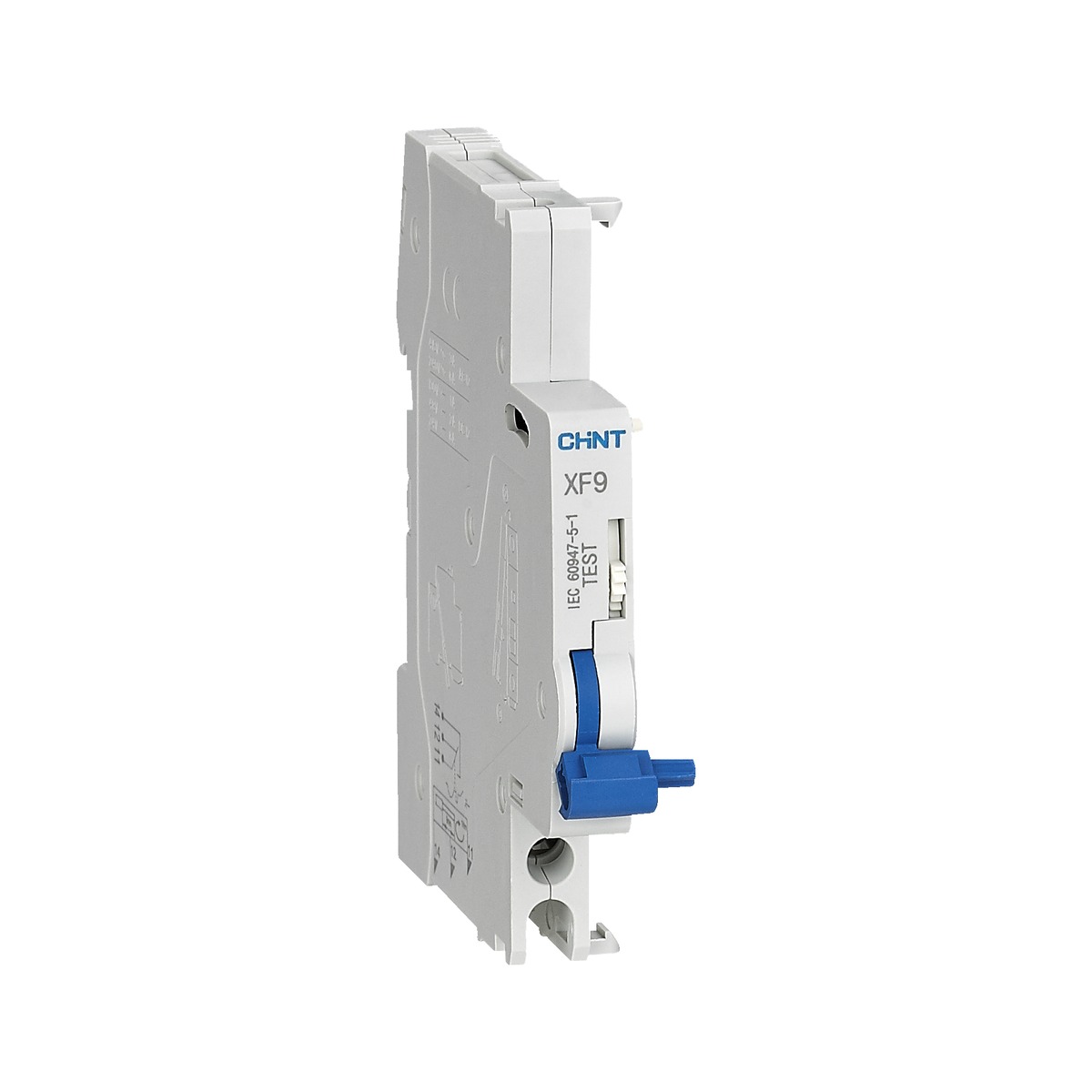

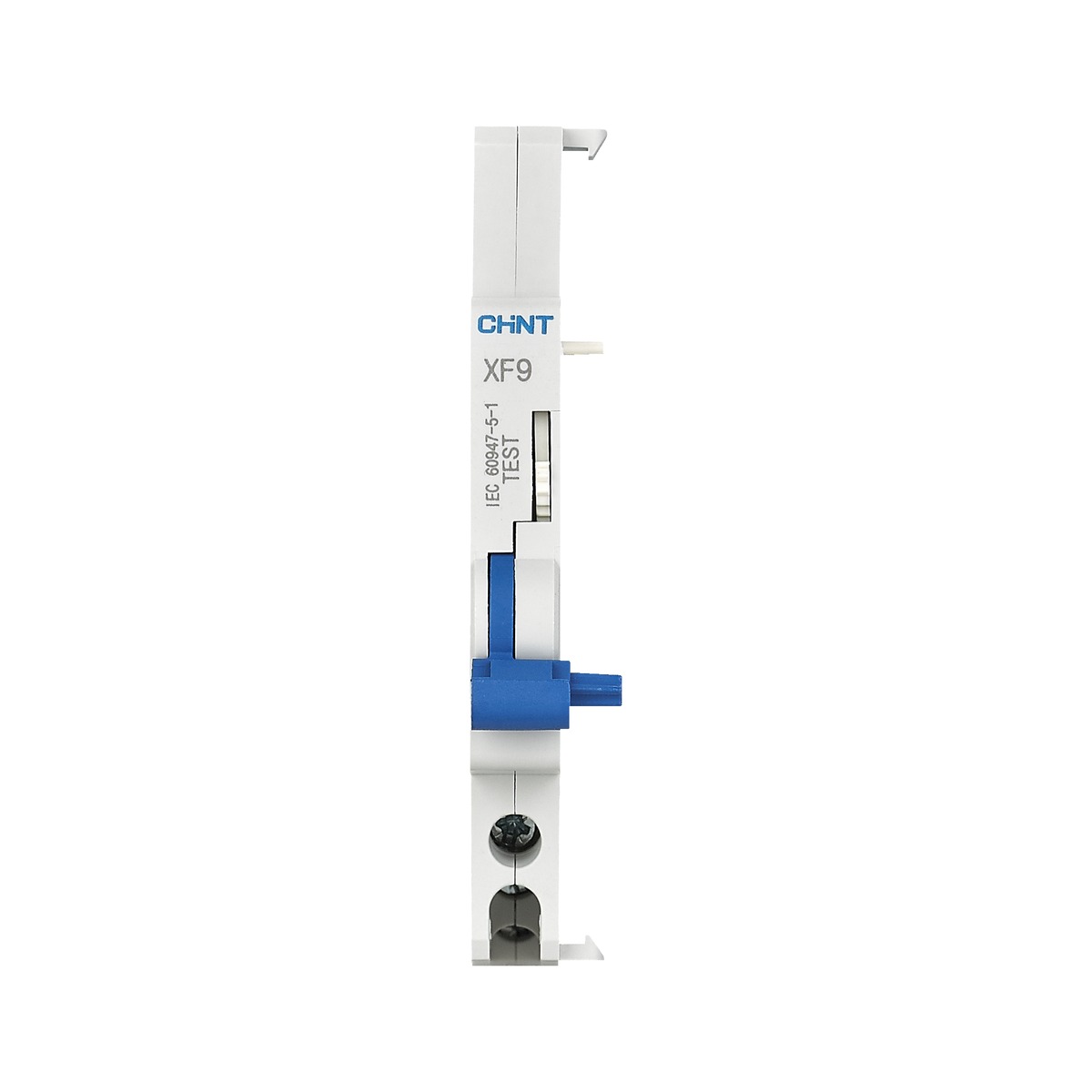

Product reference images and drawings

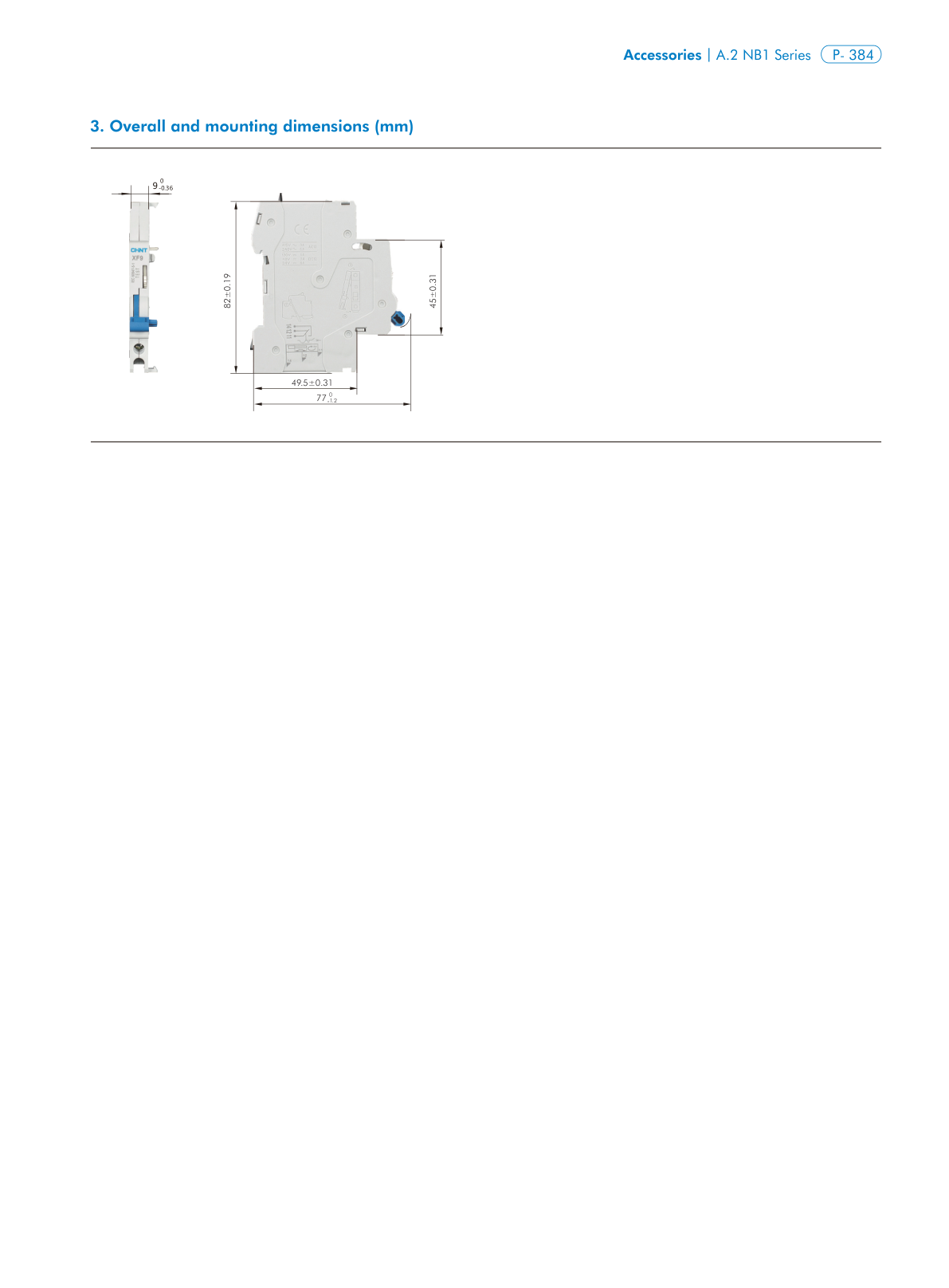

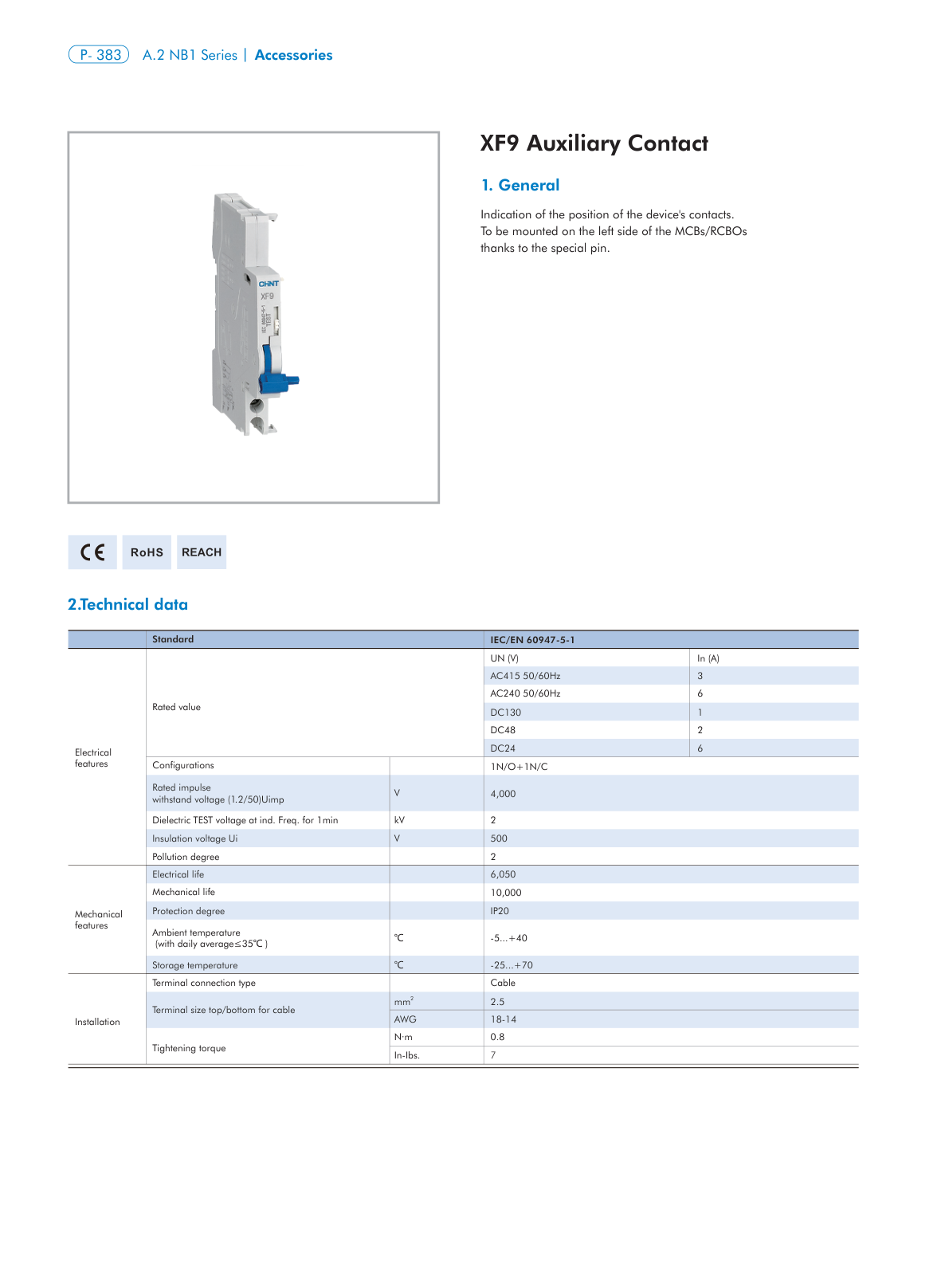

XF9 manufacturer reference page 1XF9 manufacturer reference page 2
Catalog
NameSizeRelease timeOperate
Chint XF9 Auxiliary Contact for Breaker Position Indication.pdf310.08 KB2026-11-14Download
