CHINT · AC contactor
Product overview

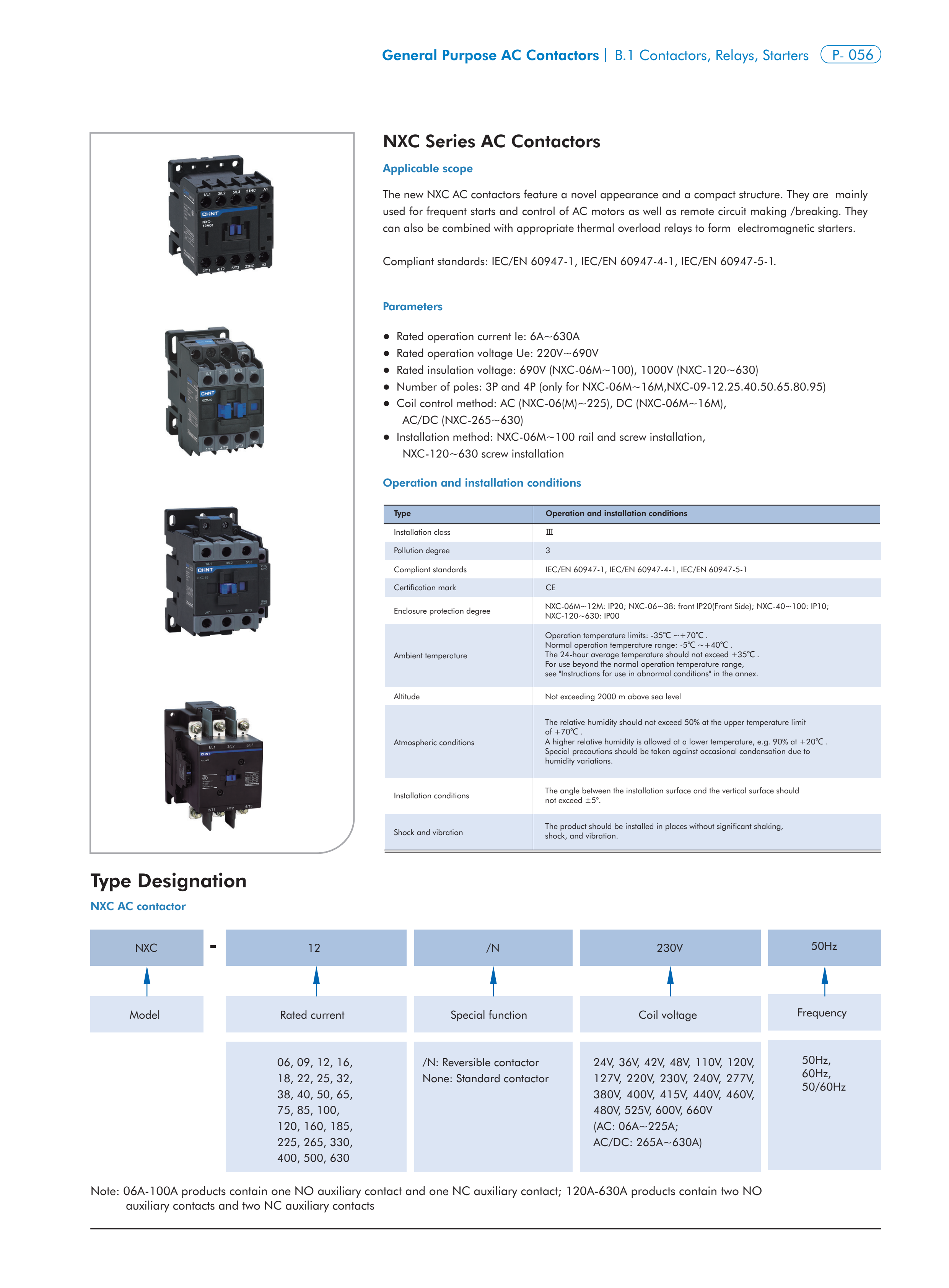

This CHINT NXC listing covers 6A–630A contactors for switching AC motor circuits. Choose the operating current at the actual main-circuit voltage, then specify the control-coil supply separately. A suitable overload relay is required when the assembly must provide motor overload protection.

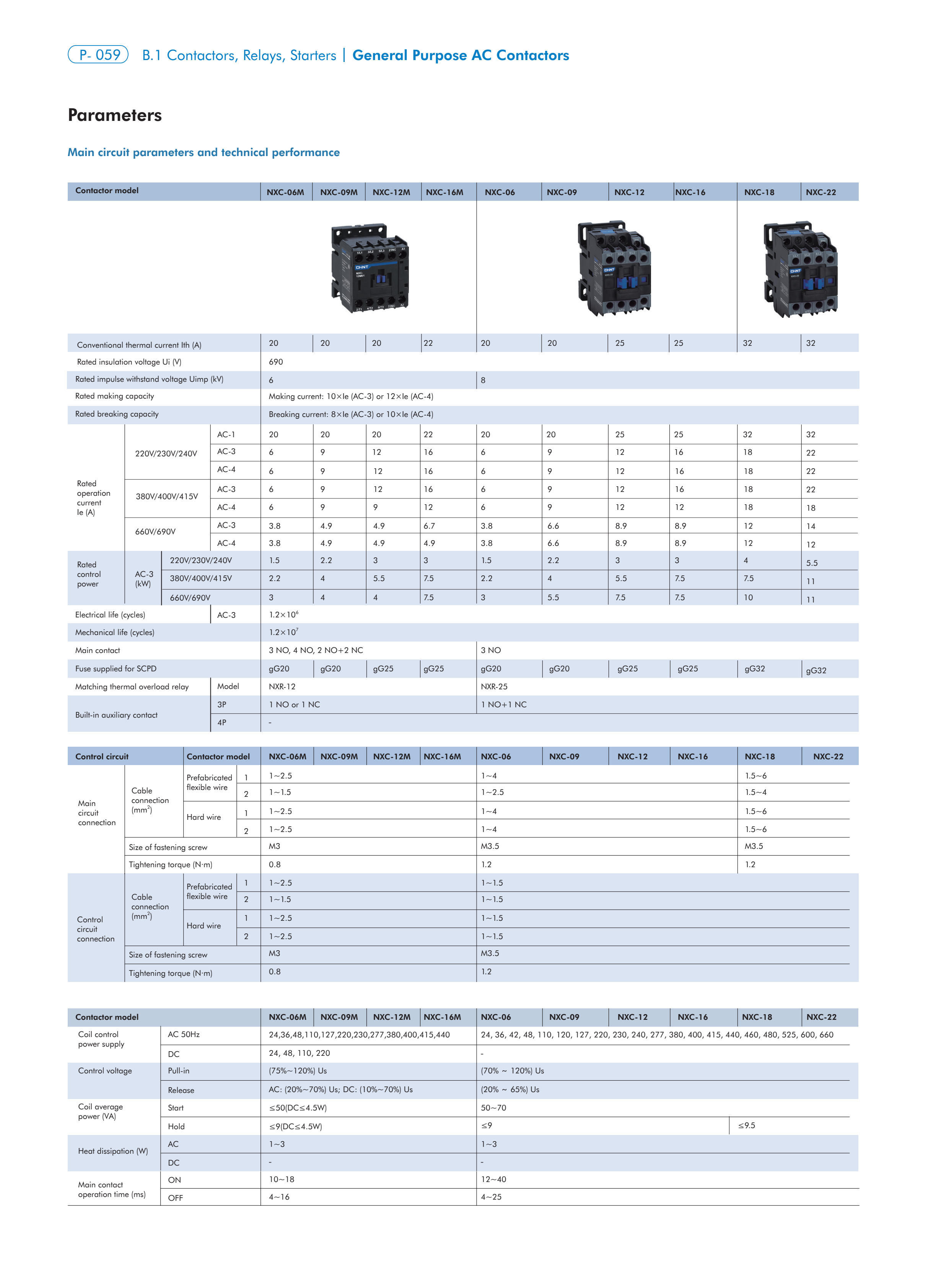

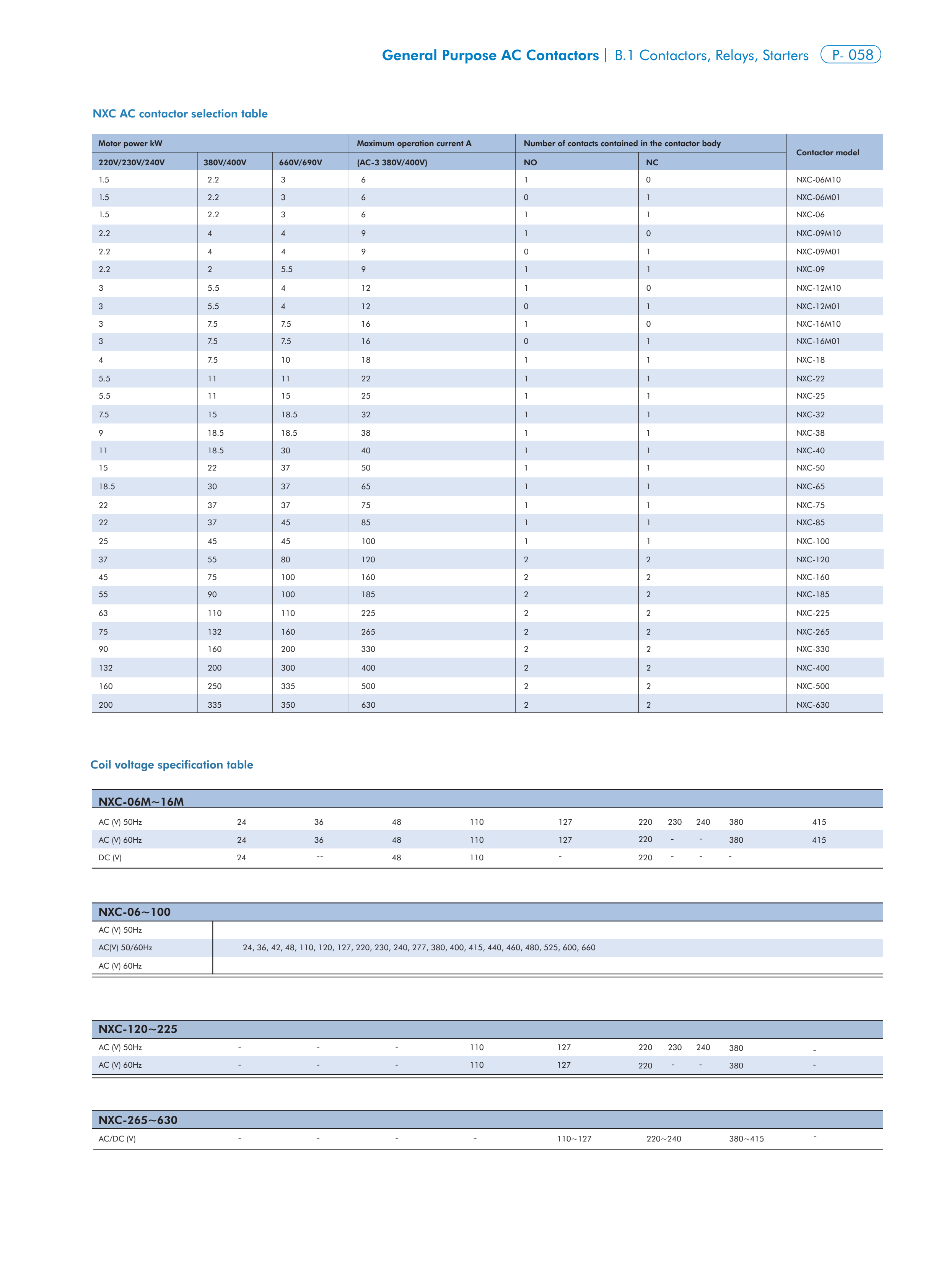

Technical selection summary

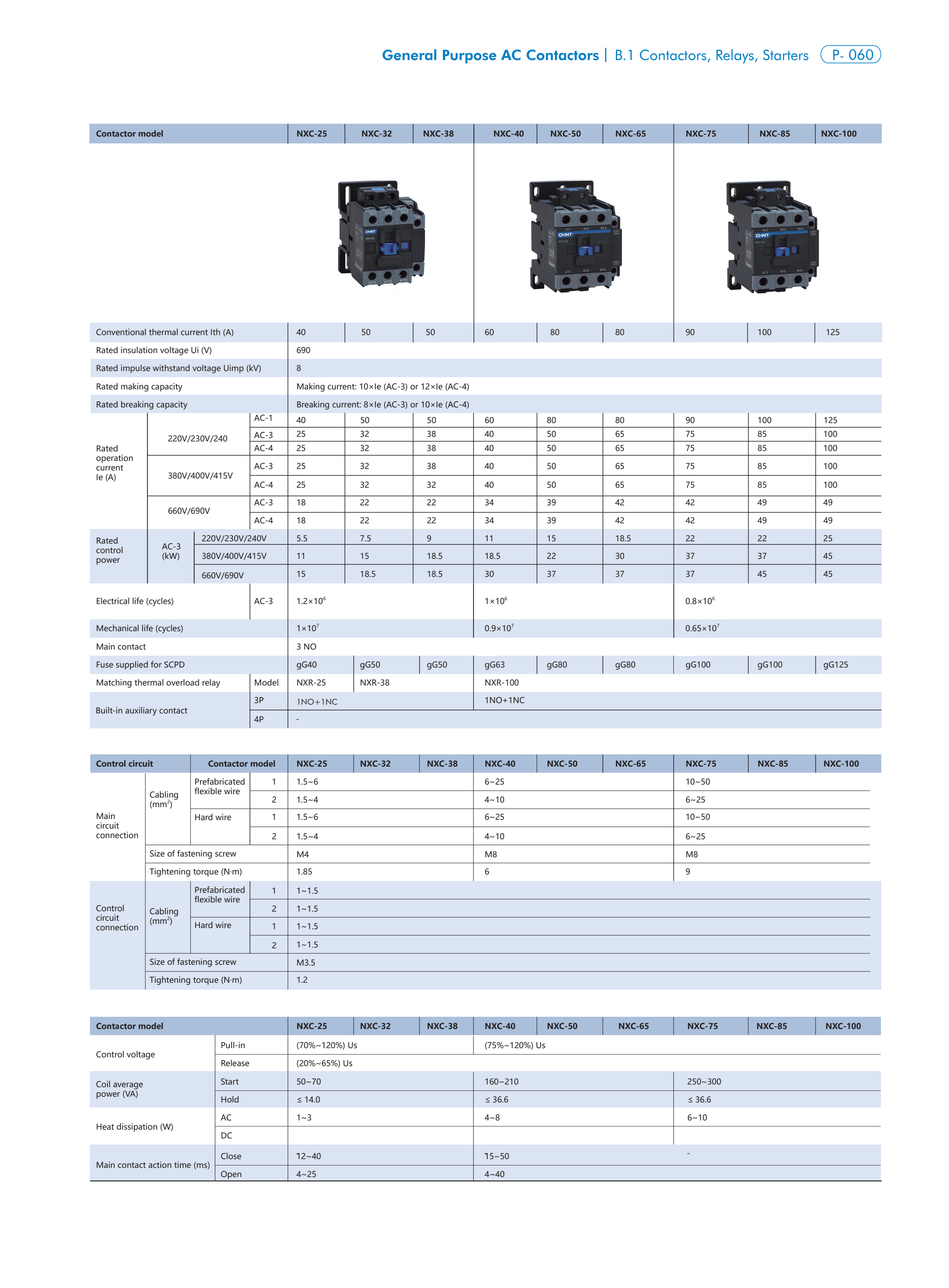

| Series / listing scope | NXC / 6A–630A |
|---|---|
| Main contacts | 3 normally open main contacts (3P) |
| AC-3 current reference | 6A–630A at 380/400/415 V; ratings at 660/690 V differ |

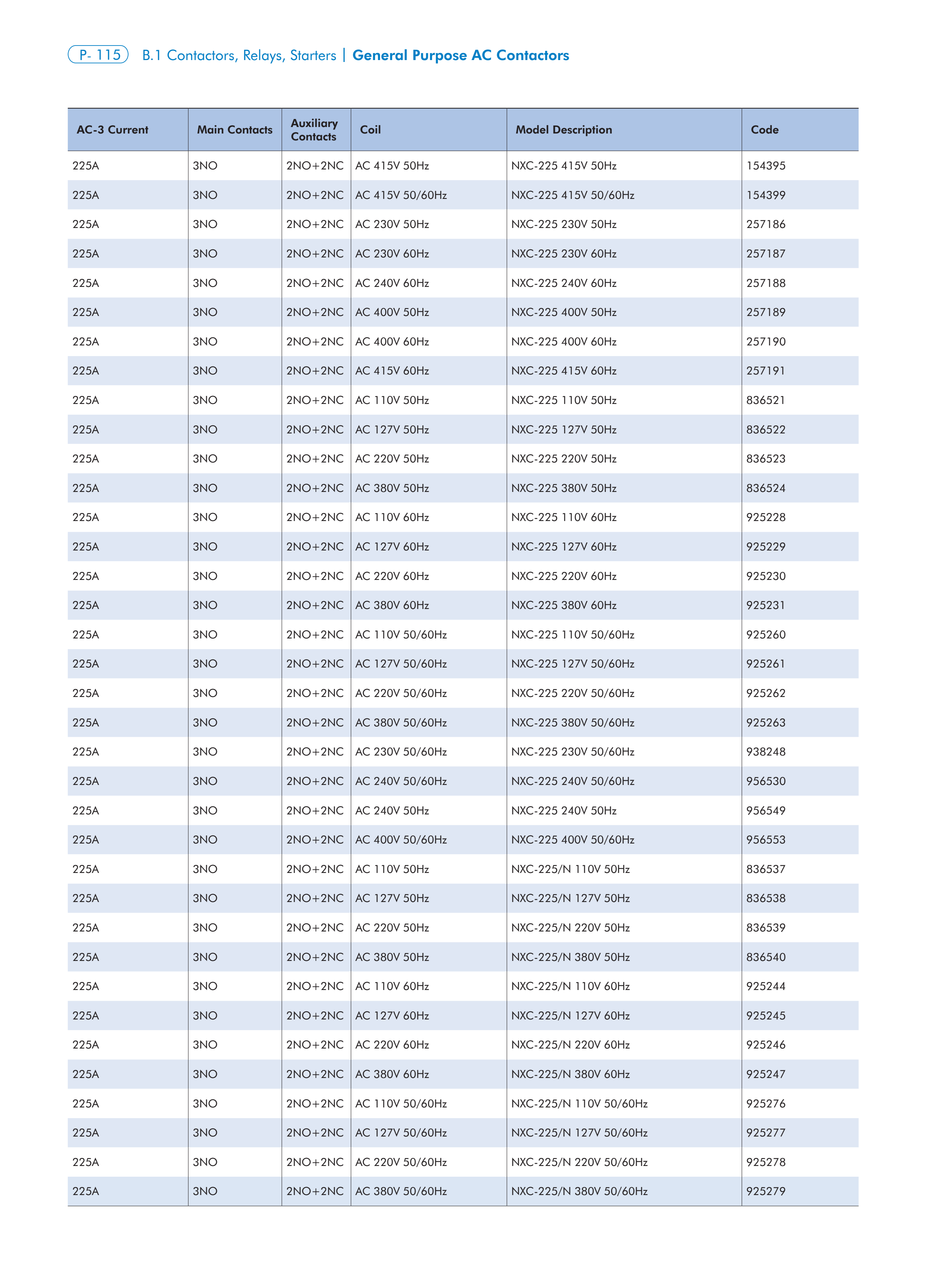

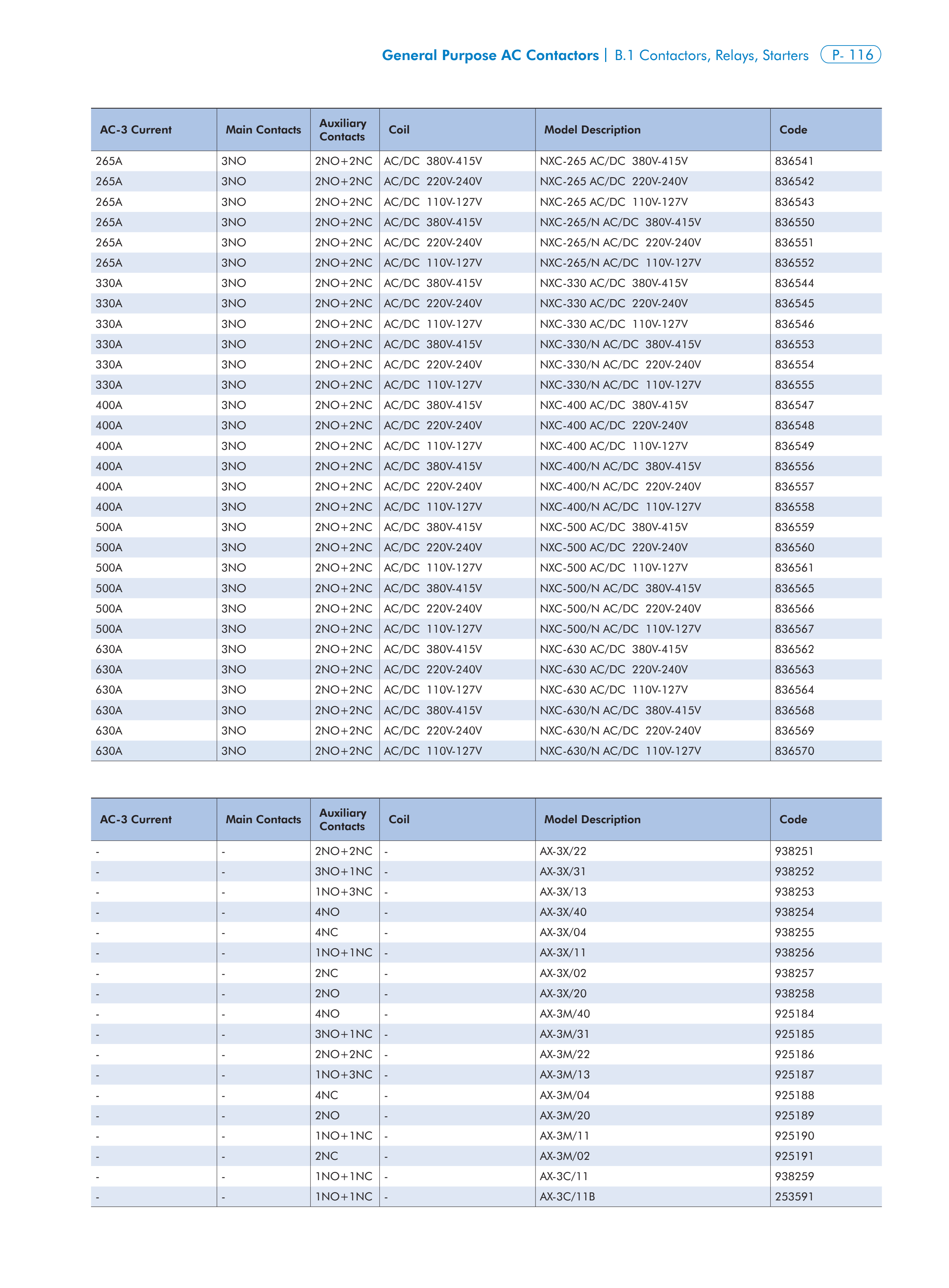

| Coil selection | AC 24, 36, 110, 220 or 380 V for 6–100 A frames; AC 110, 220 or 380 V for 120–225 A in this listing; 265–630 A uses AC/DC 110–127, 220–240 or 380–415 V ranges. |

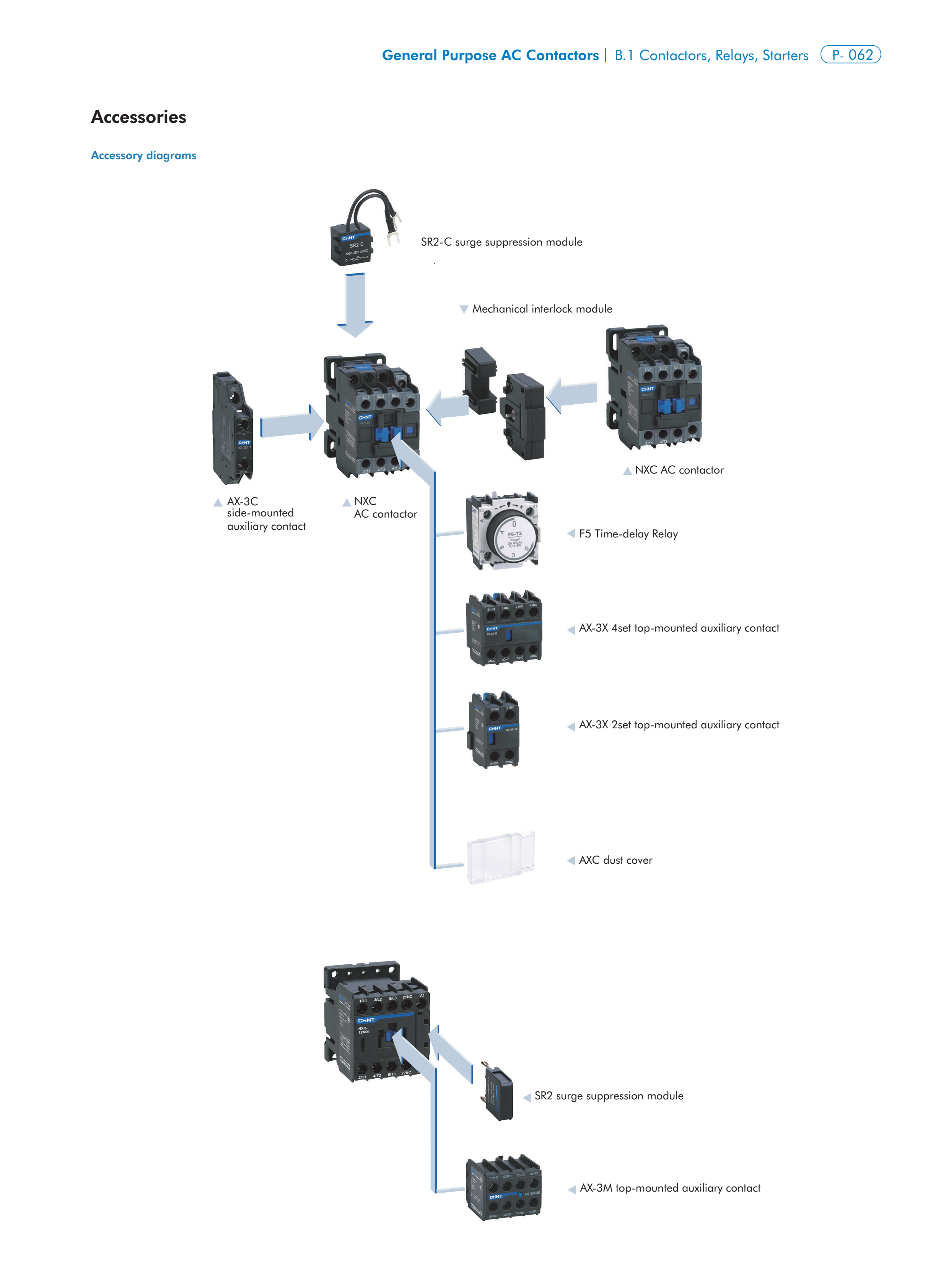

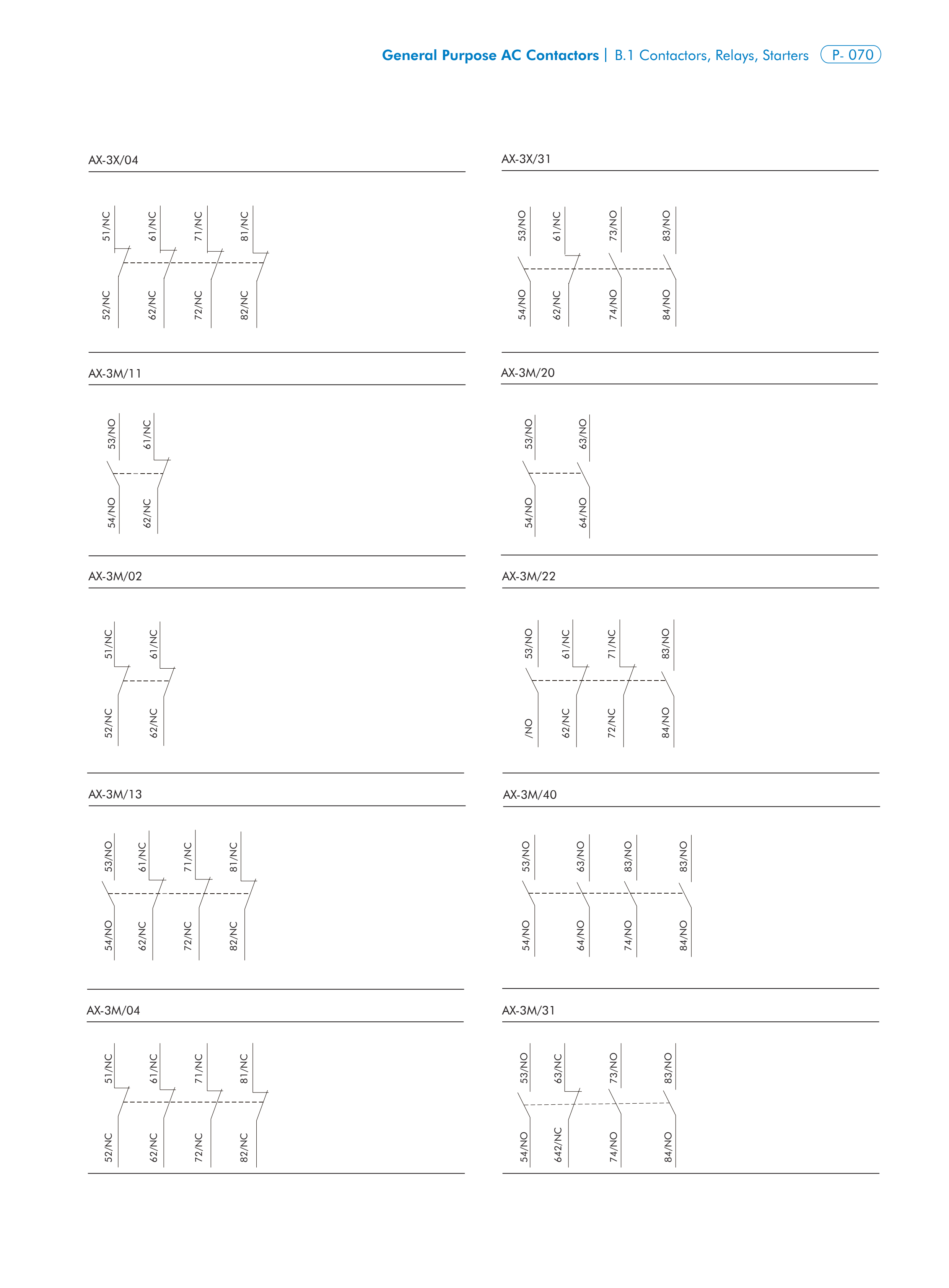

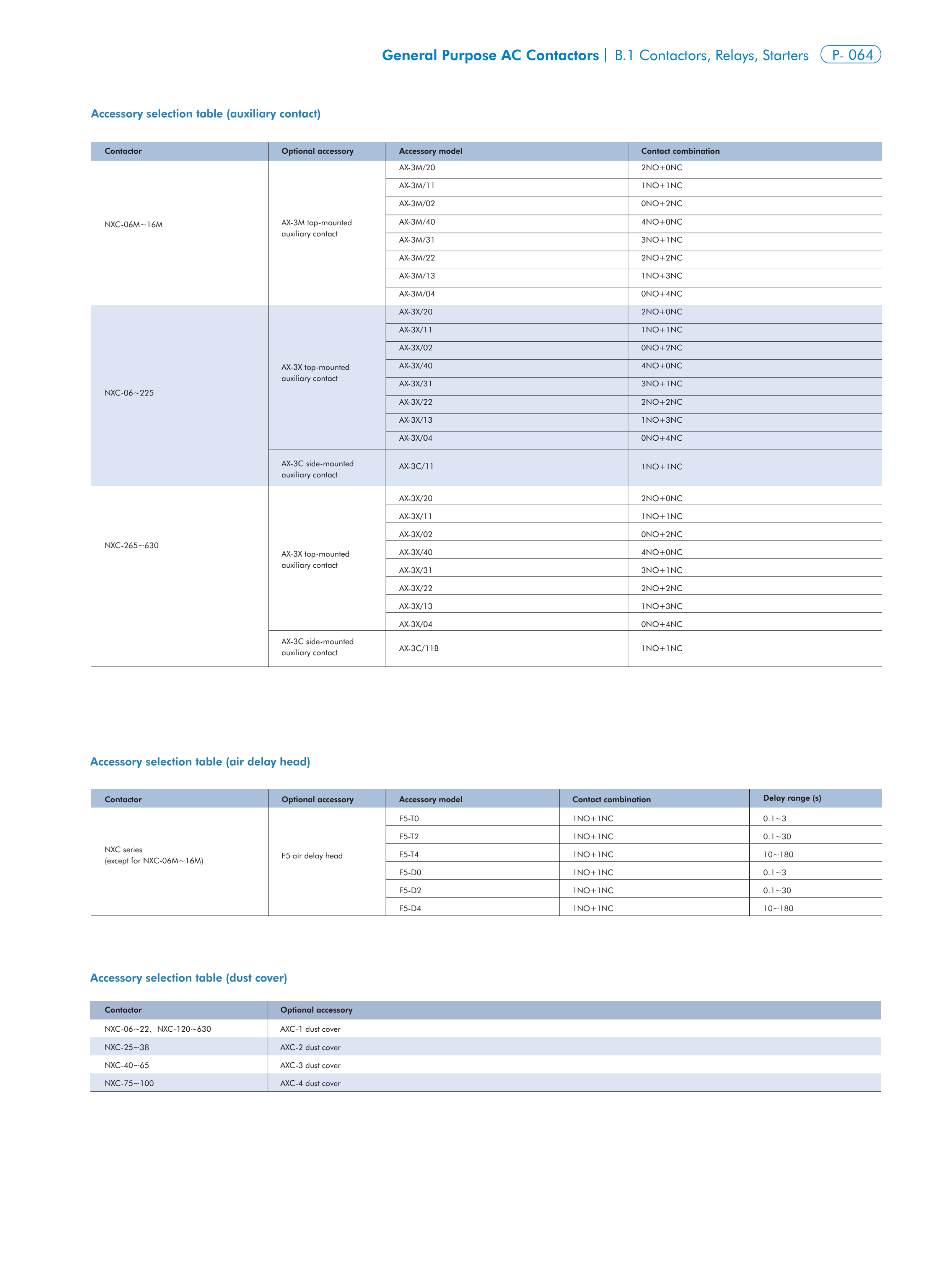

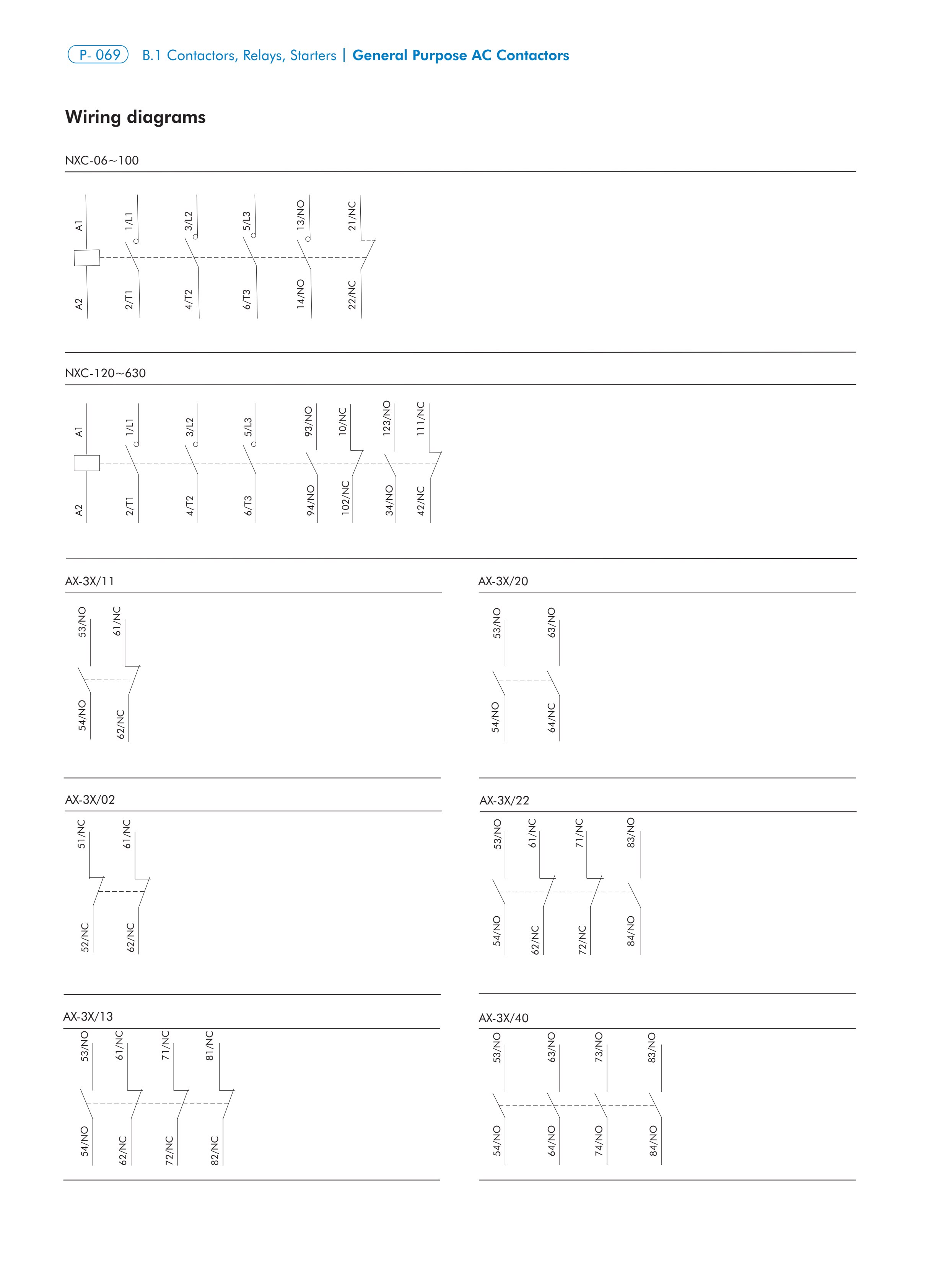

| Auxiliary contacts | 1NO + 1NC for 6–100 A frames; 2NO + 2NC for 120–630 A frames |
| Selection standard | IEC/EN 60947-4-1; see the exact frame in the manufacturer catalogue |

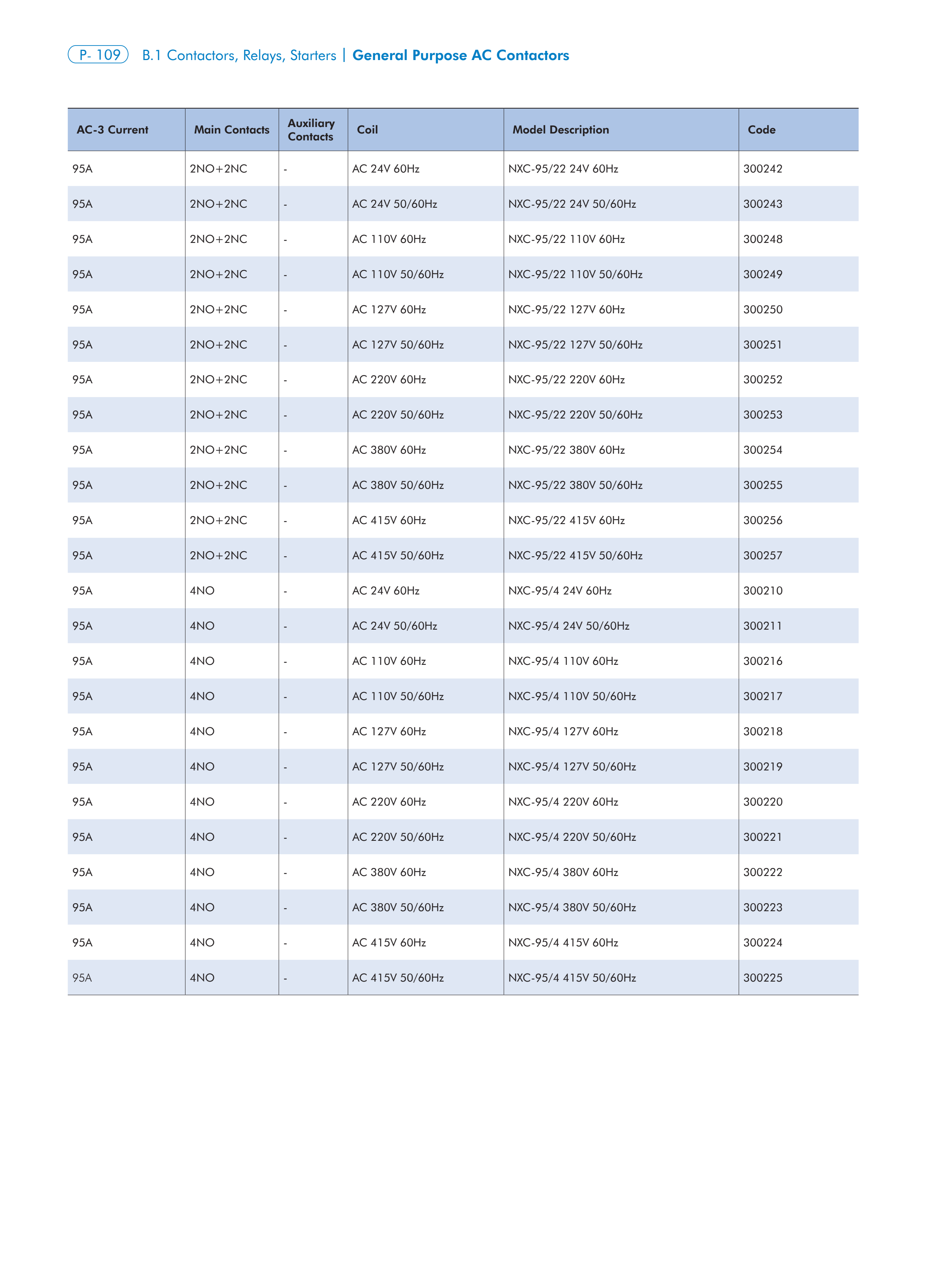

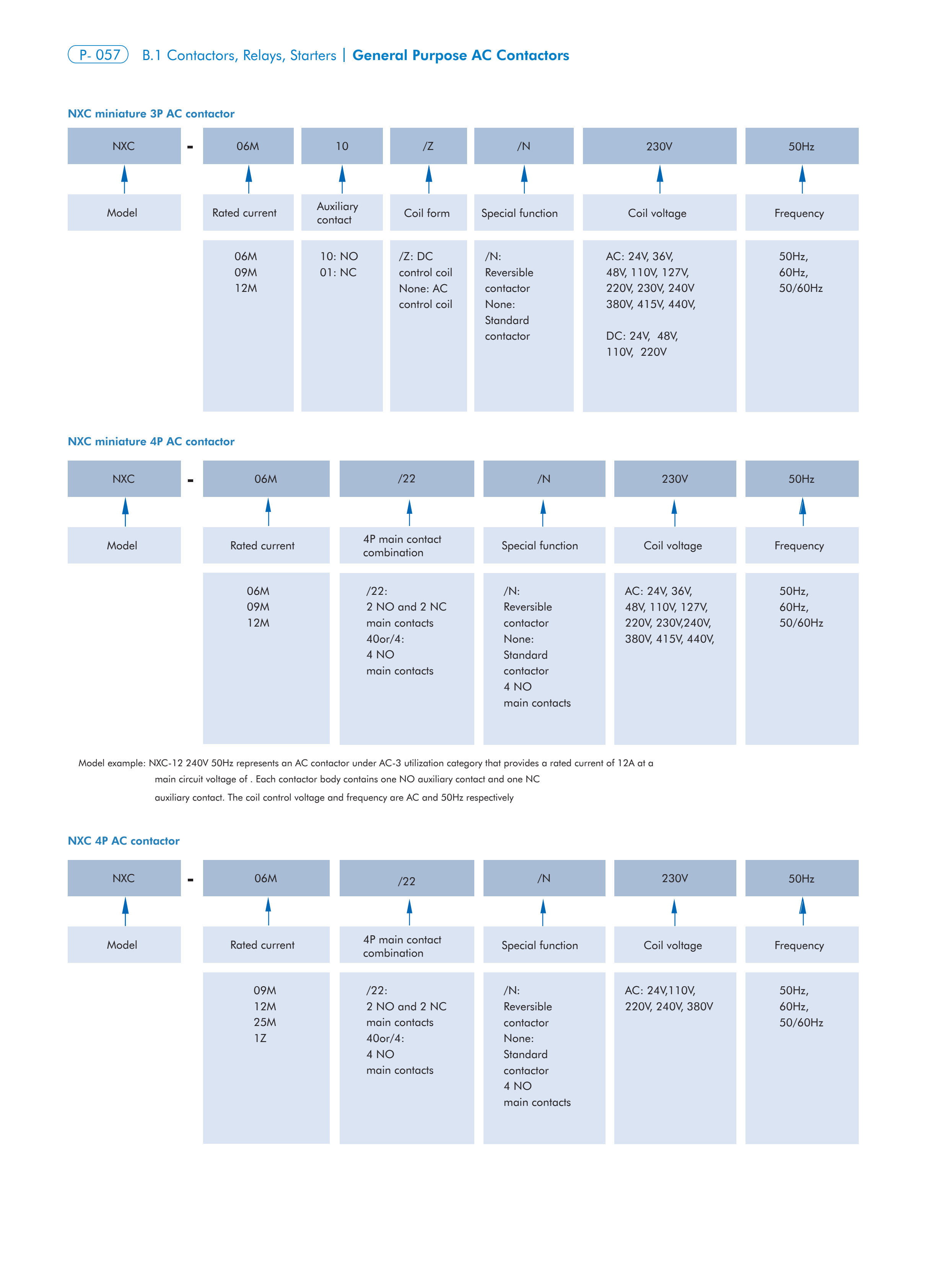

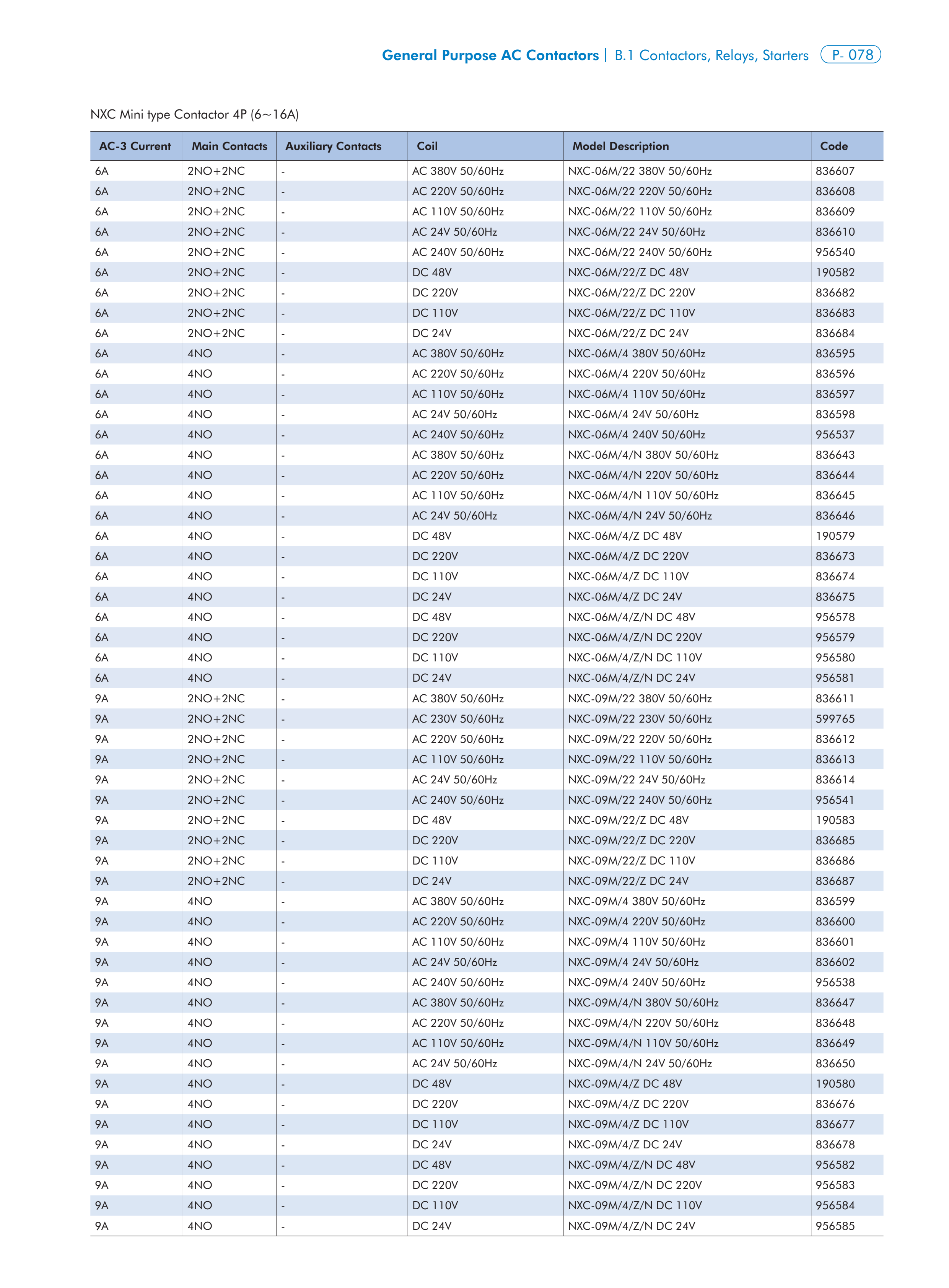

| Related four-pole family versions | The manufacturer NXC catalogue also lists separately specified 4P versions in selected frames. For a four-pole requirement, provide the complete 4P model and main-contact form; do not transfer the three-pole motor rating to a different contact arrangement |
The main-circuit voltage is not the coil voltage. A 65 A rating at 400 V does not imply the same motor-duty rating at 690 V.
Typical applications
- Motor starter and pump-control panels
- Machine automation with a matched overload relay
- Replacement contactors selected by frame and coil supply
Specify your enquiry
For a focused quotation, include:
- Exact NXC frame, quantity and main-circuit voltage
- Motor AC-3 current or load duty; do not substitute AC-1 current
- Coil voltage, AC or AC/DC supply, frequency and auxiliary-contact requirements
Select the available parameters above and add the item to your quote list. The quotation will confirm the exact configuration and supporting documents.
Download the official CHINT NXC catalogue (PDF)
