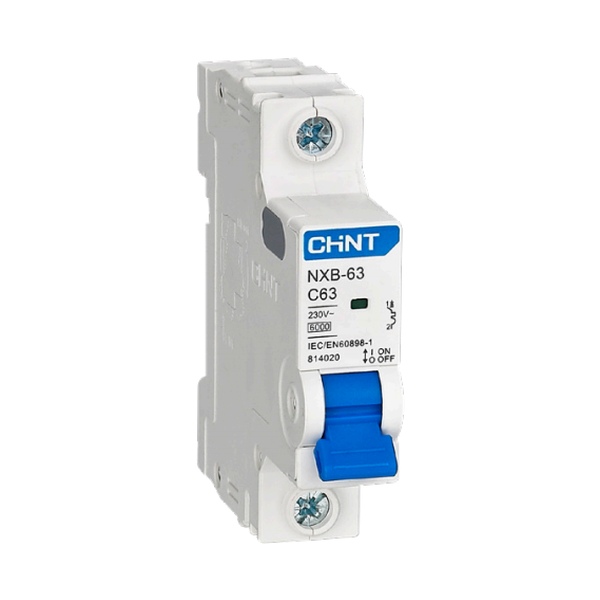

CHINT NXB-63S Miniature Circuit Breaker
Click to enlarge
Home Chint Electrical Materials Chint MCB CHINT NXB-63S Miniature Circuit Breaker
CHINT NXB-125G Miniature Circuit Breaker
CHINT NXB-125G Miniature Circuit Breaker
Back to products
People Electric LMK3-0.66 Current Transformer, 150/5A Class0.5
People Electric LMK3-0.66 Current Transformer, 150/5A Class0.5

CHINT NXB-63S Miniature Circuit Breaker

Brand Name: CHINT
Product Type: Miniature Circuit Breaker
Model: NXB-63S
Rated Voltage: AC 230V/400V, 63A
Application: Miniature circuit breaker for low-voltage distribution panels
Model
Poles
Rated Current
Tripping Curve
Add to Enquiry
Category: Chint MCB
  • Description
  • Additional information
  • Technical Documents
  • Selection & Ordering
Description

CHINT · Circuit breaker

Product overview

This CHINT NXB-63S listing provides overload and short-circuit protection for AC distribution. Select the exact manufacturer model, pole count, rated current and trip characteristic, then match the installation fault level.

Technical selection summary

Manufacturer modelNXB-63S
Current choices on this page1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Pole scope1P, 2P, 3P or 4P; confirm complete neutral/terminal construction
Trip characteristicB / C / D; use the exact manufacturer release/curve row
AC supply referenceAC 240/415 V, 50/60 Hz manufacturer reference; use the appropriate pole/system voltage
Short-circuit reference4.5 kA short-circuit and service values in the exact NXB-63S column
Installation / documents35 mm DIN rail; apply the exact manufacturer installation/derating instructions and obtain documents for the supplied version

The S construction has its own manufacturer column. Do not copy 6 kA from NXB-63 or 10 kA from NXB-63H. Match the marked device, fault level, conductor protection and applicable temperature derating.

Typical applications

  • Distribution or control panels matched to the exact device
  • Replacement procurement using complete CHINT model and assembly information

Download CHINT NXB-63S manufacturer catalogue (PDF)

Product reference images and drawings

Match the exact manufacturer model, pole construction, voltage and connection drawing. Retained family images may show other versions.

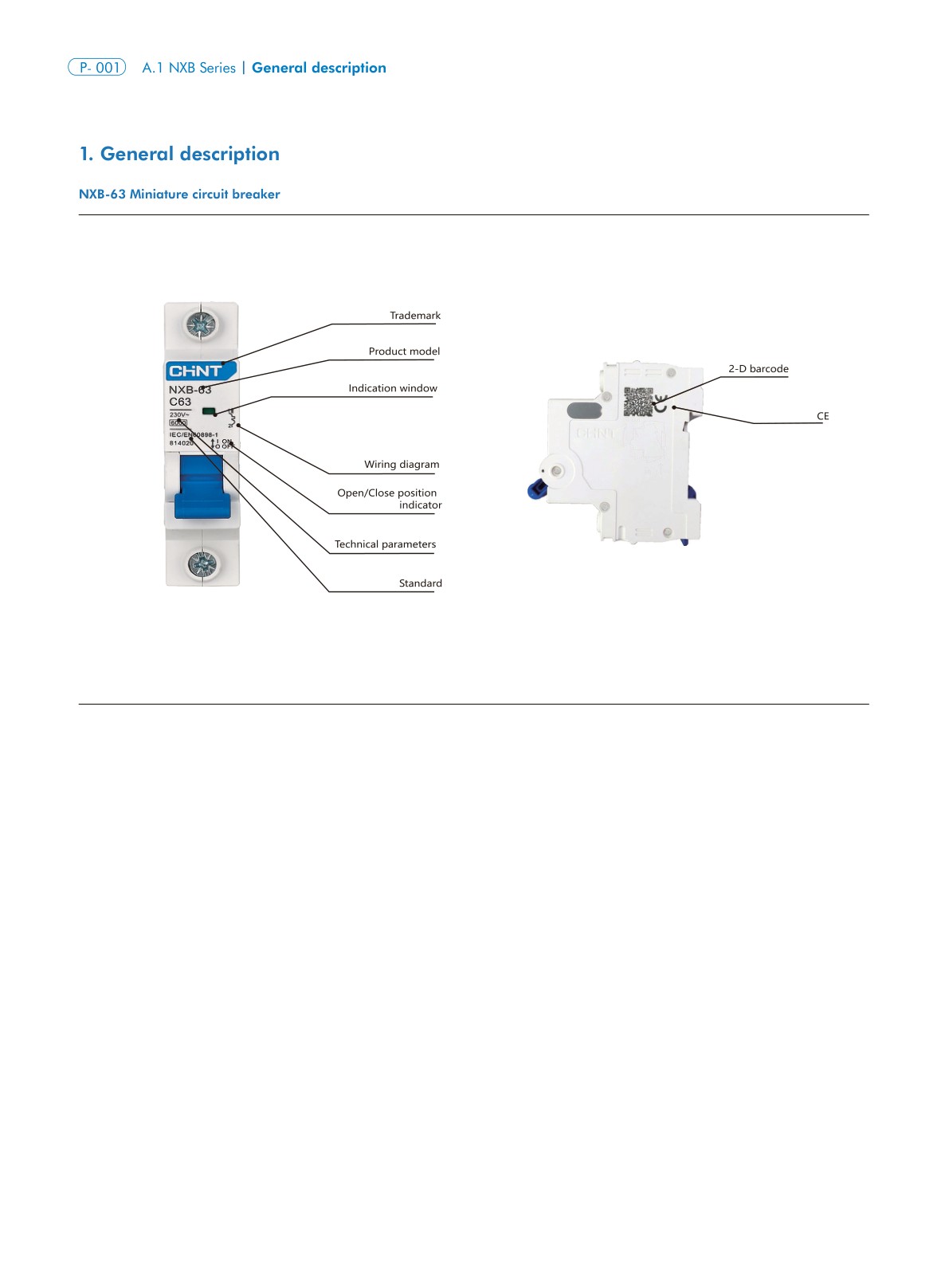

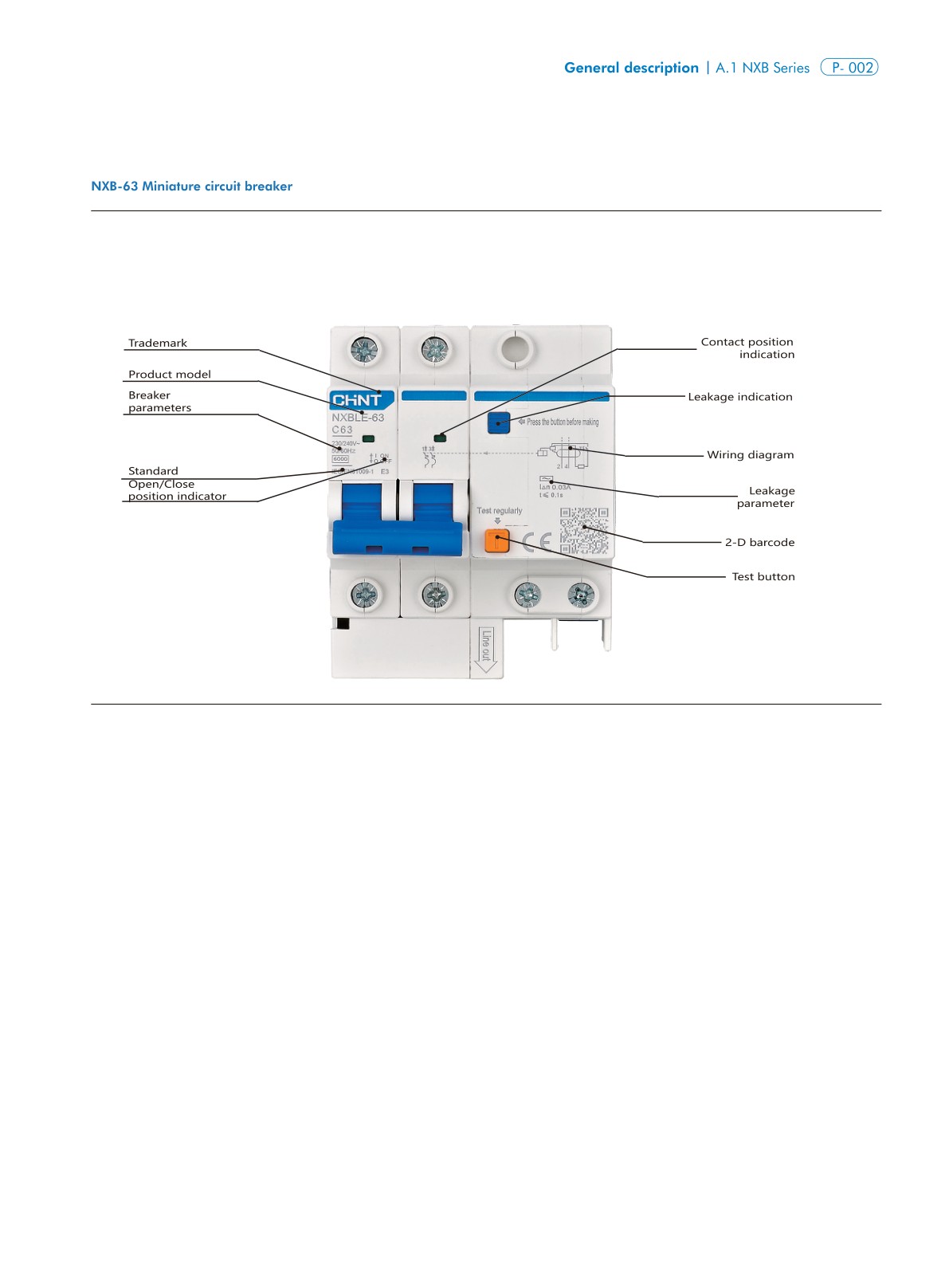

NXB-63S technical reference 1NXB-63S technical reference 2
Additional information
Model

NXB-63S

Poles

1P, 2P, 3P, 4P

Rated Current

1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Tripping Curve

B, C, D

Technical Documents

TECHNICAL RESOURCES

Documents for CHINT NXB-63S Miniature Circuit Breaker

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.
