CHINT · Circuit breaker
Product overview
This CHINT CB-60G listing provides overload and short-circuit protection for AC distribution. Select the exact manufacturer model, pole count, rated current and trip characteristic, then match the installation fault level.
Technical selection summary
| Manufacturer model | CB-60G |
|---|---|
| Current choices on this page | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Pole scope | 1P, 2P, 3P or 4P; confirm complete neutral/terminal construction |
| Trip characteristic | B / C / D; use the exact manufacturer release/curve row |
| AC supply reference | Use the exact AC pole/voltage row; AC 50/60 Hz. 2P/3P/4P entries are AC 380/400/415 V |
| Short-circuit reference | AC Icn 6 kA and Ics 6 kA in this manufacturer table |
| Installation / documents | 35 mm DIN rail; apply the exact manufacturer installation/derating instructions and obtain documents for the supplied version |

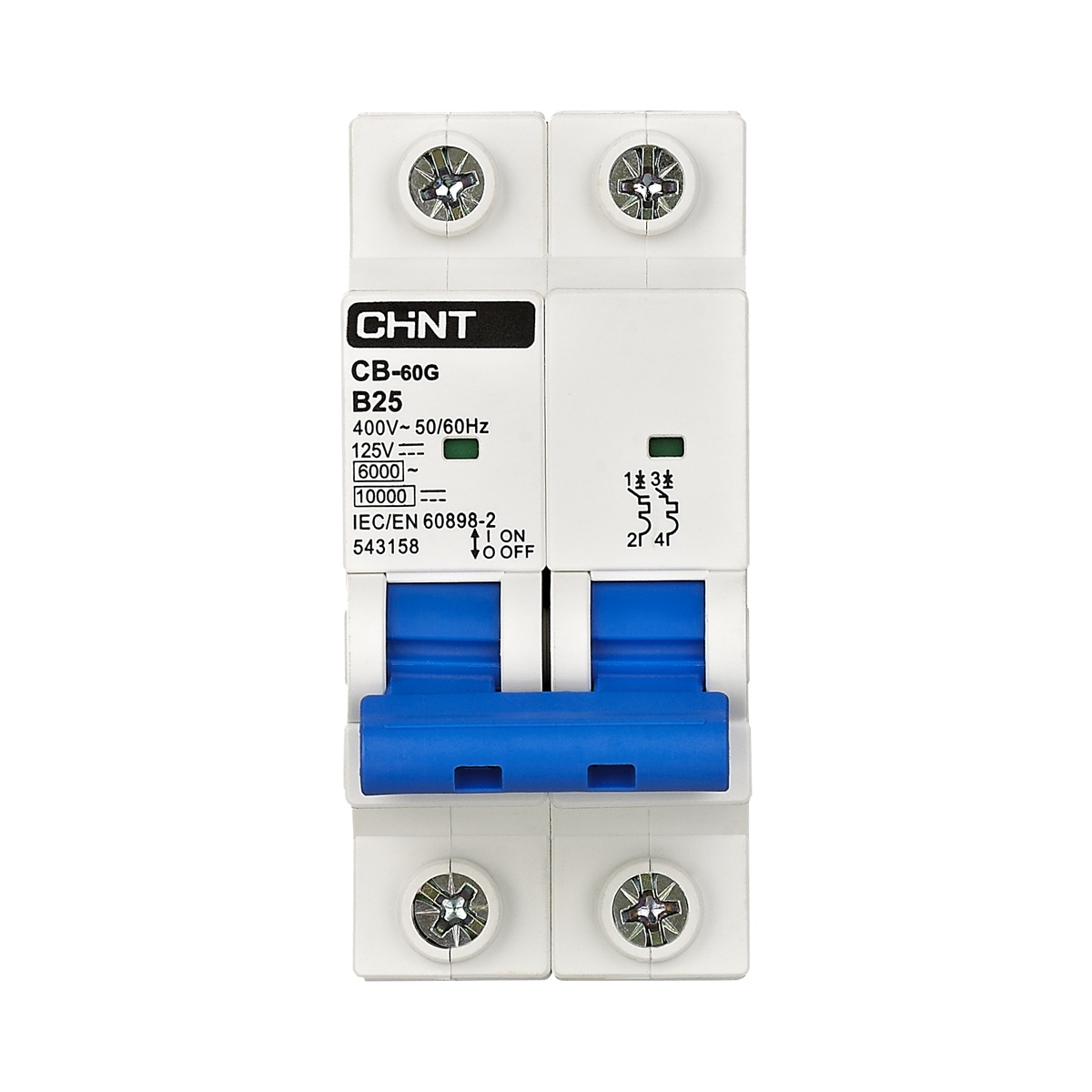

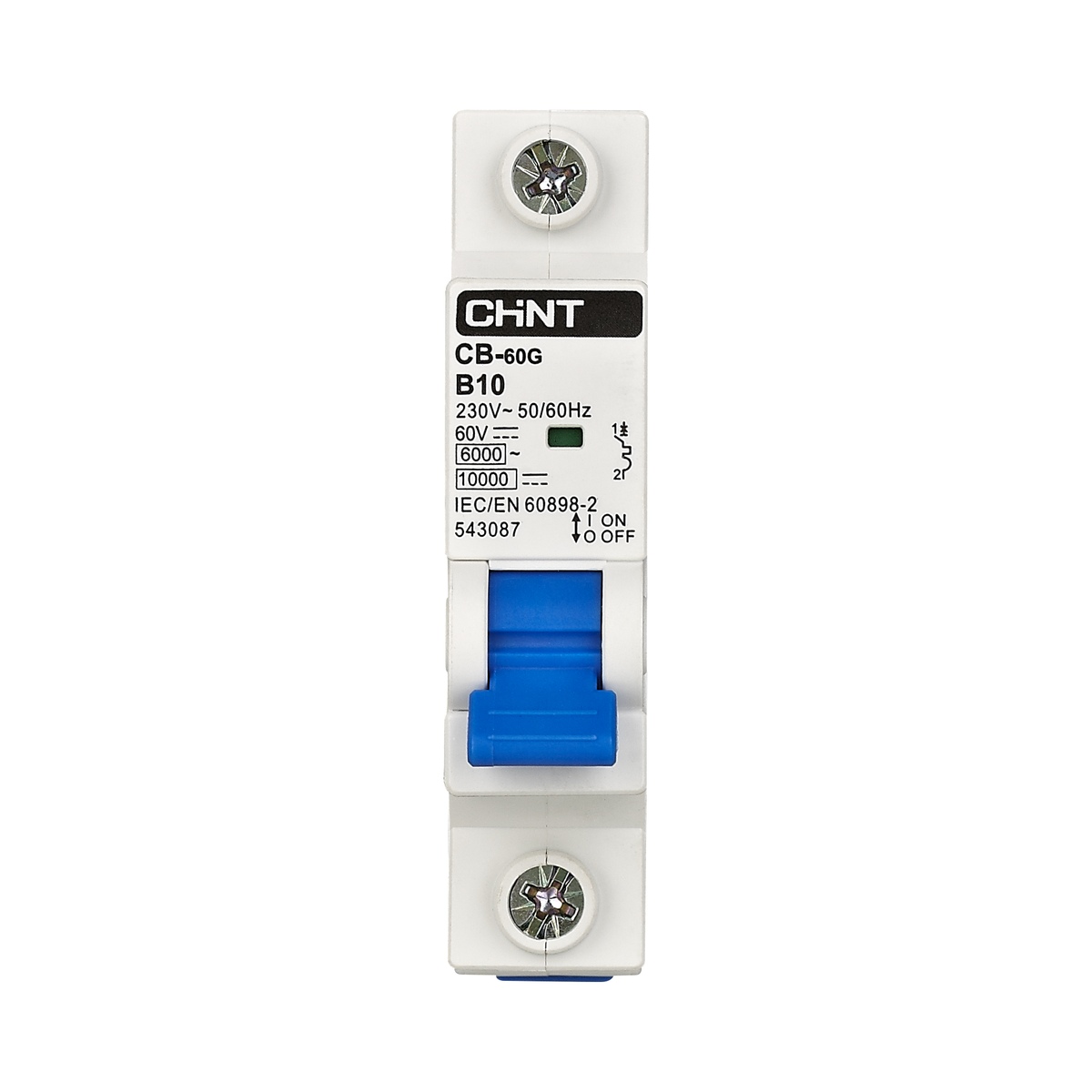

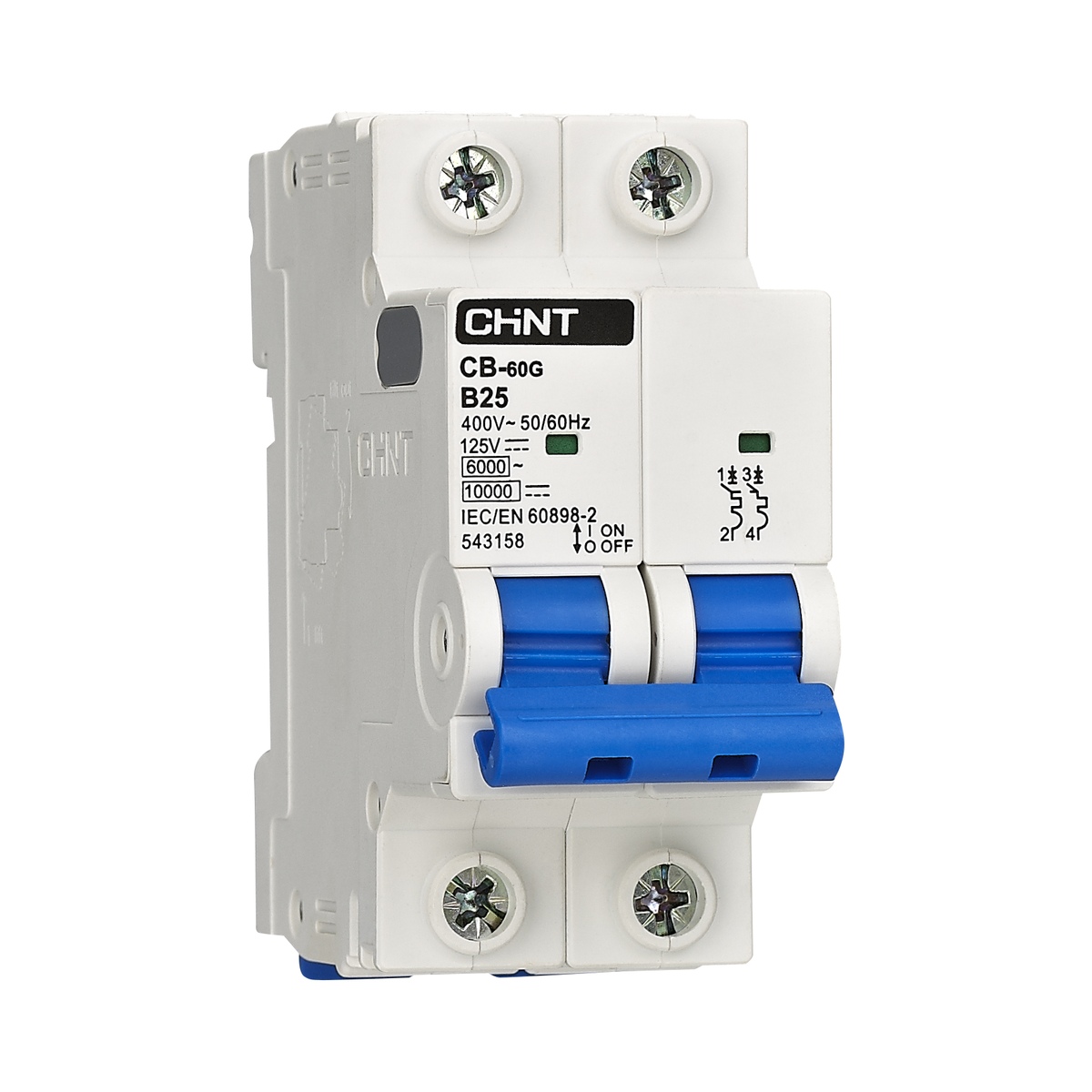

The CB-60G catalogue records a 24-hour salt-mist test reference under IEC 60068-2-11 for the stated construction; confirm the supplied SMT code and application conditions. Separate AC-and-DC versions are listed for 1P DC 60 V or 2P DC 125 V. Do not combine these DC duties with every pole/curve choice.
Typical applications
- Distribution or control panels matched to the exact device
- Replacement procurement using complete CHINT model and assembly information
Specify your enquiry
For a focused quotation, include:
- Full CB-60G code, poles, rated current, curve and quantity
- System voltage/frequency, fault level and required standard
- Neutral, terminals/busbar, accessories and applicable supply documents

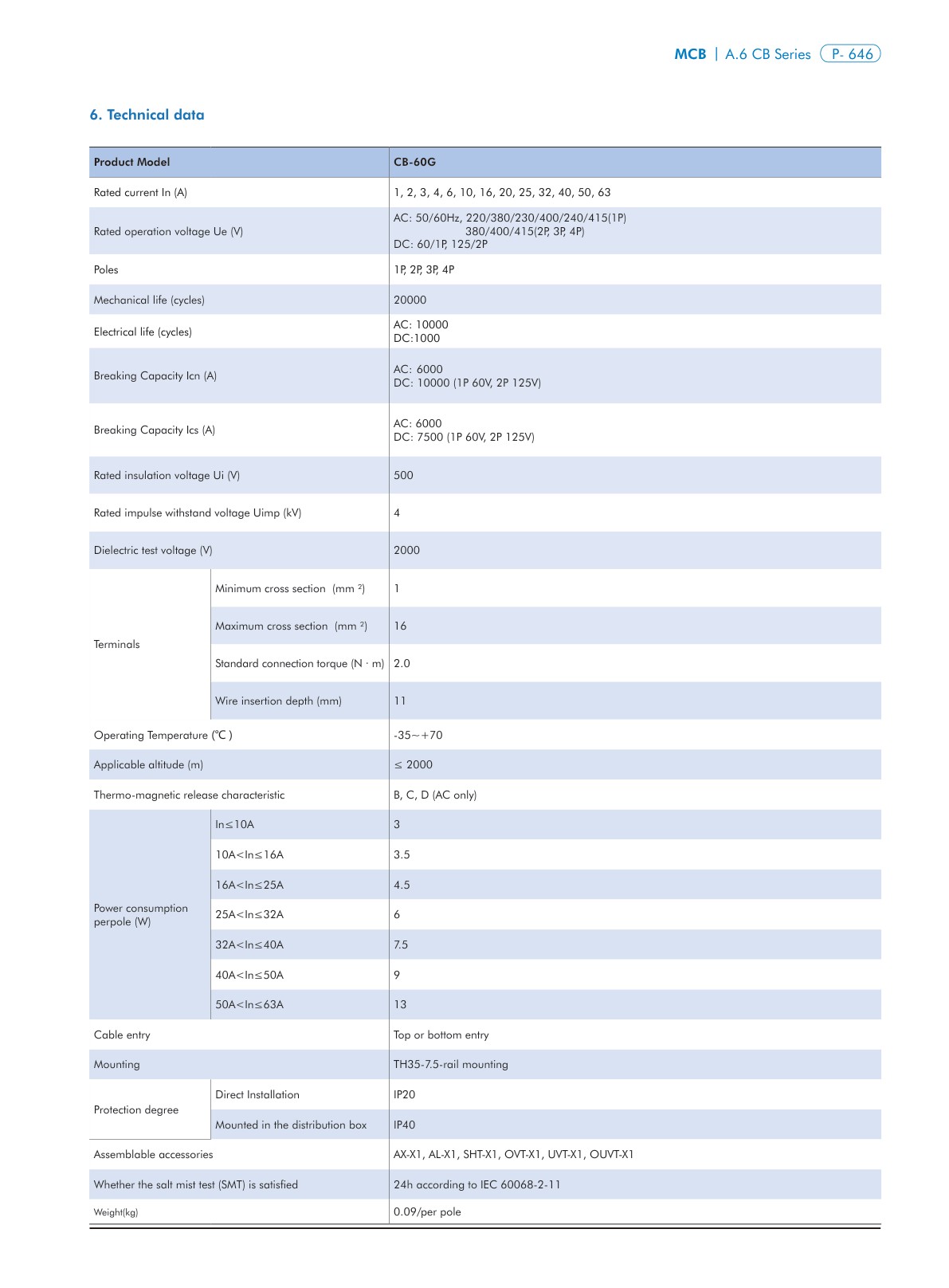

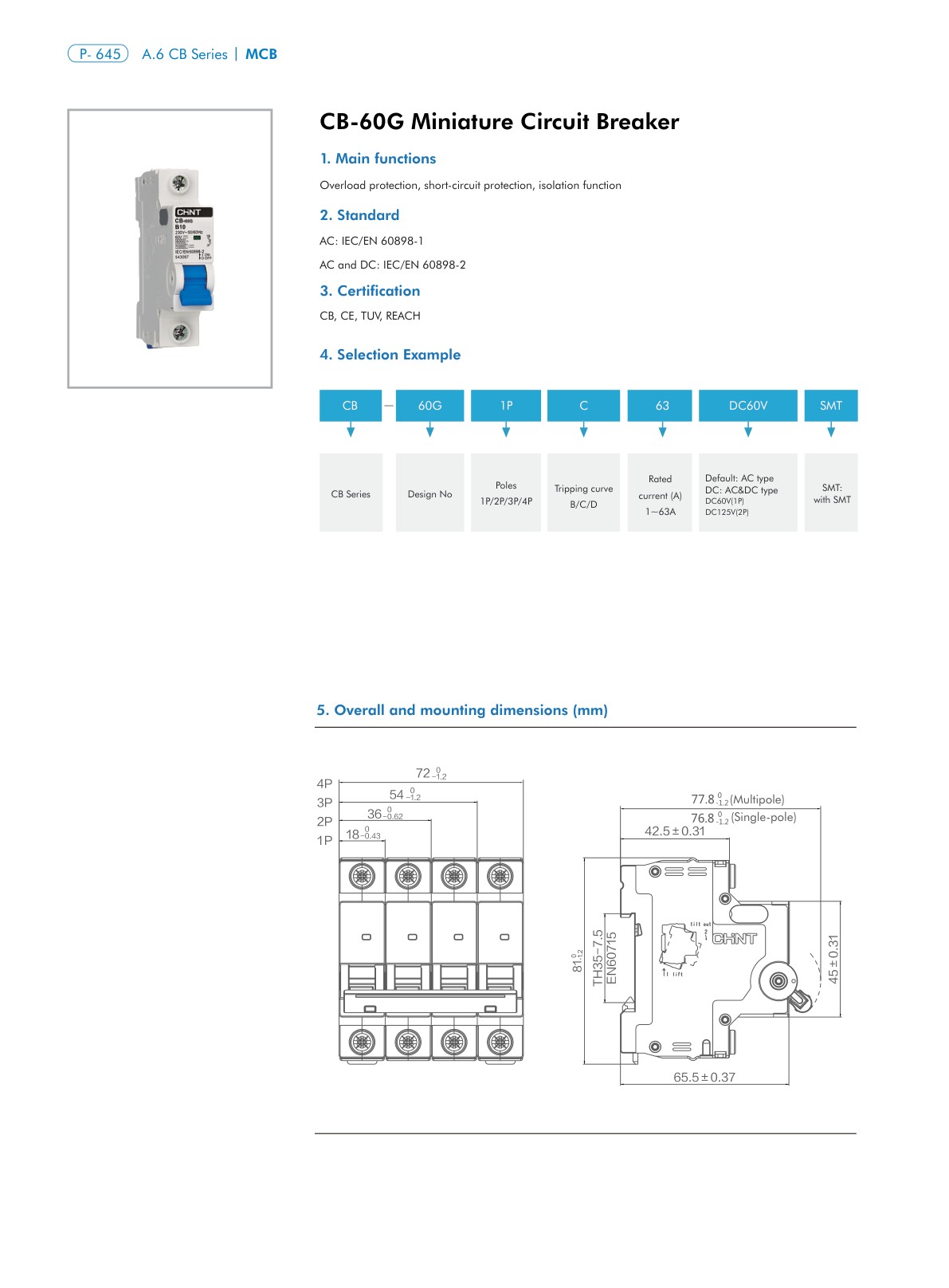

Download CHINT CB-60G manufacturer catalogue (PDF)

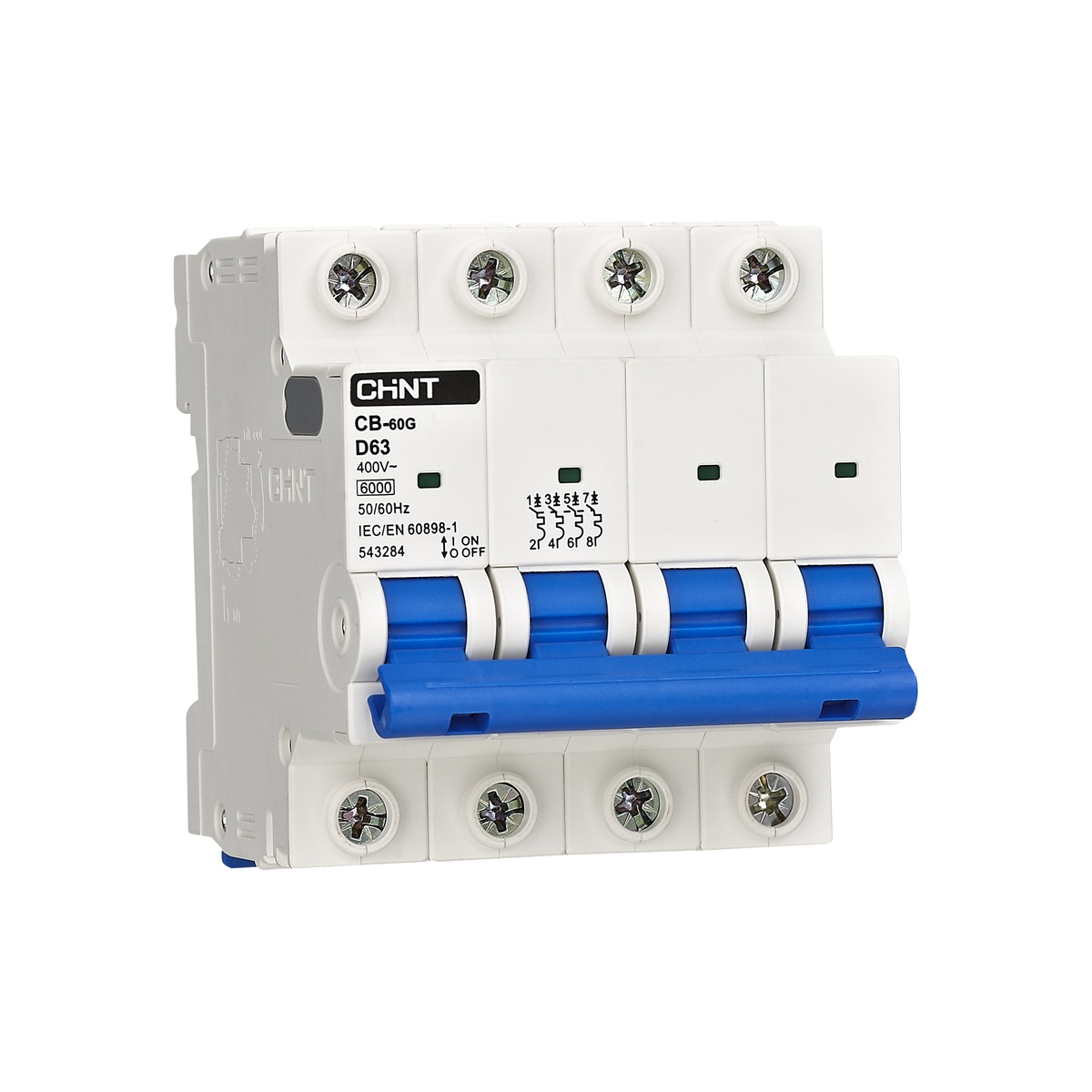

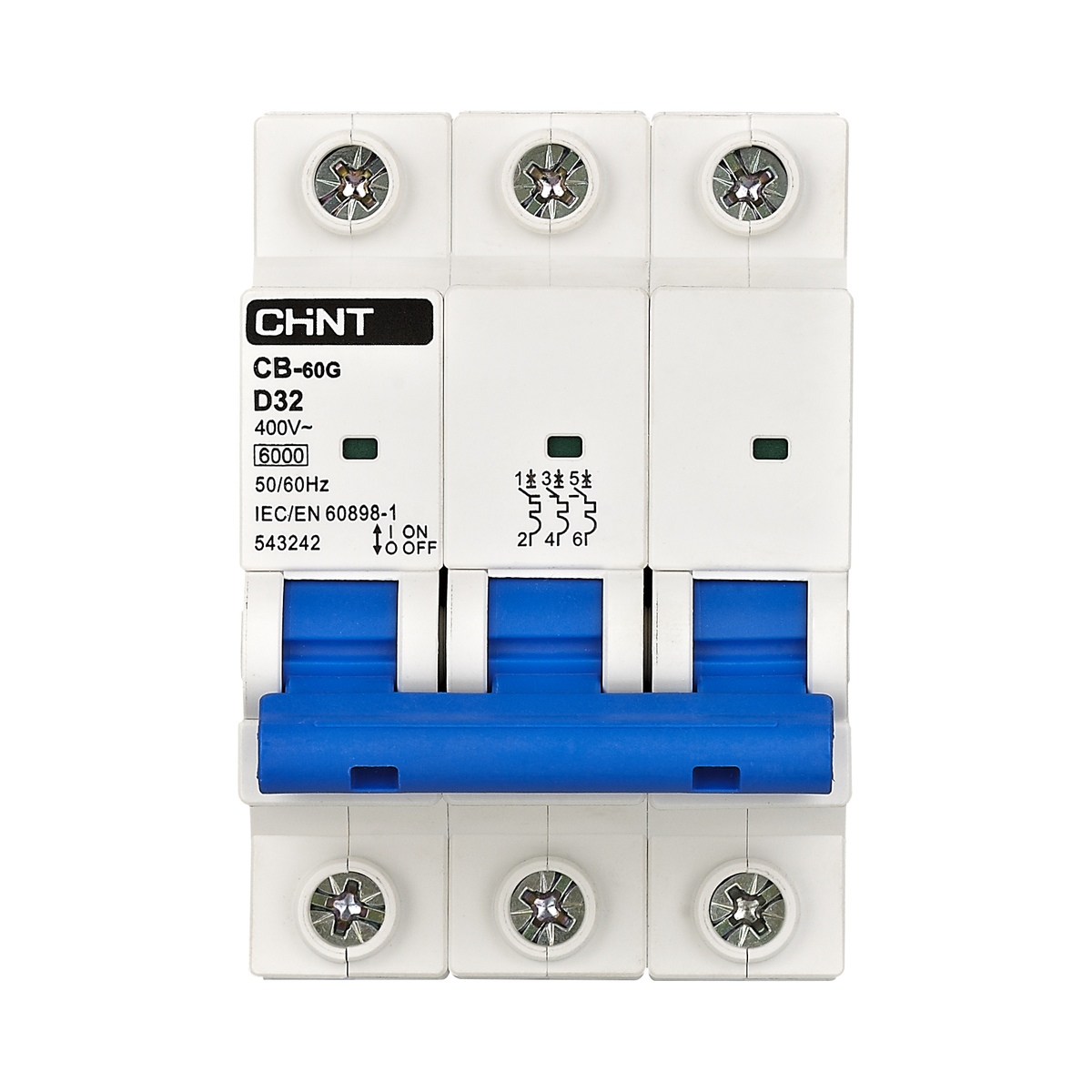

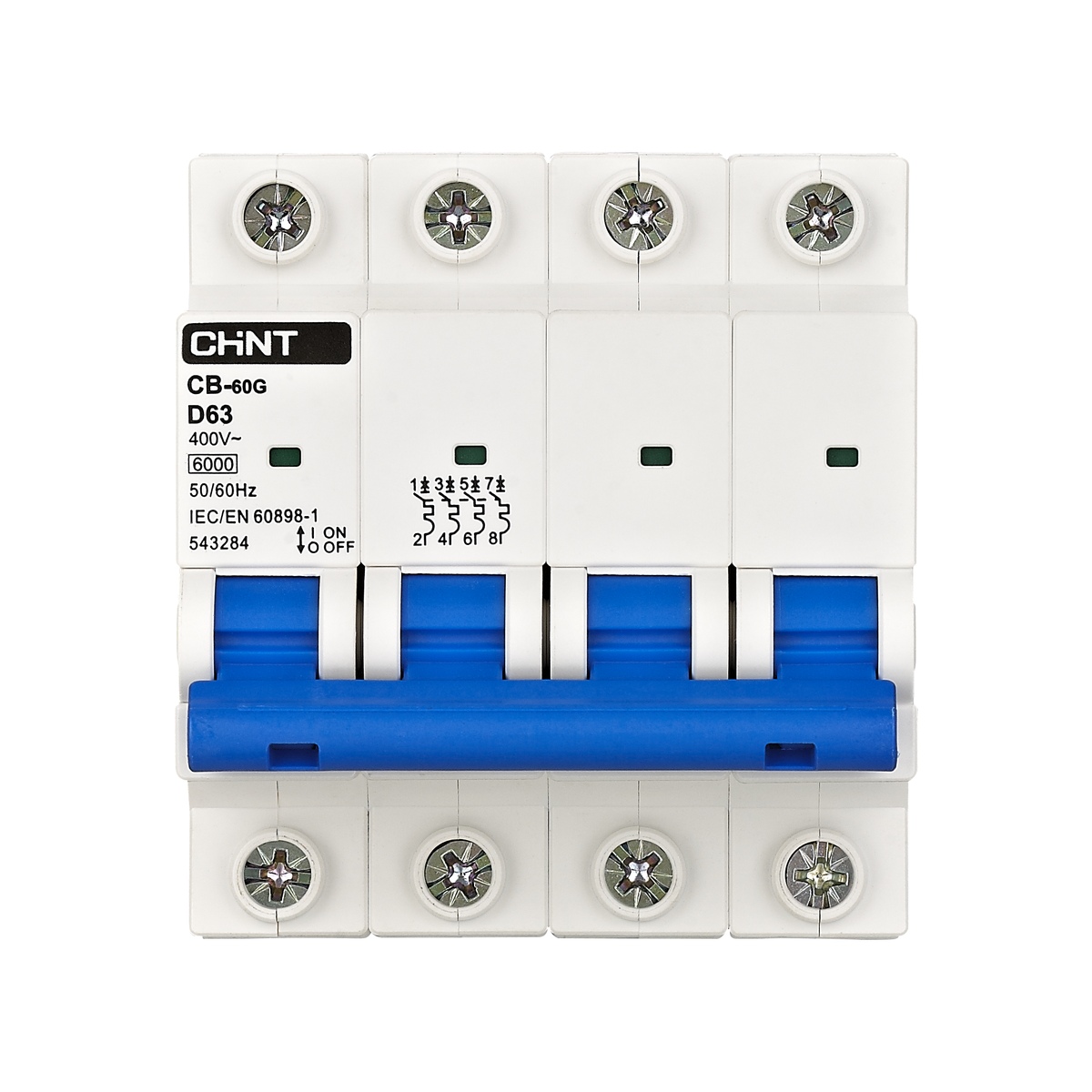

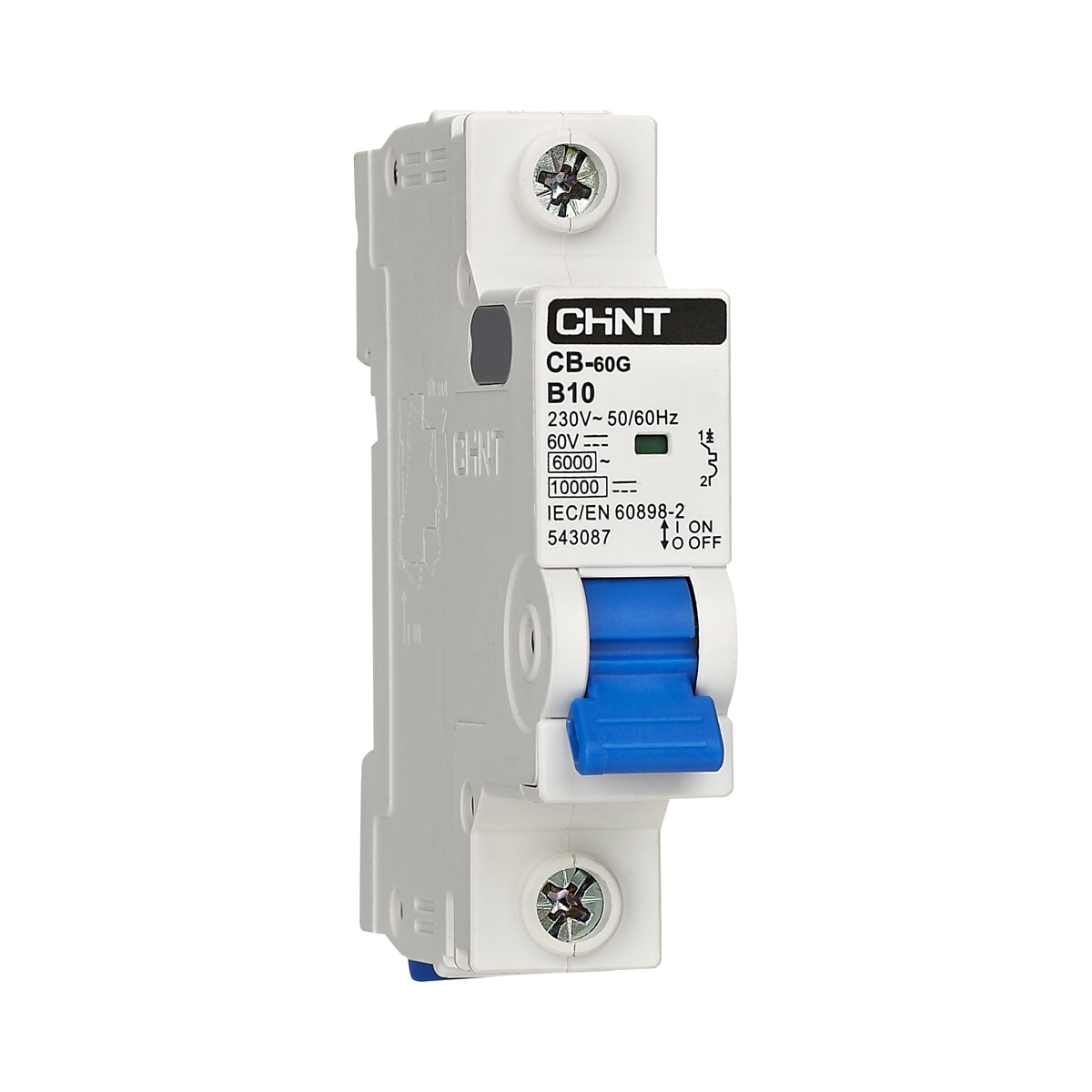

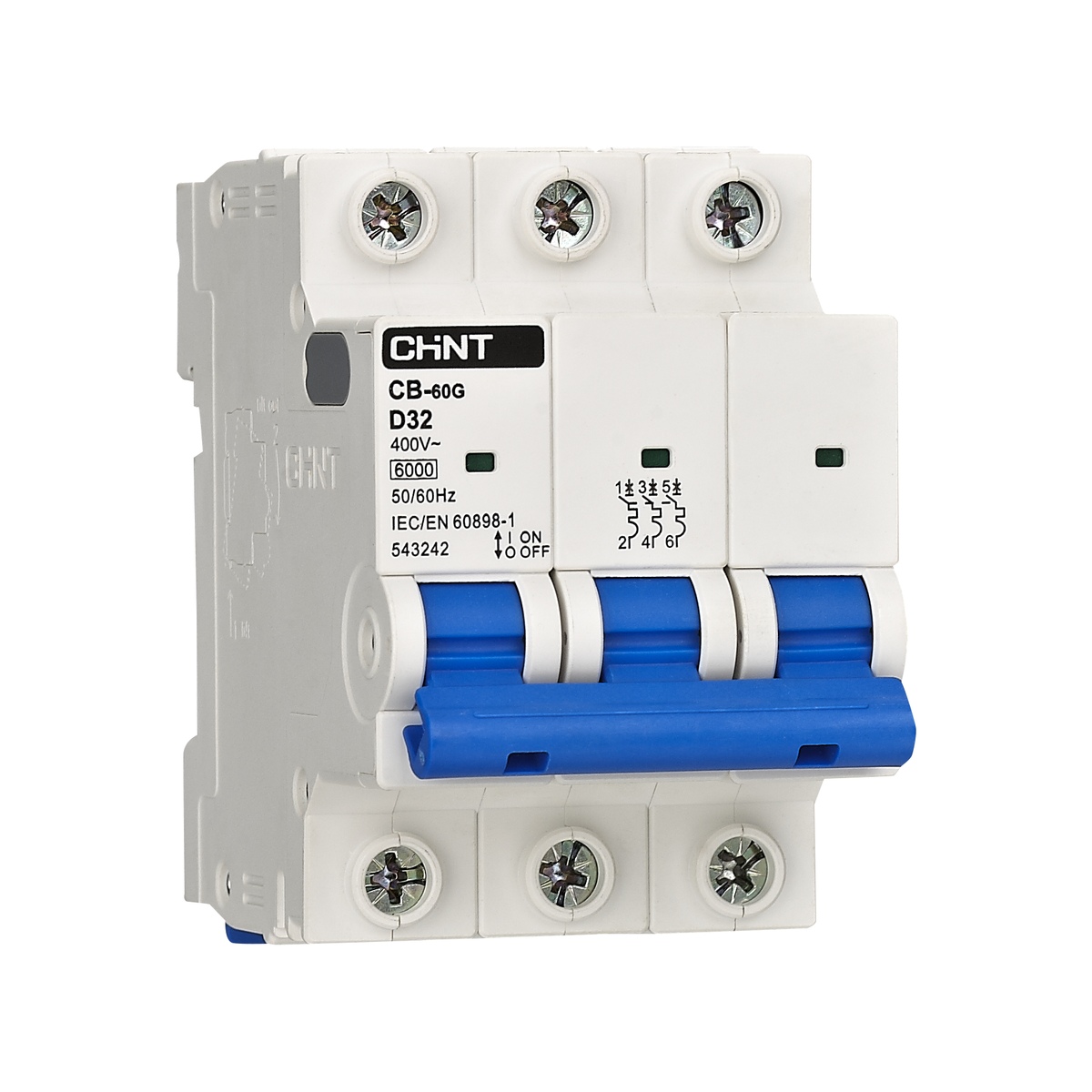

Product reference images and drawings

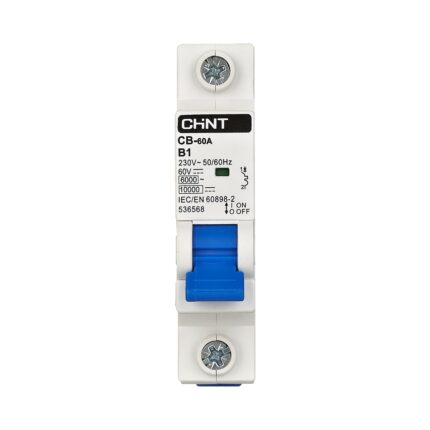

Match the exact manufacturer model, pole construction, voltage and connection drawing. Retained family images may show other versions.
