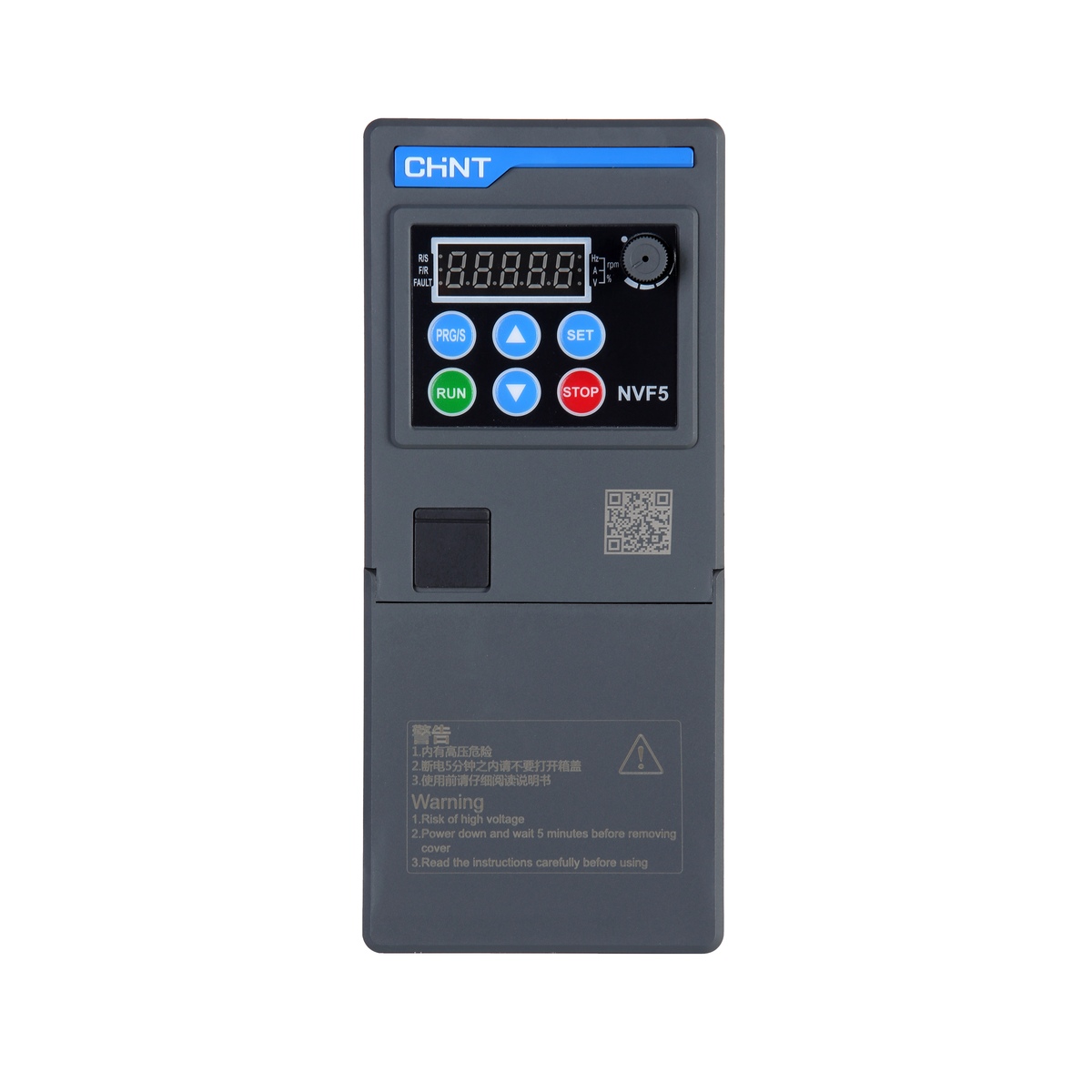

Product Overview
The NVF5 NEXT Series Variable Frequency Drive features next-generation vector control technology, delivering superior torque performance, high-speed precision, and energy-saving capabilities for complex motor control systems in industrial automation.
Main Features
- Advanced Vector Control: Next-generation technology for superior torque performance
- High-Speed Precision: Precise motor speed control for demanding applications
- Energy Saving: Optimized V/F curve for maximum efficiency
- Multiple Communication Protocols: MODBUS-RTU standard, optional EtherCAT, PROFIBUS-DP, CANopen, Profinet, Ethernet/IP
- Dual-Duty Configuration: Heavy Duty (150% overload 60s) and Light Duty (120% overload 60s)
- Built-in PLC: 16-step programmable control
- PID Control: Automatic process control capability
Technical Specifications
| Parameter | Specification |
|---|---|
| Control Mode | Vector Control (Open/Closed Loop) |
| Speed Range | 1:100 (Open Loop), 1:1000 (Closed Loop) |
| Starting Torque | 150% at 0.5Hz (Open Loop), 200% at 0Hz (Closed Loop) |
| Overload Capacity | 150% 60s (Heavy Duty), 120% 60s (Light Duty) |
| Communication | MODBUS-RTU (Standard), EtherCAT, PROFIBUS, CANopen, Profinet, Ethernet/IP (Optional) |
| Frequency Resolution | Digital: 0.01Hz, Analog: 0.5% x Max Frequency |
Technical and Application Notes
The NVF5 VFD is designed for industrial automation applications requiring precise motor control. Its advanced vector control algorithm provides excellent dynamic response and torque accuracy, making it ideal for applications with varying loads or demanding speed control requirements.
The built-in 16-step PLC function allows simple automation sequences without external controllers, while the multi-speed operation and PID control enable standalone process control capability.
Typical Applications
- Industrial automation systems
- HVAC and water supply systems
- Manufacturing and production lines
- Textile machinery
- Plastics processing equipment
- Food processing machinery
- Energy-saving motor control
Ordering Support
When ordering NVF5 variable frequency drives, please specify:
- Motor power rating and voltage
- Input/output voltage requirements
- Duty type (Heavy Duty or Light Duty)
- Communication protocol requirements
- Protection level (IP20 or IP54)
- Braking unit requirements (if any)
Product Catalog
For detailed specifications and technical data, please refer to the product catalog below.
