NewTrend · VL16-63
Product overview

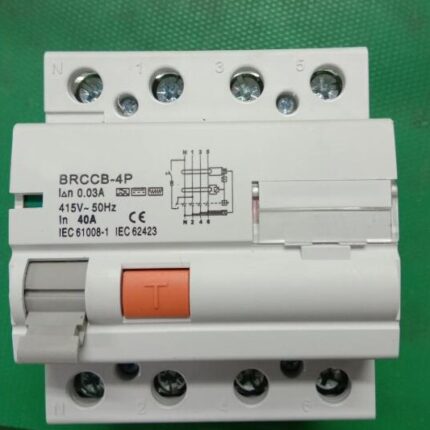

NewTrend VL16-63 RCCBs for residual-current protection of AC distribution circuits. Select poles, nominal current, sensitivity and residual-current type.
Technical selection summary
| Parameter | Specification |
|---|---|
| Protection | Electromagnetic residual-current circuit breaker without integral overcurrent protection |
| Poles / voltage | 2P:AC230/240V;4P:AC400/415V;50/60Hz |
| Rated current | 25A,40A or63A |
| Residual operating current | 30,100,300 or500mA; residual non-operating current0.5IΔn |
| Conditional short-circuit ratings | Inc10kA and IΔc10kA require suitable coordinated upstream short-circuit protection; not an independent MCB Icn rating |
| Making / breaking capacity | Im500A for25/40A;630A for63A |
| Connection / mounting | Rigid conductor≤25mm²;terminal height19mm;tightening2.0Nm;35mm DIN rail or panel mounting |
| Protection / endurance | IP20;4000 electromechanical operations |
| Dimensions | 2P width≤35.1mm;4P≤70.5mm;height≤81mm;depth78mm, as original outline |
The page is an RCCB, not an RCBO: no C curve or LSIG overload protection is claimed. The10kA figure is conditional on coordinated protection. G/S time-delay variants are not freely combined with A/AC without an exact ordered reference; independent6kA,100A and16A options are not established by this source.
Typical applications
- Electrical distribution and protection
Specify your enquiry
For a focused quotation, include:
- Selected model and configuration
- Quantity, installation requirements and destination
- Required supporting documents for the exact configuration
Open technical reference image
Product reference images and drawings
