DELIXI ELECTRIC · CDT18-S
Product overview
DELIXI CDT18-S is a DIN-rail digital time relay with 20 programmable timing modes. Select the output contact arrangement and the physical control-supply version.
Technical selection summary
| Timing range | 0.1s–99 days; 20 programmable functions |
|---|---|
| Outputs | S1: 1 changeover; S2: 2 changeovers |
| Control supply | AC/DC12V, AC220V, AC230V, AC380V, or AC/DC24–240V |
| Output duty | AC-15: AC240V/3A, AC380V/1.9A; DC-13: DC250V/1.1A, DC125V/2.2A |
| Thermal / resistive ratings | Ith10A; AC250V16A resistive contact-capacity entry is separate from the AC-15/DC-13 working ratings |
| Mounting / wiring | 35mm DIN rail; A1/A2 supply, S trigger; 15/16/18 and S2 25/26/28 contacts; follow the exact original diagram |
| Protection coordination | Manufacturer recommends RT16-00 10A SCPD; GB/T14048.5 |
The selected supply is a physical product version. The 20 timing functions are programmable settings rather than twenty separate supply or contact variants. Use the S1/S2 wiring associated with the ordered relay.
Typical applications
- DELIXI CDT18-S is a DIN-rail digital time relay with 20 programmable timing modes.
Specify your enquiry
For a focused quotation, include:
- Contact Form: 1CO, 2CO
- Control Supply: AC/DC12V, AC220V, AC230V, AC380V, AC/DC24–240V
- Required quantity, circuit duty and installation conditions.

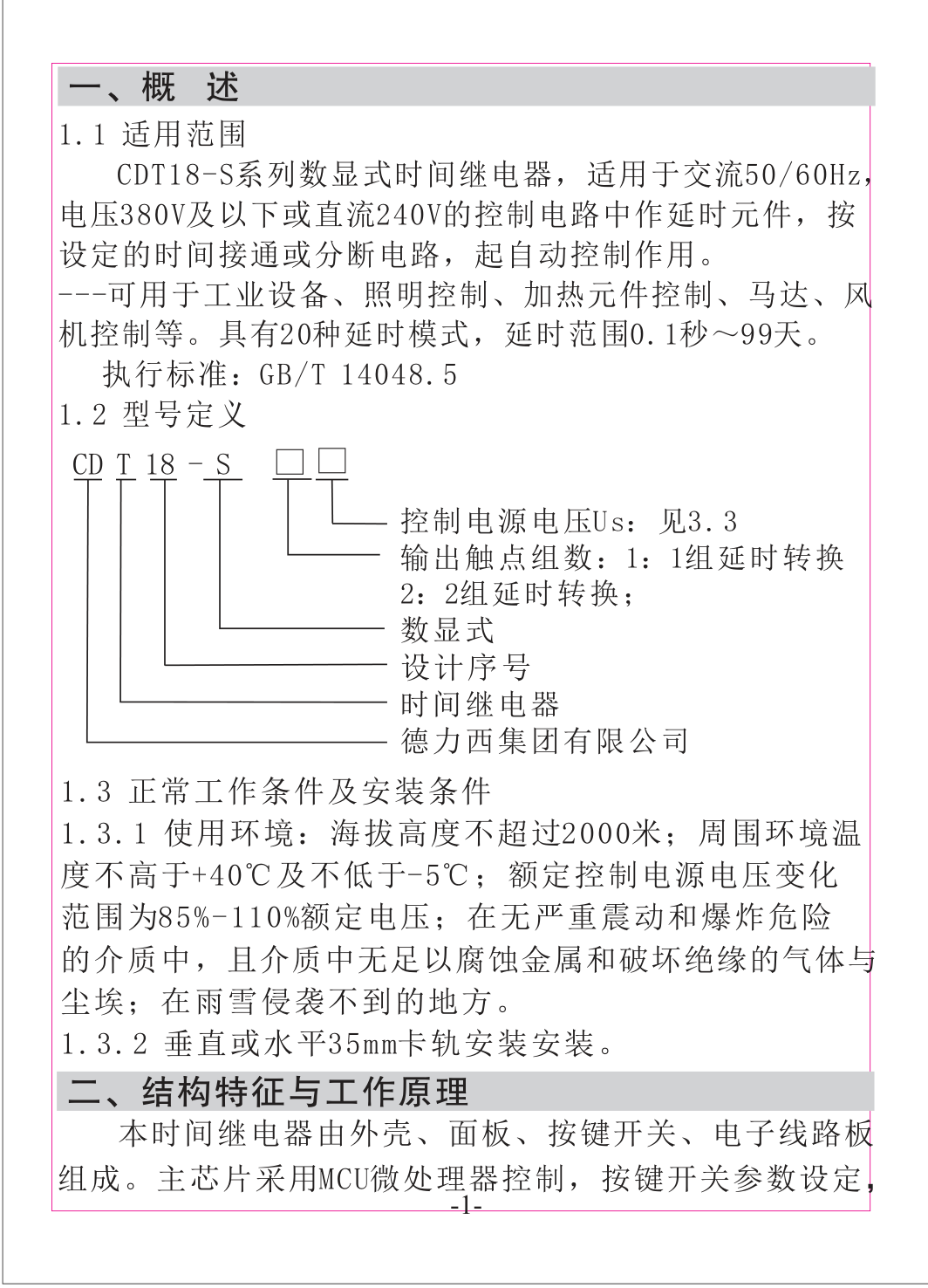

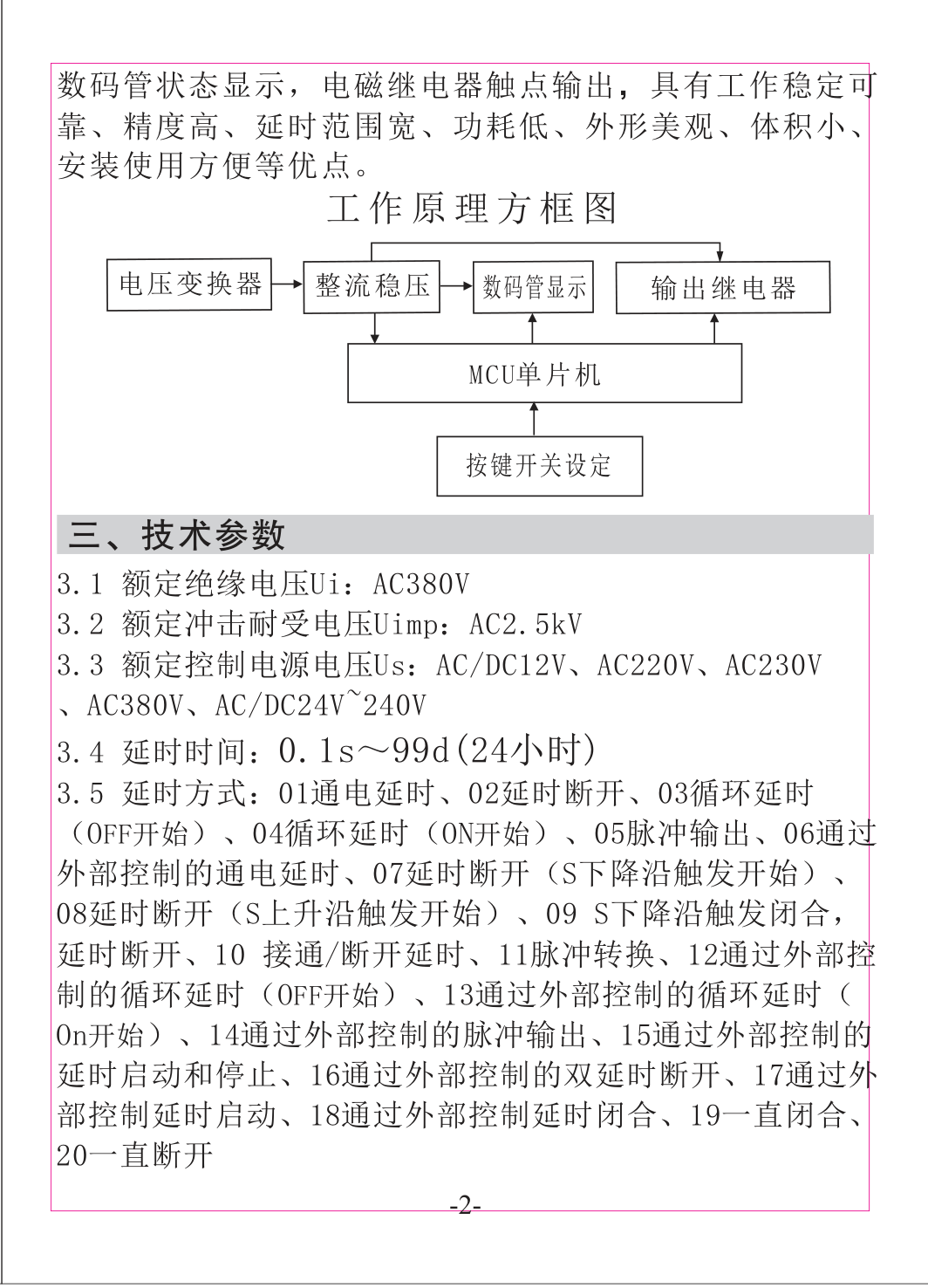

CDT18-S manufacturer instructions (Chinese PDF)

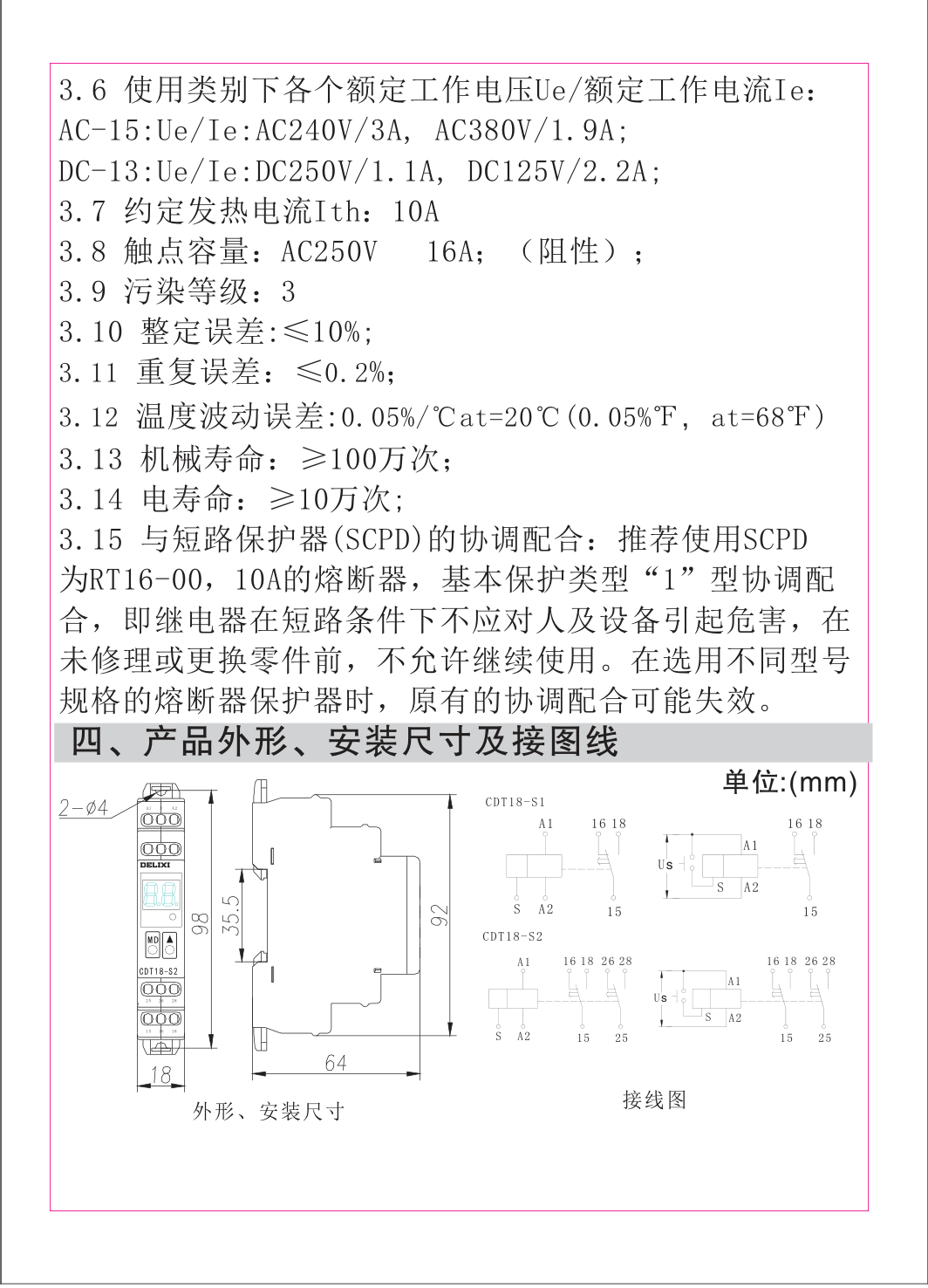

Product reference images and drawings
