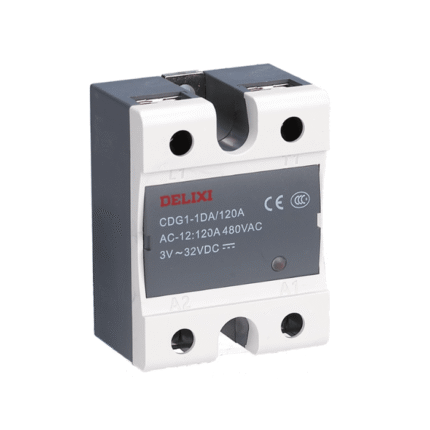

DELIXI CDG1 Single- Phase Solid State Relay
DELIXI CDG1 Single- Phase Solid State Relay
Back to products

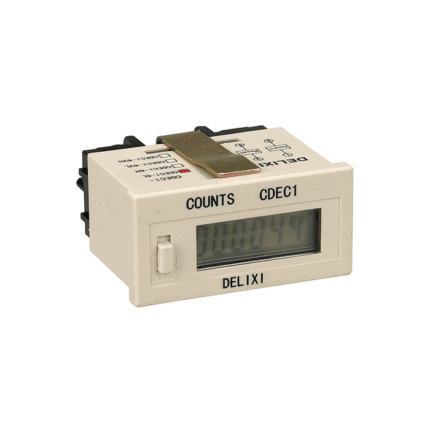

DELIXI CDEC1 Subminiature Electronic Counter
DELIXI CDEC1 Subminiature Electronic Counter

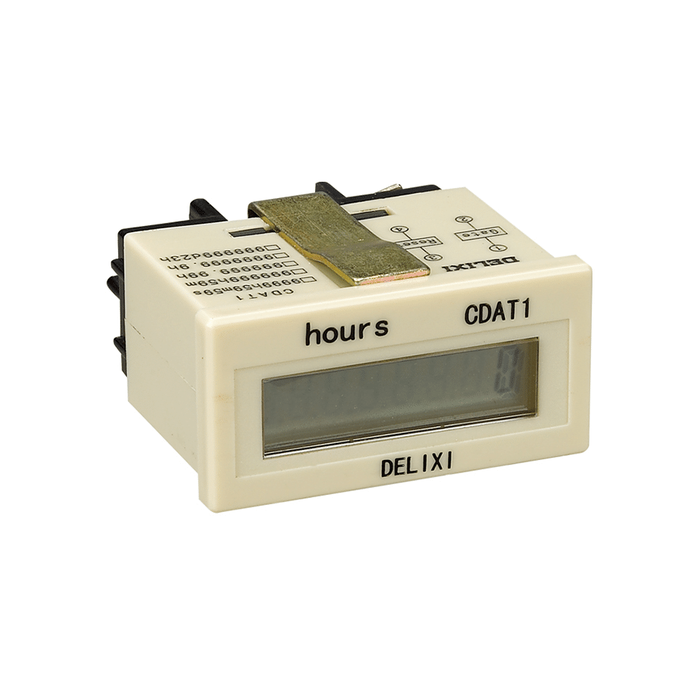

DELIXI CDAT1 Subminiature Electronic Timer

DELIXI CDAT1 subminiature electronic timer for accumulated time measurement applications.

Category:
Description

Delixi Electric CDAT1 Subminiature Electronic Timer



Product Name CDAT1 Subminiature Electronic Timer
Brand DELIXI ELECTRIC
Model CDAT1
Product Type Electronic Timer
Accumulated Time Range 1s-99h59min59s to 0.01h-999999.99h (model-dependent)
Reset Mode Panel button reset / external terminal reset
Incremental Input Method Contact input or electrical signal input
Maximum Resistance ON ≤10kΩ
Minimum Resistance OFF ≥500kΩ
Input Maximum Residual Voltage 0.5V
Reset Minimum Pulse Width ≥0.2s
Cumulative Error ≤0.01%
Standard GB 8898
