NXZB MTS Mechanical Interlock for Chint NXB-63 MCB

Name: NXZB MTS Mechanical Interlock for Chint NXB-63 MCB
Brand: CHINT
SKU: NXBZ

Description

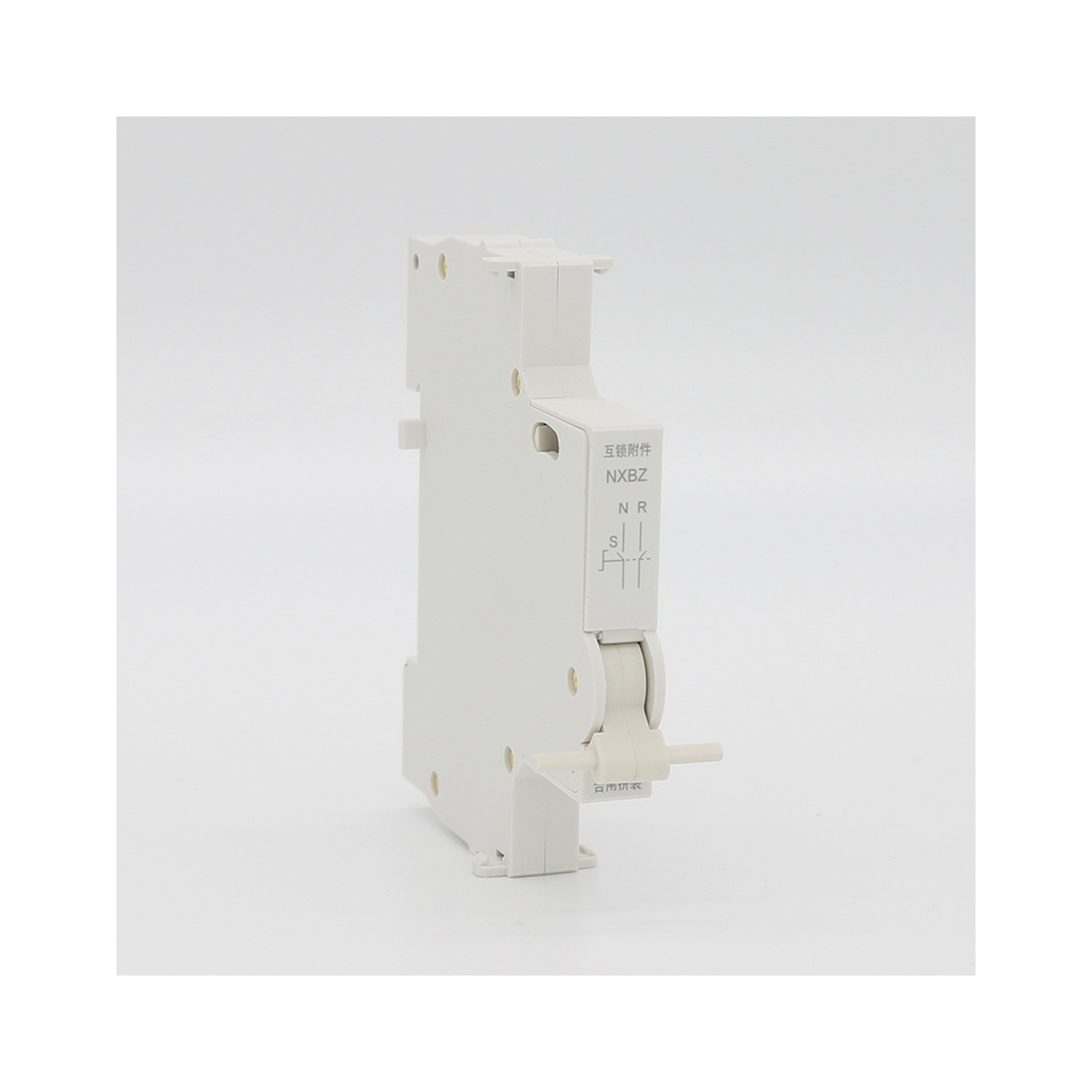

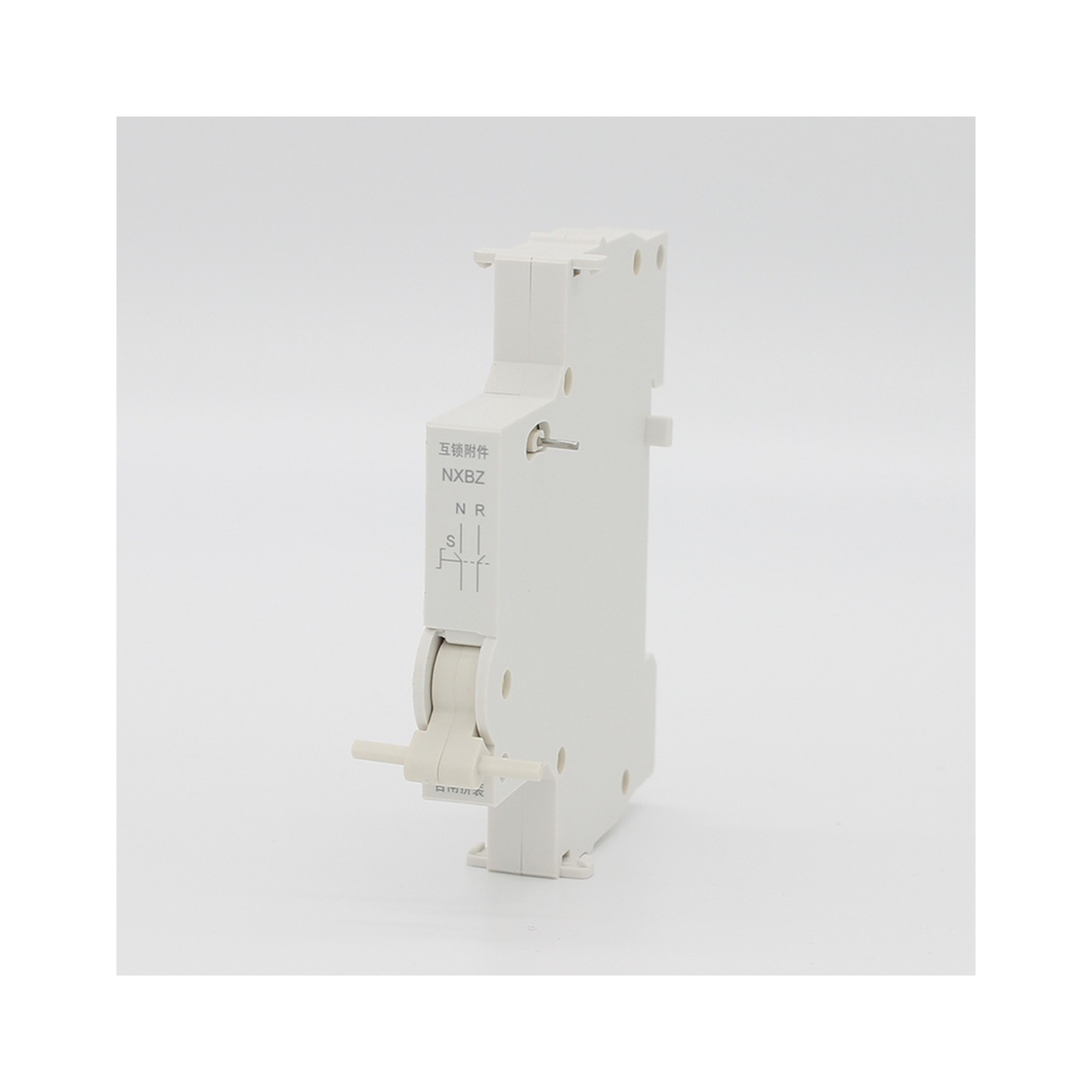

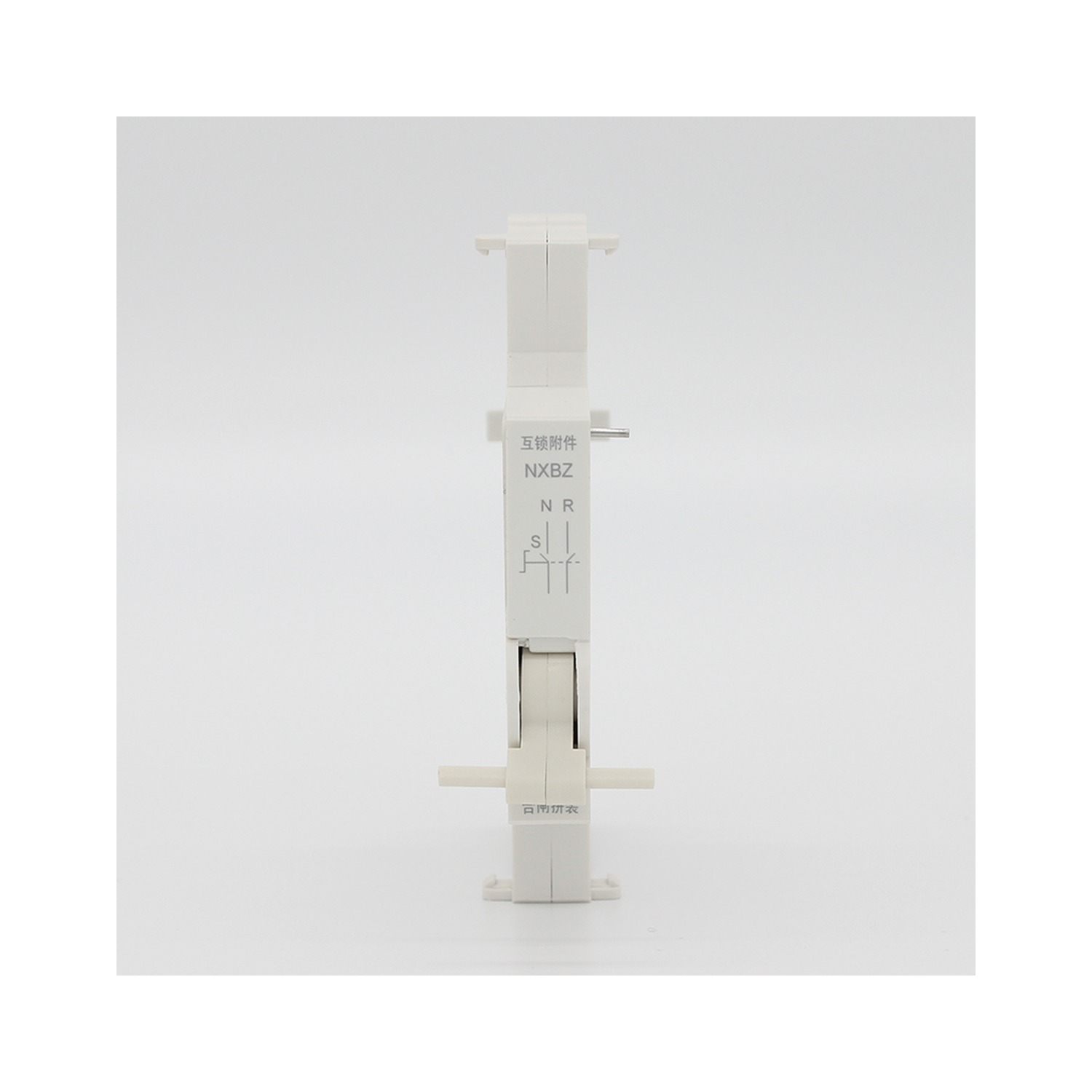

Yijindianzi NXBZ Miniature Circuit Breaker

Compatible Breaker Series: NXB Series (1P, 2P, 3P, 4P)

Product Overview

For NXBZ, the official catalogue lists compatible breaker series as NXB Series (1P, 2P, 3P, 4P). For NXBZ, the official catalogue lists module width as 9.0 mm (0.5 Mod). For NXBZ, the official catalogue lists interlock operation as Bidirectional Auto-Trip. For NXBZ, the official catalogue lists transfer mechanism as Manual Handle Operation, Automatic Trip-Before-Make. For NXBZ, the official catalogue lists mounting standard as TH35-7.5 DIN Rail. For NXBZ, the official catalogue lists mounting method as Top-hat sectional DIN rail TH35-7.5 (35 x 7.5 mm).

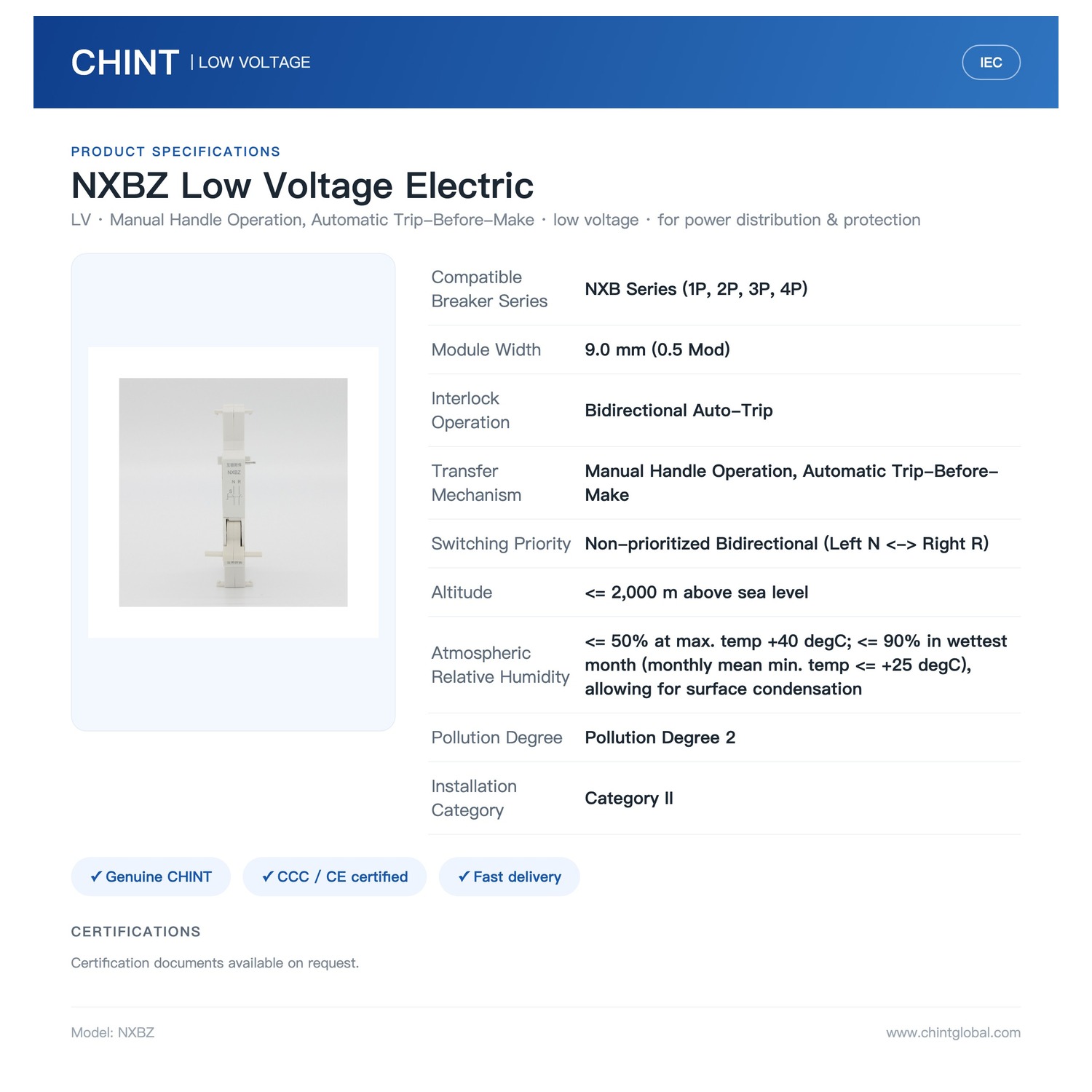

Technical Parameters

Compatible Breaker Series	NXB Series (1P, 2P, 3P, 4P)
Module Width	9.0 mm (0.5 Mod)
Interlock Operation	Bidirectional Auto-Trip
Transfer Mechanism	Manual Handle Operation, Automatic Trip-Before-Make
Switching Priority	Non-prioritized Bidirectional (Left N <-> Right R)
Model	NXBZ

Key Selling Points

✓ Compatible Breaker Series: NXB Series (1P, 2P, 3P, 4P)

✓ Module Width: 9.0 mm (0.5 Mod)

✓ Interlock Operation: Bidirectional Auto-Trip

✓ Transfer Mechanism: Manual Handle Operation, Automatic Trip-Before-Make

Technical Highlights

Compatible Breaker Series: NXB Series (1P, 2P, 3P, 4P)
Module Width: 9.0 mm (0.5 Mod)
Interlock Operation: Bidirectional Auto-Trip
Transfer Mechanism: Manual Handle Operation, Automatic Trip-Before-Make

Reference Datasheet Pages

The following pages were selected from the model catalogue and are included for technical reference:

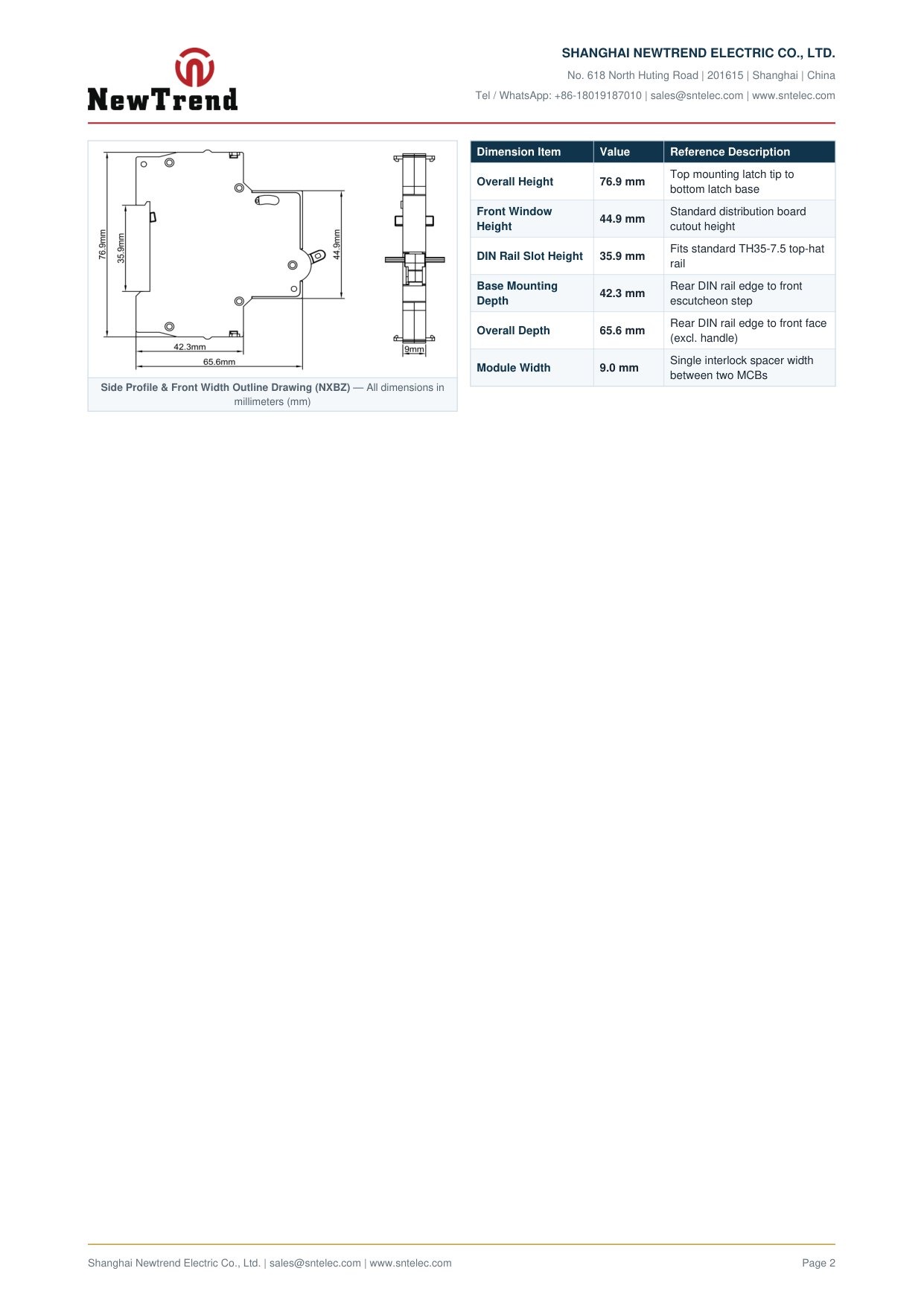

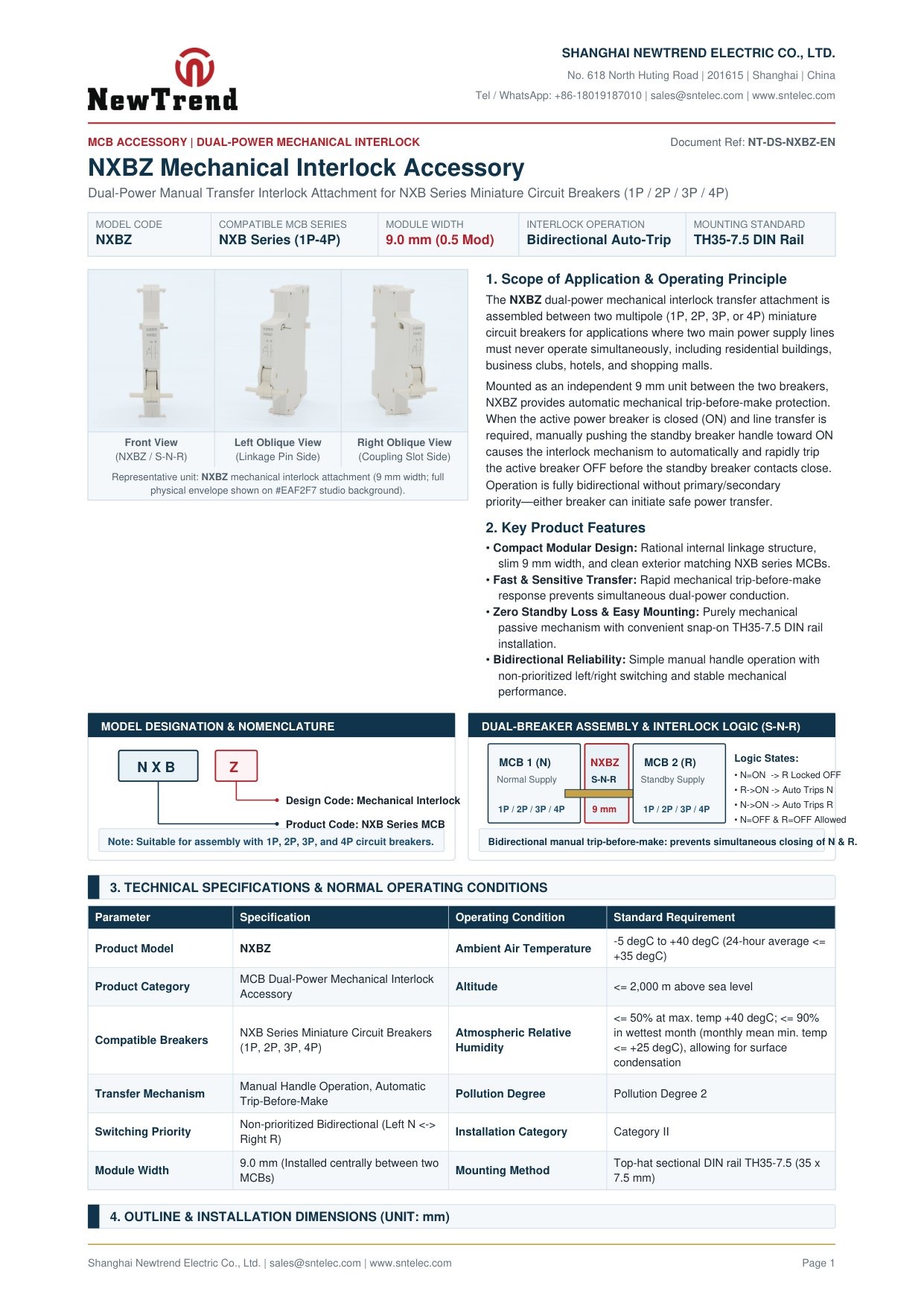

NXBZ Catalog and Technical Data

Additional information

Compatible Breaker Series	NXB Series (1P, 2P, 3P, 4P)
Module Width	9.0 mm (0.5 Mod)
Interlock Operation	Bidirectional Auto-Trip
Transfer Mechanism	Manual Handle Operation, Automatic Trip-Before-Make
Switching Priority	Non-prioritized Bidirectional (Left N <-> Right R)
Model	NXBZ

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for NXZB MTS Mechanical Interlock for Chint NXB-63 MCB.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.

Technical FAQ & Selection Guide

💡 Frequently Asked Technical Questions & Selection Guide

Pure engineering specifications, tripping curve parameters, and electrical selection guidance for panel builders and system designers.

Curve Selection

How to choose between Tripping Curves B, C, and D for this miniature circuit breaker?

Curve B trips at 3–5 In (designed for resistive loads, electric heating, and domestic appliances with negligible inrush). Curve C trips at 5–10 In (the standard international choice for residential and commercial lighting, socket outlets, and small induction motors). Curve D trips at 10–14 In (specifically engineered for high-inrush inductive equipment such as industrial transformers, heavy motors, compressors, and welding circuits).

Breaking Capacity

How do I determine whether 6kA or 10kA breaking capacity is required for my installation?

Breaking capacity (Icn/Icu) must exceed the calculated prospective short-circuit fault current at the installation point. 6kA (IEC 60898-1) is standard for residential consumer units and sub-distribution branch circuits located downstream. 10kA (IEC 60947-2) is required for industrial facilities, main switchboards, commercial distribution panels, or circuits situated close to supply transformers where fault levels are high.

Poles & Neutral Isolation

How to choose the correct number of poles (1P, 1P+N, 2P, 3P, 3P+N, 4P) for single-phase and three-phase circuits?

For single-phase 230V circuits: 1P provides active phase protection; 1P+N or 2P isolates both live and neutral lines simultaneously (essential for TT earthing systems and sensitive sub-panels). For three-phase 400V systems: 3P protects balanced 3-wire motor loads; 3P+N or 4P is required for 4-wire mixed single-phase loads to ensure complete neutral disconnection during isolation.

DC vs AC Application

Can this circuit breaker be used in DC circuits (Solar PV, Battery Storage, Telecom)?

Standard AC breakers cannot safely extinguish DC arcs due to the absence of natural zero-crossing current. For DC circuits (60V to 1000V DC), select specialized DC breakers (such as DZ158-125 DC or NM8NDC series) equipped with permanent magnetic arc-blowout chutes and strictly observe polarity wiring to prevent arc re-ignition.

Modular Accessories & Interlocks

What modular accessories and mechanical interlocks can be fitted to this breaker?

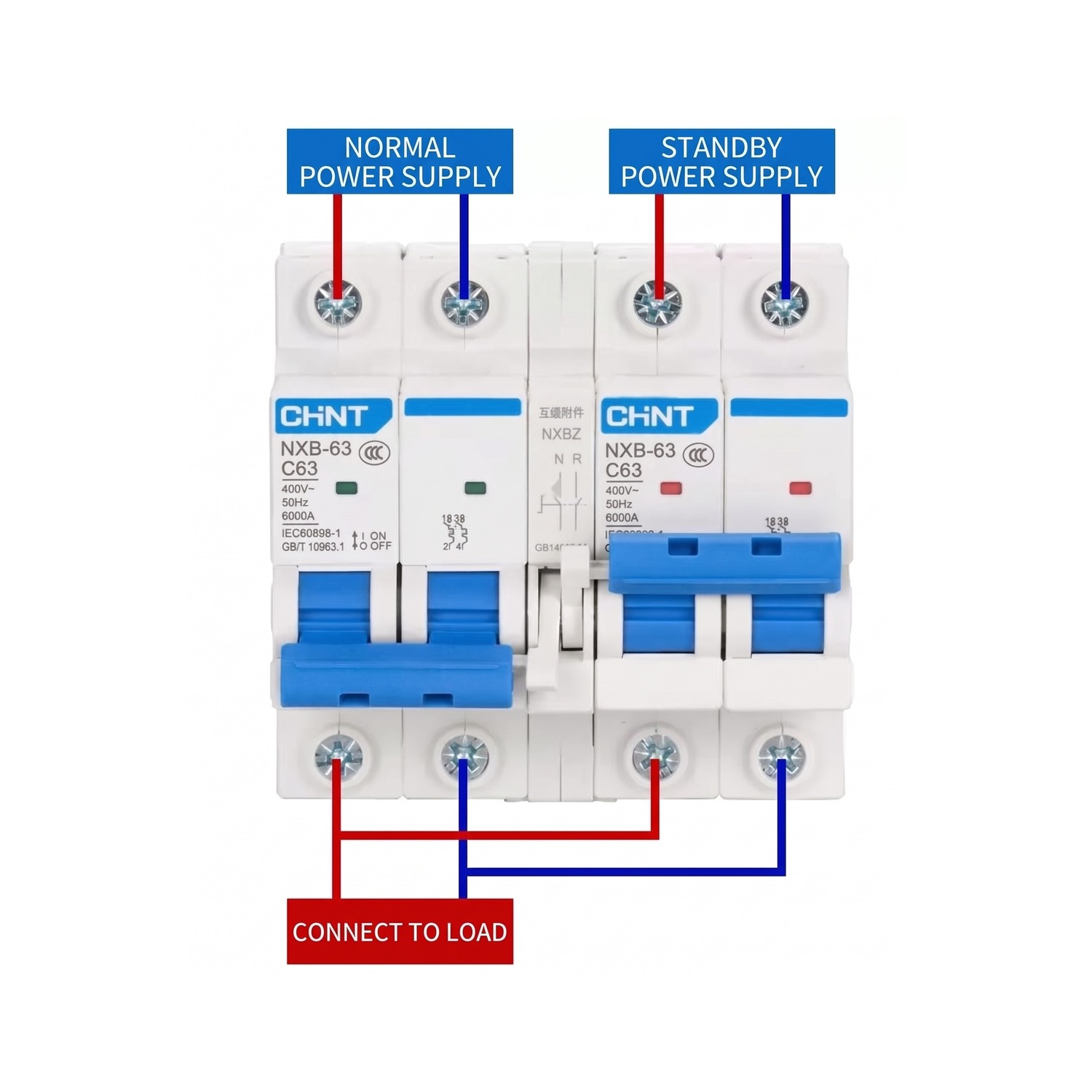

Standard modular clip-on accessories can be mounted directly on the side without tools: OF (Auxiliary Contact for remote status indication), SD (Alarm Contact for trip fault signaling), MX (Shunt Trip for remote emergency tripping), MN (Under-voltage Release for voltage loss protection), and NXBZ mechanical interlock kits for manual generator/mains transfer switches.
