NewTrend · NewTrend NH/NT Knife-Blade Fuse Link, 10–1600A
Product overview
NewTrend NH/NT knife-blade fuse links are selected by the actual frame,current and voltage version. Choose a linked size/voltage configuration;matching holders are quoted separately.
Technical selection summary
| Main source | Confirmed supplier Zhenghao2025 catalogue,printed pages31–35 |
|---|---|
| Documented voltage versions | 500V AC or660V AC;do not silently substitute690V |
| NT00C / NT00 / NT0 | Supplier catalogue current range10–160A |
| NT1 | Supplier catalogue current range63–250A |
| NT2 | Supplier catalogue current range160–400A |
| NT3 | Supplier catalogue current range400–630A |
| NT4 catalogue range | 800–1200A;500–660V |
| NT4 confirmed supply extensions | Supplier/customer confirmation:1250A and1600A are genuinely available as500V and660V ordinary gG versions |
| Utilisation category | Ordinary gG/gL conductor protection;fast NGTC/aR and motor aM versions are separate |
| Breaking capacity | Catalogue family up to120kA;use the marked rating of the actual link,especially for confirmed extensions beyond the printed table |
| Holder selection | A fuse holder is not assigned the fuse-link current automatically;match its actual size,voltage and marked current rating |

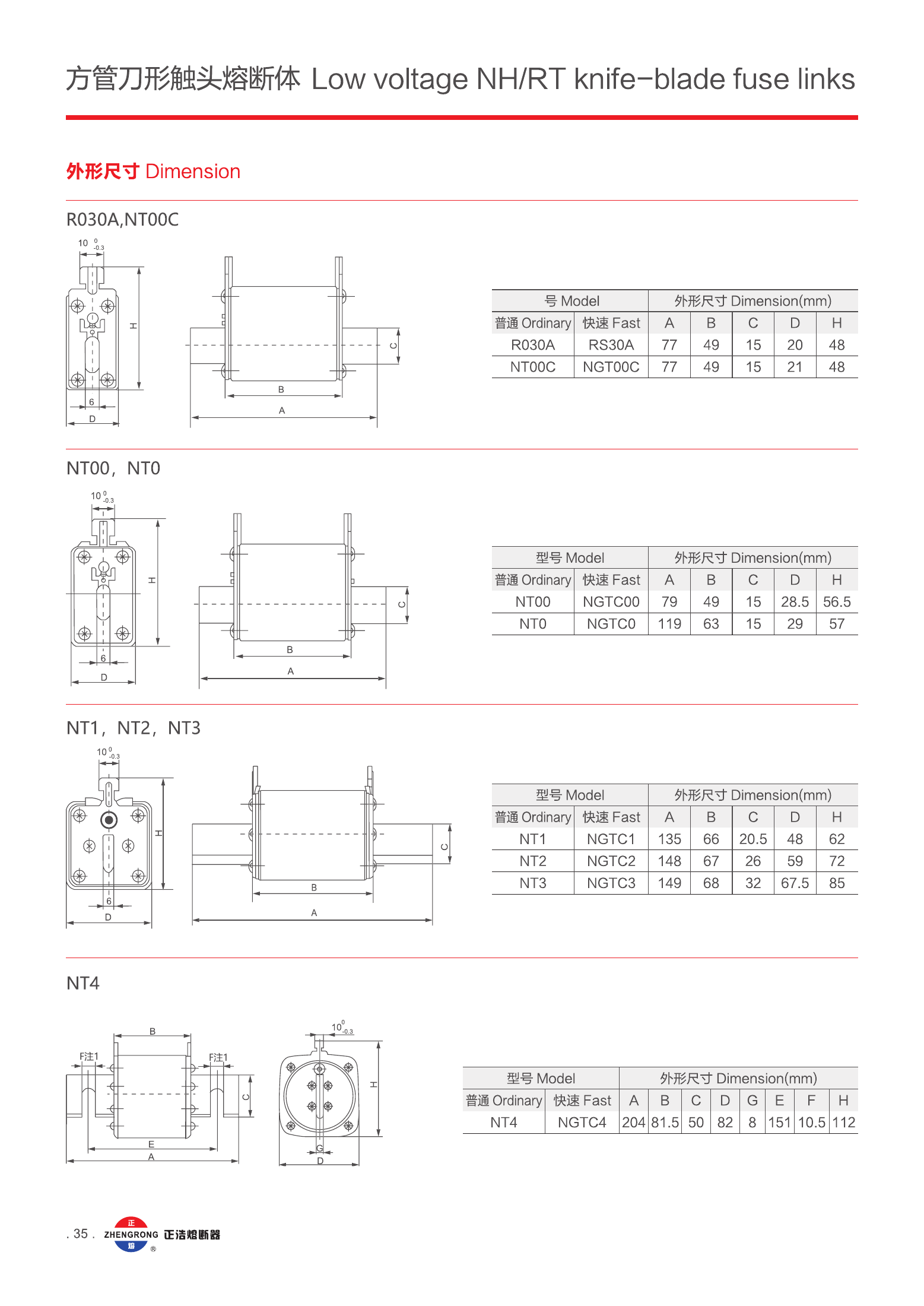

| Dimensions | Use the supplier frame drawings;check actual outline for supply extensions beyond the printed range |
NH and NT are the confirmed equivalent family naming used for this supply. Only current/frame/voltage combinations within the supplied table or the explicit NT4 extension confirmation are offered. Fast fuse and base-holder options require their own exact selection.
Typical applications
- NewTrend NH/NT knife-blade fuse links are selected by the actual frame,current and voltage version.
Specify your enquiry
For a focused quotation, include:
- Selected frame,current and voltage version
- Required utilisation category and actual marked breaking capacity
- Matching holder/indicator,installation dimensions and quantity

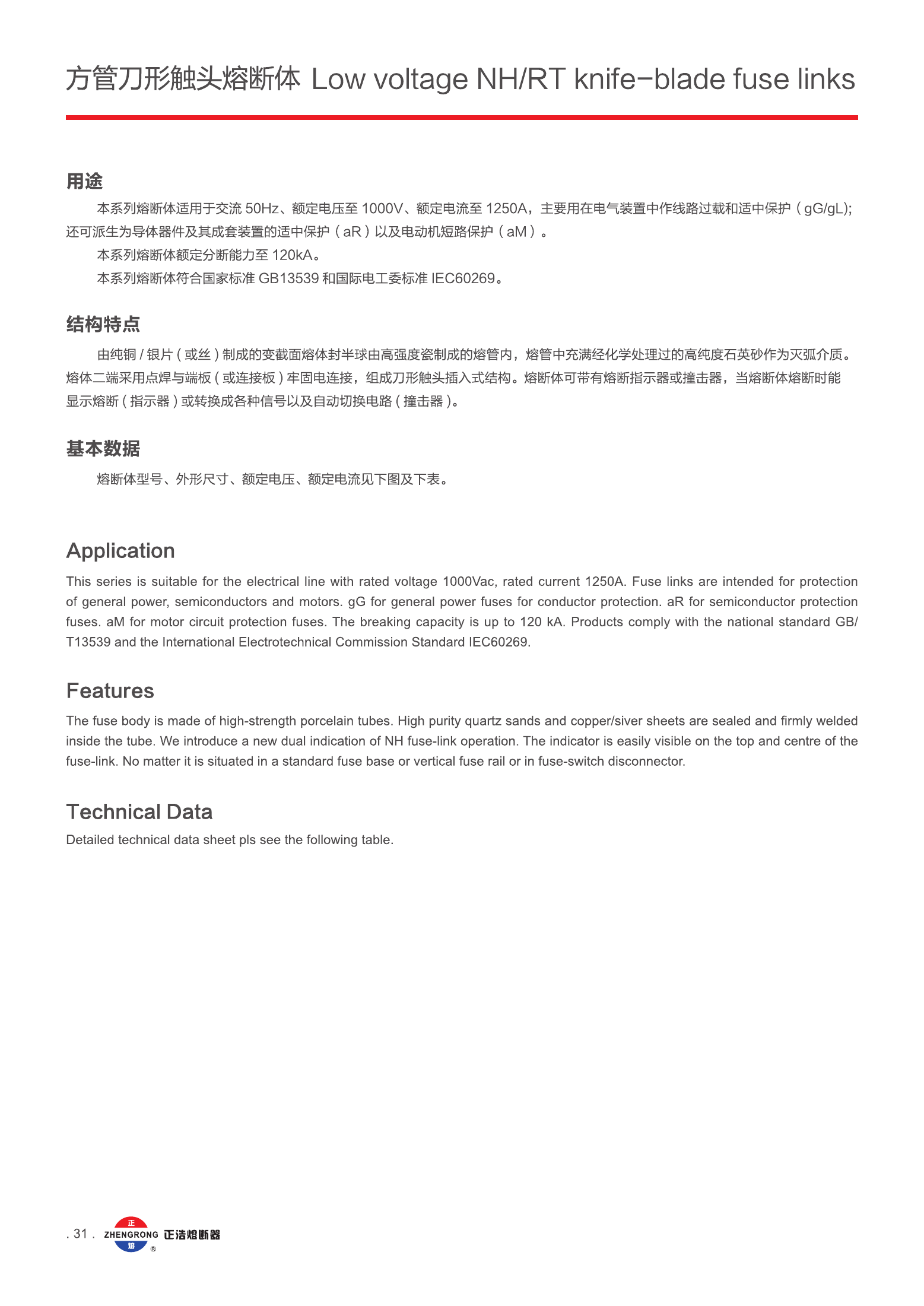

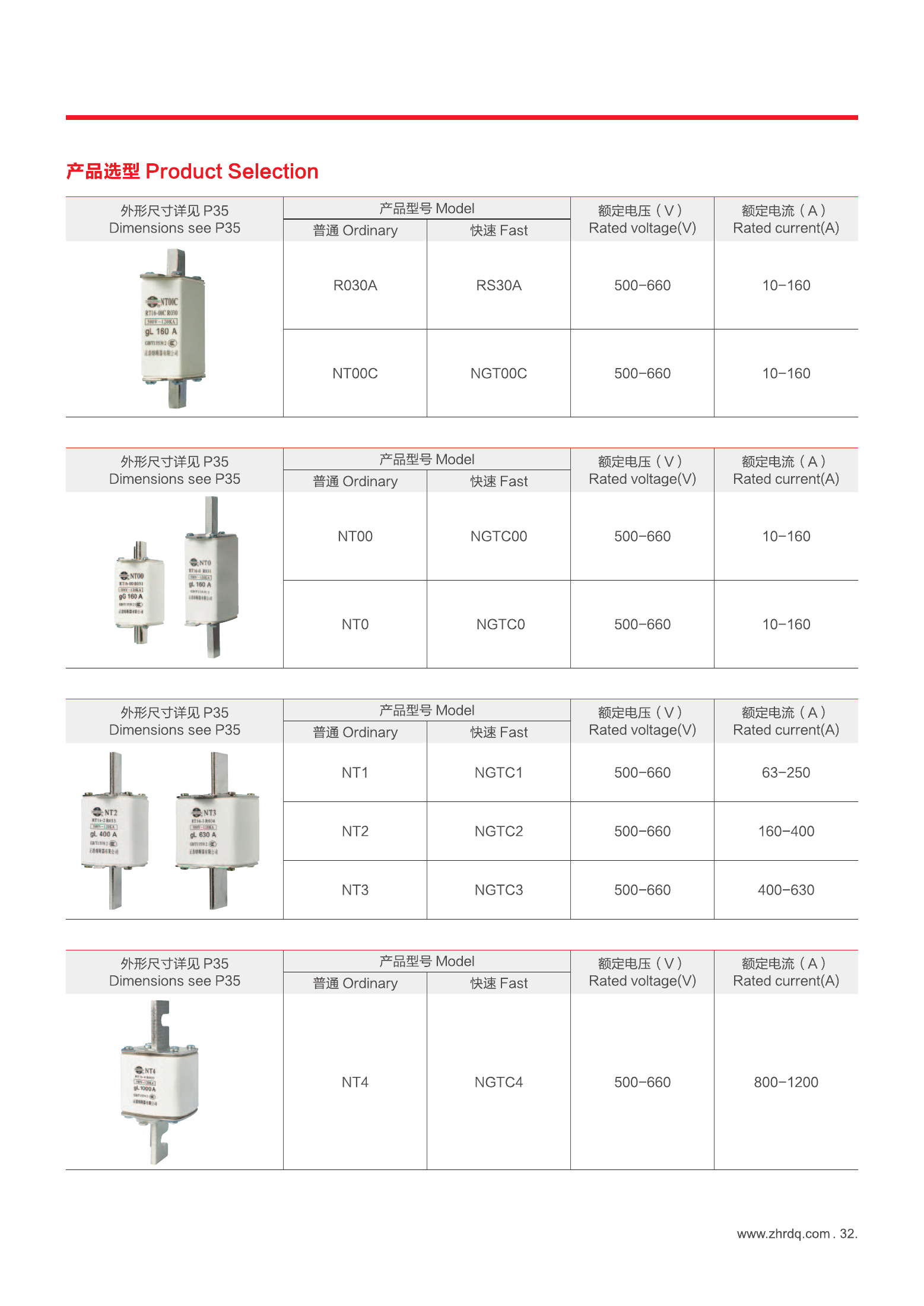

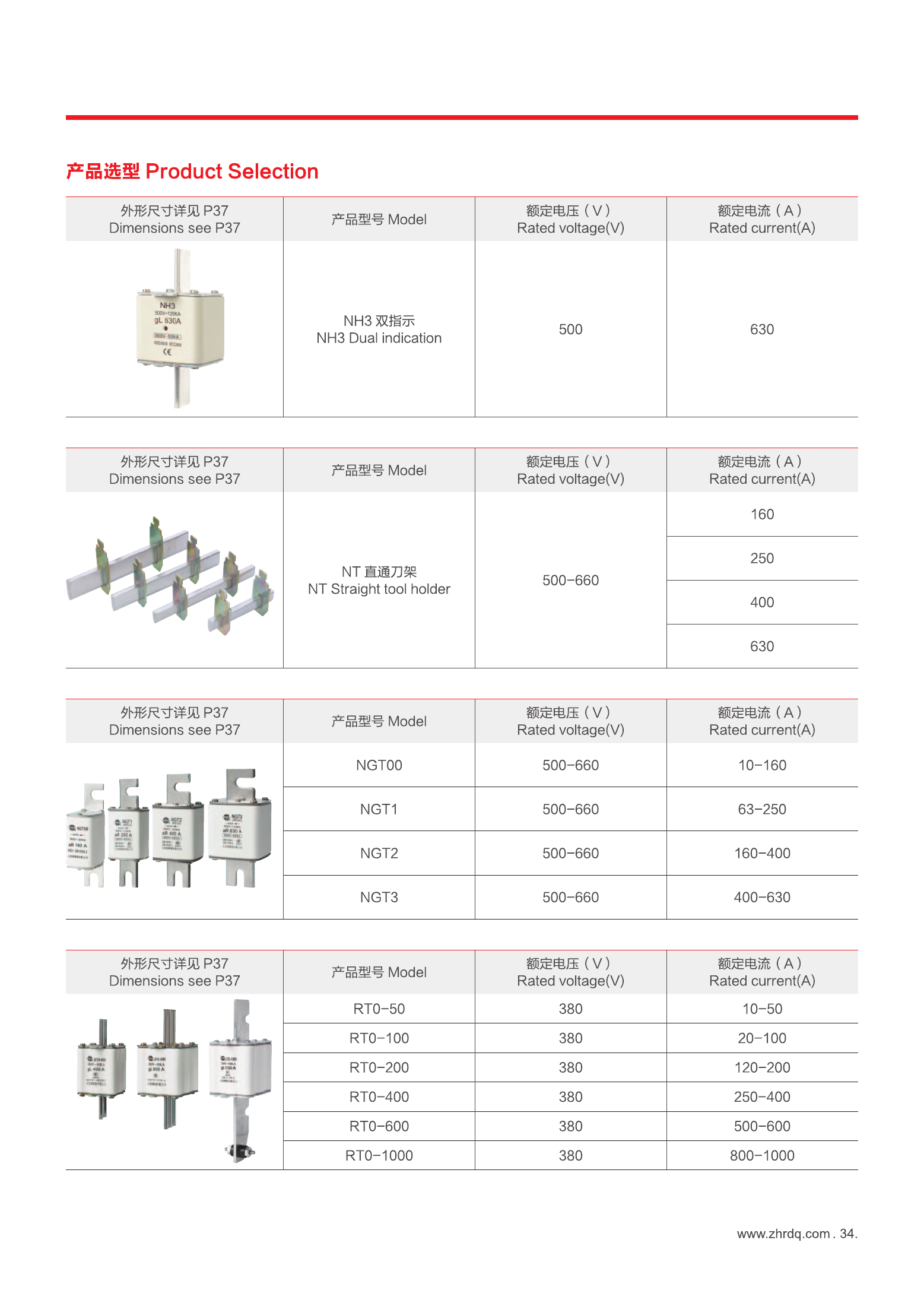

Confirmed supplier2025 NH/NT selection pages (PDF)
Product reference images and drawings
