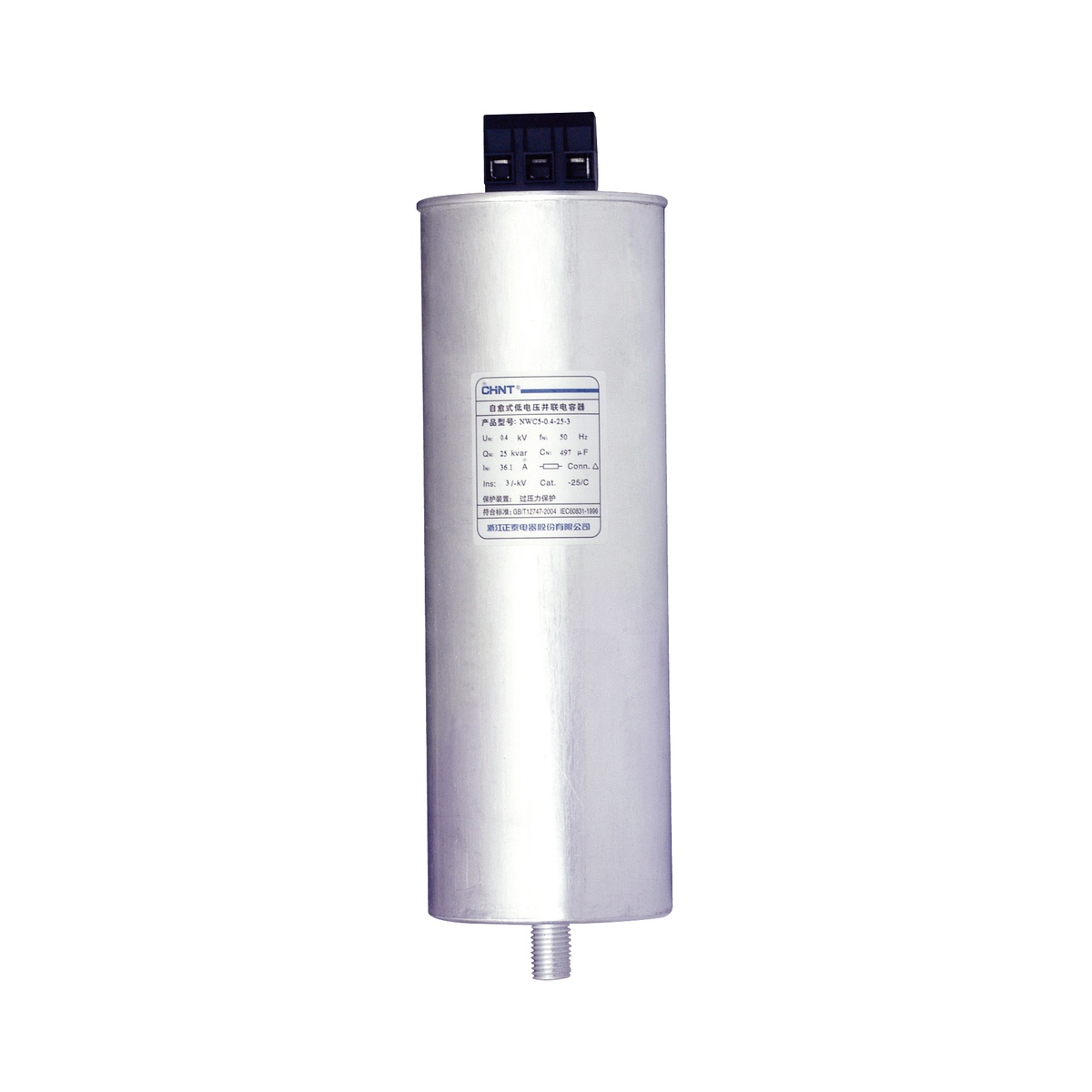

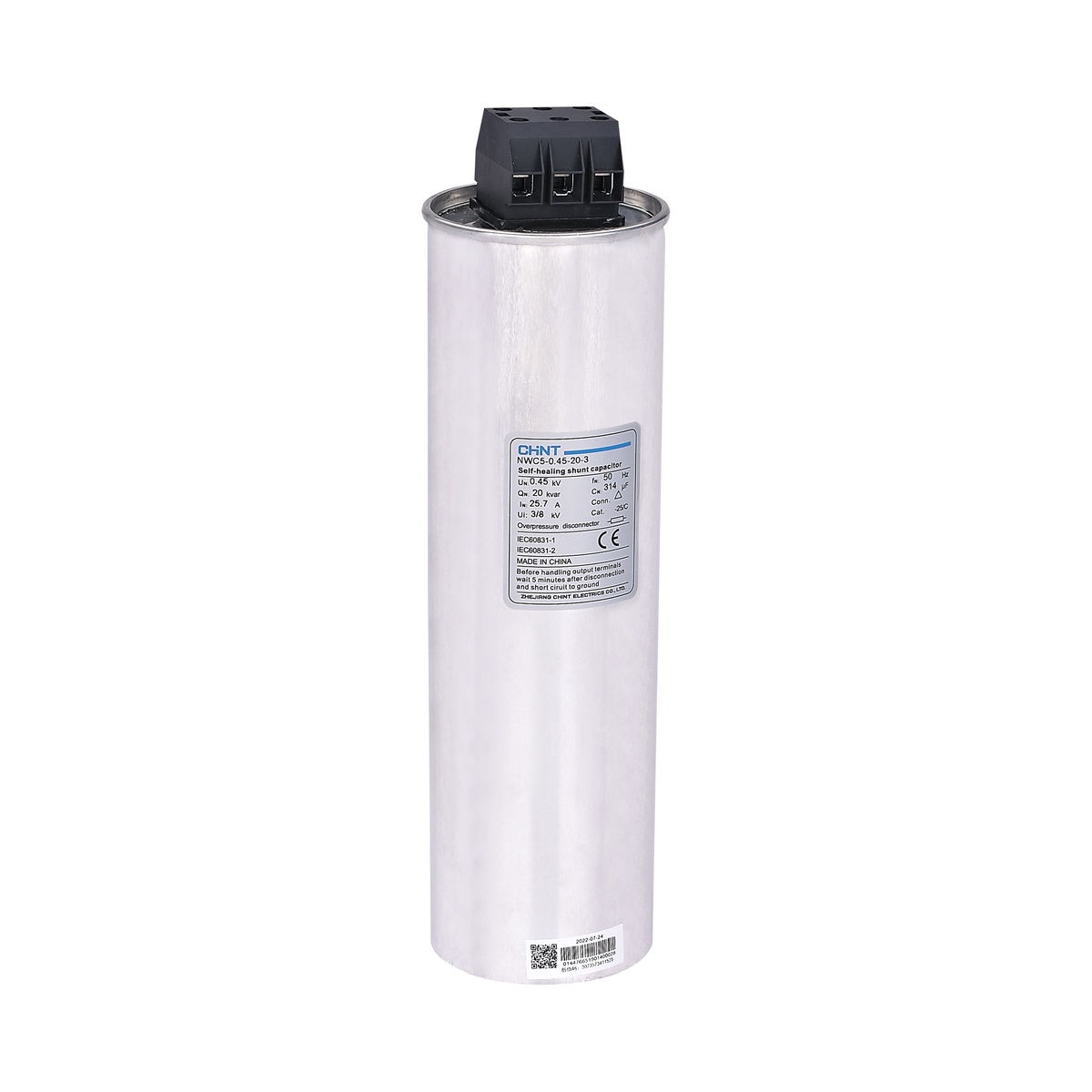

CHINT NWC5 Capacitor

Original CHINT NWC5 capacitor for power factor correction and electrical distribution systems.

Model
Capacitor Capacity (kVAR)
Rated Voltage
Add to Enquiry
Category: Chint Capacitor & Reactors Tags: CHINT, NWC5
  • Description
  • Catalog
Description

CHINT · Self-healing shunt capacitor

Product overview

The CHINT NWC5 series supplies low-voltage reactive-power compensation for power-factor improvement. Order the full manufacturer designation including rated voltage, kvar, phase arrangement and frequency.

Technical selection summary

Manufacturer seriesNWC5
ConstructionRapeseed-oil filling, cylindrical aluminium enclosure, discharge resistor and over-pressure protective construction
Choices on this page400V, 450V, 525V; 5kvar, 10kvar, 15kvar, 20kvar, 25kvar, 30kvar, 40kvar
Selected phase scopeThree-phase -3 construction; split-phase -3YN and special constructions require their own complete model
Frequency50 Hz or 60 Hz by the exact manufacturer row; capacitance differs with frequency
Capacity tolerance-5% to +10%
Environment-25°C to +50°C; altitude up to 2000 m; use the manufacturer humidity and ventilation limits
Manufacturer referenceIEC/EN 60831-1 and IEC/EN 60831-2; obtain the applicable documents for the supplied model

Select a complete voltage/kvar/phase/frequency row. Do not infer a harmonic-filter or detuned-bank design from capacitor voltage alone. Coordinate capacitor-duty switching, overcurrent protection, discharge time and ventilation; verify bank resonance and reactor requirements separately.

Typical applications

  • Power-factor correction banks
  • Reactive-power compensation matched to the network study

Product reference images and drawings

Use the drawing and rating row for the complete manufacturer model and supplied version. Family references may show other constructions.

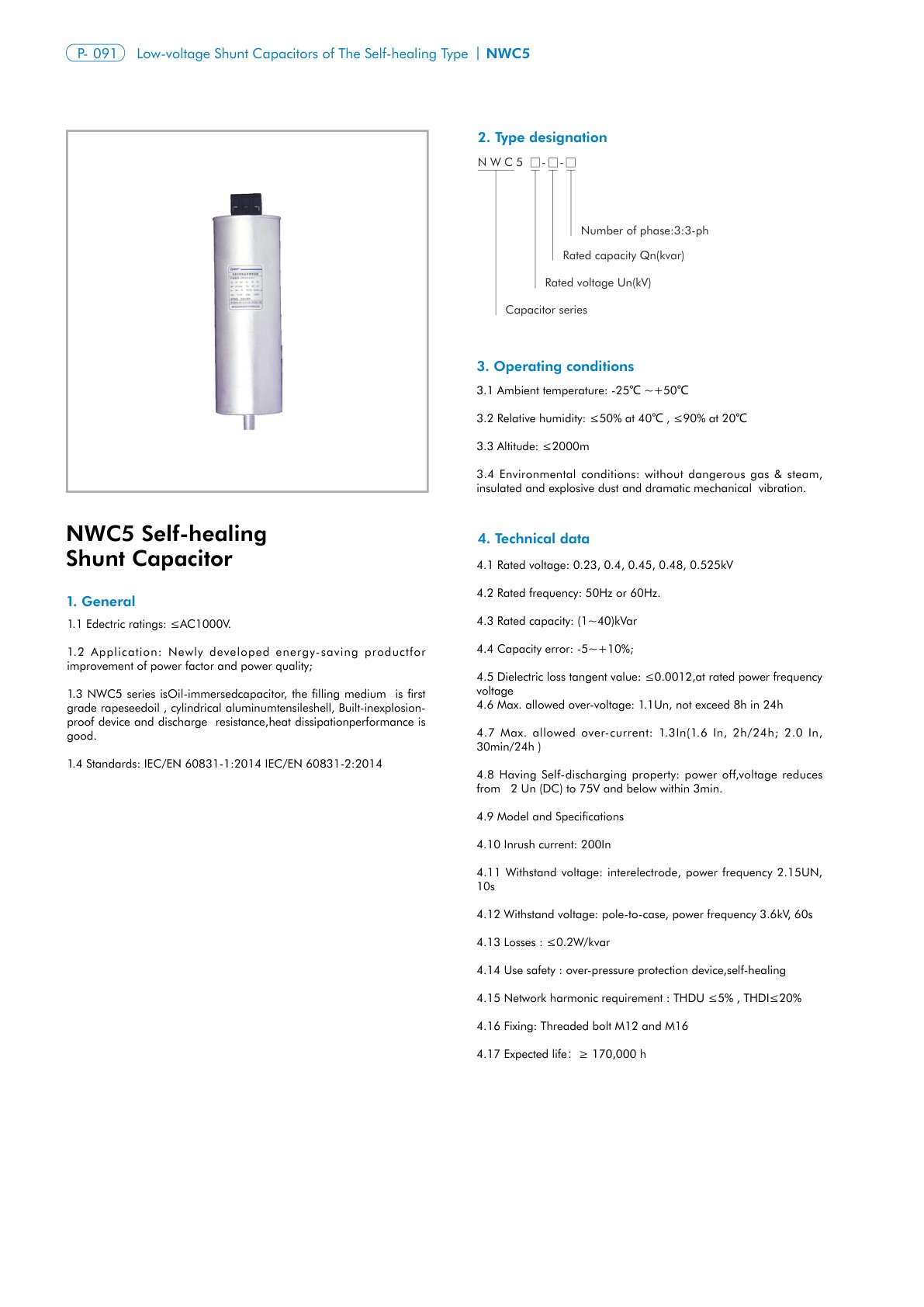

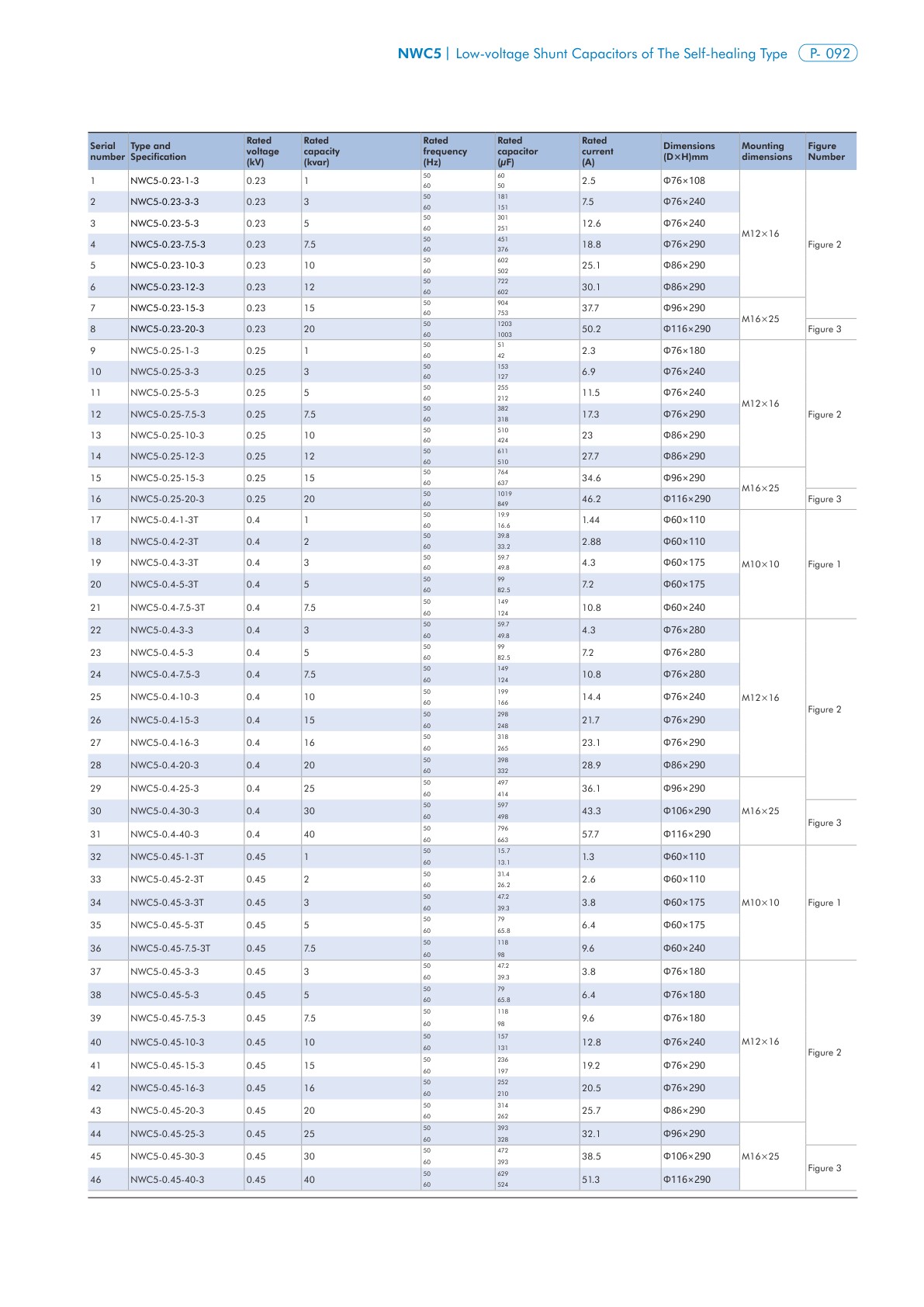

NWC5 technical reference 1NWC5 technical reference 2
