CHINT · NB2LE-40ZT 1P+N Smart RCBO, 6–40 A
Product overview
CHINT NB2LE-40ZT combines overcurrent and residual-current protection with measurement and remote control. The buttons show individual references from the accurate 40ZT English ordering table.
Technical selection summary
| Voltage / poles | AC230 V / 1P+N |
|---|---|
| Current | 6, 10, 16, 20, 25, 32 or 40 A |
| Residual sensitivity | 30 mA |
| Leakage type | A or AC where the complete reference lists it |
| Curve / breaking capacity | Shown C-curve references / 6 kA |
| Networking | Auto: automatic address configuration through SMG; blank: manual RS485 address configuration |
Auto and non-Auto references are separate. Do not import the 80ZT table or generate 100/300 mA and D-curve variants for this 40ZT page.
Typical applications
- CHINT NB2LE-40ZT combines overcurrent and residual-current protection with measurement and remote control.

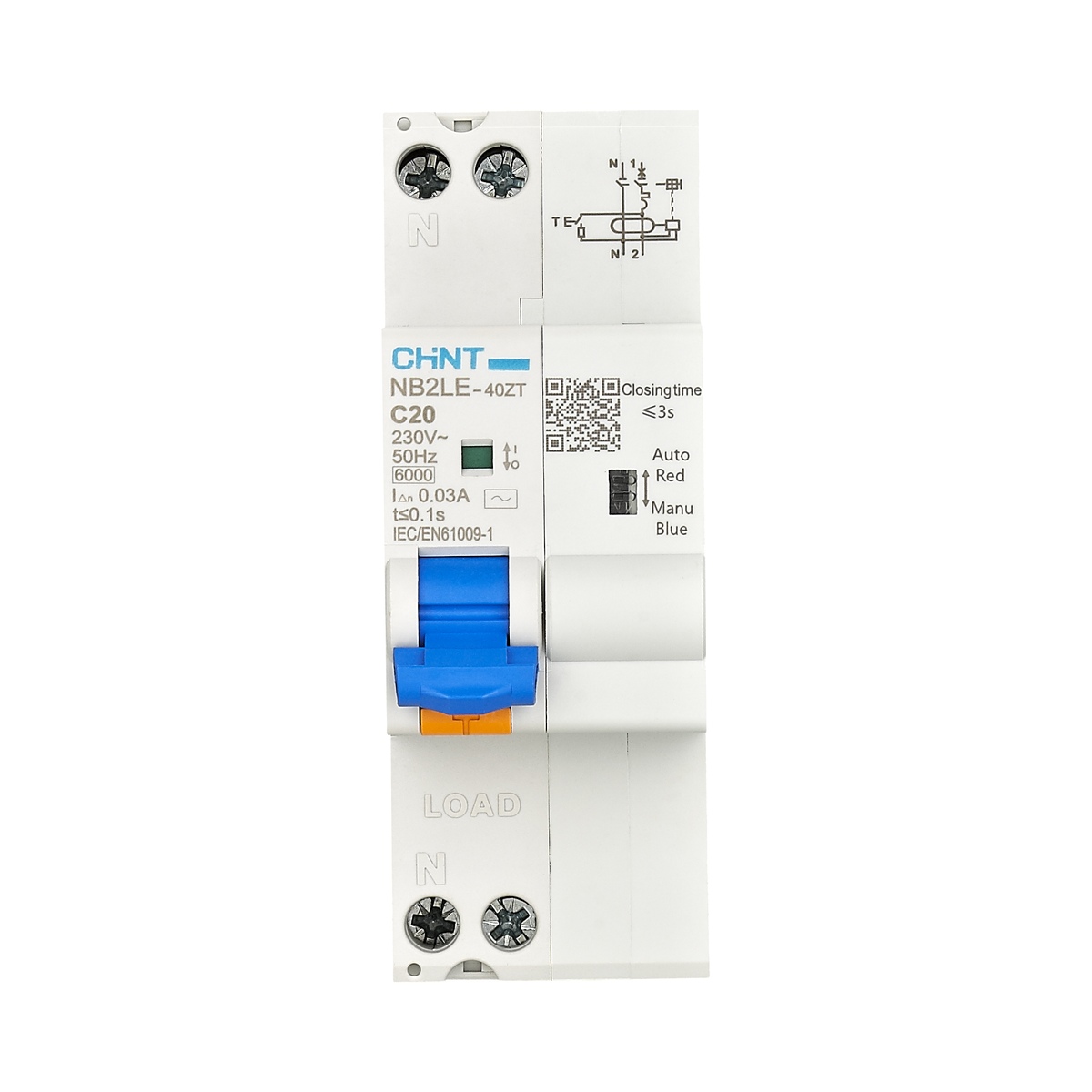

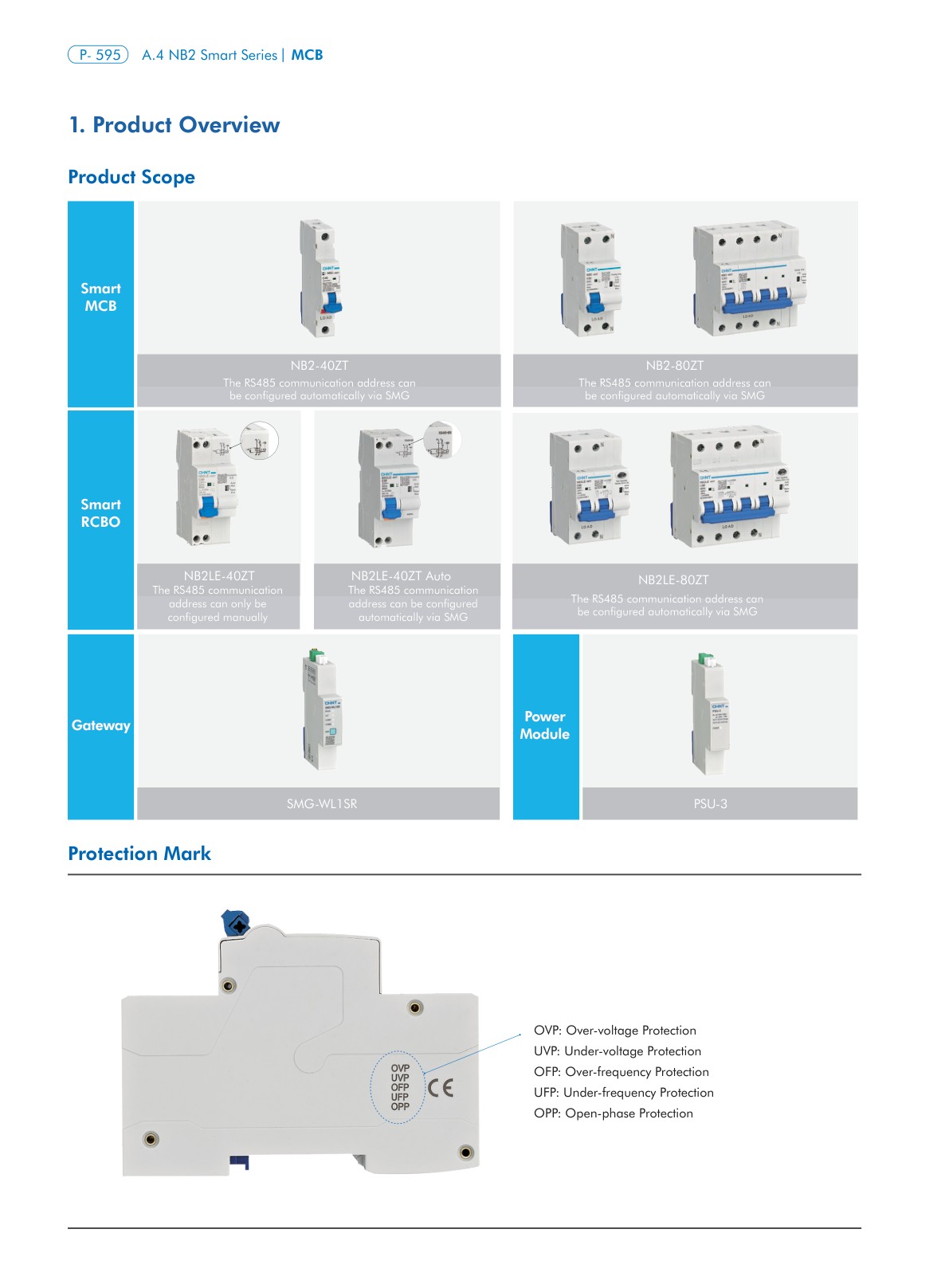

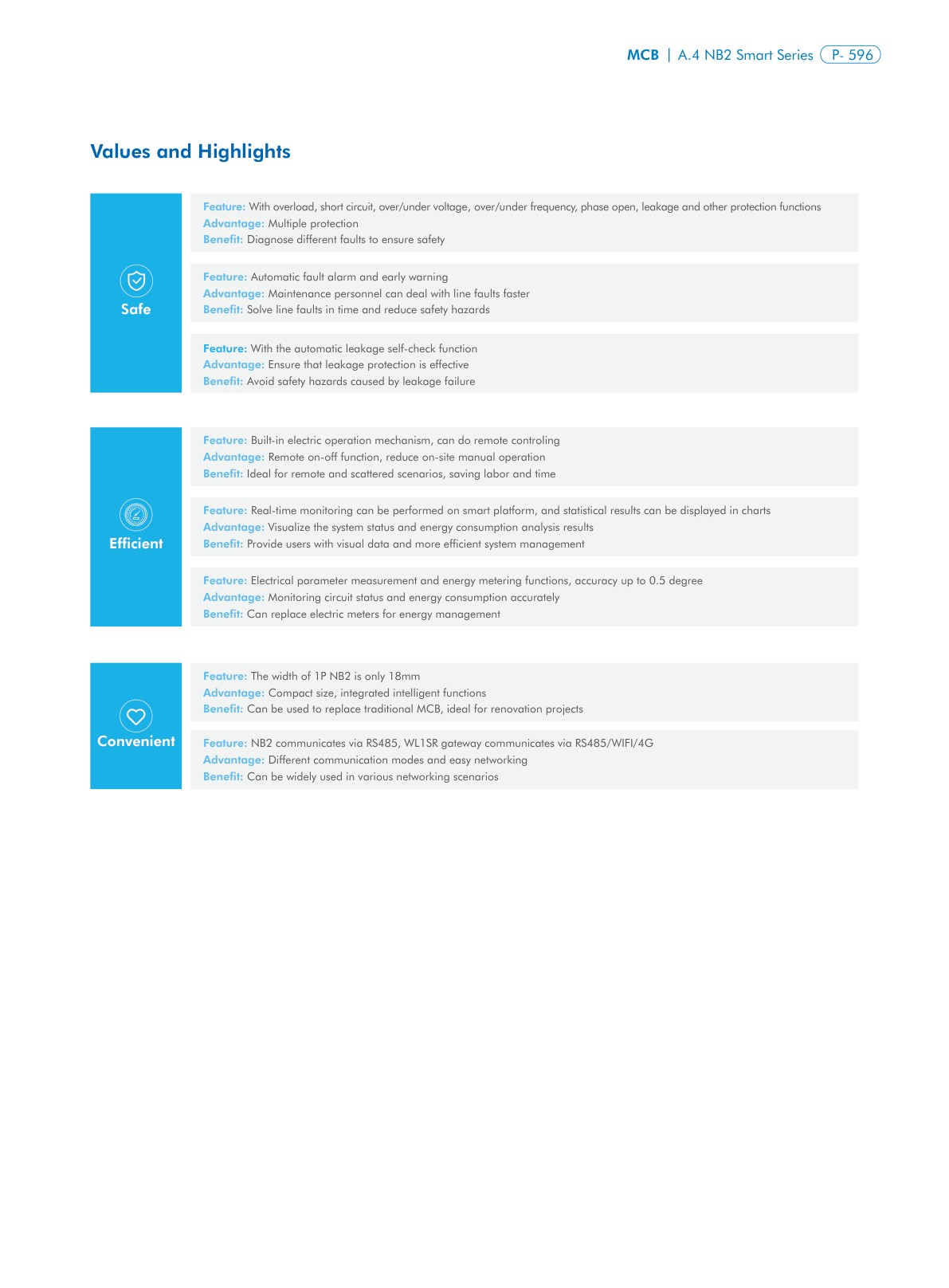

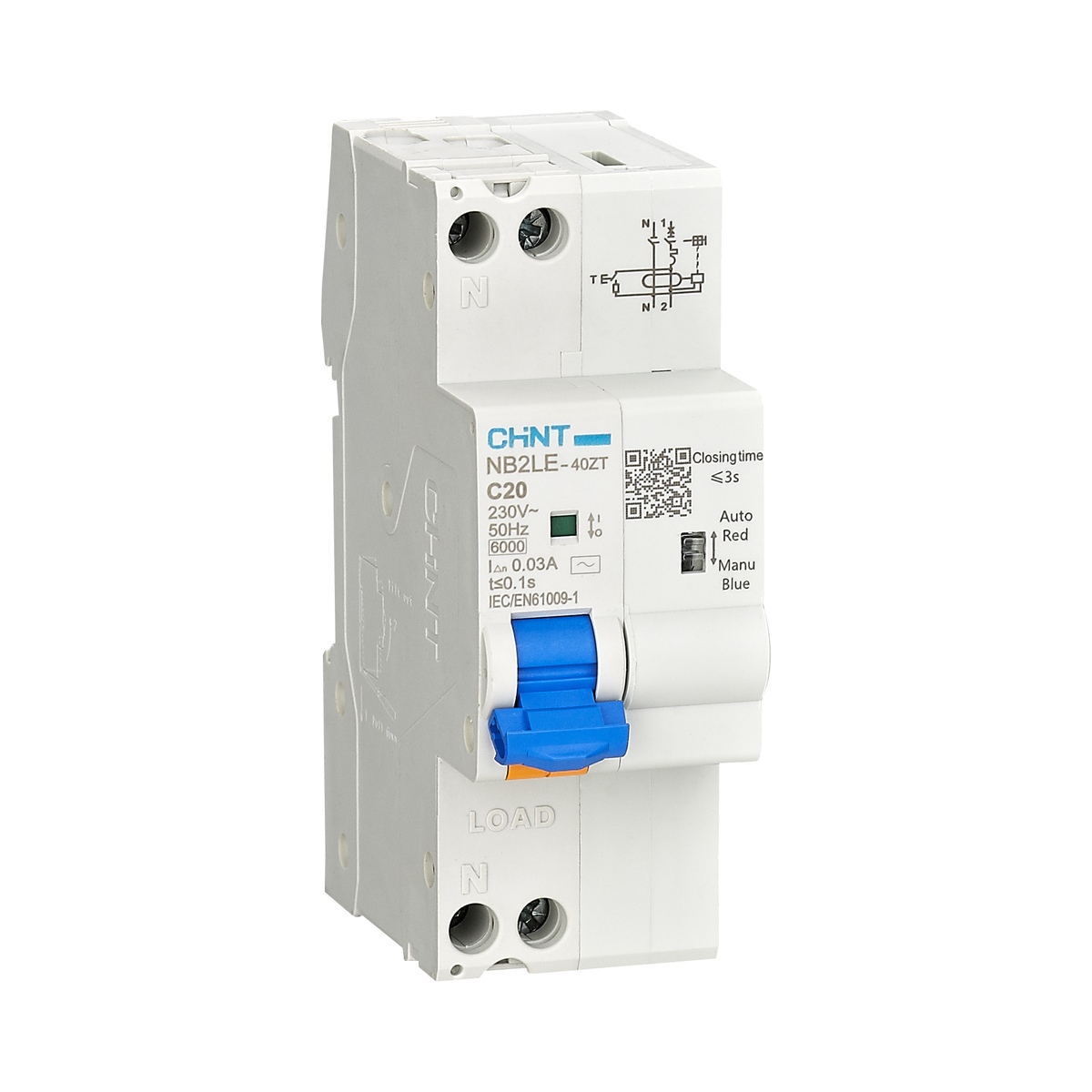

Product reference images and drawings
