CHINT · NB3LE-32 1P+N RCBO, 6–32A 30mA
Product overview
CHINT NB3LE-32 combines overload,short-circuit and residual-current protection in a1P+N RCBO. Select rated current and B or C curve from the exact30mA Type AC order references.
Technical selection summary
| Scope | NB3LE-32;1P+N;6,10,16,20,25,32A |
|---|---|
| Voltage / frequency | AC240V;50/60Hz |
| Residual function | Type AC;IΔn30mA;electronic RCBO |
| Trip curves | B:3–5In;C:5–10In |
| Breaking capacity | Icn6kA |
| Residual making/breaking | IΔm2000A;break time≤0.1s under IΔn |
| Dimensions / terminals | 18mm module;follow the illustrated IN/OUT and FE wiring;2N·m terminal torque |

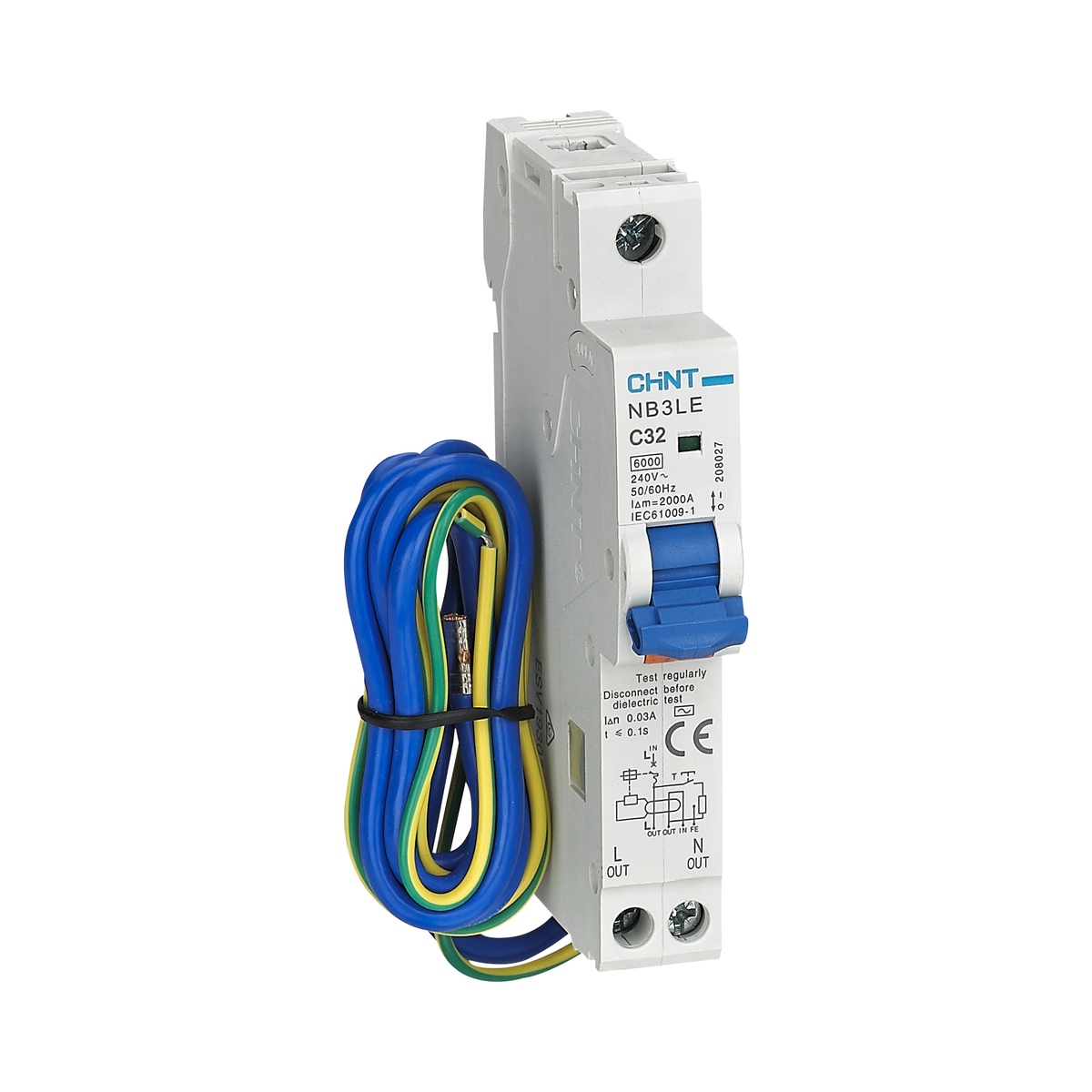

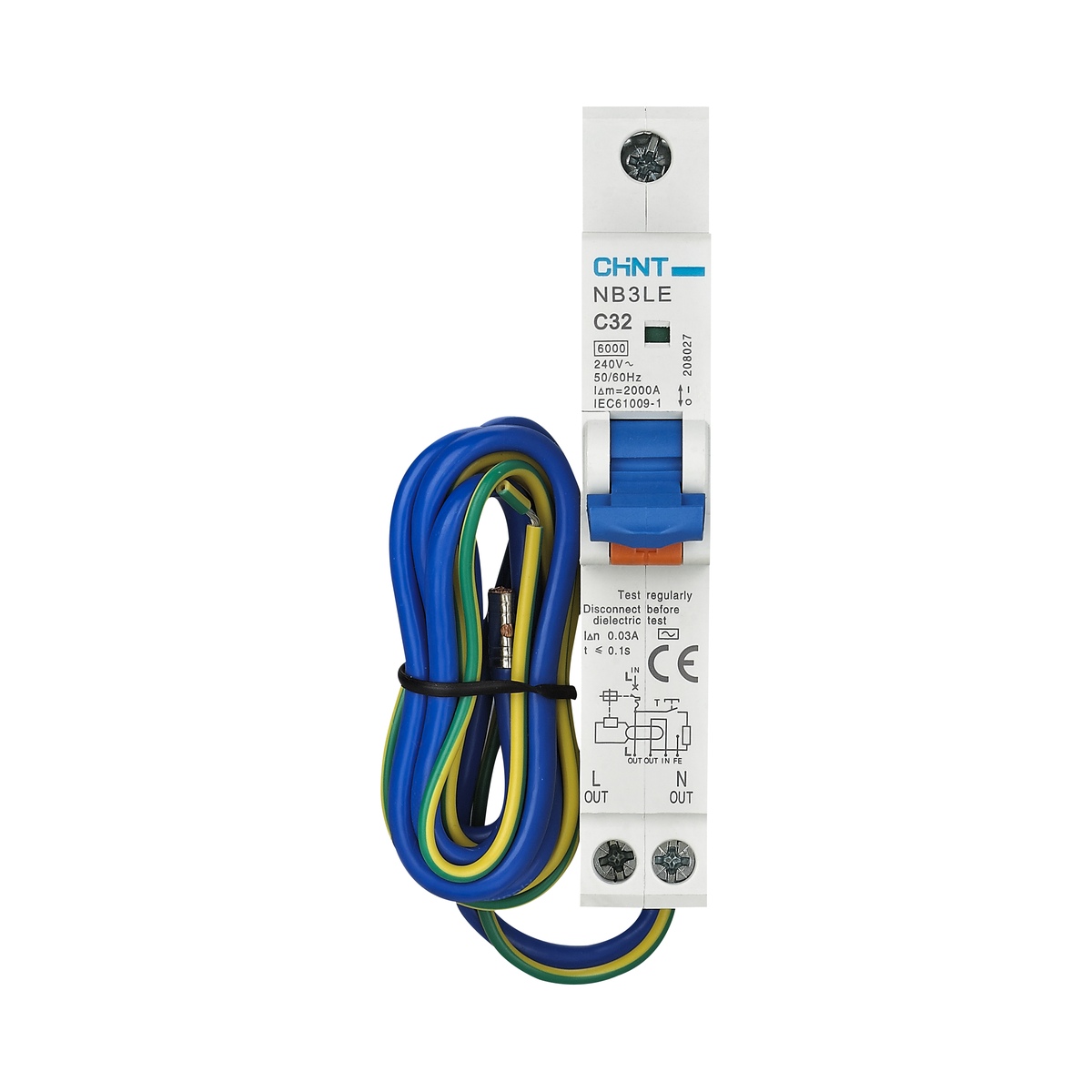

| Order reference | Exact catalogue codes208016–208027; the photograph is C32/code208027 |
The broader technical table also mentions Type A and100mA, but the selected ordering rows and actual photograph are Type AC30mA. Those other versions and NB3LE-63M are not freely added here.
Typical applications
- CHINT NB3LE-32 combines overload,short-circuit and residual-current protection in a1P+N RCBO.

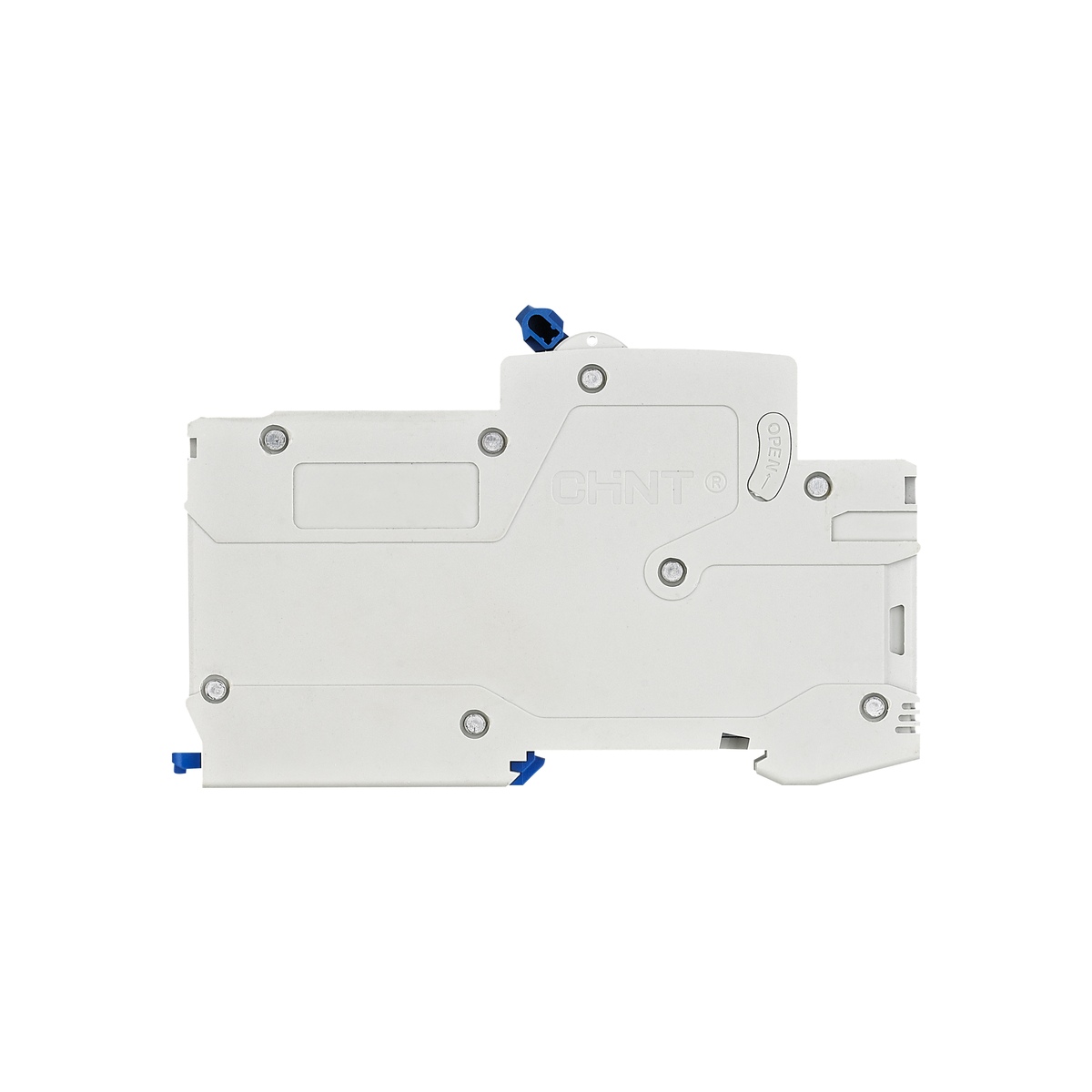

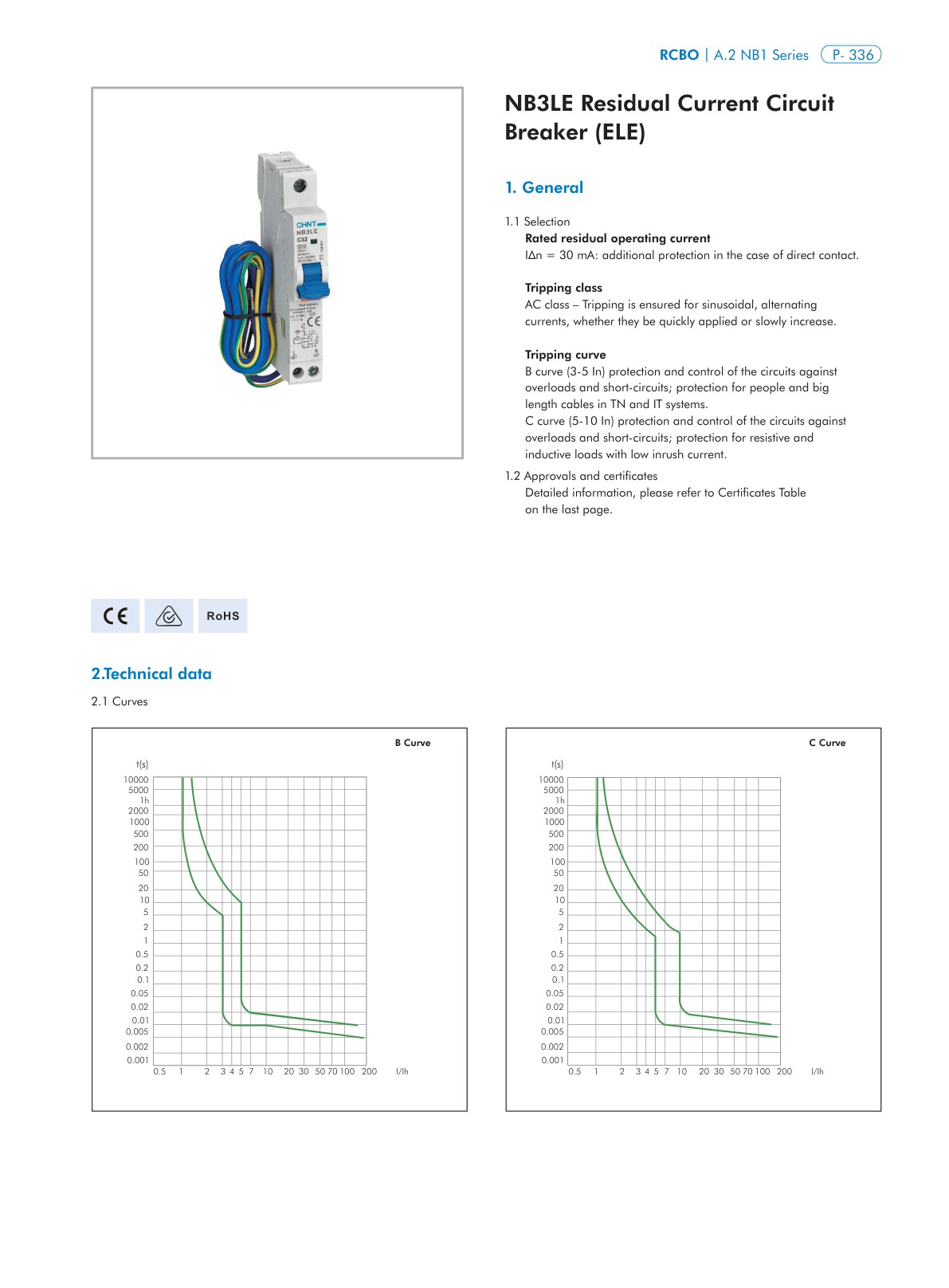

Product reference images and drawings
