CHINT CKSG Low-voltage Series Reactor, AC400V 7%

CHINT CKSG low-voltage series reactors for matched capacitor banks. Select a complete 400V, 7%reactance model from the retained source matrix.

Model
Rated Voltage
Reactor Model
Reactor Capacity
Matching Capacitor Capacity
Reactance Ratio
Add to Enquiry
SKU: 1770405800330665984 Category: Chint Capacitor & Reactors
  • Description
  • Catalog
Description

CHINT · CKSG

Product overview

CHINT CKSG low-voltage series reactors for matched capacitor banks. Select a complete 400V, 7%reactance model from the retained source matrix.

Technical selection summary

ParameterSpecification
Published versionExact CKSG-/0.4-7 source rows:nominal 400V, 7%reactance
FunctionSeries connection with capacitors for harmonic suppression and power-factor-correction bank coordination
Reactor / capacitor capacitiesReactor0.7-5.6kvar paired with capacitor 10-80kvar per exact source model table
ConstructionDry-type iron-core; three-phase three-limb construction reference
InstallationAltitude≤2000m; ambient- 25to+40°C; no serious pollution, explosive media or severe vibration
ConnectionsSource Y/delta capacitor-reactor circuit diagrams retained; choose the matched system design
Custom versionsOther voltage/reactance variants are mentioned by source but are not freely combined without their exact order code and dimension/current table

Reactor kvar is not rated current and is not the matching capacitor kvar. This selection does not combine the original 450/480/525V generic properties with every capacity. Dimensions are source references; the final order must specify nominal current, inductance, insulation and environmental conditions.

ModelCapacitor kvarReactor kvarBmaxDmaxEmaxMounting AMounting C
CKSG-0.7/0.4-7100.724016018520085
CKSG-0.85/0.4-7120.8524016018520085
CKSG-0.98/0.4-7140.9824016018520085
CKSG-1.05/0.4-7151.0524016018520085
CKSG-1.12/0.4-7161.1224017018520095
CKSG-1.4/0.4-7201.424017018520095
CKSG-1.75/0.4-7251.7524017018520095
CKSG-2.1/0.4-7302.124017018520095
CKSG-2.45/0.4-7352.45250180185210110
CKSG-2.8/0.4-7402.8250200185210120
CKSG-3.15/0.4-7453.15250205185210125
CKSG-3.5/0.4-7503.5250210185210135
CKSG-4.2/0.4-7604.2280210220235125
CKSG-4.9/0.4-7704.9322220320138150
CKSG-5.6/0.4-7805.6322230320138160

Typical applications

  • Electrical distribution and motor control

Open technical reference image

Product reference images and drawings

CKSG technical reference 1CKSG technical reference 2CKSG technical reference 3CKSG technical reference 4
Catalog
NameSizeRelease timeOperate

Related products

CHINT NWC1 Capacitor
CHINT NWC1 Capacitor

CHINT NWC1 Capacitor

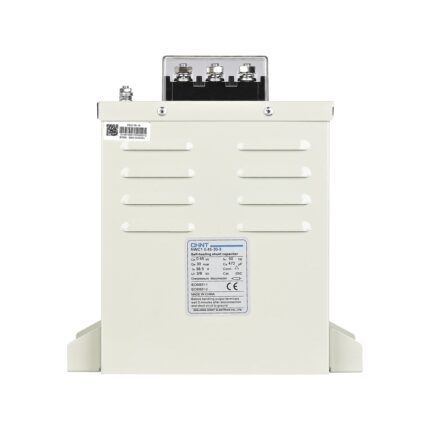

Original CHINT NWC1 capacitor for power factor correction and electrical distribution systems.
CHINT NWC5 Capacitor
CHINT NWC5 Capacitor

CHINT NWC5 Capacitor

Original CHINT NWC5 capacitor for power factor correction and electrical distribution systems.
CHINT BAGB 450 Intelligent Low-Voltage Shunt Capacitor
CHINT BAGB 450 Intelligent Low-Voltage Shunt Capacitor

CHINT BAGB 450 Intelligent Low-Voltage Shunt Capacitor

CHINT BAGB 450 provides three-phase simultaneous reactive power compensation through two internally switched capacitor groups. This page covers the standard 450 V capacitor references in the linked English catalogue.
CHINT NWK1-GR Reactive Power Compensation Controller
CHINT NWK1-GR Reactive Power Compensation Controller

CHINT NWK1-GR Reactive Power Compensation Controller

CHINT NWK1-GR controls low-voltage capacitor compensation and monitors power-distribution parameters. The configurations shown here are the GB common-compensation versions in the English catalogue.
Chint NWC6 Dry Low-voltage Shunt Capacitor

Chint NWC6 Dry Low-voltage Shunt Capacitor

Brand Name:Chint
Place of Origin:China
Model Number:NWC6
Brand:Chint
Model:NWC6
Range:5kvar - 40kvar
Legacy voltage references (exact version pending):230V, 380V, 450V, 480V, 525V
Type:Dry type
Shape:Cylindrical
Safety:Dry-type,over-pressure protection device,self-healing
Chint BZMJ Self-healing Shunt Capacitor
Chint BZMJ Self-healing Shunt Capacitor

Chint BZMJ Self-healing Shunt Capacitor

Brand Name:Chint
Place of Origin:China
Model Number:BZMJ
Brand:Chint
CHINT BKMJ Self-healing Capacitor
CHINT BKMJ Self-healing Capacitor

CHINT BKMJ Self-healing Capacitor

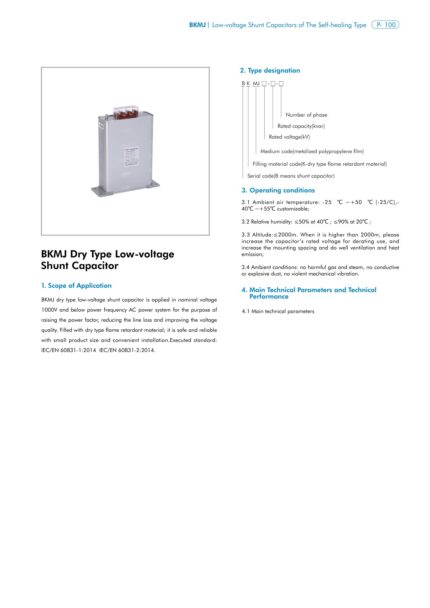

Original CHINT BKMJ self-healing capacitor for power factor correction and electrical distribution systems.
