NewTrend / OEM · Load center
Product overview
The supplied QOL-16 reference concerns a 16-space steel load-center family with flush and surface configurations. Specify the exact enclosure and breaker arrangement.
Technical selection summary
| Listing / reference model | QOL-16F / QOL-16S |
|---|---|
| Product type | Load center |
Confirm main rating, permissible circuit count, mounting, neutral/earth arrangement and exact-panel approvals. QO-style naming does not establish another manufacturer’s product or approved breaker compatibility. Confirm the enclosure material/thickness and finish, flush or surface mounting, knockouts, neutral/earth bars, bus/incomer arrangement and matching breaker system. Indoor/outdoor protection and service-entrance use require documentation for the complete assembly; convertible designs require the correct documented kit.
Product reference images and drawings
Use the matching model and version in the reference data. Confirm the applicable rating, test conditions and dimensions against the exact supplied unit.
| Part Number | Type | Spaces | Rated Current | Voltage |
| QOL-1F | Flush | 1 | 100A | 120/240V (1Phase) |
| QOL-2F | Flush | 2 | 100A | 120/240V (1Phase) |
| QOL-2FNT | Flush | 2 | 100A | 120/240V (1Phase) |
| QOL-4F | Flush | 4 | 100A | 120/240V (1Phase) |
| QOL-6F | Flush | 6 | 125A | 120/240V (1Phase) |
| QOL-8F | Flush | 8 | 125A | 120/240V (1Phase) |

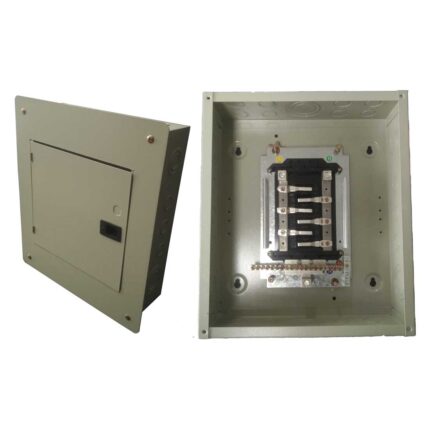

| QOL-12F | Flush | 12 | 125A | 120/240V (1Phase) |
| QOL-16F | Flush | 16 | 125A | 120/240V (1Phase) |

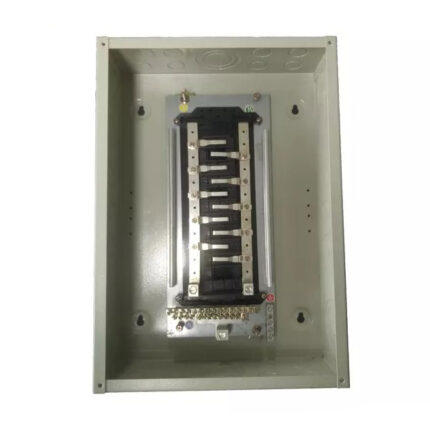

| QOL-20F | Flush | 20 | 125A | 120/240V (1Phase) |
| QOL-1S | Surface | 1 | 100A | 120/240V (1Phase) |
| QOL-2S | Surface | 2 | 100A | 120/240V (1Phase) |
| QOL-2SNT | Surface | 2 | 100A | 120/240V (1Phase) |
| QOL-4S | Surface | 4 | 100A | 120/240V (1Phase) |
| QOL-6S | Surface | 6 | 125A | 120/240V (1Phase) |
| QOL-8S | Surface | 8 | 125A | 120/240V (1Phase) |
| QOL-12S | Surface | 12 | 125A | 120/240V (1Phase) |
| QOL-16S | Surface | 16 | 125A | 120/240V (1Phase) |
| QOL-20S | Surface | 20 | 125A | 120/240V (1Phase) |
