HKA1 30mm Joystick Controller
Click to enlarge
Home Automation & Control Pushbuttons HKA1 30mm Joystick Controller
HKA1-41Y04 30mm 4-Way Joystick Switch
HKA1-41Y04 30mm 4-Way Joystick Switch
Back to products
HKA1-41Z02 30mm 2-Way Joystick Switch
HKA1-41Z02 30mm 2-Way Joystick Switch

HKA1 30mm Joystick Controller


You save

The supplied HKA1-41 comparison covers joystick variants with and without a top button, different directions and different return actions. Select the complete code and schematic.

Rated Voltage
Size
Add to Enquiry
SKU: 62003532293 Category: Pushbuttons
  • Description
  • Catalog
Description

NewTrend / OEM · Joystick control switch

Product overview

The supplied HKA1-41 comparison covers joystick variants with and without a top button, different directions and different return actions. Select the complete code and schematic.

Technical selection summary

Listing / reference modelHKA1-41 series
Product typeJoystick control switch

Position count, contact count and button function must be confirmed for the exact suffix, particularly where a generic table entry is ambiguous. AC and DC contact duties are not interchangeable; do not infer a rated load from a maximum-current entry. Specify direction count, momentary or maintained action, NO/NC contacts and whether a top button is required. Match the complete suffix and contact diagram; a similar joystick outline does not establish the switching sequence or load duty.

Product reference images and drawings

Use the matching model and version in the reference data. Confirm the applicable rating, test conditions and dimensions against the exact supplied unit.

Product NameJoystick Switch (with button on top)
ModelHKA1-41Z02AHKA1-41Y02AHKA1-41Z04AHKA1-41Y04A
Reference Photo: HKA1-41 series supplied technical reference
Action TypeMomentaryLatchingMomentaryLatching
Position2 Position2 Position4 Position2 Position
Contact Type2NO2NO4NO4NO
Contact FigureHKA1-41 series supplied technical reference
Voltage & CurrentAC 380V, max 15A
Fixing Hole30mm diameter
Angle±20°
Mechanical Life500 Thousand times
Electrical Life500 Thousand times

HKA1-41 series supplied technical reference

Product NameJoystick Switch (without button on top)
ModelHKA1-41Z02HKA1-41Y02HKA1-41Z04HKA1-41Y04HKA1-42Z04HKA1-42Y04HKA1-41QZHKA1-41QY
Reference Photo: HKA1-41 series supplied technical referenceHKA1-41 series supplied technical referenceHKA1-41 series supplied technical reference
Action TypeMomentaryLatchingMomentaryLatchingMomentaryLatchingMomentaryLatching
Position2 Position4 Position
Contact Type2NO4NO8NO4NO 4NC
Contact FigureHKA1-41 series supplied technical referenceHKA1-41 series supplied technical reference  HKA1-41 series supplied technical referenceHKA1-41 series supplied technical reference
Voltage & CurrentAC 380V, max 15A0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac
Fixing Hole30mm diameter
Angle±30°
Mechanical Life100 Thousand times
Electrical Life100 Thousand times

HKA1-41 series supplied technical reference

HKA1-41 series supplied technical reference

HKA1-41 series supplied technical reference

Catalog
NameSizeRelease timeOperate

Related products

Check availability
XB4BL 22mm Projecting Spring Return Push Button

XB4BL 22mm Projecting Spring Return Push Button

This NewTrend XB4BL listing concerns projecting momentary push-button selections for 22 mm control panels. Select the complete colour and contact code.

Check availability

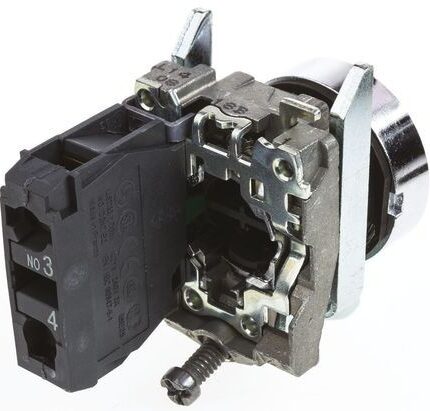

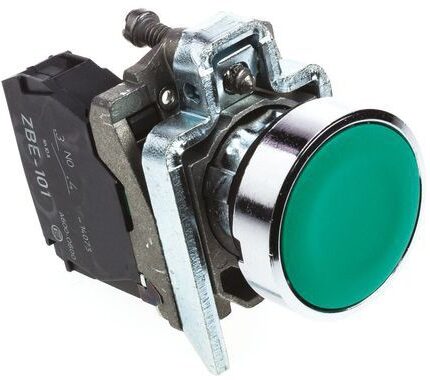

NewTrend XB4BA31 Green Flush Momentary Pushbutton, 1NO
