DELIXI ELECTRIC · LKSG
Product overview

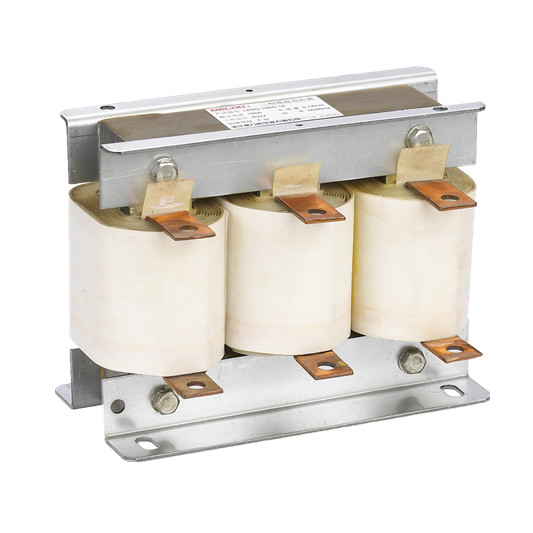

DELIXI LKSG works in series with a matched filter capacitor to absorb a specified harmonic.
Technical selection summary
| Tuning | Separate5th and 7th harmonic model/current/inductance/capacitance rows |
|---|---|
| Circuit voltage | 400/600V family; actual circuit voltage and complete tuned bank are confirmed with the quotation |
| Winding | Aluminium standard; copper option per source |
| Installation | Exact2025 dimensional tables retained. Use a coordinated filter design, not a general-purpose VFD output reactor. |
Provide harmonic order, system voltage and capacitor µF; the selected row keeps those electrical matching values together.
Typical applications
- DELIXI LKSG works in series with a matched filter capacitor to absorb a specified harmonic..
Specify your enquiry
For a focused quotation, include:
- Construction: LKSG-25/1986 / Aluminium, LKSG-25/1986 / Copper, LKSG-31/1582 / Aluminium, LKSG-31/1582 / Copper, LKSG-37/1318 / Aluminium, LKSG-37/1318 / Copper, LKSG-50/981 / Aluminium, LKSG-50/981 / Copper, LKSG-62/790 / Aluminium, LKSG-62/790 / Copper, LKSG-74/659 / Aluminium, LKSG-74/659 / Copper, LKSG-93/527 / Aluminium, LKSG-93/527 / Copper, LKSG-112/438 / Aluminium, LKSG-112/438 / Copper, LKSG-124/396 / Aluminium, LKSG-124/396 / Copper, LKSG-149/329 / Aluminium, LKSG-149/329 / Copper, LKSG-186/264 / Aluminium, LKSG-186/264 / Copper, LKSG-248/198 / Aluminium, LKSG-248/198 / Copper, LKSG-310/158 / Aluminium, LKSG-310/158 / Copper, LKSG-372/132 / Aluminium, LKSG-372/132 / Copper, LKSG-24/1009 / Aluminium, LKSG-24/1009 / Copper, LKSG-30/810 / Aluminium, LKSG-30/810 / Copper, LKSG-36/676 / Aluminium, LKSG-36/676 / Copper, LKSG-48/506 / Aluminium, LKSG-48/506 / Copper, LKSG-61/402 / Aluminium, LKSG-61/402 / Copper, LKSG-73/337 / Aluminium, LKSG-73/337 / Copper, LKSG-91/269 / Aluminium, LKSG-91/269 / Copper, LKSG-109/225 / Aluminium, LKSG-109/225 / Copper, LKSG-121/191 / Aluminium, LKSG-121/191 / Copper, LKSG-146/159 / Aluminium, LKSG-146/159 / Copper, LKSG-182/127 / Aluminium, LKSG-182/127 / Copper
- Rated Current: 25A, 31A, 37A, 50A, 62A, 74A, 93A, 112A, 124A, 149A, 186A, 248A, 310A, 372A, 24A, 30A, 36A, 48A, 61A, 73A, 91A, 109A, 121A, 146A, 182A
- Inductance: 1986µH, 1582µH, 1318µH, 981µH, 790µH, 659µH, 527µH, 438µH, 396µH, 329µH, 264µH, 198µH, 158µH, 132µH, 1009µH, 810µH, 676µH, 506µH, 402µH, 337µH, 269µH, 225µH, 191µH, 159µH, 127µH
- Winding: Aluminium, Copper
- Harmonic: 5, 7
- Capacitance: 231µF, 290µF, 346µF, 462µF, 579µF, 692µF, 861µF, 1027µF, 1137µF, 1385µF, 1770µF, 2275µF, 2895µF, 3539µF
- Required quantity, load, exact installation and supplied version.
LKSG exact manufacturer reference PDF
Product reference images and drawings
