CHINT TM Ultra-Low Voltage Automatic AC Regulator

Name: CHINT TM Ultra-Low Voltage Automatic AC Regulator
Brand: CHINT
SKU: CHINT-TM-REGULATOR
Availability: InStock

Description

TM Series Ultra-low Voltage Automatic AC Voltage Regulator – Uses digital integrated circuit sampling control system to control electromagnetic relay and change auto-transformer tap for stable output voltage. Can regulate even when grid voltage drops to 95V.

1. Product Overview

Uses digital integrated circuit sampling control system to control electromagnetic relay and change auto-transformer tap for stable output voltage. Can regulate even when grid voltage drops to 95V.

2. Main Features

Ultra low-voltage input capability (down to 95V)
Wide input voltage range
Digital control circuit with electromagnetic relay tap-switching
Automatic voltage regulation to 220V output
Overload protection and surge resistance

3. Technical Specifications

Input Voltage Range	95~270V (TM-3), 130~270V (TM-0.5 to TM-2)
Output Voltage	220V ±4%
Rated Capacity	0.5kVA to 10kVA
Frequency	50Hz
Ambient Temperature	-5°C ~ +40°C
Altitude	≤3000m
Mounting	Desk type (TM-0.5 to TM-3), Wall-mounted or desk type (TM-5 to TM-10)

4. Technical and Application Notes

TM series regulators are essential for areas with unstable grid voltage. The ultra-low voltage input capability (95V) ensures your equipment continues operating during brownouts. Digital sampling ensures precise voltage regulation with minimal overshoot.

5. Typical Applications

Refrigerators, freezers, electric fans, air conditioners, TVs, computers, medical instruments, lighting systems

6. Ordering Support

Please contact us for product selection guidance, technical specifications, and ordering information. Our team can help you choose the right model for your specific application requirements.

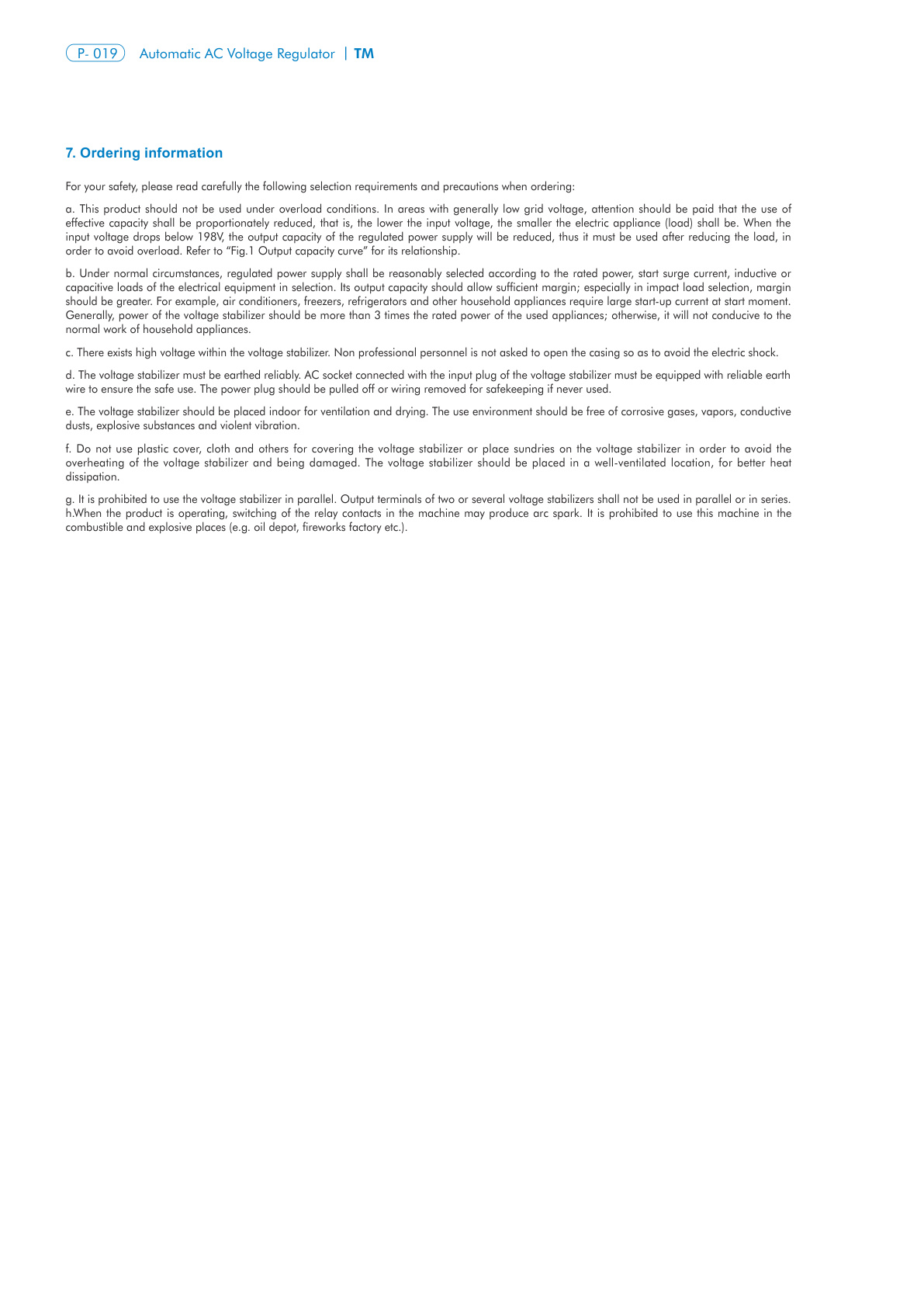

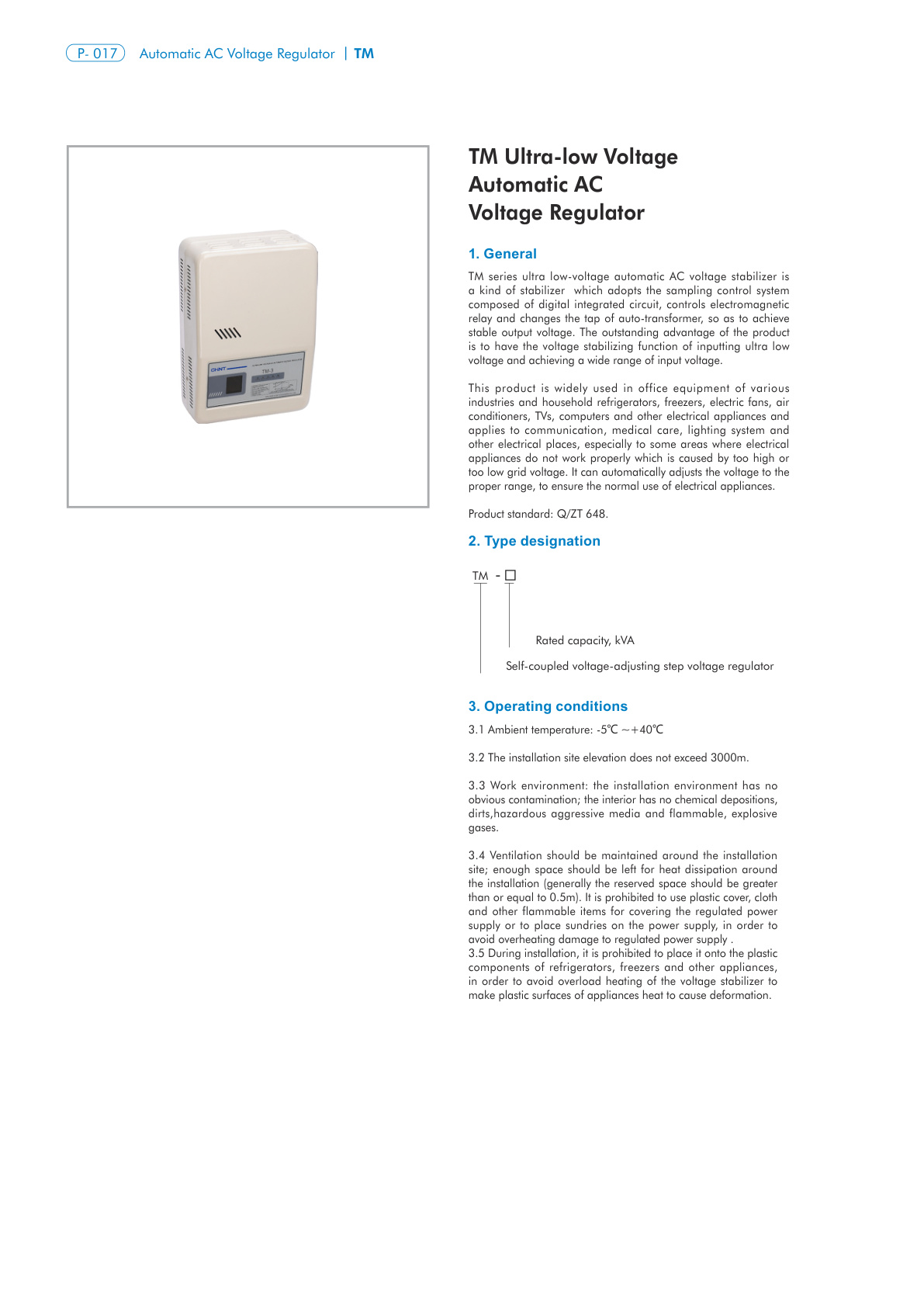

7. Product Catalog

8. Standards Compliance

This product complies with: Q/ZT 648
