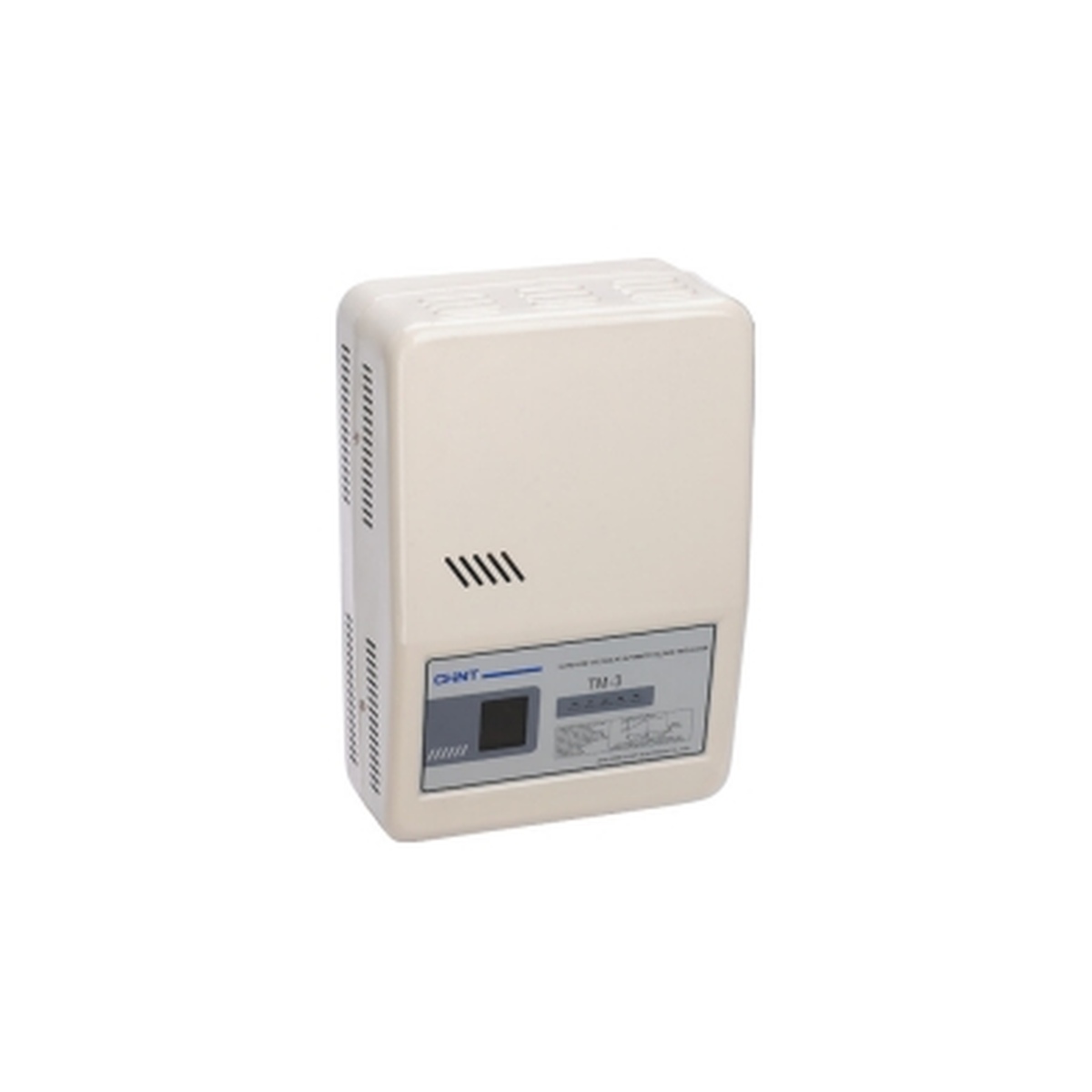

CHINT TM Series Ultra-Low Automatic AC Voltage Regulator

TM Series ultra-low voltage automatic AC voltage regulator. Maintains stable 220V output even with input as low as 95V. Ideal for areas with unstable grid voltage.

Model
Add to Enquiry
SKU: CHINT-TM-VOLTAGE-REGULATOR Category: Others
  • Description
  • Catalog
Description

CHINT · Automatic AC voltage regulator

Product overview

The CHINT TM series uses relay-controlled autotransformer taps to regulate a single-phase AC supply. Select the full TM capacity model and confirm the input-voltage version and load derating.

Technical selection summary

Manufacturer model rangeTM-0.5, TM-1, TM-1.5, TM-2, TM-3, TM-5, TM-8 and TM-10
Rated capacity0.5 / 1 / 1.5 / 2 / 3 / 5 / 8 / 10 kVA respectively
Rated supply / frequencyAC 220 V, 50 Hz
Input-voltage version130–270 V and 95–270 V are listed; match the supplied version. The stated 220 V ±10% performance applies to the 130–270 V effective range
Rated output current2.3 / 4.5 / 6.8 / 9.1 / 13.6 / 22.7 / 36.4 / 45.5 A respectively
Output overvoltage protection246 ±4 V; this is a protection threshold, not output regulation accuracy
InstallationTM-0.5 to TM-3: desk type; TM-5/8/10: wall-mounted or desk type
EnvironmentIndoor, ventilated, -5°C to +40°C, altitude up to 3000 m; allow at least 0.5 m heat-dissipation space

Capacity must be reduced when input voltage drops below 198 V; allow additional margin for motor, compressor or other inrush loads. A wider input range requires the exact manufacturer version. Do not connect regulator outputs in parallel or series, and confirm earthing and ventilation.

Typical applications

  • Office and household electrical equipment within rated duty
  • Low or fluctuating mains supplies with properly derated loads

Product reference images and drawings

Use the drawing and rating row for the complete manufacturer model and supplied version. Family references may show other constructions.

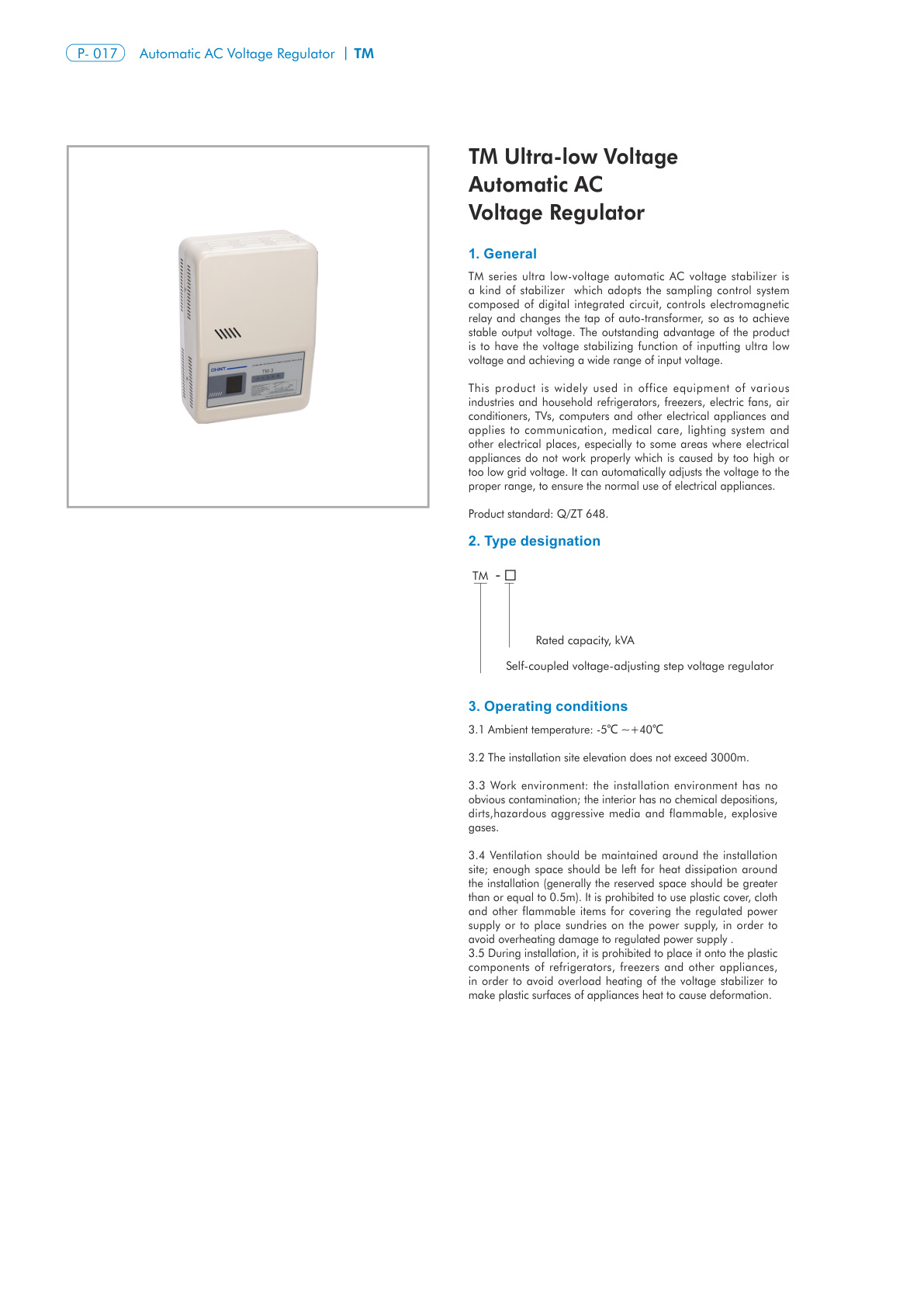

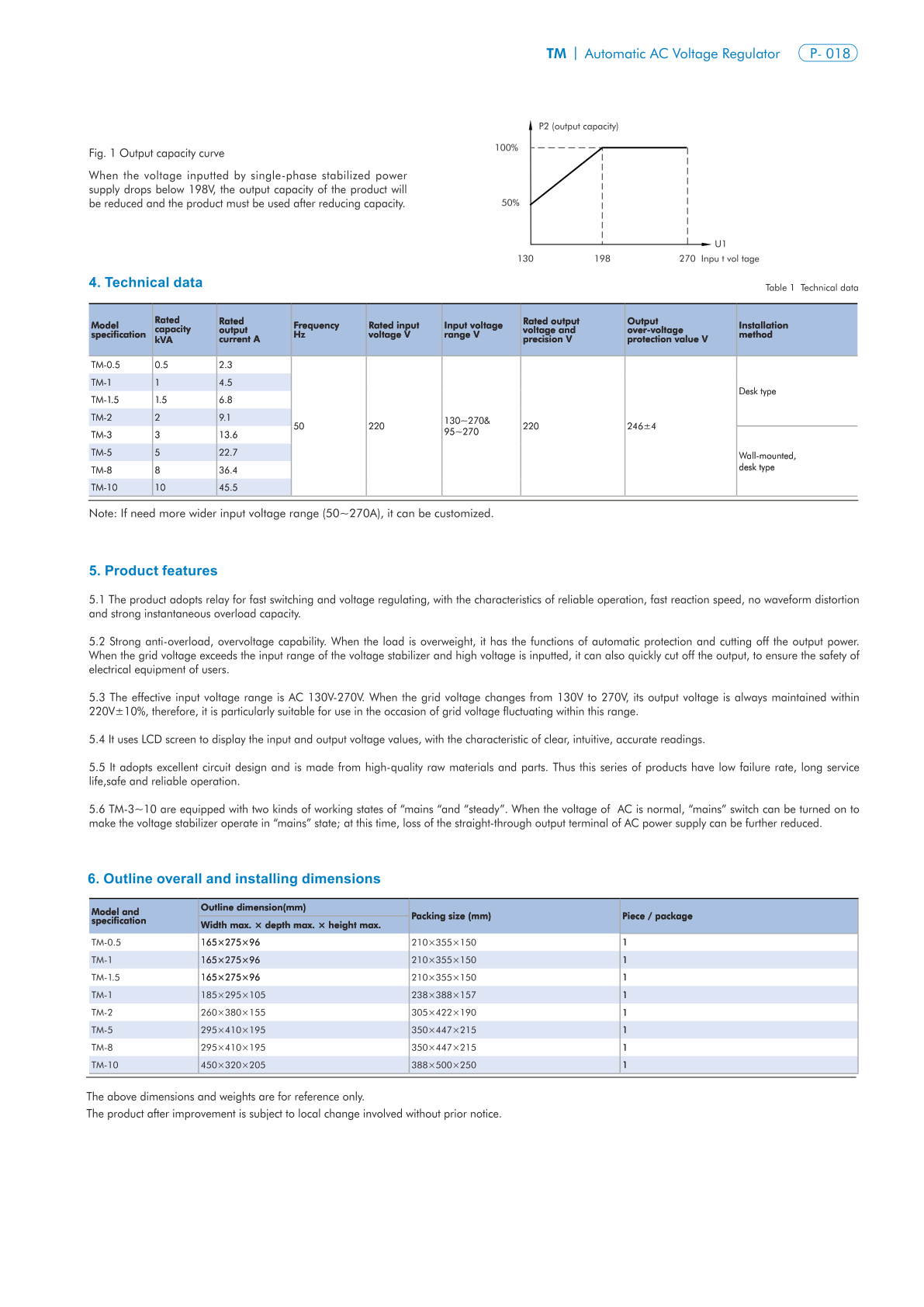

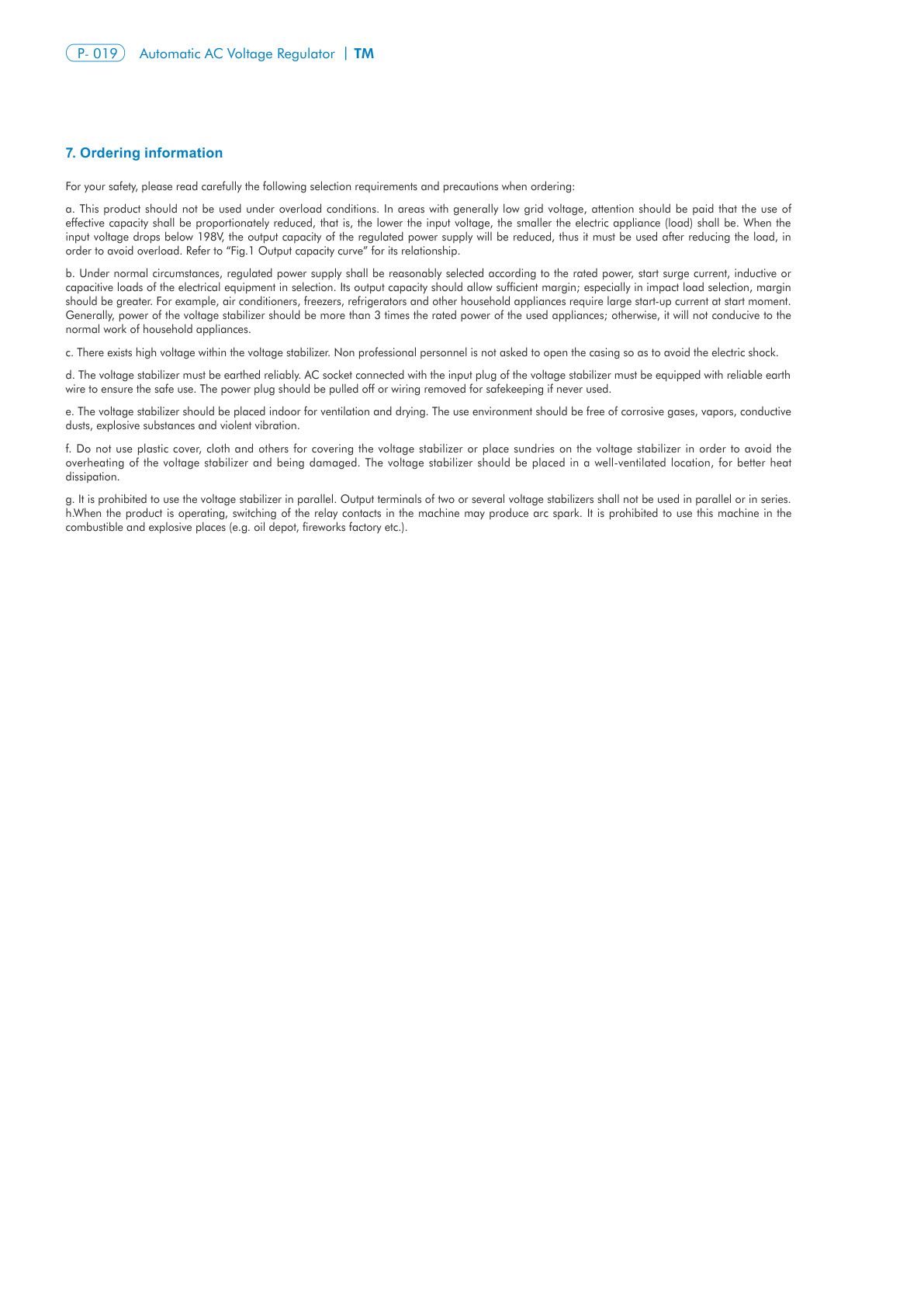

TM technical reference 1TM technical reference 2TM technical reference 3
