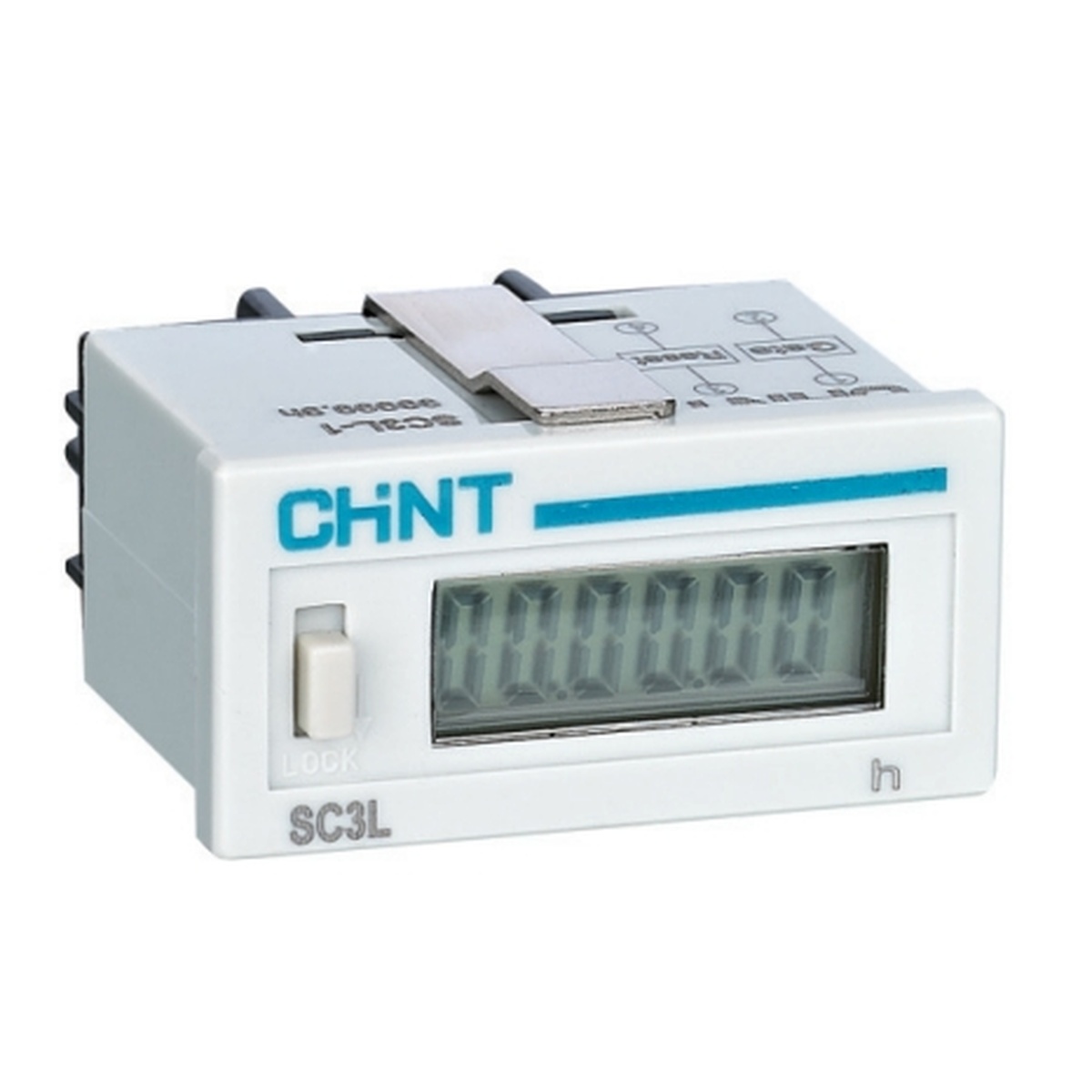

CHINT SC3L Series Electronic Time Accumulator

Electronic time accumulator for industrial applications requiring precise time tracking and control.

Model
Add to Enquiry
SKU: SC3L Category: Others
  • Description
  • Additional information
  • Technical Documents
  • Selection & Ordering
Description

CHINT · Electronic time accumulator

Product overview

The CHINT SC3L electronic time accumulator records elapsed operating time on an LCD display using an internal lithium battery. It has no switching output. Select a complete model for the documented time range and contact or voltage input.

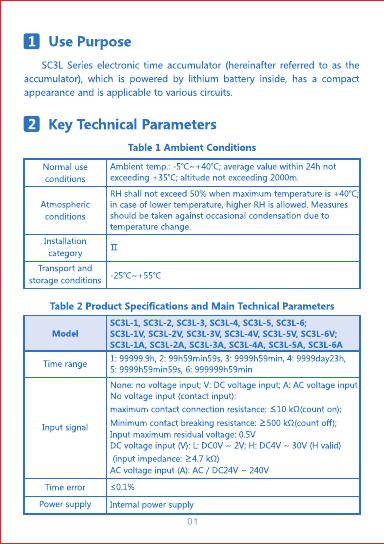

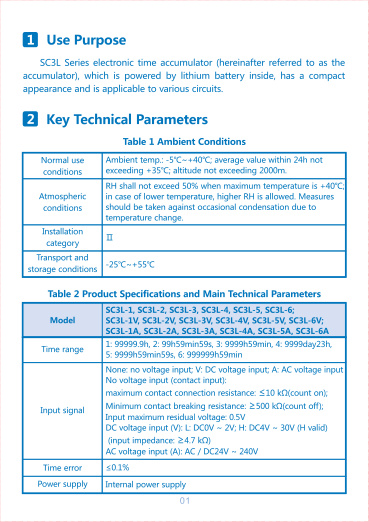

Technical selection summary

Contact-input modelsSC3L-1: 99999.9 h; SC3L-2: 99 h 59 min 59 s; SC3L-3: 9999 h 59 min; SC3L-4: 9999 days 23 h; SC3L-5: 9999 h 59 min 59 s; SC3L-6: 999999 h 59 min
Voltage-input modelsSC3L-1A: 99999.9 h; SC3L-6A: 999999 h 59 min; SC3L-6V: 999999 h 59 min
Input signalsUnsuffixed: voltage-free contact input; A: AC/DC 24–240 V input; V: DC input, low 0–2 V / high 4–30 V, high level active
Internal power / outputInternal lithium battery; reference life about 6 years at 25 °C; no relay output
Timing / resetAccumulated-time error ≤0.1%; minimum reset pulse ≥0.2 s; panel/external reset depends on the display construction
Mounting / environmentPanel mounting; opening reference 45 × 22.5 mm; −5 to +40 °C

A and V identify the input signal, not an external operating-power option. Use contact or transistor input for the reset terminals; do not apply voltage to the reset input. The selected models follow the listed manufacturer ordering rows; other input/range combinations require their complete documented order code.

Typical applications

  • Machine operating-hour recording
  • Maintenance interval tracking and equipment utilisation records

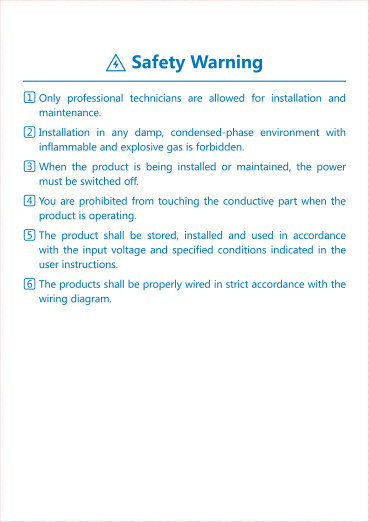

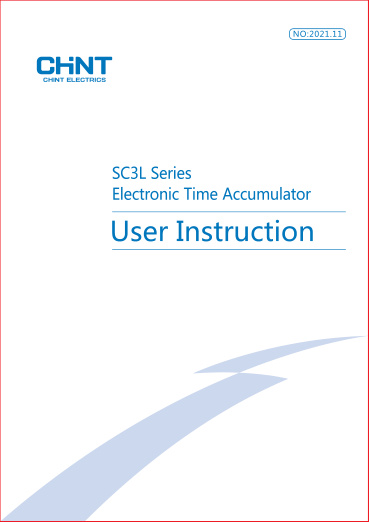

Product reference images and drawings

Match the exact model, construction and supplied revision. Family reference pages can show other ratings or versions.

SC3L technical reference 1
Additional information
Model

SC3L-1, SC3L-2, SC3L-3, SC3L-4, SC3L-5, SC3L-6, SC3L-1A, SC3L-6A, SC3L-6V

Technical Documents

TECHNICAL RESOURCES

Documents for CHINT SC3L Series Electronic Time Accumulator

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.
