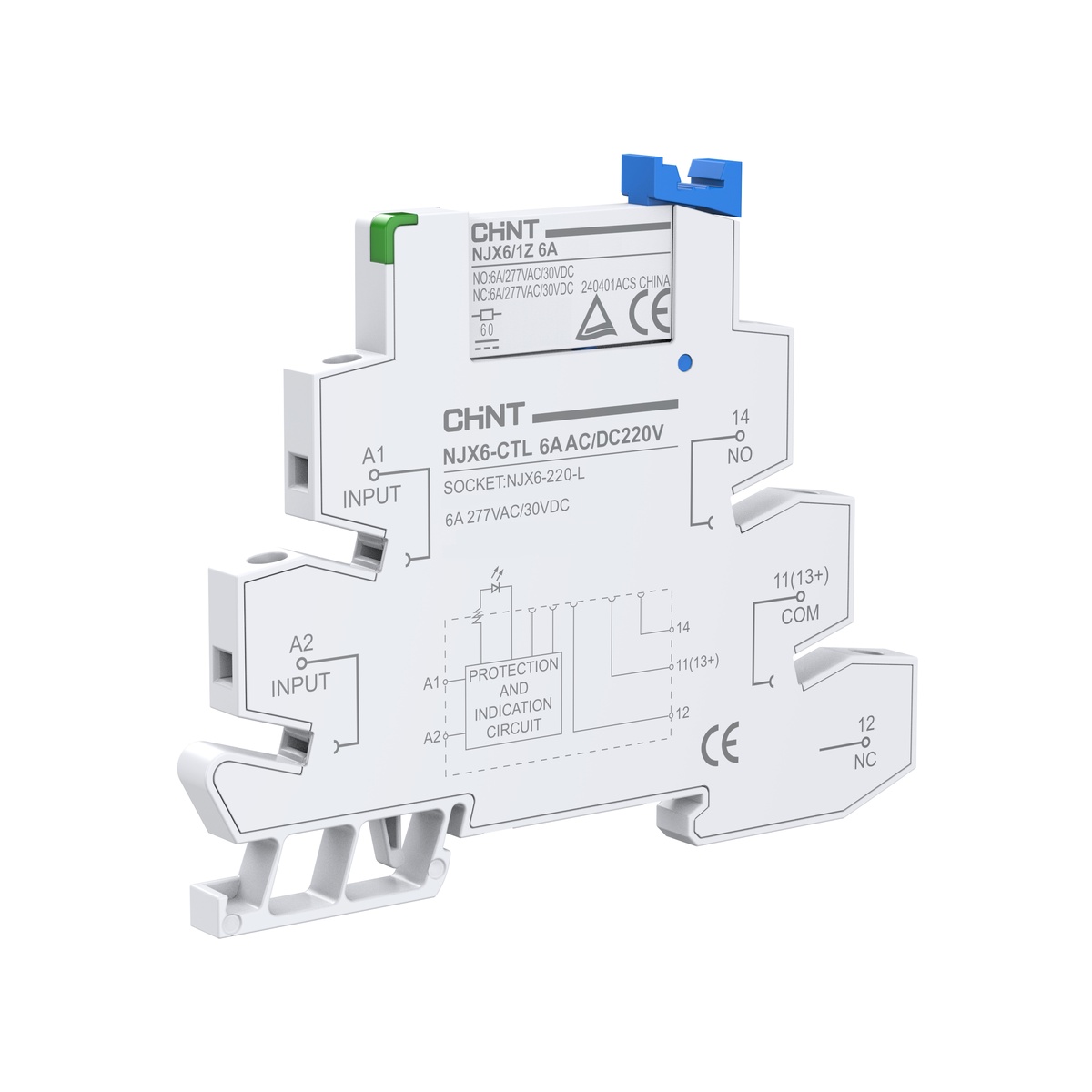

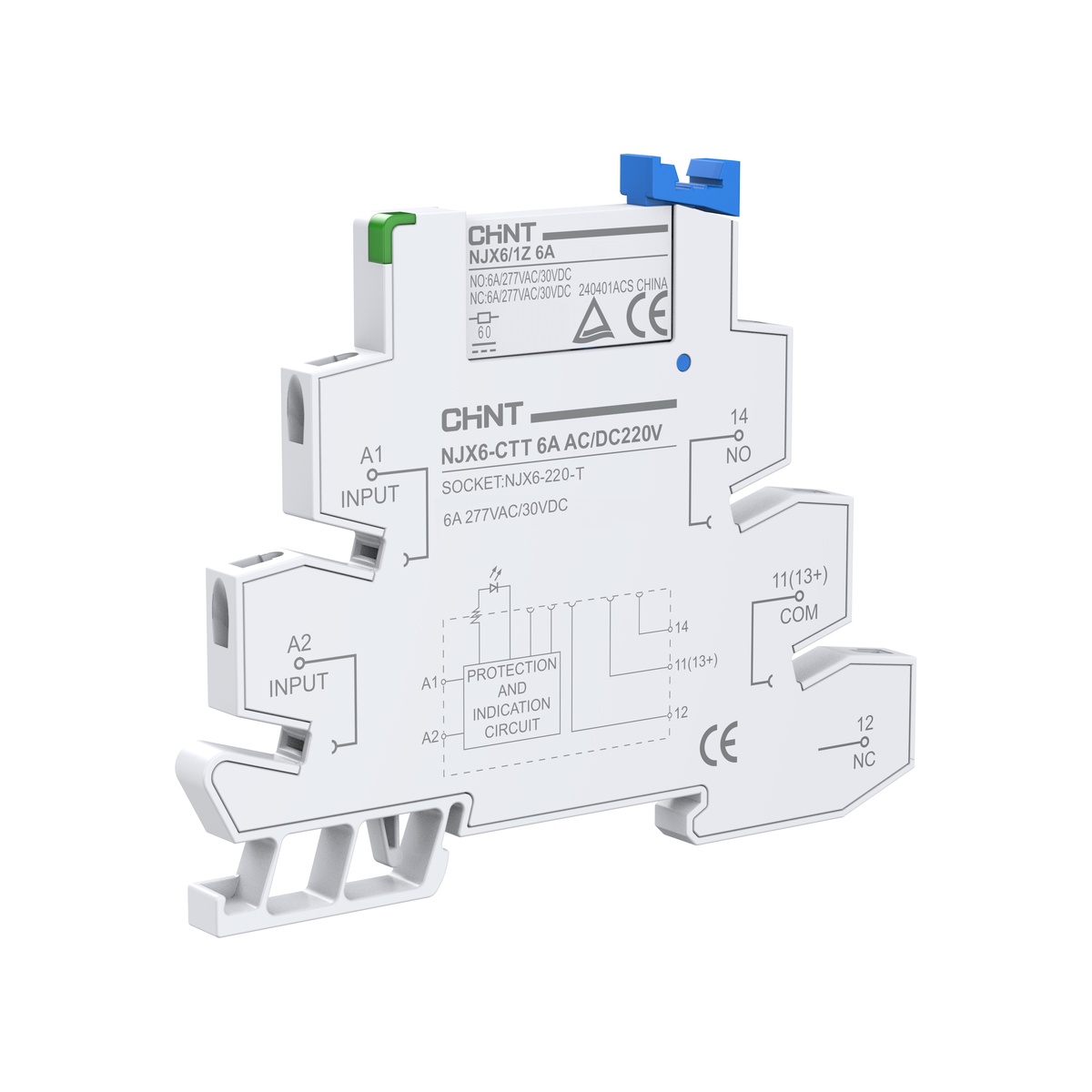

CHINT NJX6 Miniature Electromagnetic Control Relay

Name: CHINT NJX6 Miniature Electromagnetic Control Relay
Brand: CHINT

Compact general-purpose relay for control, signal isolation, and automation applications. Complies with IEC/EN 61810 standards.

Coil Voltage

Contact Form

Category: Others

Description

Product Overview

The CHINT NJX6 Miniature Relay is a compact, high-performance general-purpose relay designed for control, signal isolation, and automation applications. It delivers reliable switching performance with low coil power consumption, high contact reliability, and long electrical life. Built to comply with IEC/EN 61810 standards, the NJX6 is suitable for use in industrial control panels, automation systems, and instrumentation where compact design and dependable operation are essential.

Main Features

Compact design for space-saving installation
High contact reliability and long electrical life
Low coil power consumption
DIN rail mountable for easy installation
Complies with IEC/EN 61810 standards
Suitable for industrial control panels and automation systems

Technical Specifications

Please refer to the product catalog below for detailed technical specifications.

Typical Applications

Industrial control panels
Automation systems
Instrumentation and monitoring
Signal isolation circuits
Control systems
Electromechanical equipment

Ordering Support

For detailed ordering information and technical support, please contact our sales team.

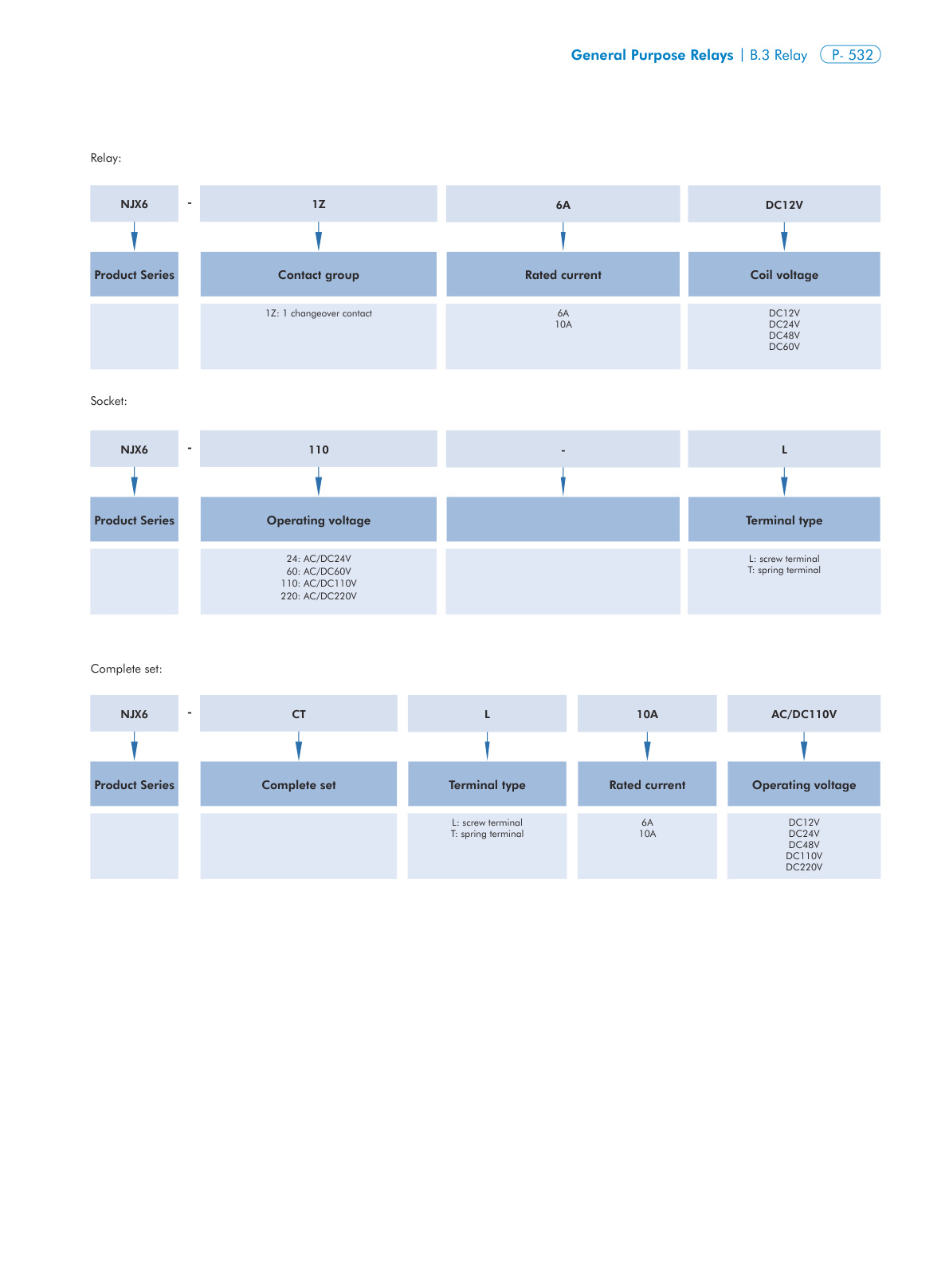

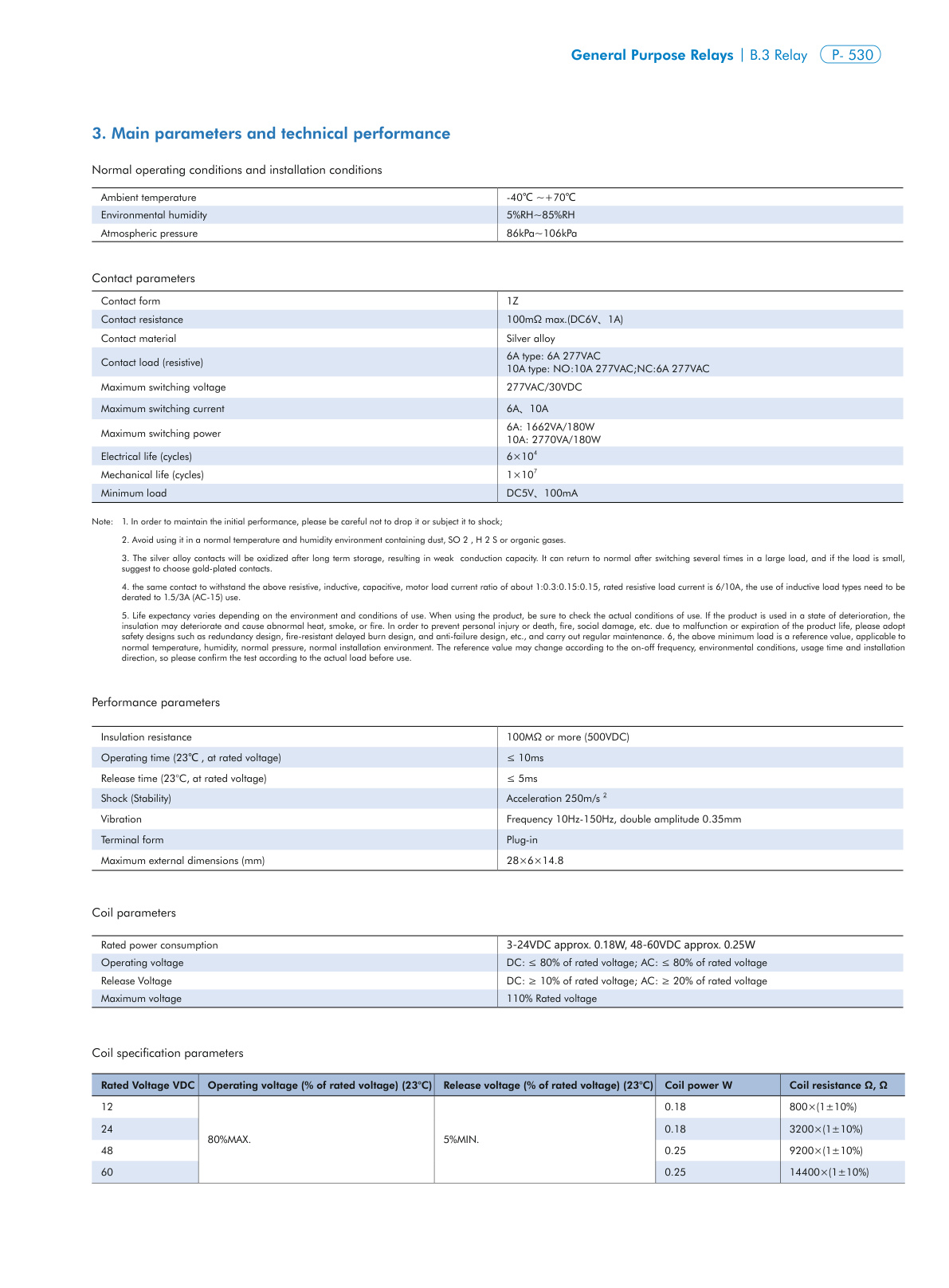

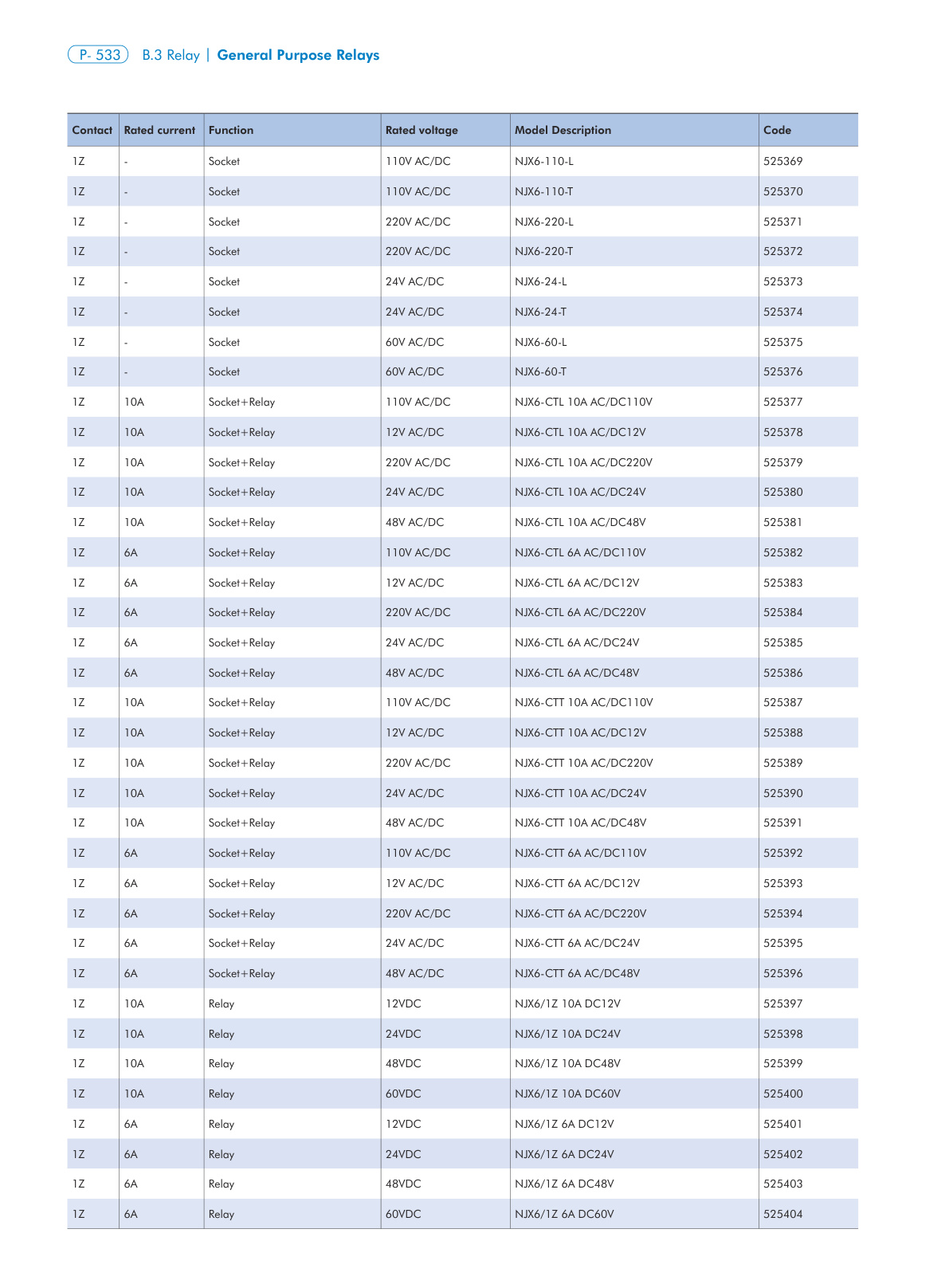

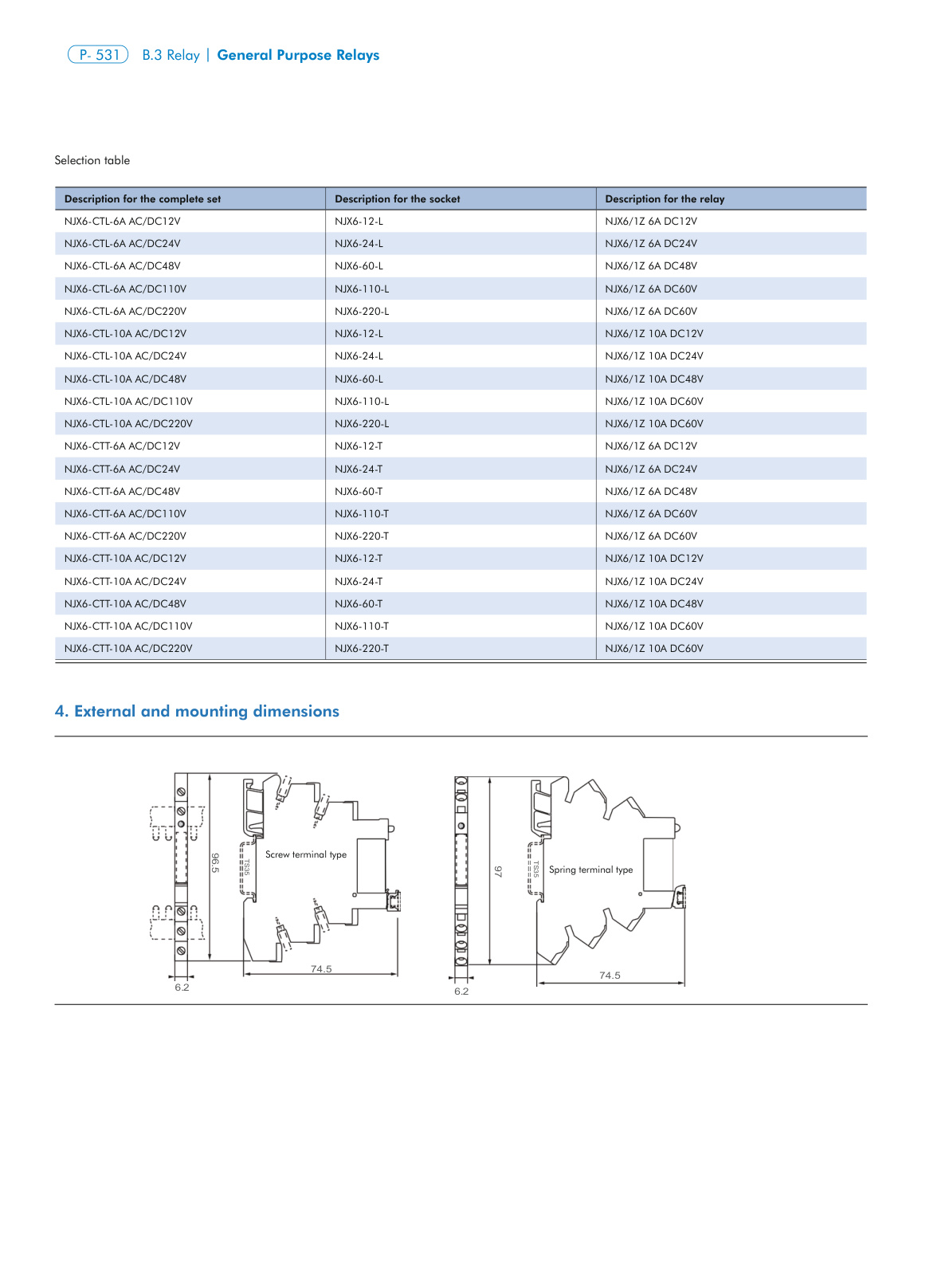

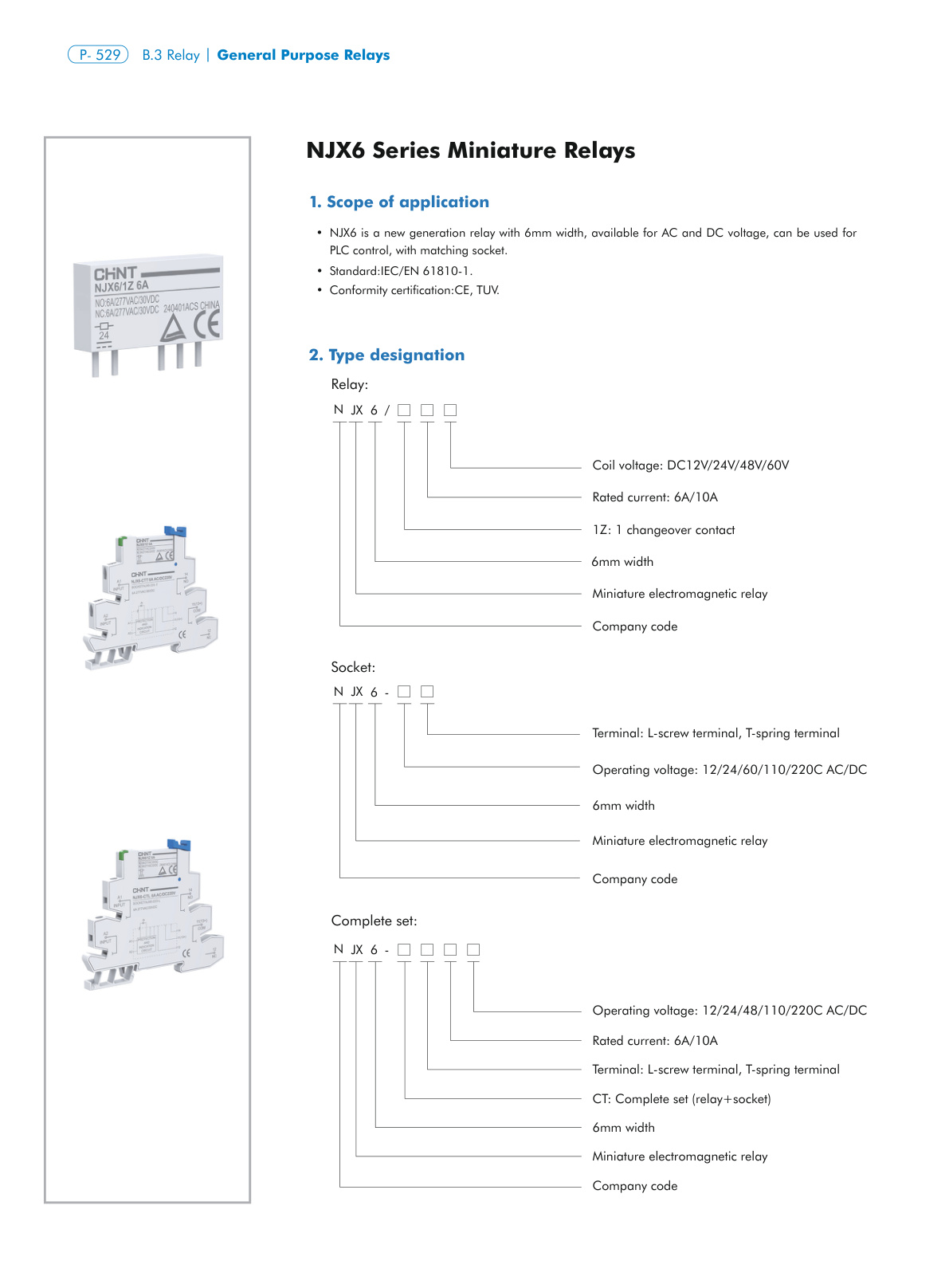

Product Catalog

Below is the complete product catalog:

Additional information

Coil Voltage	AC 24V, AC 110V, AC 220V, AC 380V, DC 12V, DC 24V, DC 48V, DC 110V, DC 220V
Contact Form	1CO (SPDT), 2CO (DPDT), 3CO (3PDT), 4CO (4PDT)

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for CHINT NJX6 Miniature Electromagnetic Control Relay.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.

Technical FAQ & Selection Guide

💡 Frequently Asked Technical Questions & Selection Guide

Pure engineering specifications, tripping curve parameters, and electrical selection guidance for panel builders and system designers.

AC-1 / AC-3 Duty

How to calculate contactor rating based on motor power and utilization categories (AC-1 vs AC-3 vs AC-4)?

AC-3 rating applies to standard squirrel-cage motor starting and stopping during normal run (starting current 5–7x In). For non-inductive or purely resistive heating loads, use the higher AC-1 rating. For severe inching, jogging, and plugging applications (AC-4 duty), derate the contactor or upsize by 1 to 2 frame sizes to prevent contact erosion.

Coil Voltage Selection

How to choose the correct control coil voltage, frequency, and electronic wide-voltage options?

Standard AC coils include 24V, 48V, 110V, 220V/230V, 380V at 50/60Hz. For DC control loops or PLC outputs, specify DC coils or electronic wide-range AC/DC coils (e.g. 100V–250V AC/DC) which feature built-in surge suppression, low holding power consumption, and immunity to voltage dips.

Overload Coordination

How to size and coordinate the matching thermal overload relay (TOR) for Type 2 protection?

Select a thermal overload relay whose current setting range straddles the motor full-load current (FLA). Set the dial precisely to 1.0x motor nameplate FLA. For IEC 60947-4-1 Type 2 coordination, pair the contactor and relay with backed-up upstream fuses or fast-acting MCB/MCCB to prevent welding under fault conditions.

Auxiliary & Interlocks

What auxiliary contact blocks and mechanical interlocks can be added for motor reversing?

Units feature built-in 1NO or 1NC auxiliary contacts, expandable with top-mounted 2-pole or 4-pole auxiliary contact blocks (F4 / AX) and pneumatic timer delay blocks. For forward/reverse motor starters or star-delta starter assemblies, add side-mounted mechanical interlock units (MI) with electrical interlocking.

Ambient & Altitude Derating

How do ambient temperature and installation altitude affect contactor performance?

Standard ratings are calibrated for -5°C to +40°C. For ambient temperatures exceeding 55°C or altitudes above 2000m (where reduced air density diminishes heat dissipation and dielectric insulation), derate operational current by 2% per 100m above 2000m and verify insulation voltage limits per IEC standards.
