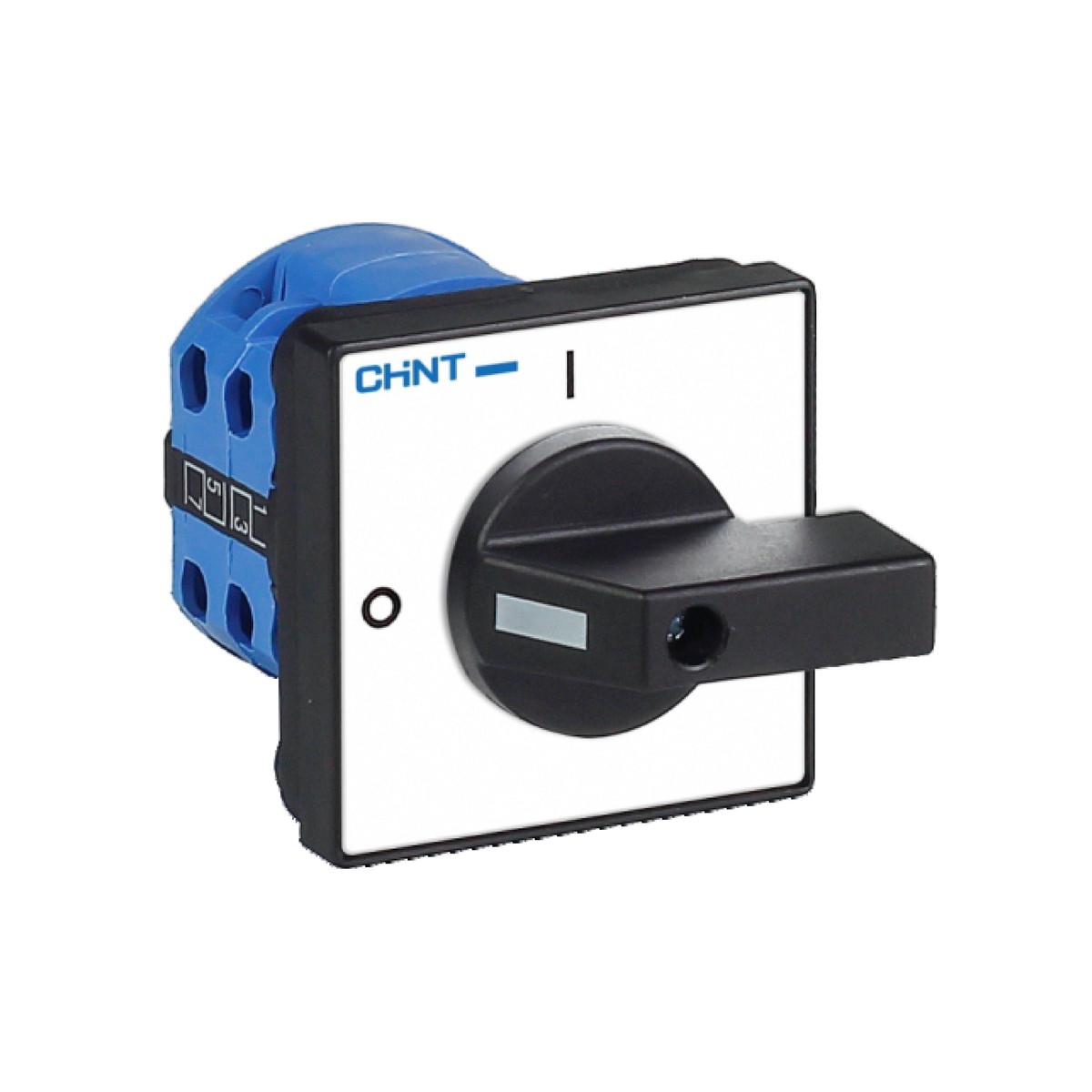

Product Overview
The LW42 Cam Switch is used for manual control, circuit conversion, or isolation in power distribution and industrial automation systems. It provides reliable rotary switching for machine tools, control panels, and motor control applications.
Main Features
- Multiple Switch Positions: 2 to 12 switching positions for multi-step operations
- Silver Alloy Contacts: Excellent conductivity and long electrical endurance
- Protection Options: IP40 standard, IP65 available for demanding environments
- Versatile Applications: Machine tools, control panels, distribution boxes
- High Quality: CHINT manufacturing with reliable performance
- Easy Operation: Smooth rotary switching mechanism
Technical Specifications
| Parameter | Specification |
|---|---|
| Switch Positions | 2 to 12 positions |
| Contact Material | Silver alloy |
| Protection Level | IP40 (standard), IP65 (optional) |
| Standard | IEC 60947-5-1 |
Technical and Application Notes
The LW42 cam switch is designed for reliable operation in industrial environments. Its robust construction and silver alloy contacts ensure long service life even under frequent operation. The switch can be configured for various switching sequences to meet specific application requirements.
Typical Applications
- Machine tool control
- Control panels
- Distribution boxes
- Motor control systems
- Circuit conversion
- Power distribution
Ordering Support
When ordering LW42 cam switches, please specify:
- Number of switching positions required
- Contact configuration
- Protection level (IP40 or IP65)
- Mounting requirements

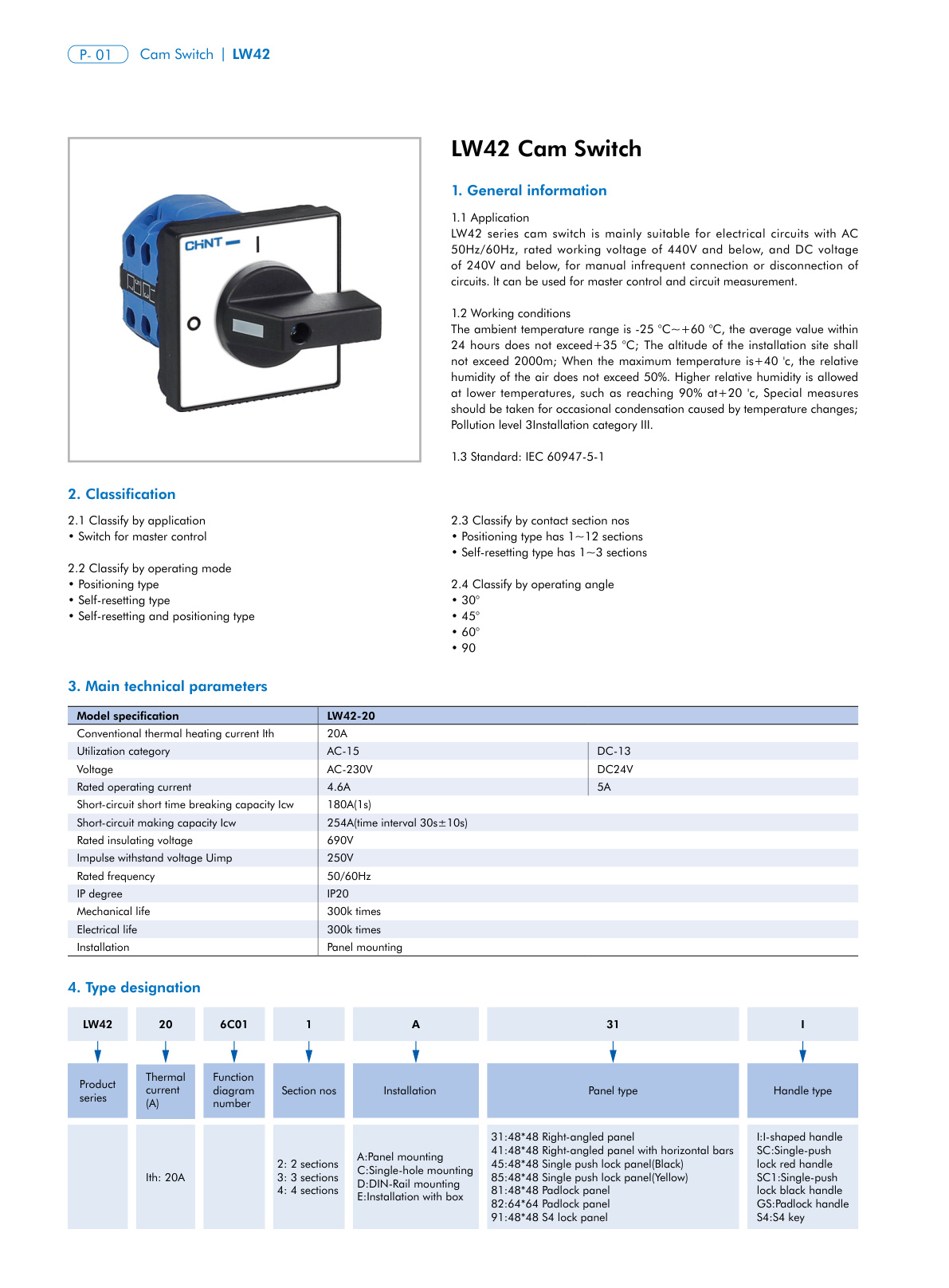

Product Catalog
For detailed specifications and technical data, please refer to the product catalog below.
