NewTrend · T1
Product overview
NewTrend T1 reference molded-case circuit breakers. Select current,poles,trip and voltage-specific breaking class.
Technical selection summary
| Parameter | Specification |
|---|---|
| Supply identity | NewTrend/OEM T1 reference product;not original ABB |
| Rated current | 32A / 40A / 50A / 63A / 80A / 100A / 125A / 160A |
| Trip scope | TMD |
| Class at AC415V | T1N:36kA |
| Ics at AC415V | T1N/T3N:75%Icu,27kA atAC415V |
| Main AC circuit | 50/60Hz;voltage-specific breaking values must not be transferred to other voltages |
| Fixed outline W x H x D | 3P76 /4P102 x130 x70mm |
| Construction | Fixed version only;plug-in/withdrawable and motor-operated variants need their own exact order and dimensions |
| Scope | The options are verified configurations,not ABB1SDA order codes or original-brand certifications |

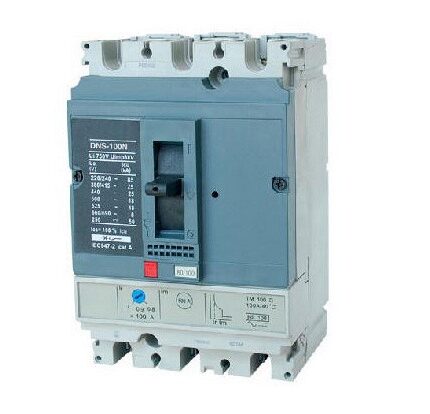

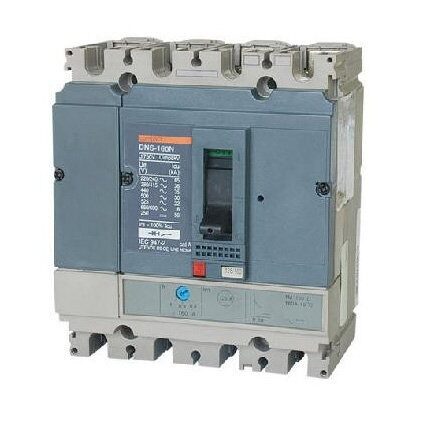

Series illustration: the retained photo may show another frame,trip or brand-marked reference unit. Actual supply is NewTrend/OEM. Source catalogue tables show additional variants outside the selectors;their certification and accessories are not included automatically.
Typical applications
- Electrical panel assembly and installation
Specify your enquiry
For a focused quotation, include:
- Selected model and configuration
- Quantity, installation requirements and destination
- Required supporting documents for the exact configuration
Open technical reference image
Product reference images and drawings
