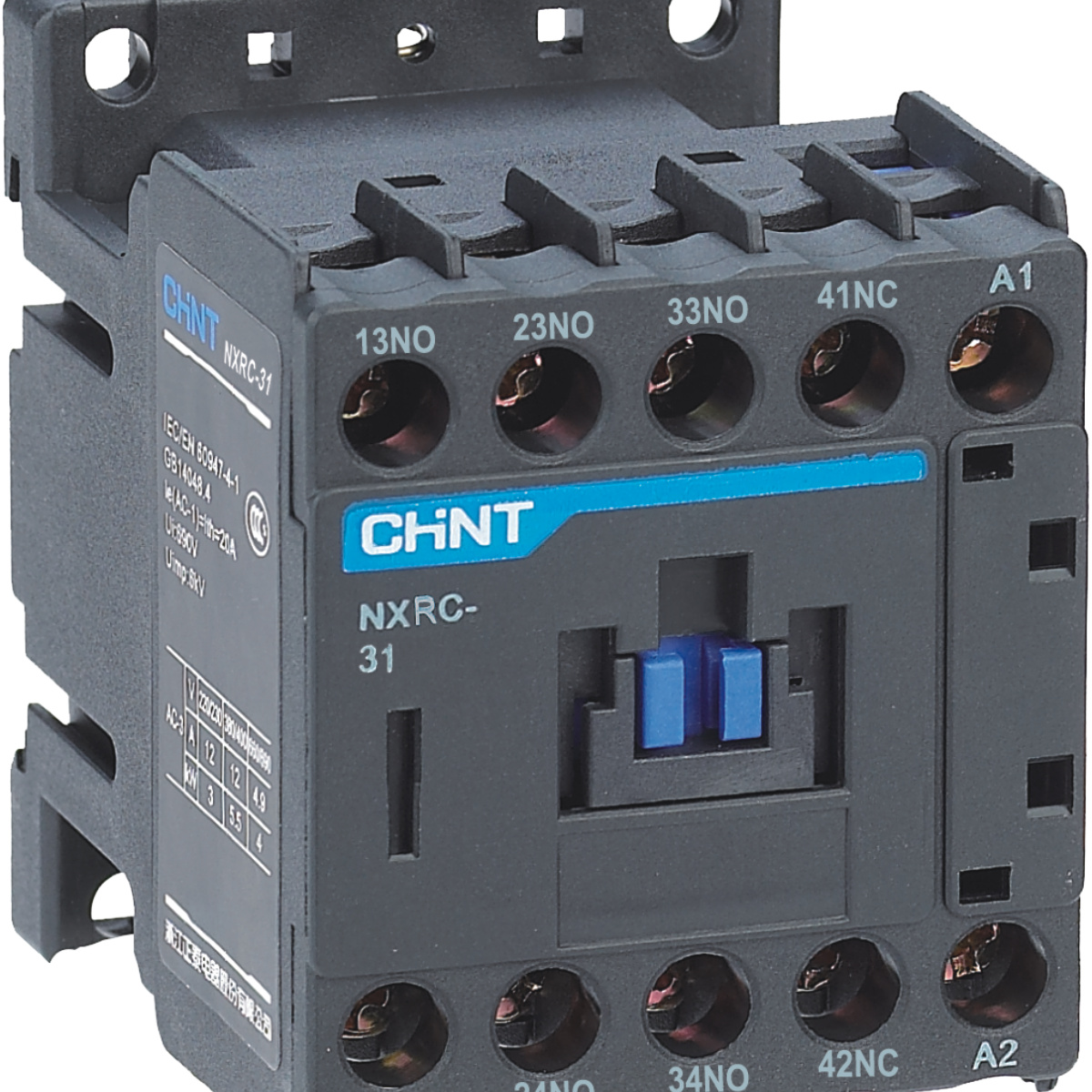

Chint NXRC 4-Pole 10A 380V Industrial Control Relay Auxiliary Contactor Isolation Control CHNT Contactor Relay

Control Relay; IEC/EN60947-5-1.; for industrial automation and electrical control circuits

Model
Main Contact Configurations
Control Coil Voltage
Request a Quote

Send quantities and requirements together. Availability and final specifications are confirmed with your quotation.

SKU: NXRC Categories: ,
Description
Chint NXRC
Control Relay
Control Relay – verified catalogue data for confident selection

Product Overview

The Chint NXRC is a control relay for industrial automation and electrical control circuits. This listing uses the model-specific values selected from the product catalogue. Please confirm the required rating and configuration before ordering.

Technical Parameters

Applicable standard IEC/EN60947-5-1.
Maximum Rated Operational Voltage (AC) 380V
Maximum Rated Operational Voltage (DC) 220V
Main Contact Configurations 4NC (04), 1NO+3NC (13), 2NO+2NC (22), 3NO+1NC (31), 4NO (40)
AC-15 Rated Operational Voltage and Current 380V / 1.5A (Control capacity: 570VA)
DC-13 Rated Operational Voltage and Current 220V / 0.3A (Control capacity: 66W)
Operating Frequency 1200 times/h
Ambient Operating Temperature -5°C~+40°C (mean value does not exceed +35°C within 24 hours)
Primary Applications AC 50Hz or 60Hz relay control circuit, signal transmission circuit and isolation amplifier circuit
Rated Insulation Voltage (Ui) 690V
Conventional Free Air Thermal Current (Ith) 10A
Installation Altitude Not exceed 2000m
Pollution Degree Class 3
Installation Category Category III
Installation Slope Angle Not bigger than ±5° between mounting surface and vertical plane
Brand Chint
Model NXRC
Product type Control Relay

Reference Datasheet Pages

The following pages were selected from the model catalogue and are included for technical reference:

NXRC Catalog and Technical Data

NXRC technical catalog page 1

NXRC technical catalog page 2

NXRC technical catalog page 3

NXRC technical catalog page 4

Additional information
Model

NXRC
Main Contact Configurations

4NC (04), 1NO+3NC (13), 2NO+2NC (22), 3NO+1NC (31), 4NO (40)
Control Coil Voltage

AC 24V 50/60Hz, AC 110V 50/60Hz, AC 127V 50/60Hz, AC 220V 50/60Hz, AC 380V 50/60Hz, DC 24V, DC 48V, DC 110V, DC 220V
Technical Documents

TECHNICAL RESOURCES

Documents for Chint NXRC 4-Pole 10A 380V Industrial Control Relay Auxiliary Contactor Isolation Control CHNT Contactor Relay

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.
