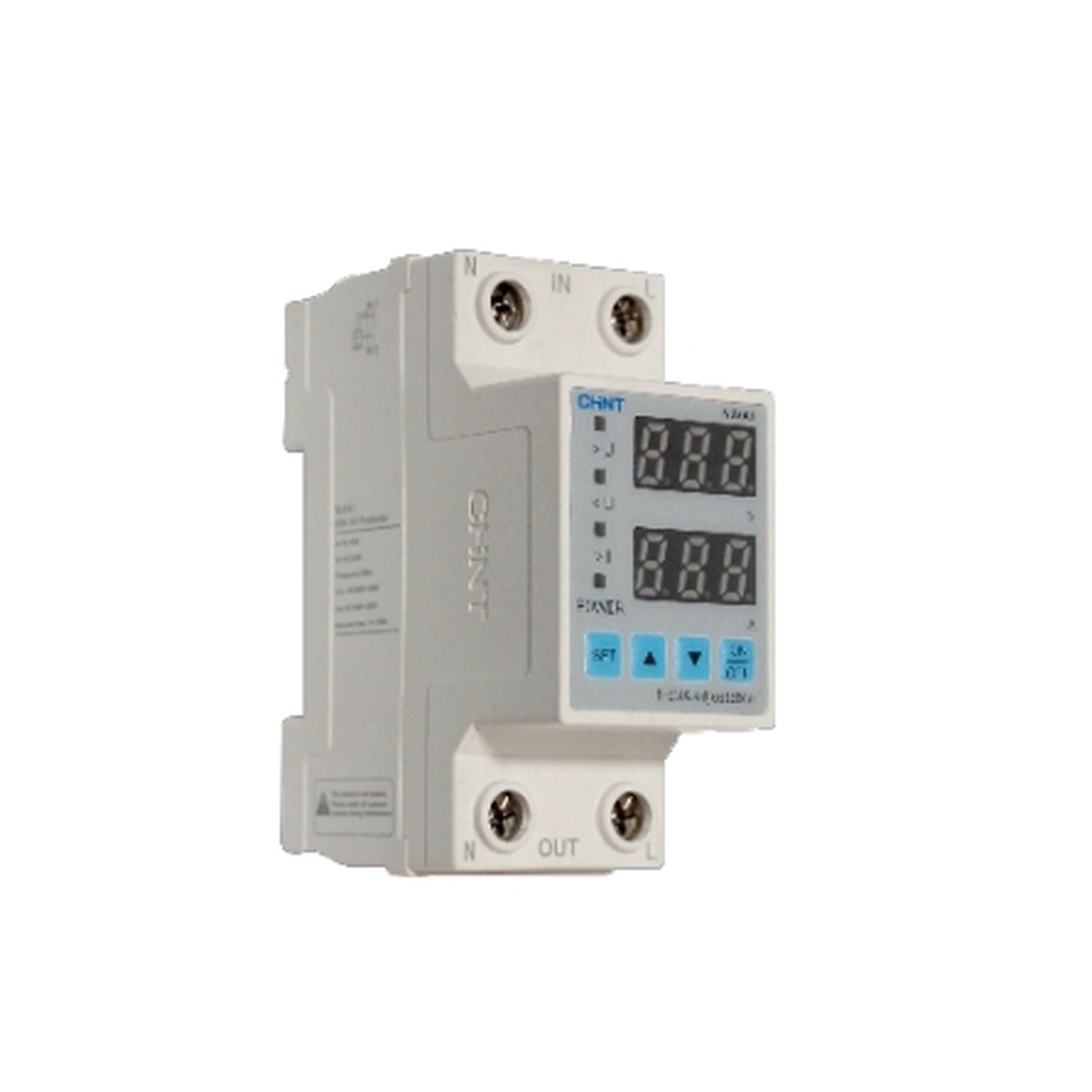

NJVA1 Voltage and Current Protector

Name: CHINT NJVA1 Over/Under Voltage and Current Protector
Brand: CHINT
SKU: NJVA1

Description

Product Overview

Voltage and current monitoring protector with automatic reconnection for AC systems

Main Features

Reliable performance for industrial applications
Compact design for easy installation
Long service life and stable operation
Suitable for various control systems

Technical Specifications

Parameter	Specification
Function	Voltage and current monitoring
Undervoltage	140-200V adjustable
Overvoltage	240-300V adjustable
Overcurrent	1-63A or 10-100A adjustable
Mounting	DIN rail
Application	Power distribution, substations, generator panels

Typical Applications

Industrial automation systems
Control panels and switchgear
HVAC systems
Power distribution systems
Motor control applications

Ordering Support

For detailed ordering information and technical support, please contact our sales team.

Product Catalog

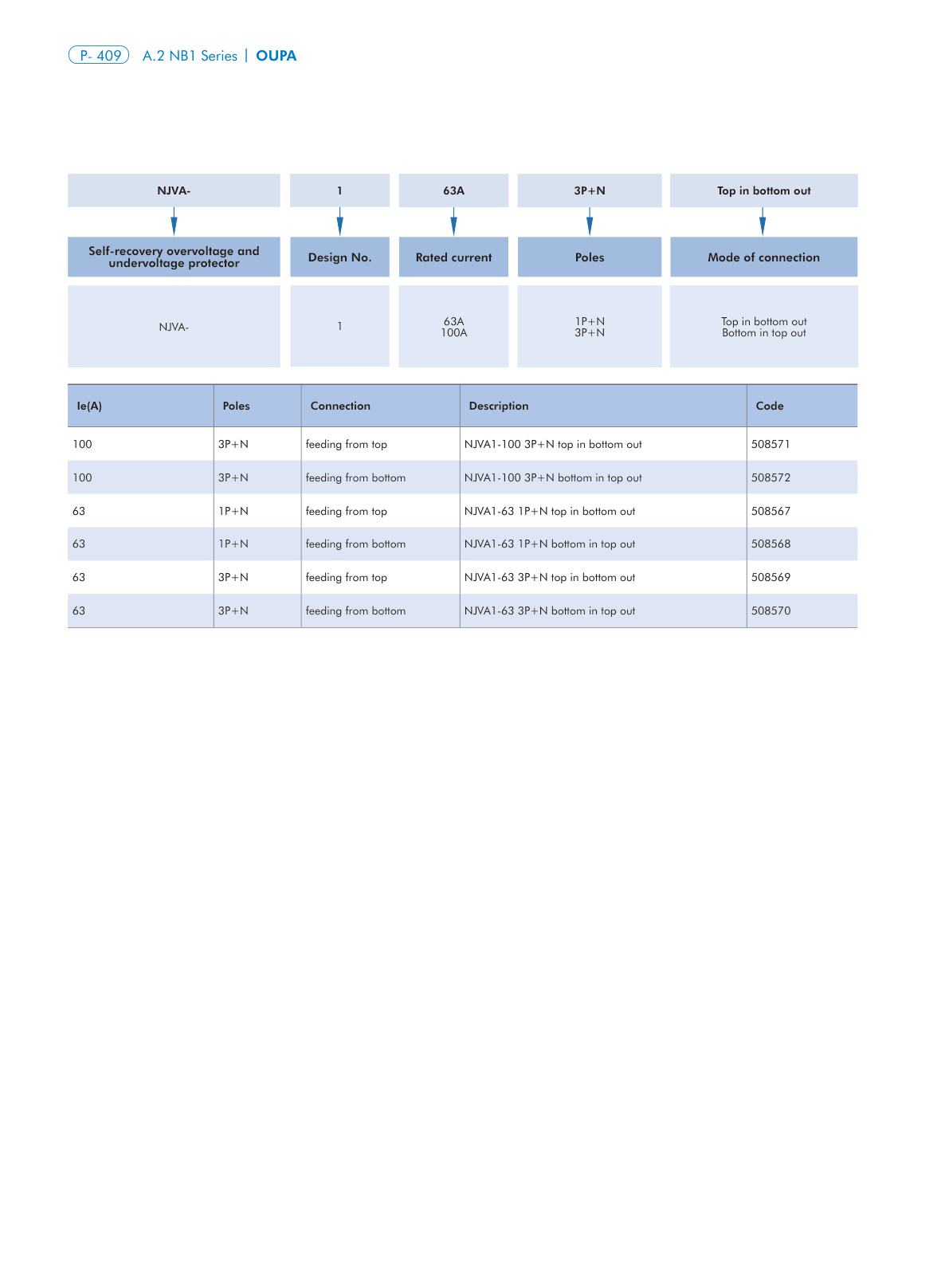

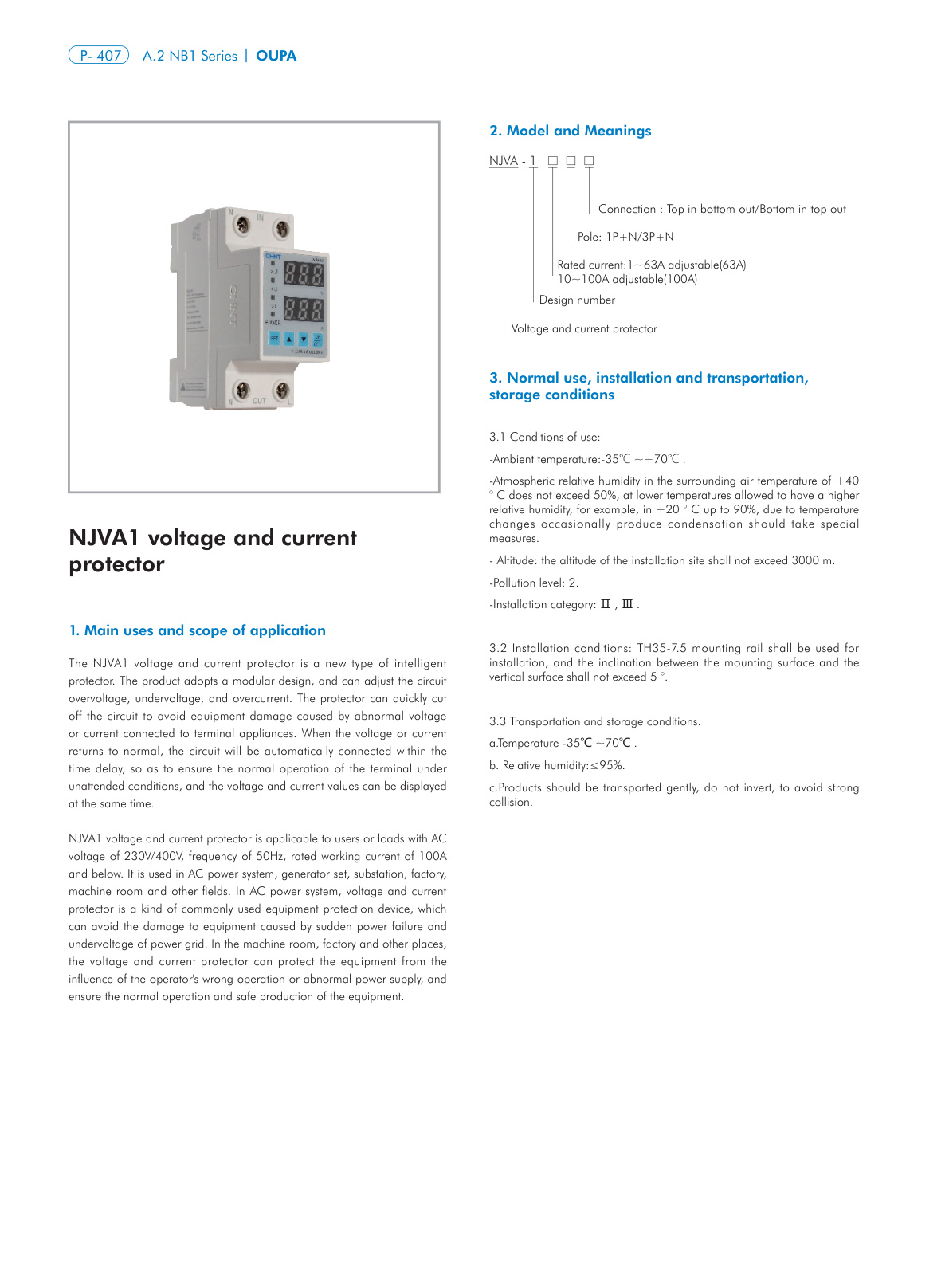

Please refer to the catalog images below for detailed specifications:

Additional information

Rated Voltage	AC 220V, AC 380V
Protection Type	Over-Voltage, Under-Voltage, Over/Under-Voltage

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for CHINT NJVA1 Over/Under Voltage and Current Protector.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.
