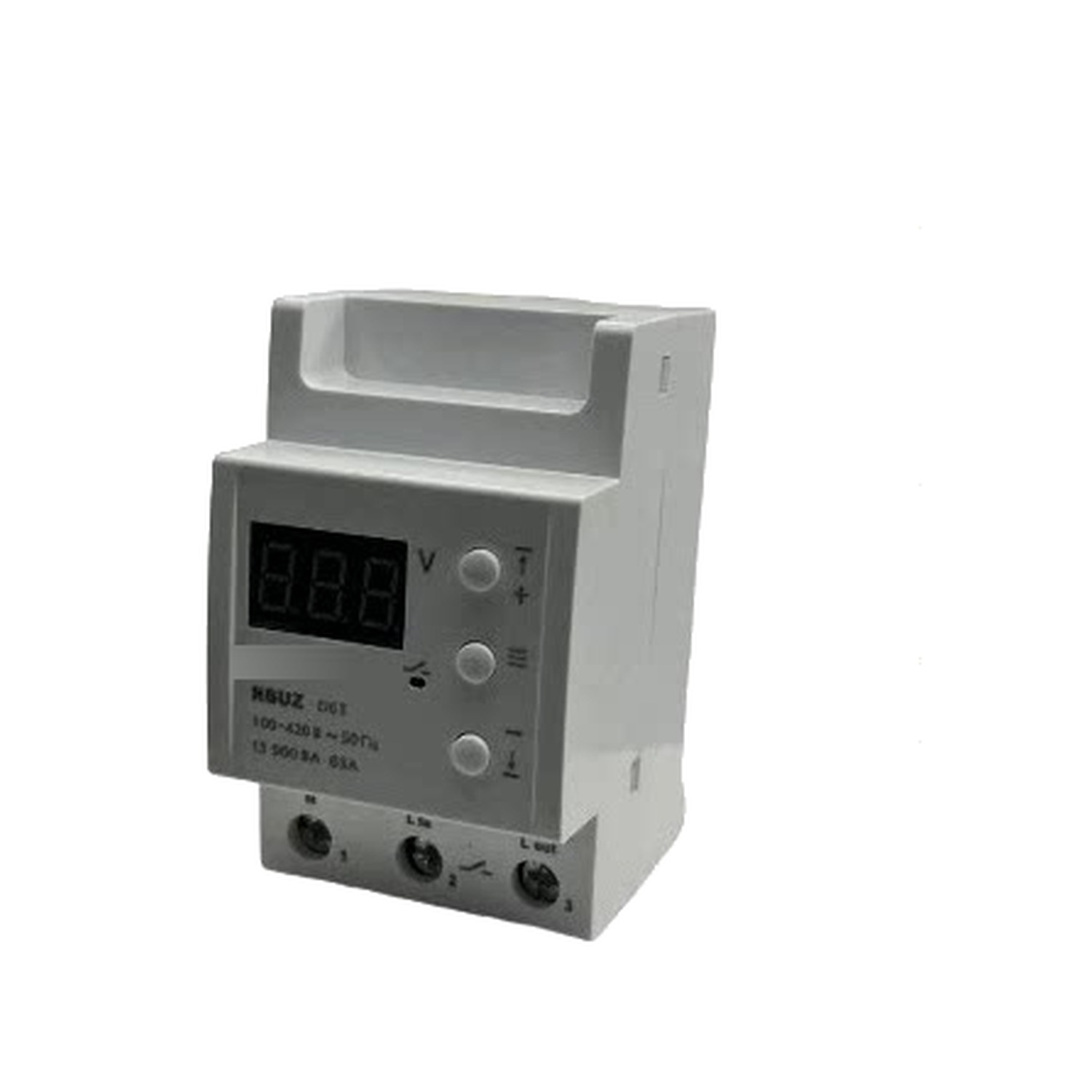

NewTrend D63
Control Relay
Single-phase AC digital voltage protection relay operating across 100-420 V AC with 3-600 s delay and 80 deg C thermal cut-off.
Product Overview
The NewTrend D63 digital voltage protection relay monitors single-phase AC supplies across a 100-420 V AC operating power supply range at 50-60 Hz. Designed with an ABS and PC housing, it provides selectable current ratings of 16 A, 25 A, 32 A, 40 A, and 63 A with load capacities up to 13,900 VA. The device features an over-voltage setting range of 220-280 V, under-voltage setting range of 120-210 V, adjustable delay range of 3-600 s, and 80 deg C temperature protection.
Technical Parameters
| Rated-current options | 16 A, 25 A, 32 A, 40 A and 63 A. |
| Adjustable delay range | 3-600 s |
| Declared load-capacity values | 3,600 VA / 5,500 VA / 8,800 VA / 13,900 VA |
| Model | D63 |
Key Selling Points
✓ Wide operating power supply range spanning 100-420 V AC at 50-60 Hz.
✓ Configurable protection with a 220-280 V over-voltage range and 120-210 V under-voltage range.
✓ Adjustable delay range of 3-600 s and built-in 80 deg C temperature protection.
✓ Multiple rated-current options of 16 A, 25 A, 32 A, 40 A, and 63 A with declared load capacities up to 13,900 VA.
✓ Durable ABS + PC housing designed with M5 x 3 terminal screw specifications.
Technical Highlights
- Operating Voltage: 100-420 V AC, 50-60 Hz
- Rated Current Options: 16 A, 25 A, 32 A, 40 A, 63 A
- Voltage Protection Ranges: Over-voltage 220-280 V, Under-voltage 120-210 V
- Delay & Temperature: 3-600 s adjustable delay, 80 deg C temperature protection
- Declared Load Capacity: 3,600 VA, 5,500 VA, 8,800 VA, 13,900 VA
- Enclosure & Hardware: ABS + PC housing, M5 x 3 terminal screws, -10 deg C to +80 deg C storage
Reference Datasheet Pages
The following pages were selected from the model catalogue and are included for technical reference:

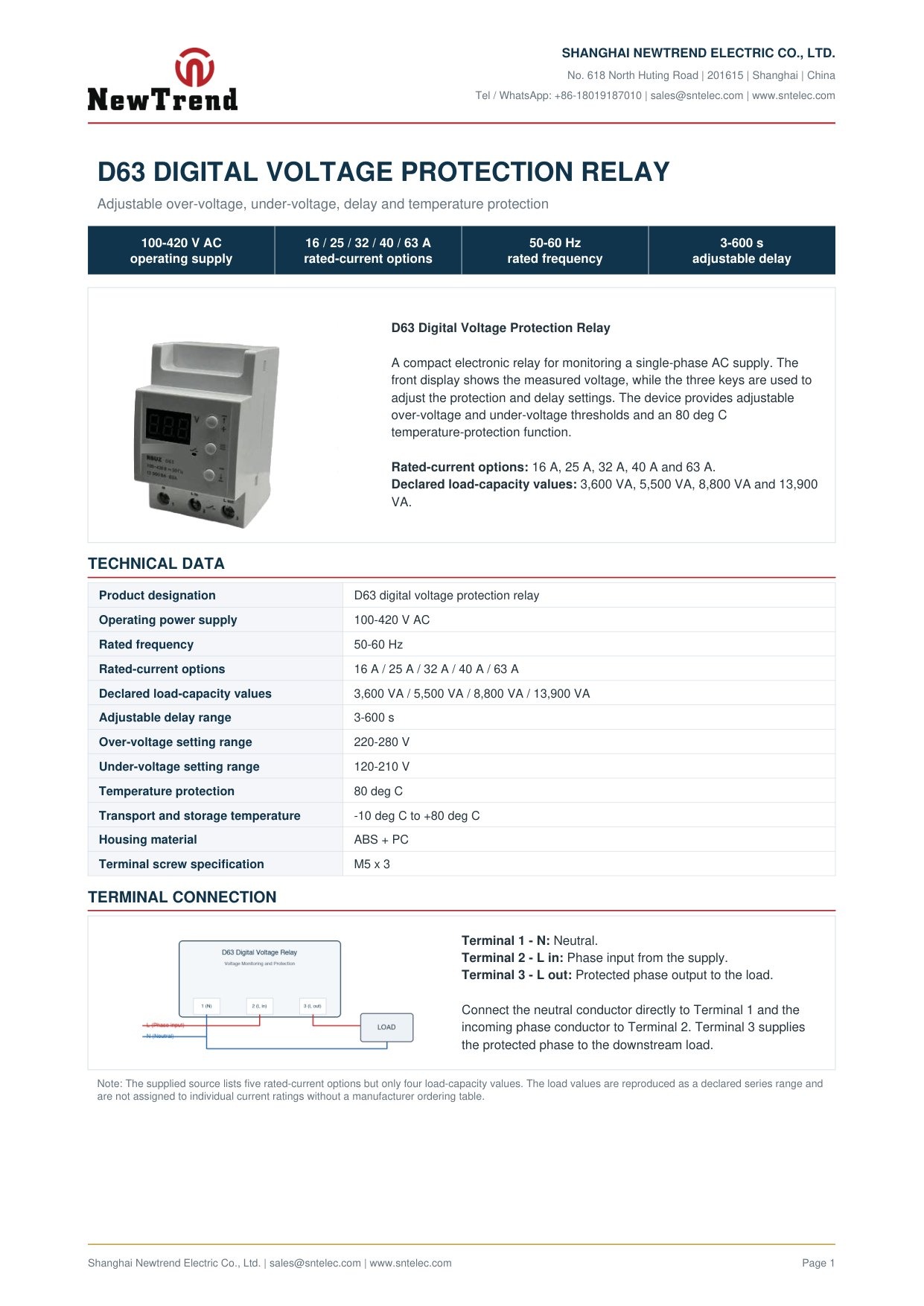

D63 Catalog and Technical Data
