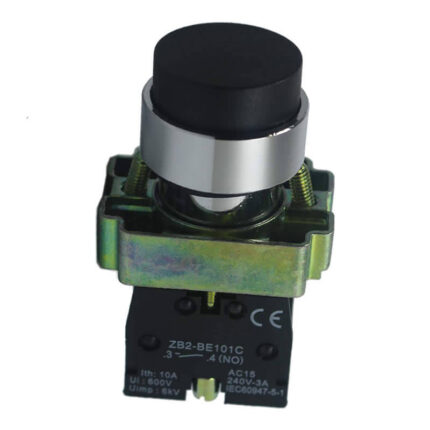

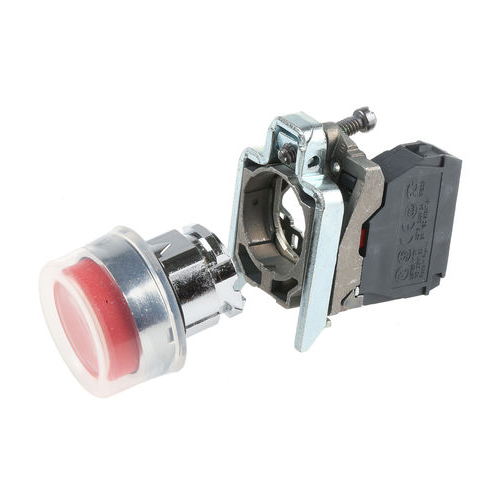

NewTrend XB2/XB4 BP 22mm Booted Spring-return Push Button
Click to enlarge
Home Electrical Accessories Others NewTrend XB2/XB4 BP 22mm Booted Spring-return Push Button
NewTrend XB2/XB4 BL 22mm Projecting Spring-return Push Button
NewTrend XB2/XB4 BL 22mm Projecting Spring-return Push Button
Back to products
NewTrend XB2/XB4 BC 22mm 40mm Mushroom Spring-return Push Button
NewTrend XB2/XB4 BC 22mm 40mm Mushroom Spring-return Push Button

NewTrend XB2/XB4 BP 22mm Booted Spring-return Push Button

NewTrend XB2/XB4 BP panel controls. Select the complete model to match colour,contact arrangement and action.

Model
Button Model
Colour
Contacts
Action
Head
Add to Enquiry
SKU: 1770409233255243776 Category: Others
  • Description
  • Catalog
Description

NewTrend · XB2/XB4 BP

Product overview

NewTrend XB2/XB4 BP panel controls. Select the complete model to match colour,contact arrangement and action.

Technical selection summary

ParameterSpecification
Mounting22mm round panel hole
ScopeBooted Spring-return Push Button
Exact selectionColour,contacts,action and head construction follow the full model
Electrical applicationSpecify control voltage and utilisation category;no universal switching-current or safety certification is inferred
DimensionsSee the applicable exact assembly drawing below

The boot protects the actuator;an unverified universalIP67 assembly rating is not claimed. Use the exact NO/NC code and matched panel seal.

ModelColourContactsActionHead
XB2-BP21Black1NOSpring returnBooted
XB2-BP31Green1NOSpring returnBooted
XB2-BP51Yellow1NOSpring returnBooted
XB2-BP61Blue1NOSpring returnBooted
XB2-BP42Red1NCSpring returnBooted
XB2-BP35Green1NO+1NCSpring returnBooted
XB2-BP45Red1NO+1NCSpring returnBooted
XB4-BP21Black1NOSpring returnBooted
XB4-BP31Green1NOSpring returnBooted
XB4-BP51Yellow1NOSpring returnBooted
XB4-BP61Blue1NOSpring returnBooted
XB4-BP42Red1NCSpring returnBooted
XB4-BP35Green1NO+1NCSpring returnBooted
XB4-BP45Red1NO+1NCSpring returnBooted
XB4-BP11White1NOSpring returnBooted

Typical applications

  • Electrical panel assembly and installation

Open technical reference image

Product reference images and drawings

XB2/XB4 BP technical reference 1XB2/XB4 BP technical reference 2
