Product overview
DW45 air-circuit-breaker references include fixed and draw-out constructions for low-voltage distribution. Select the full frame, current and trip-controller configuration.
Technical selection summary
| Listing / reference model | DW45 |
|---|---|
| Product type | Air circuit breaker |
| Construction selection | Fixed or draw-out |
| Controller selection | Specify actual trip functions and control supply |
Select the complete DW45 frame, current, poles, fixed/draw-out construction and trip controller. Breaking ratings depend on voltage and configuration. Confirm accessories, interlocks and installation drawings for the exact ordered unit.
Typical applications
- Low-voltage distribution panels selected by the exact circuit requirements.

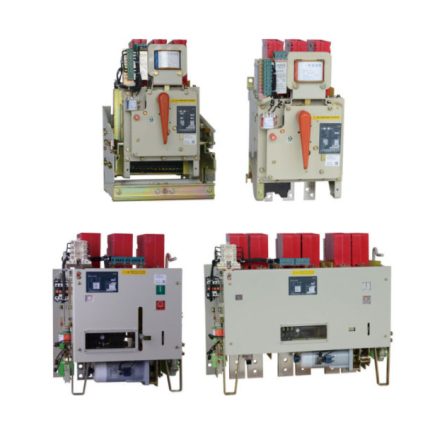

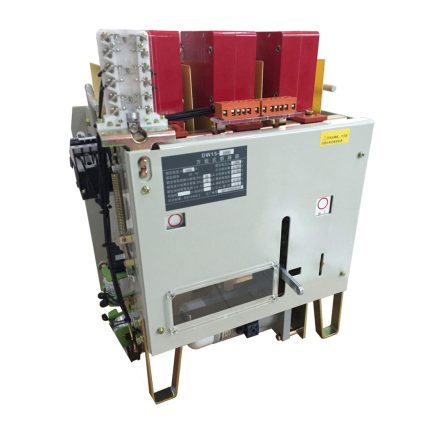

Product reference images and drawings
Match the exact model, component arrangement and operating conditions before using a reference rating, connection or dimension.
