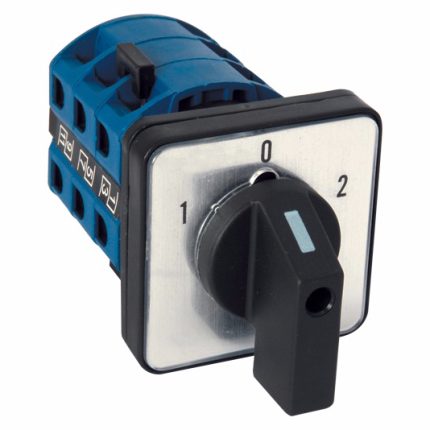

LW26 LW30 Selector Changeover Rotary Cam Switch 20A-160A
LW26 LW30 Selector Changeover Rotary Cam Switch 20A-160A
Back to products
NewTrend Compact S MCCB, 3P/4P 125-1600 Frames
NewTrend Compact S MCCB, 3P/4P 125-1600 Frames

DW15 ACB 3P 4P 630A-5000A (690V/1000V/1140V)


You save

Brand Name:Newtrend or OEM
Place of Origin:China
Model Number:DW15
Rated Frequency (Hz):50/60Hz
Protection:LSI
Breaking Capacity:30kA – 80kA
Rated Voltage:1140V
Type:Air
Poles
Rated Current
Add to Enquiry
SKU: 60103439233 Category: ACB Circuit Breaker
  • Description
  • Catalog
Description

DW15 Air Circuit Breaker ACB 380V 400V 690V 1000V 1140V 3P 4P 630A 1000A 1600A 2000A 2500A 3200A 4000A 5000A Circuit Breaker

Application:
      DW15 air circuit breaker is applied to the power-distribution circuit of rated current from 630A up to 6300A, rated operational voltage up to AC 1140V, 50/60Hz. This circuit breaker is mainly used in the distribution network to distribute power, protect circuit and power supply equipment against overload, under voltage and short-circuit faults etc,and Under the normal conditions,it can also be used for circuit of unfrequent transfer. This production conforms the standard of IEC60947-2.

Main technical parameters:

Model NumberDW15-630DW15-1600DW15-2500DW15-4000
Frame size rated current Inm630A1600A2500A4000A
Rated operational current, In100A, 160A, 200A,
315A, 400A, 630A
800A, 1000A, 1600A2000A, 2500A3200A, 4000A
Rated operational voltage380V, 400V, 660V, 690V, 1000V, 1140V
rated ultimate short circuit breaking capacity, IcuAC400V30KA40KA60KA80KA
AC690V25KA
AC1140V12KA
number of operations
(Electric life), times
1000500500500

number of operations

(Mechanical life), times

10000500050005000
AC380V protection motor life4000
Overload operation performance (6In,1.05Ue)12
Instantaneous breaking time15ms40ms
Frequency of operation120 times/hour30 times/hour
Flashover distance280mm280mm350mm400mm
Arm of operating force90mm250mm
Operating force200N300N
Over-current release typeThermal electromagnetic type
Electronic type
Electromagnetic type

Control Voltage of release and energy releasing electromagnet coil:

TypeName ACDC
ReleaseUnder voltage releaseUe127V,230V,400V
Shunt releaseUs127V,230V,400V220V,110V
Closing deviceMaster power switchUs127V,230V,400V220V,110V
Energy release electromagnetUs230V,400V220V,110V
Energy store motorUs230V,400V220V,110V

DW15-1600 fixed type, overall dimension and installation size:

DW15-2500 fixed type, overall dimension and installation size:

DW15-4000 fixed type, overall dimension and installation size:



Catalog
NameSizeRelease timeOperate
