DELIXI · Switch-disconnector-fuse
Product overview

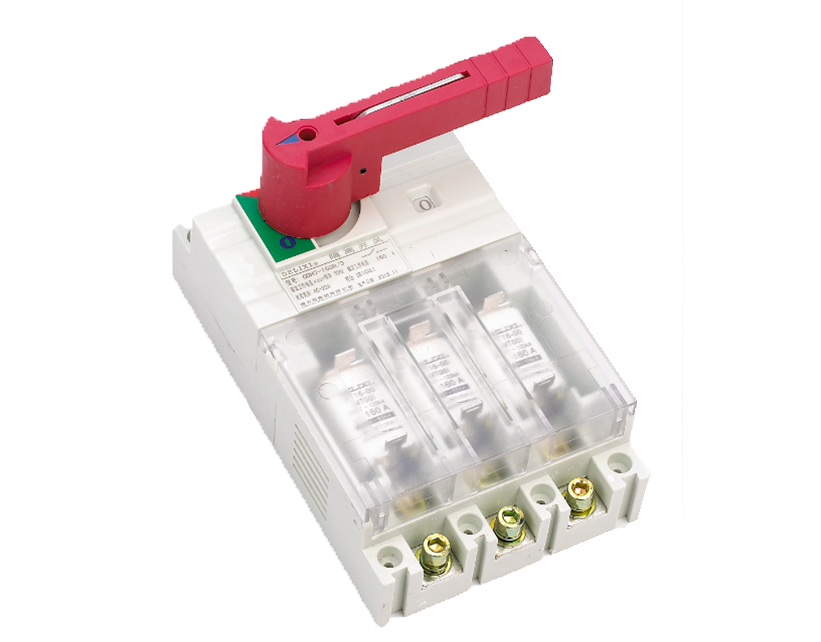

The DELIXI CDH7R is the fuse-combination version in the manufacturer CDH7/CDH7R selection guide. The documented range covers 160–630 A current references with 3P or 4P and cabinet-internal or cabinet-external operation references.
Technical selection summary
| Brand and series | DELIXI ELECTRIC CDH7R |
|---|---|
| Product type | Switch-disconnector-fuse combination |
| Manufacturer current reference | 160–630 A range; confirm the exact current code |
| Poles | 3P or 4P |
| Operating arrangement | Default: operation inside the cabinet; J: operation outside the cabinet |
| Fuse coordination | Specify the required fuse-link type and current, compatibility and whether links are included |
| Installation information required | Operating voltage, load duty, handle/shaft arrangement and mounting dimensions |

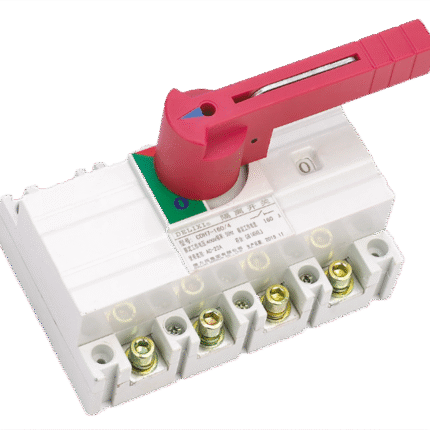

The R version is a fuse combination and must not be substituted with the non-fused CDH7. Match the fuse links, current reference, pole configuration and operating arrangement to the actual installation. Confirm voltage, utilization category and complete assembly dimensions from the exact version.
Typical applications
- Low-voltage distribution assemblies requiring a matched fuse combination
- Isolation and switching arrangements using the specified handle and pole configuration
Specify your enquiry
For a focused quotation, include:
- Complete CDH7R code and quantity
- Current reference, pole count and actual load voltage/duty
- Required fuse-link specification and supply scope
- Cabinet-internal or J external operation
- Handle, shaft, panel and mounting dimensions
