NewTrend · CH6L125
Product overview
NewTrend CH-form six-space 125A load centers for single-phase 120/240V distribution. Select surface or flush mounting.
Technical selection summary
| Parameter | Specification |
|---|---|
| Supply identity | NewTrend/OEM CH-form load center, 6spaces125A |
| Mounting codes | S=surface, F=flush as owner confirmed; the old source specificationtable transposes these labels |
| References | CH6L125SPsurface; CH6L125FPflush per original short description |
| Service | Single-phase 120/240VAC |
| Construction | Metal enclosure, powder-coated grey |
| Breaker schedule | Specify matchingCH-form branch devices; noautomatic doubling of circuit count |
| Dimensions | Exact current trim drawing required; do not infer a mounting dimension from a different family |
S=surface andF=flush are confirmed by owner. The retained historical table has these labels reversed; apply the confirmed mounting code. NewTrend supply does not inheritEatonUL/NEMA certification or catalogue identity.
Typical applications
- Electrical distribution and motor control
Open technical reference image

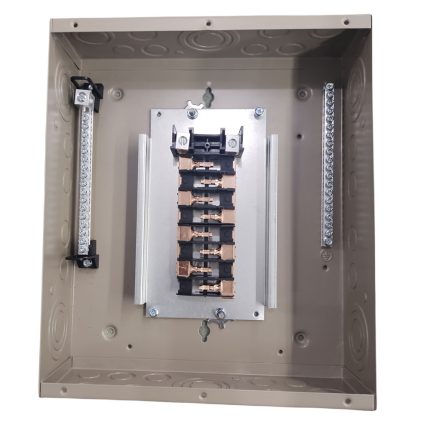

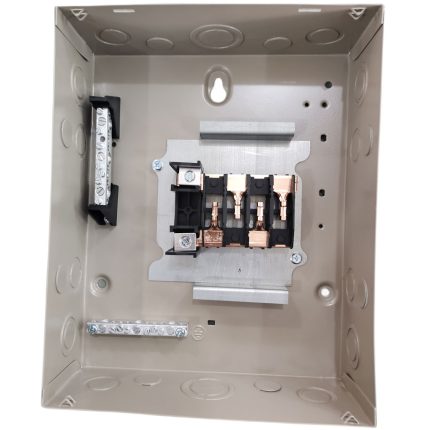

Product reference images and drawings
