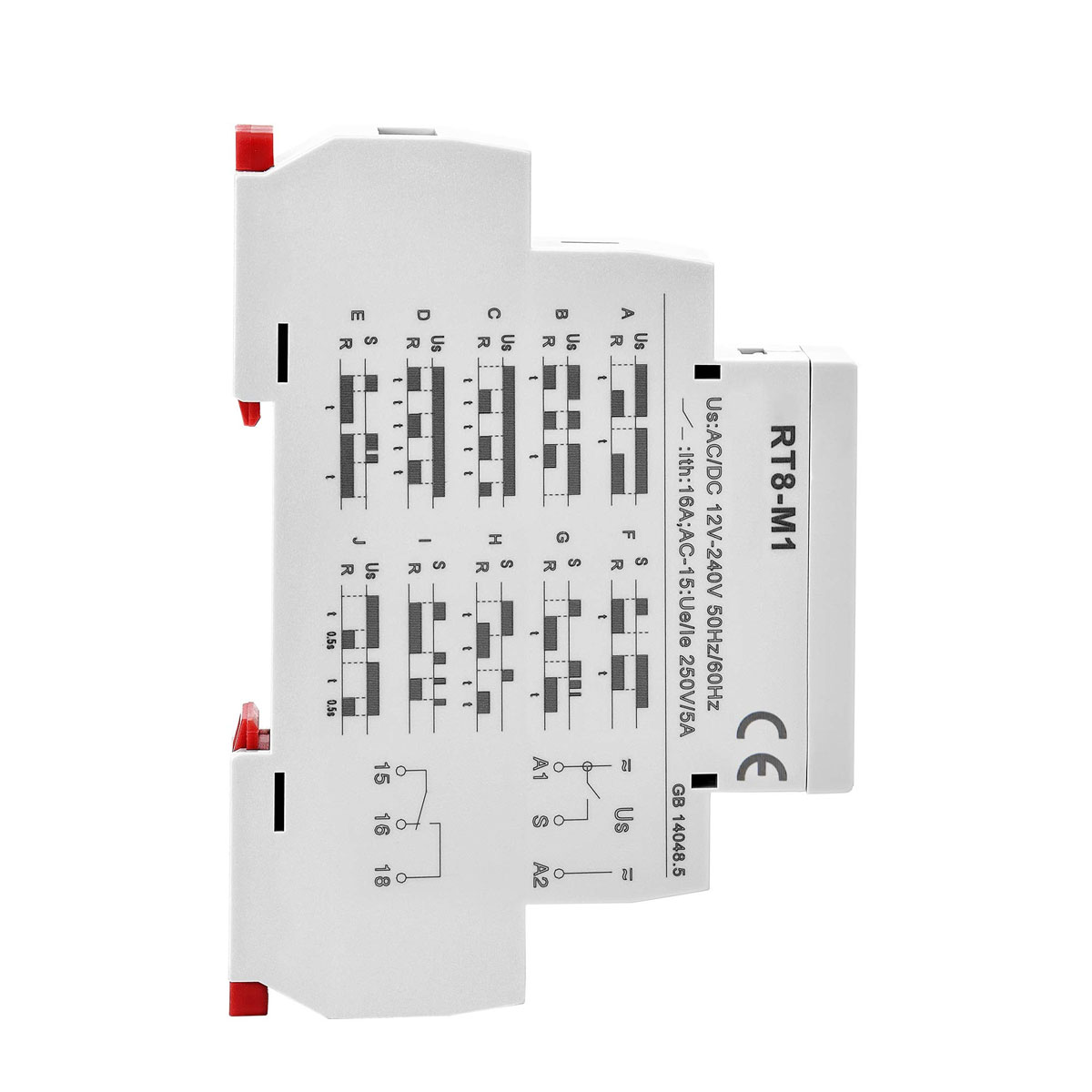

RT8-M1 RT8-M2 16A AC DC 12V 24V 110V 120V 220V 230V 240V On Off delay Pulse Multifunction Time Relay with 10 Function Choices

RT8-M1 RT8-M2 16A AC DC 12V 24V 110V 120V 220V 230V 240V On Off delay Pulse Multifunction Time Relay with 10 Function Choices

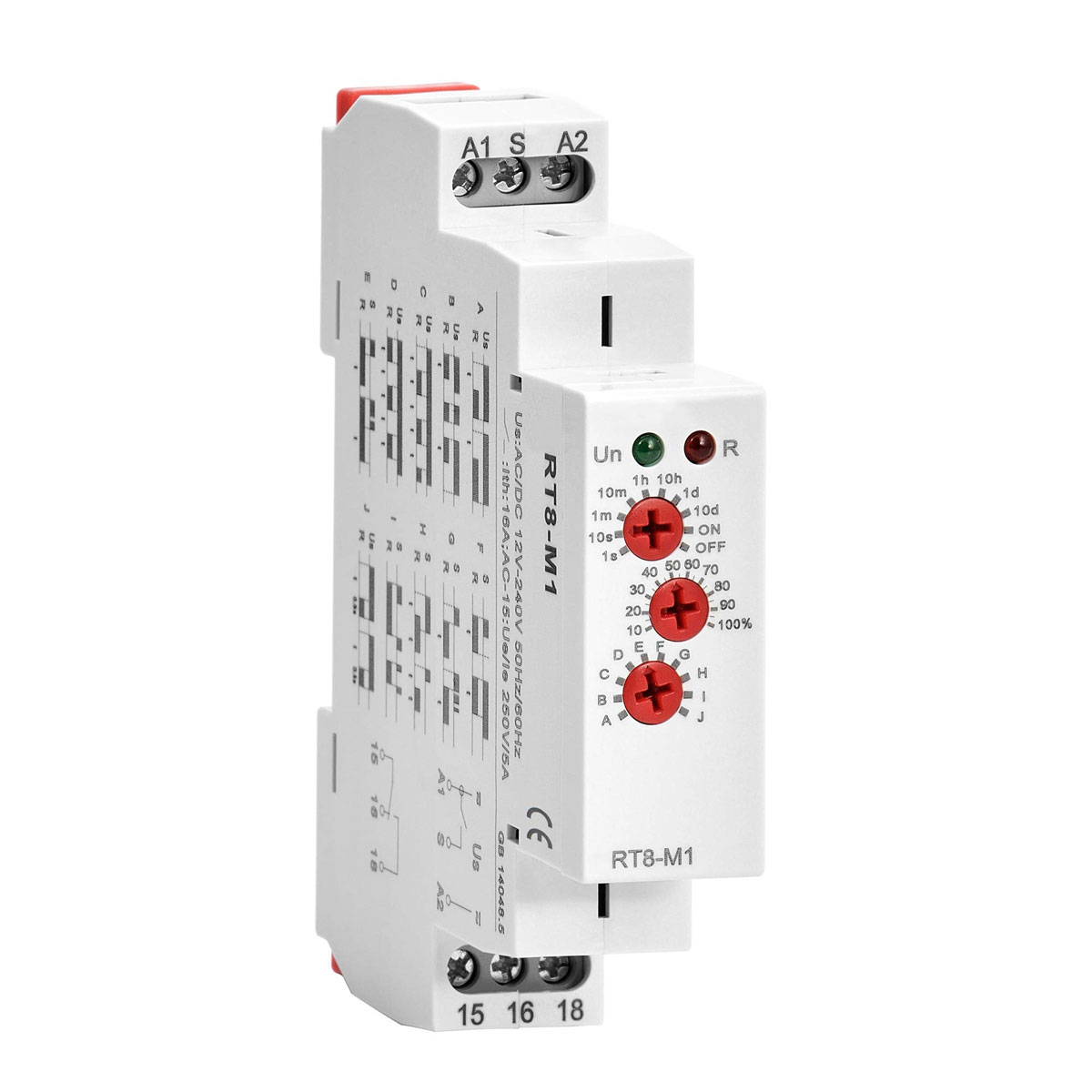

RT8-M1 RT8-M2 Multifunction time relay can be used For electric appliances, where is necessary to change the exact timing-controlling of the illumination, heating, motors, machines, ventilators, contactors.

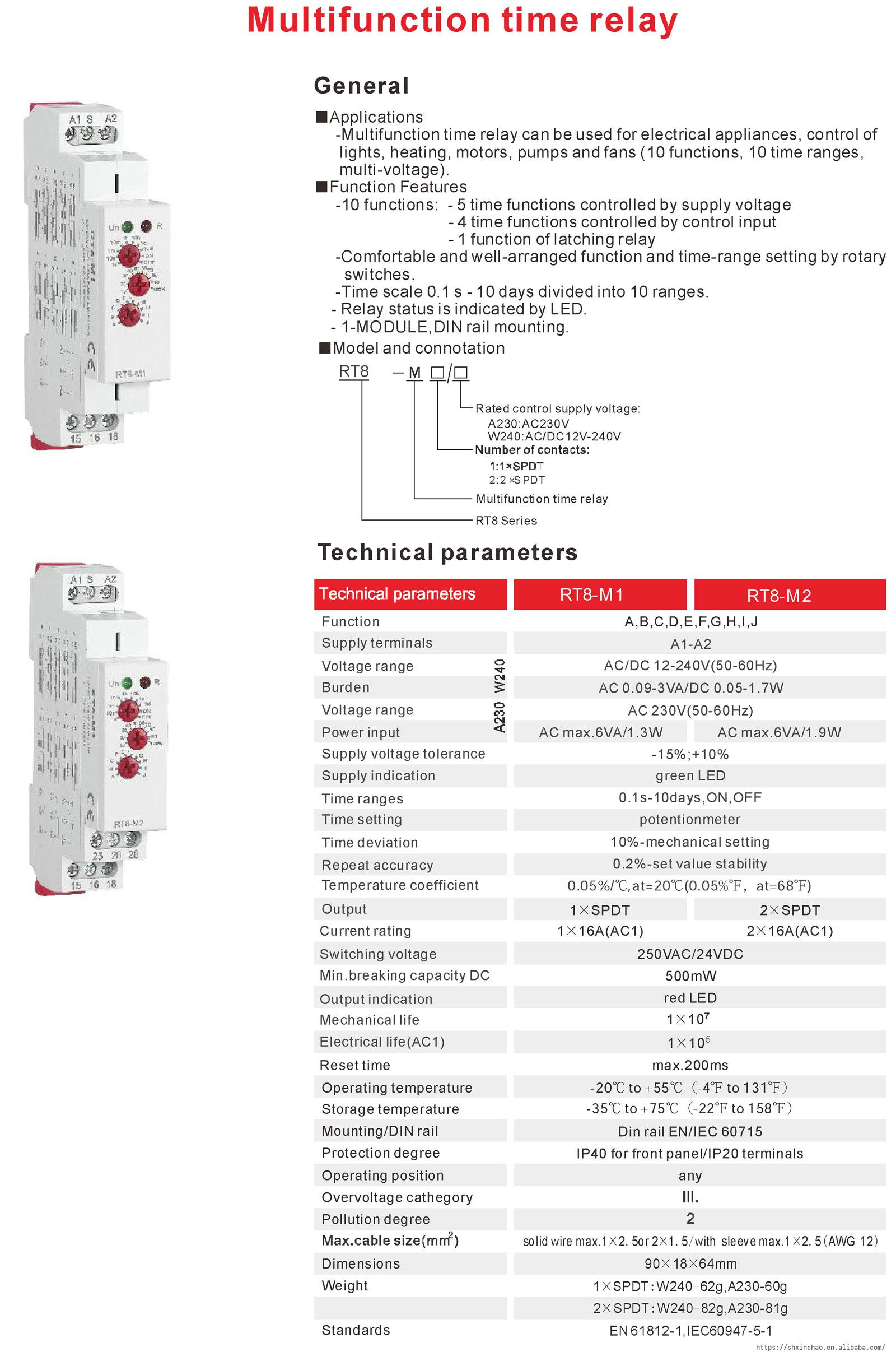

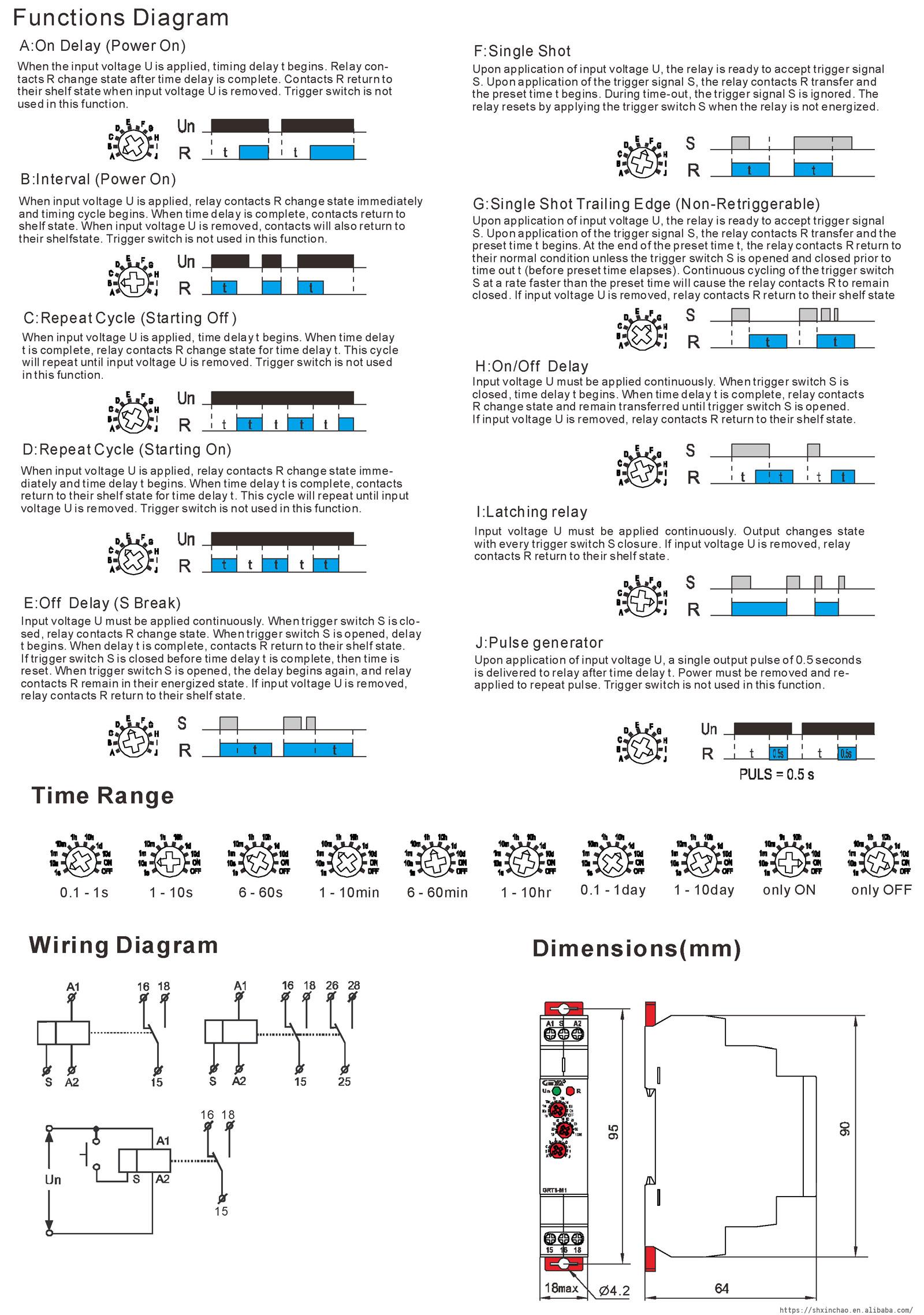

Function Features
10 functions: Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse

                      – 5 time functions controlled by supply voltage
                      – 4 time functions controlled by control input
                      – 1 function of latching relay

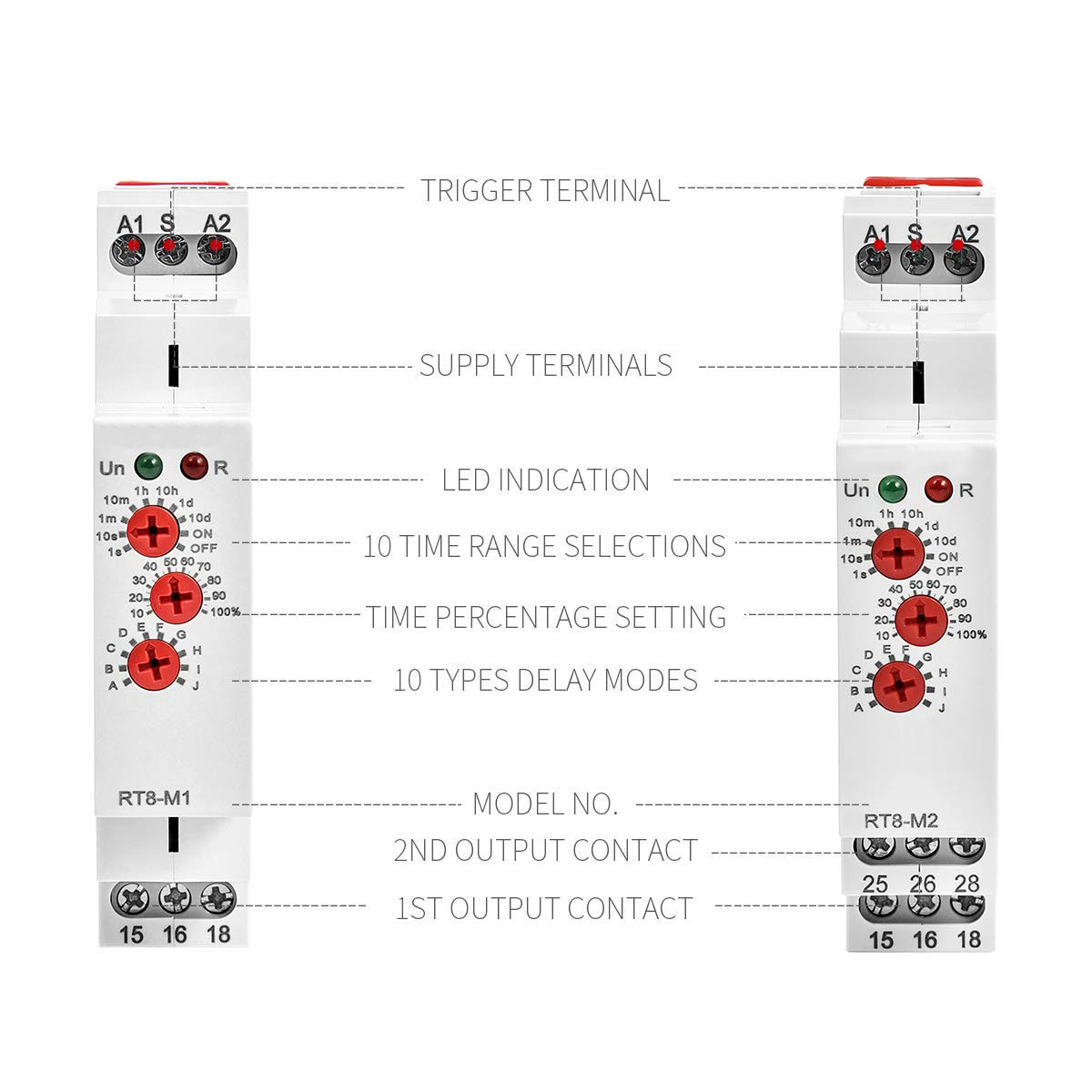

Comfortable and well-arranged function and time-range setting by rotary switches.

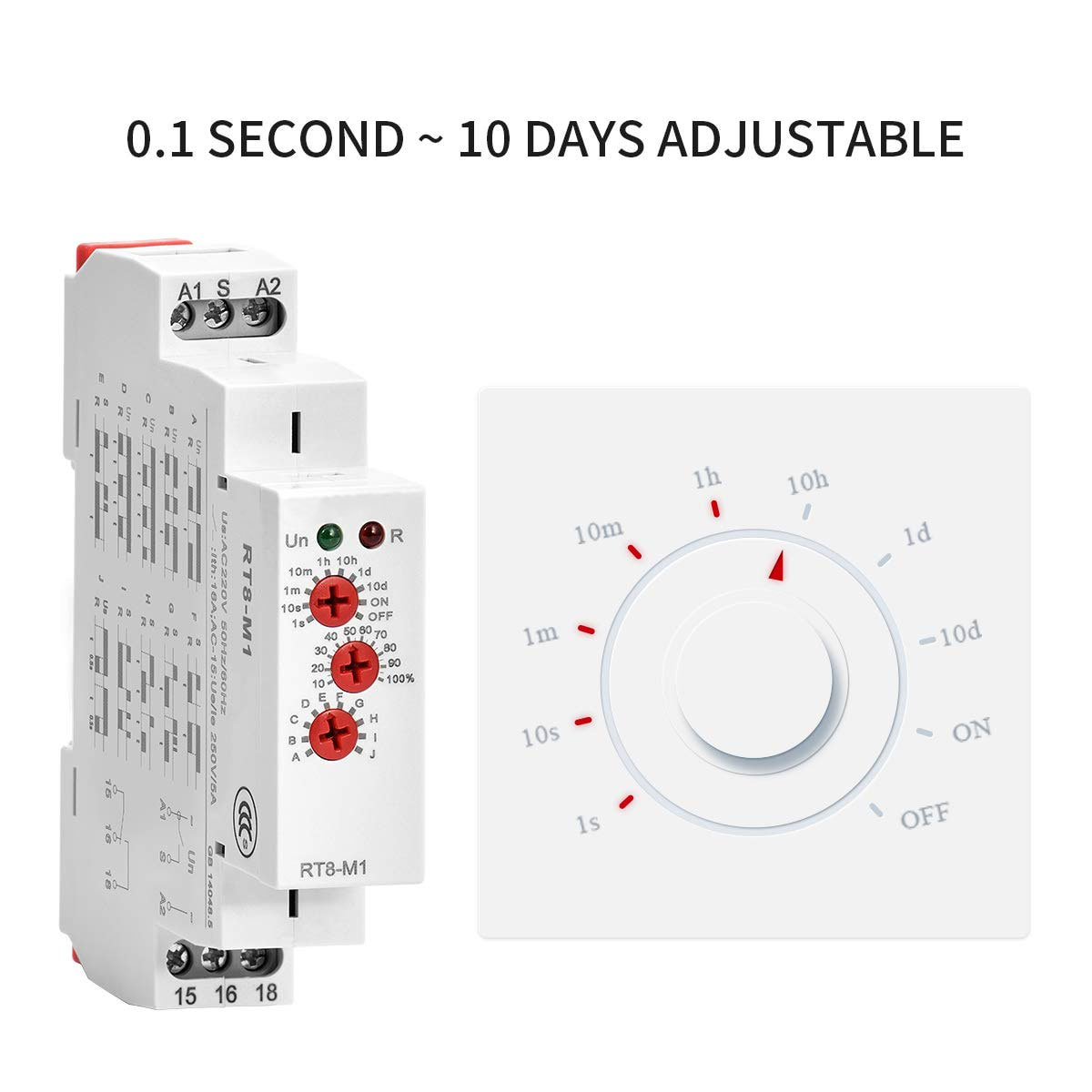

Time scale 0.1 s – 10 days divided into 10 ranges.

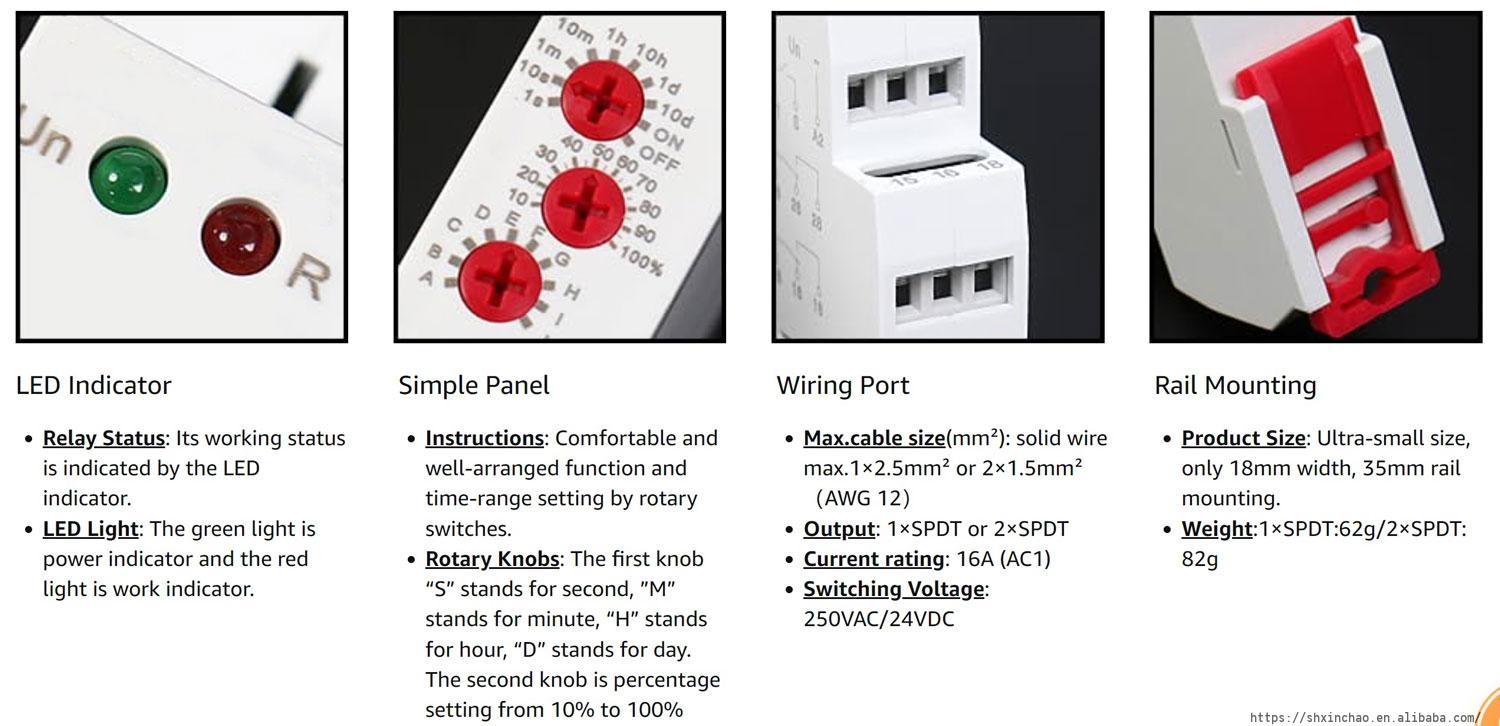

Relay status is indicated by LED.

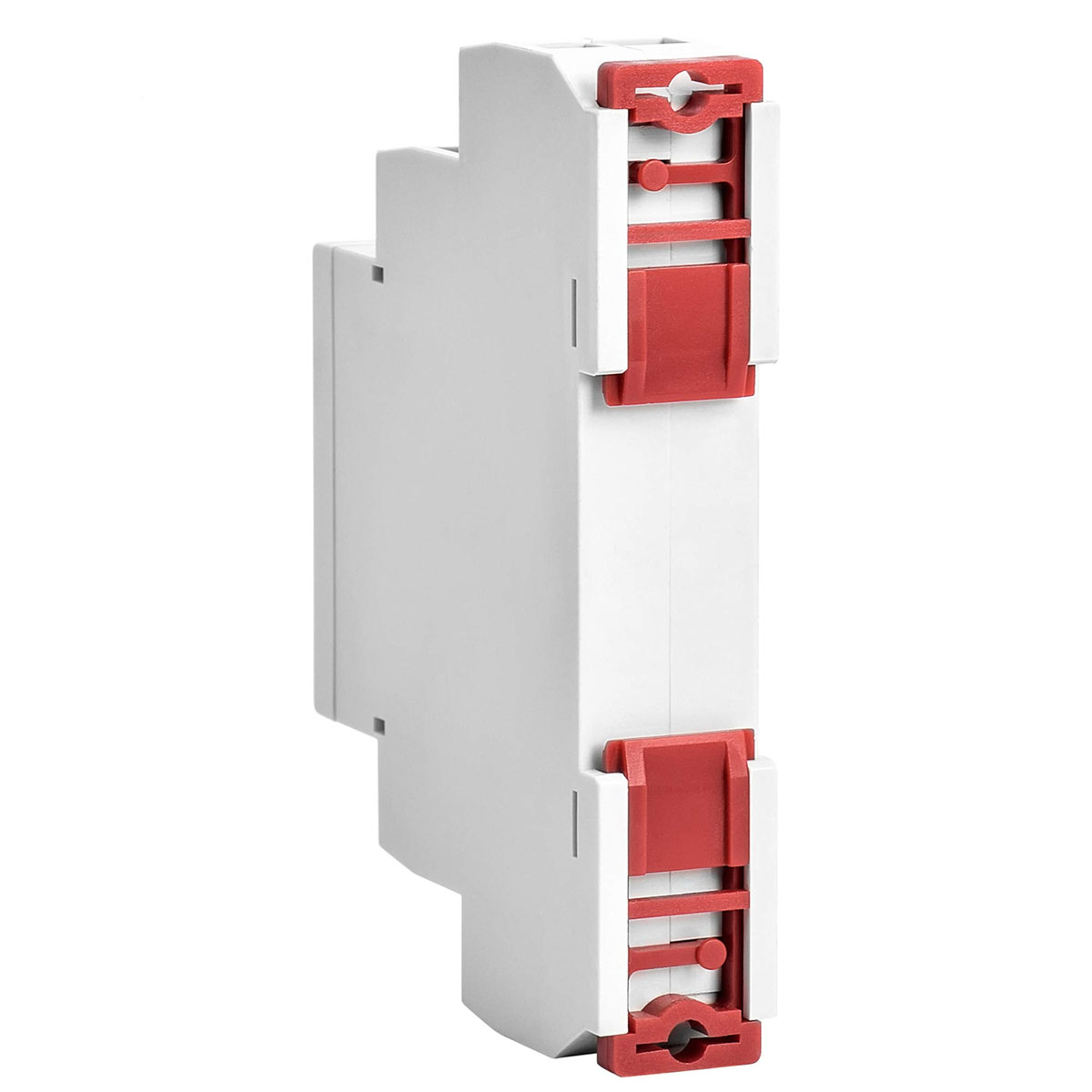

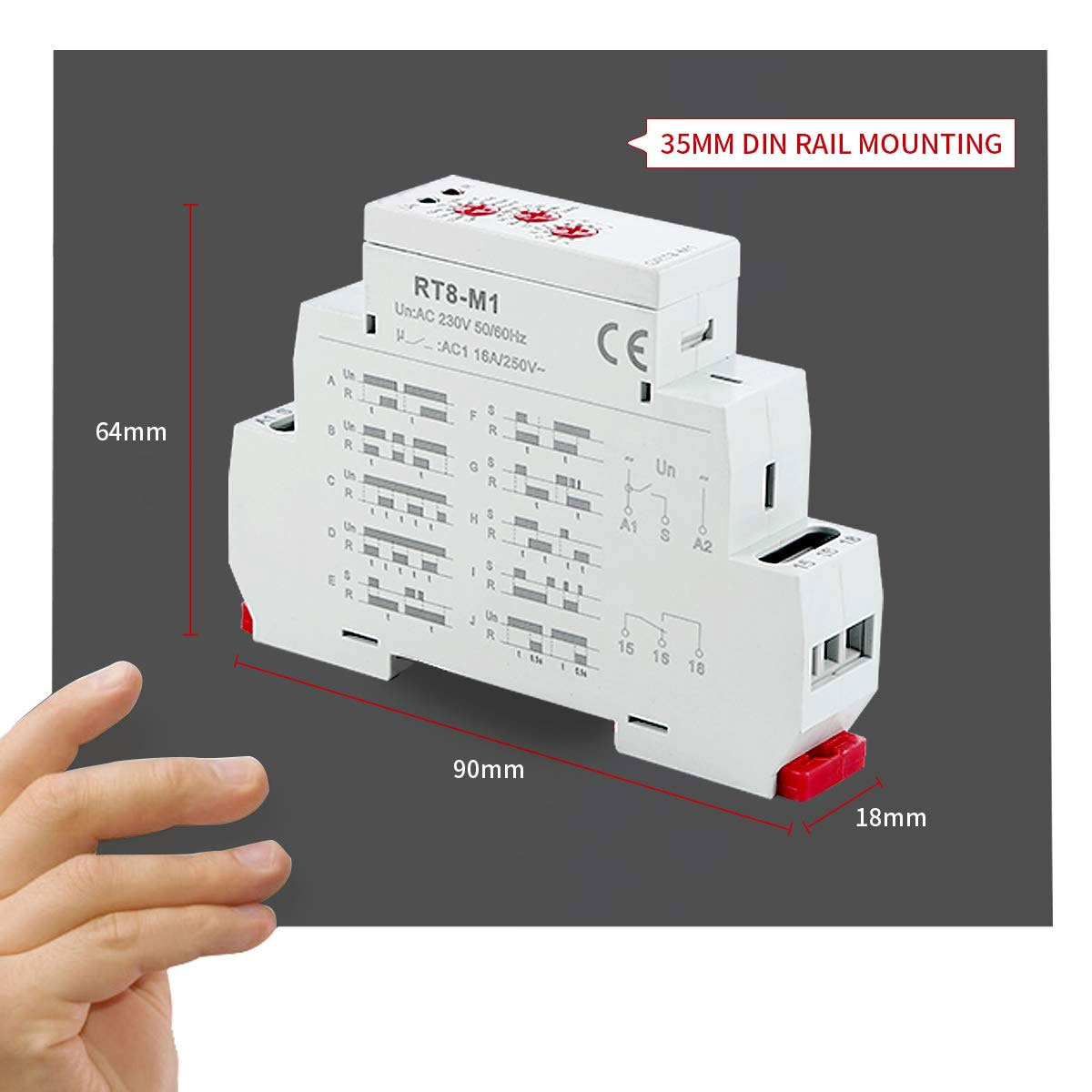

1 MODULE, DIN rail mounting.
