Noark B1H B1D B1N UL489 listed MCB 10kA 1P 2P 3P DIN rail Miniature Circuit Breaker $0.00

Noark Electric B1D series UL489 listed 125Vdc 250Vdc 1A to 63A DC MCB DIN Rail Miniature Circuit Breaker

$0.00

Brand Name:Noark
Place of Origin:China
Model Number:B1D
Breaking Capacity:10kA
Rated Voltage:125VDC, 250VDC
Certificate:UL489
SKU: 1601028960165 Category:
Description

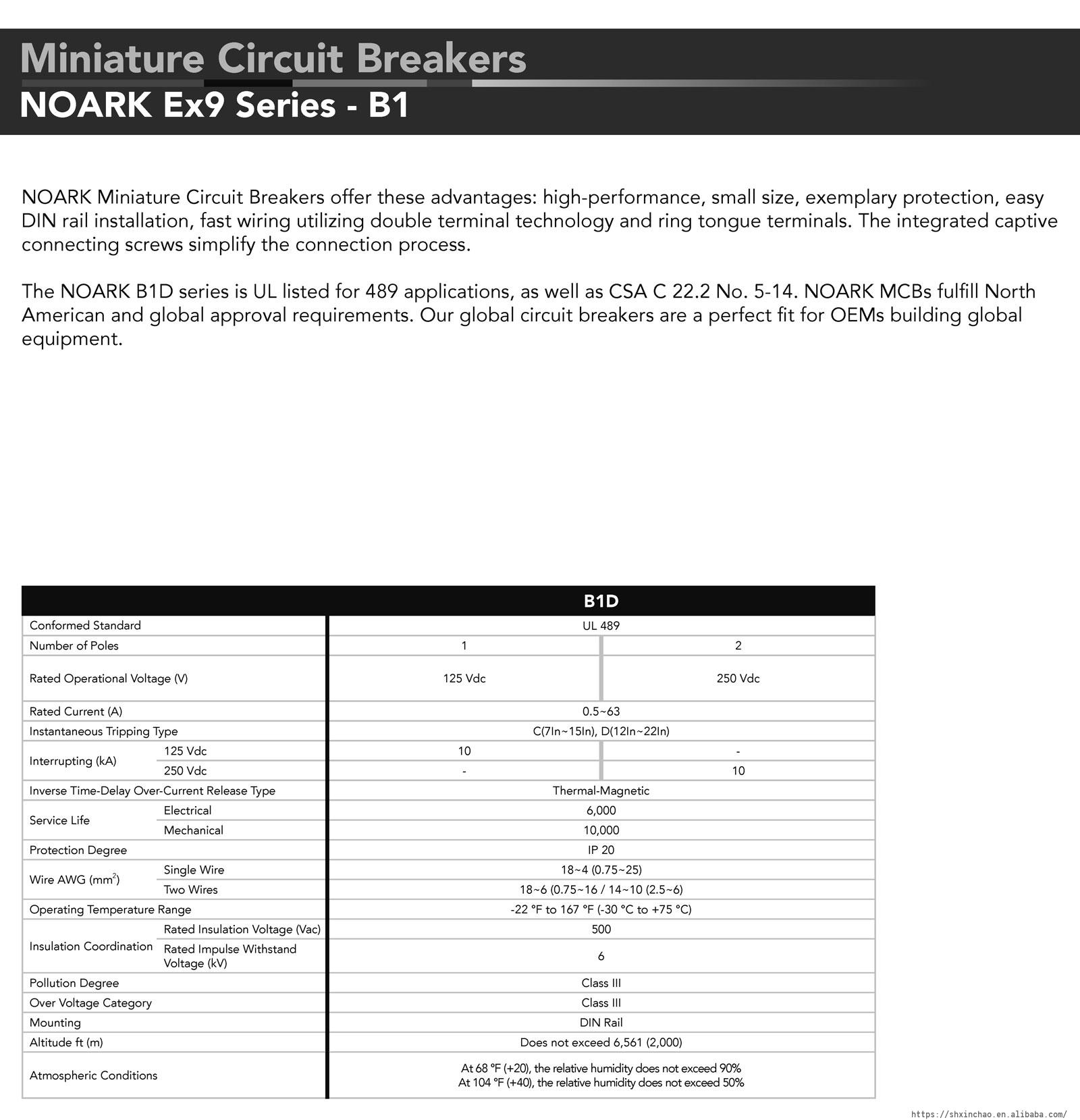

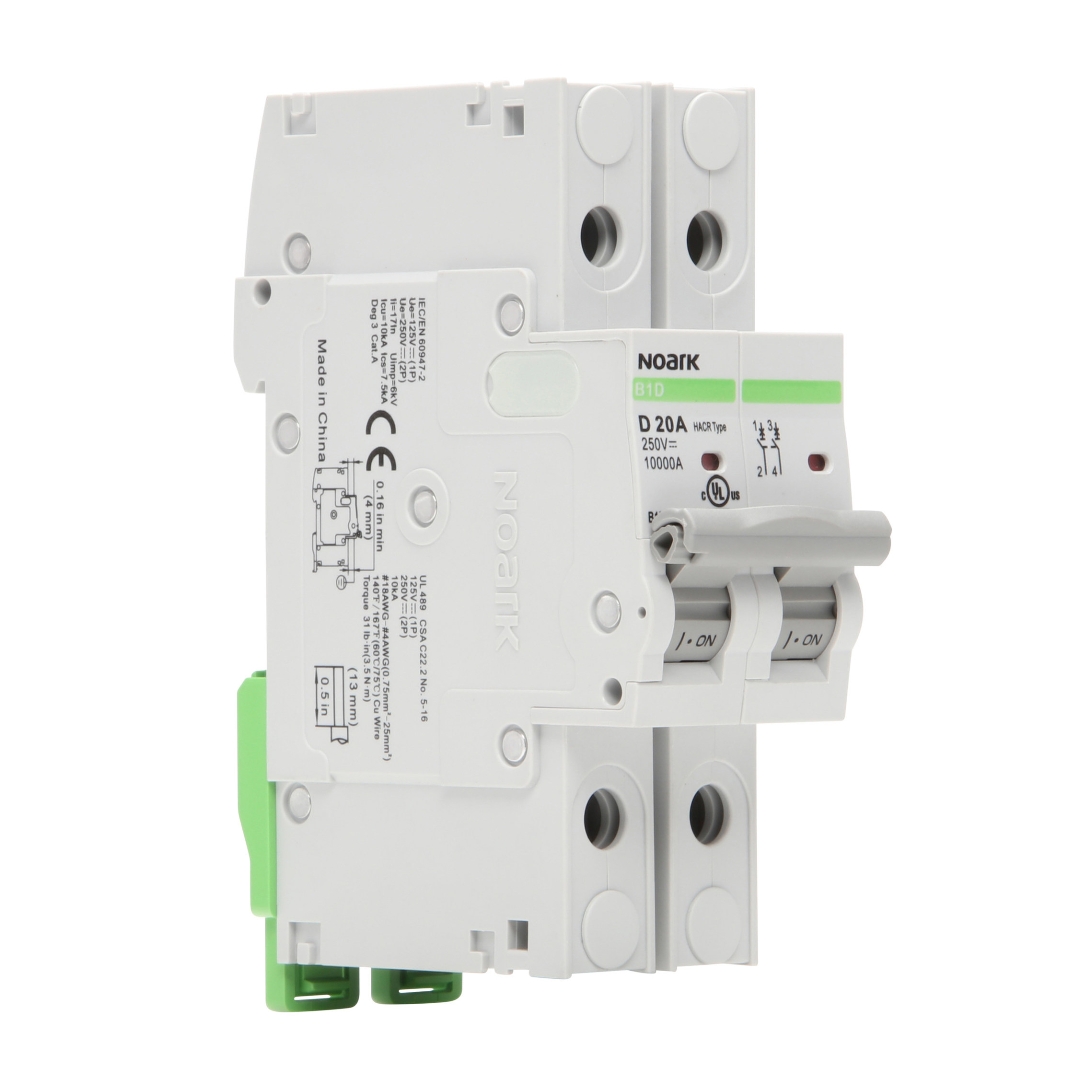

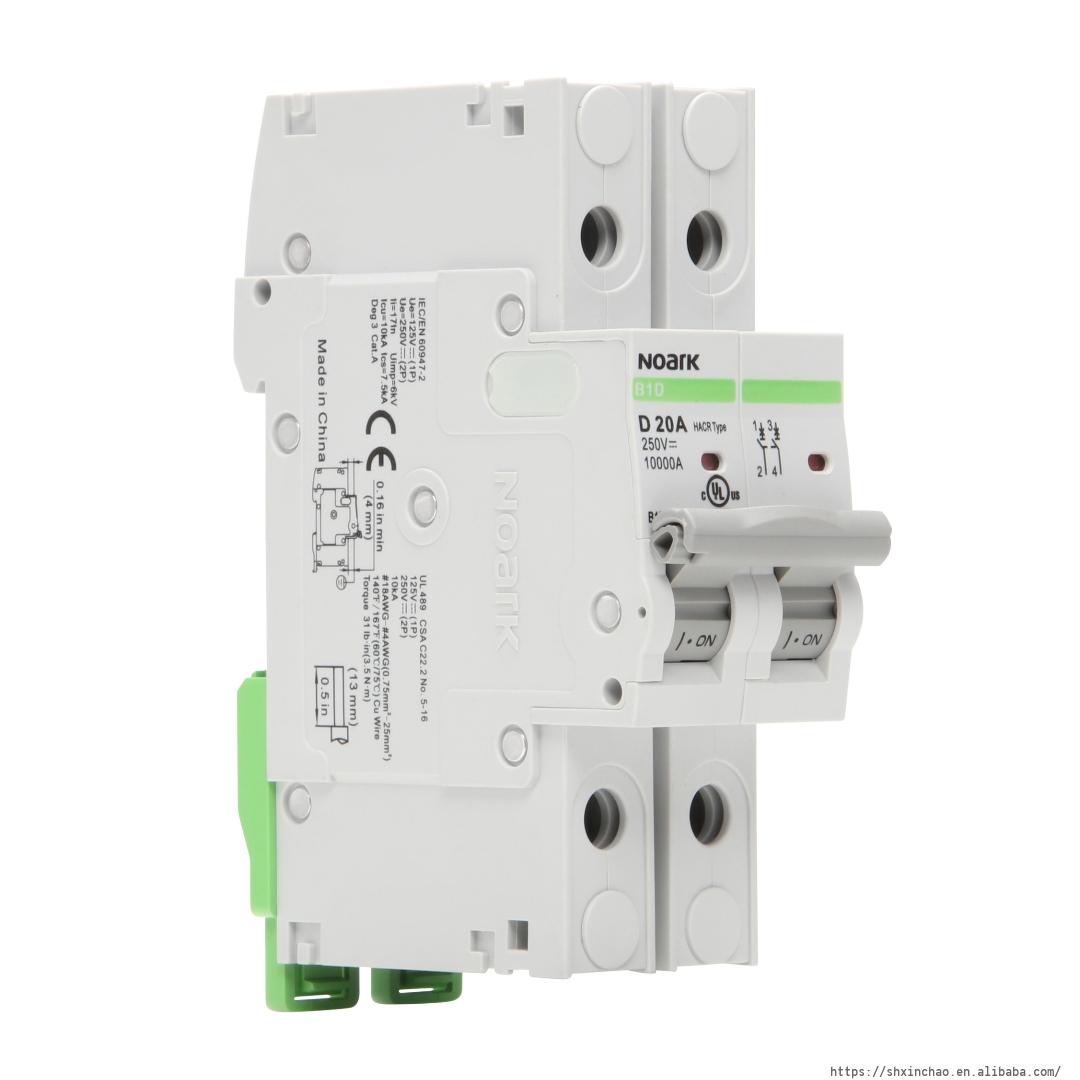

Noark Electric B1D series UL489 listed 125Vdc 250Vdc 1A to 63A DC MCB DIN Rail Miniature Circuit Breaker



NOARK Electric B1D Miniature Circuit Breakers offer these advantages: high-performance, small size, exemplary protection, easy DIN rail installation, fast wiring utilizing double terminal technology and ring tongue terminals. The integrated captive connecting screws simplify the connection process.

The NOARK B1D series is UL listed for 489 applications, as well as CSA C 22.2 No. 5-14. NOARK MCBs fulfill North American and global approval requirements. Our global circuit breakers are a perfect fit for OEMs building global equipment.

Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

0.5 Amp – 63 Amp
Poles Number

1 Pole, 2 Pole
color

White
