Compact NS NSX CVS MCCB circuit breaker spare parts 29450 OF SD SDE SDV standard Auxiliary Contact

NF-SS series MCCB NF30-SS NF50-SS NF60-SS NF100-CS NF250-SS NF400-SS NF630-SS NF800-SS Circuit breaker

$0.00

Brand Name:Newtrend or OEM brand
Place of Origin:China
Model Number:NF-CS
Breaking Capacity:10-50kA
Rated Voltage:max to 690V
Type:Moulded Case
SKU: 60046078969 Category:
Description

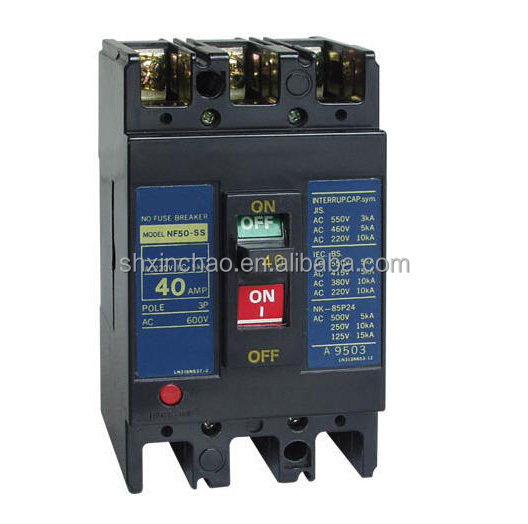

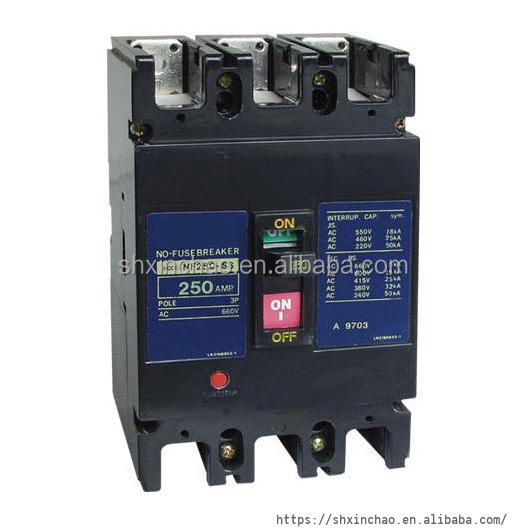

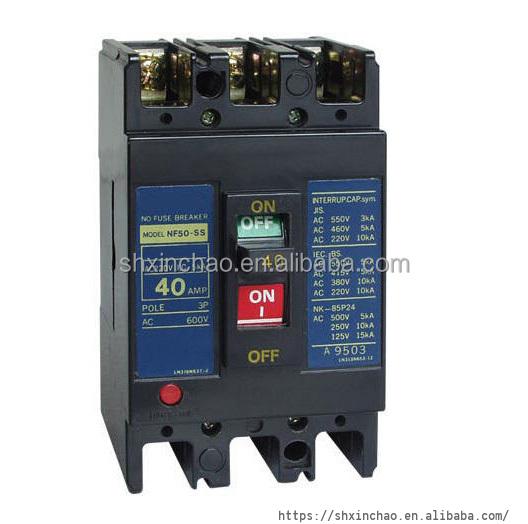

NF-SS series MCCB NF30-SS NF50-SS NF60-SS NF100-CS NF250-SS NF400-SS NF630-SS NF800-SS Circuit breaker



Application
NF-SS series Moulded Case Circuit Breaker is a kind of economic breaker, has the features as following, such as steady and reliable property, reasonable structure, beautiful style, small volume, etc. This breaker applies to the circuit with AC50/60Hz, rated insulation voltage 660V, max rated current 1250A as on-off operation, and take effect, it also can be used as unfrequent conversion of line and unfrequency.
Specifications
Type

Pole

number
Rated current (A)
Breaking capacity (KA)
AC(P1/P2)
240
380
415
500
600
660
NF30-SS
2
3,5,10,15,20,30
5/5
5/2.5
2.5/1.5
2.5/1.0
–
–
3
NF50-SS
3
10,20,30,40,50
5/10
10/7.5
7.5/5
7.5/5
2.5/1.5
–
NF60-SS
3
10,20,30,40,50,60
5/10
10/7.5
7.5/5
7.5/5
2.5/1.5
–
NF100-CS
3
60,70,100
50/42
30/20
7.5/5
15/10
10/5
5/2.5
4
NF250-SS
3
125,150,175,200,225,250
50/42
30/20
25/15
18/15
15/10
5/2.5
4
NF400-SS
3
250,300,350,400
85/60
50/35
25/20
35/25
25/18
15/10
4
NF630-SS
3
500,600,630
85/60
50/35
50/30
35/25
25/18
15/10
4
NF800-SS
3
600,700,800
85/60
50/35
50/30
35/25
25/18
15/10



Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

10A – 800A
Poles Number

3P, 4P
