NewTrend good quality THQL1125 Single pole 25 Amp 120V 240V 1P 25A 1 pole Q-Line Plug-in Circuit Breaker Original price was: $1.80.Current price is: $0.80.
Back to products
NewTrend good quality THQL2145 2 Pole 45 Amp 120V 240V 2P 45A Double Pole 10kA Q-Line Circuit Breaker Original price was: $3.00.Current price is: $2.00.

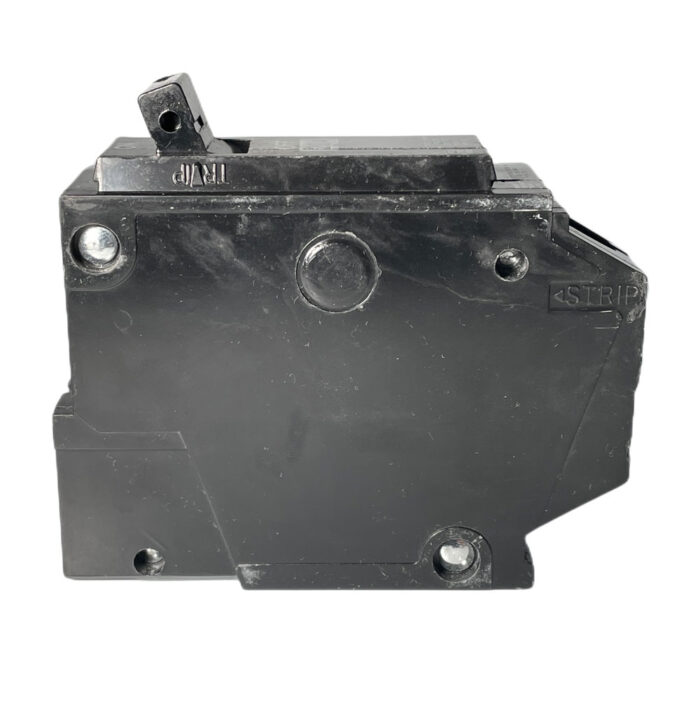

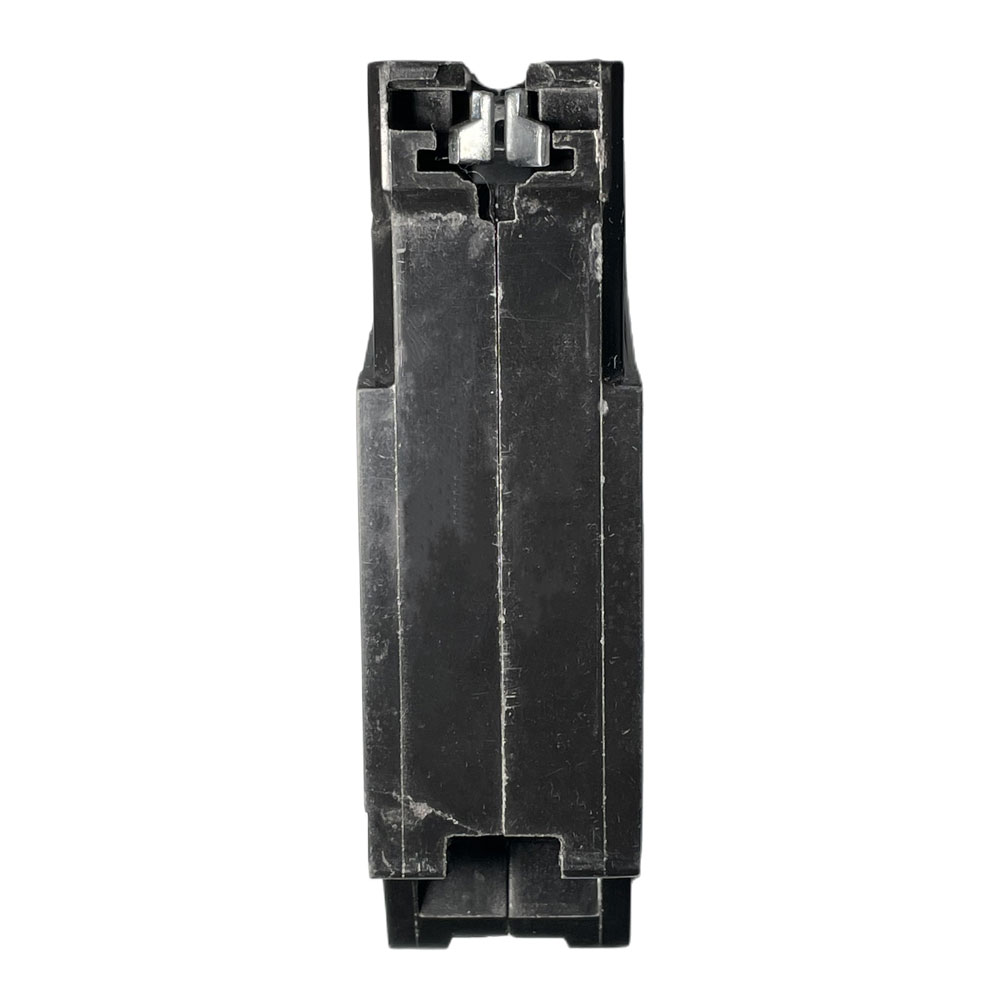

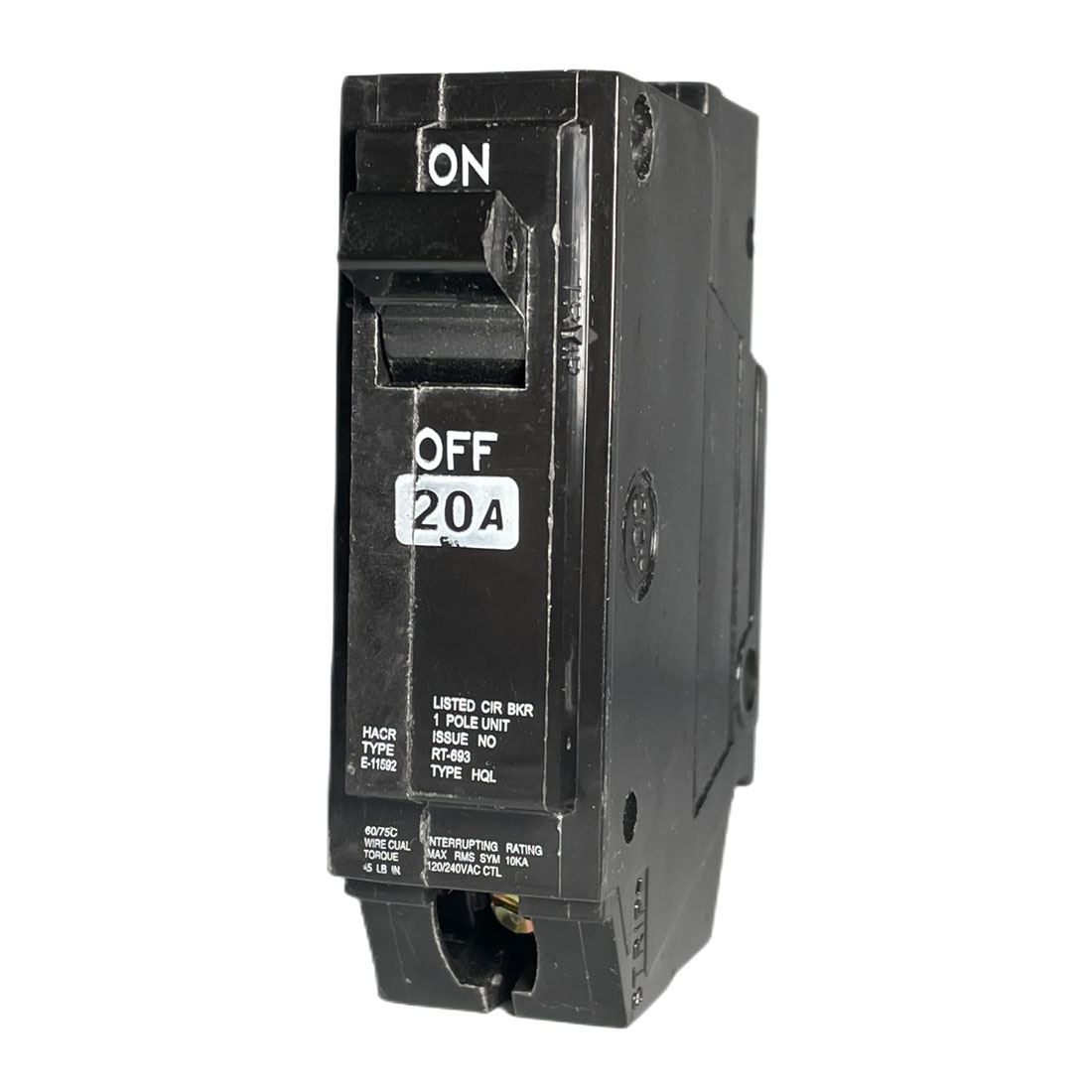

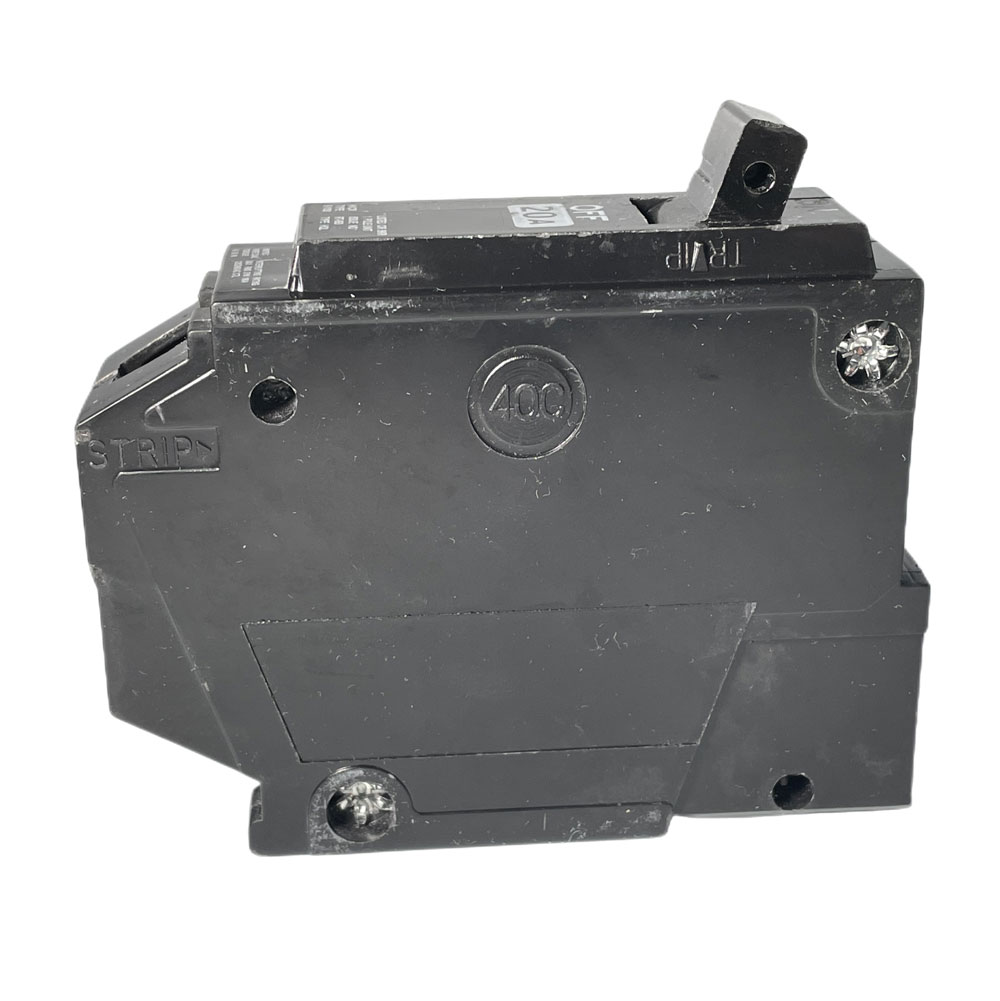

NewTrend good quality THQL1115 Single pole 15 Amp 120V 240V 1P 15A 1 pole Q-Line Plug-in Circuit Breaker

Original price was: $2.00.Current price is: $1.00.

BCD Curve:C
Type:MCB
Brand Name:Newtrend or OEM brand
Place of Origin:China
Model Number:THQL
Rated Frequency (Hz):50/60hz
Protection:LSI
Breaking Capacity:10kA
Rated Voltage:220V,230V,240V,380V
SKU: 1600801488362 Category:
Description

THQL 1P 120V 240V THQL1115 THQL1120 THQL1125 THQL1130 THQL1135 THQL1140 THQL1145 THQL1150 1 Pole Plug in circuit breaker



Type THQL
Number of Poles 1P 2P 3P
Rated Current 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100A
Maximum Voltage 120/240V 120/240V 240V
Breakage Capacity 10kA 10 kA 10 kA
Protection Thermal Magnetic
Connection Plug-In



THQL
Circuit Breaker		 AMP (A) 1 Pole 2 Pole 3 Pole
120/240V 120/240V 240V
15A THQL1115 THQL2115 THQL32015
20A THQL1120 THQL2120 THQL32020
25A THQL1125 THQL2125 THQL32025
30A THQL1130 THQL2130 THQL32030
35A THQL1135 THQL2135 THQL32035
40A THQL1140 THQL2140 THQL32040
45A THQL1145 THQL2145 THQL32045
50A THQL1150 THQL2150 THQL32050
60A   THQL2160 THQL32060
70A   THQL2170 THQL32070
80A   THQL2180 THQL32080
90A   THQL2190 THQL32090
100A   THQL21100 THQL320100
110A   THQL21110 THQL32090
125A   THQL21125 THQL320100



Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

15A, 25A, 30A, 35A, 40A, 45A, 50A
Number of Pole

1
color

Black
