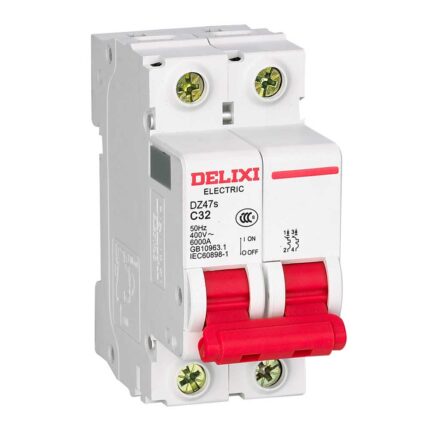

Delixi 10a 16a 20a 25a 32a buy mcb ac miniature circuit breaker switch Original price was: $3.00.Current price is: $2.00.

MCB Air switch CDB6i 1P 2P 3P 4P 6A10A16A20A25A

Original price was: $3.00.Current price is: $2.00.

BCD Curve:C
Type:MCB
Brand Name:Delixi
Place of Origin:China
Model Number:CDB6i
Rated Frequency (Hz):50/60hz
Protection:LSI
Breaking Capacity:6kA
Rated Voltage:220V,400V ,230V,240V,380V
SKU: 1600733348508 Category:
Description

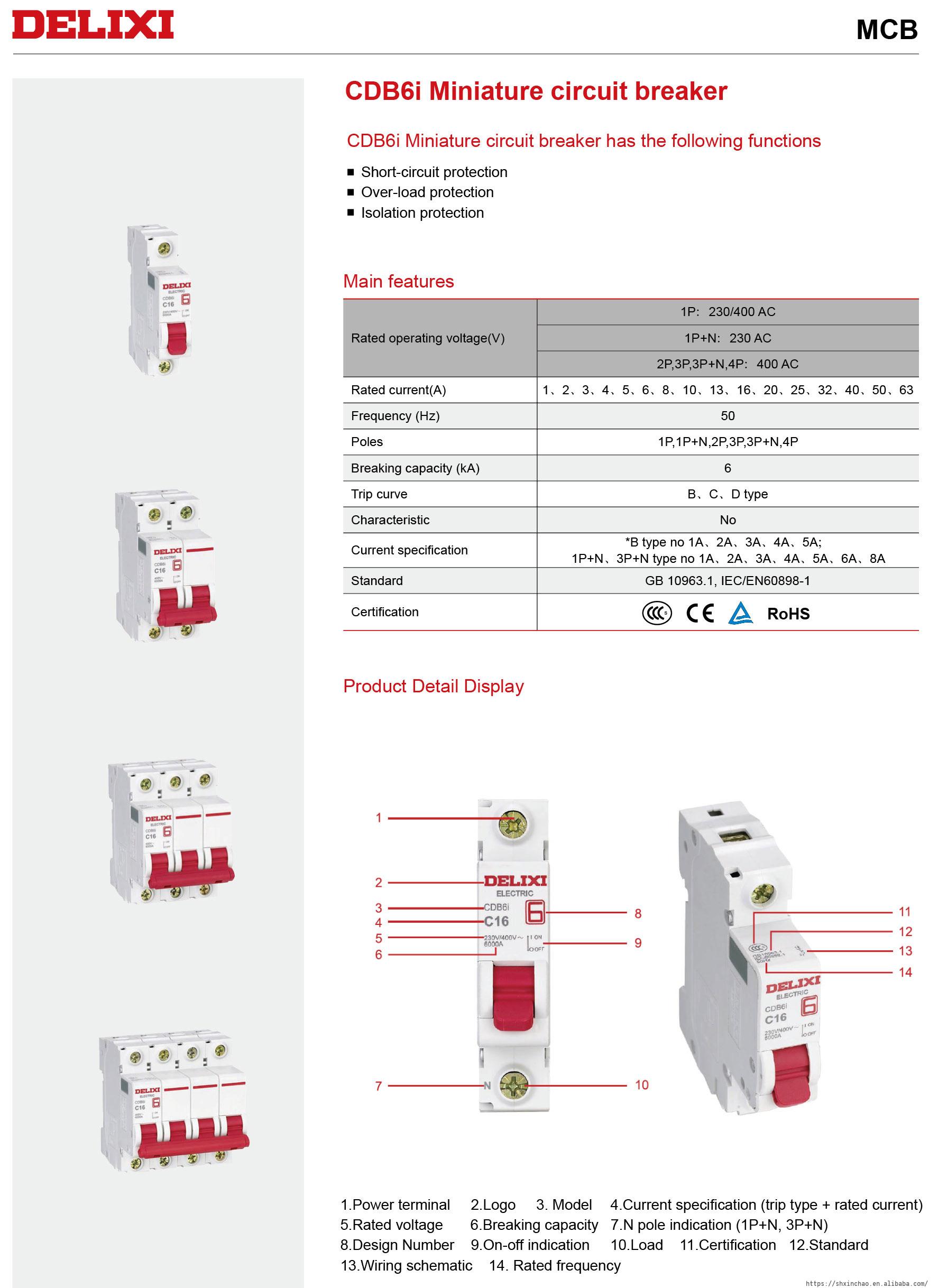

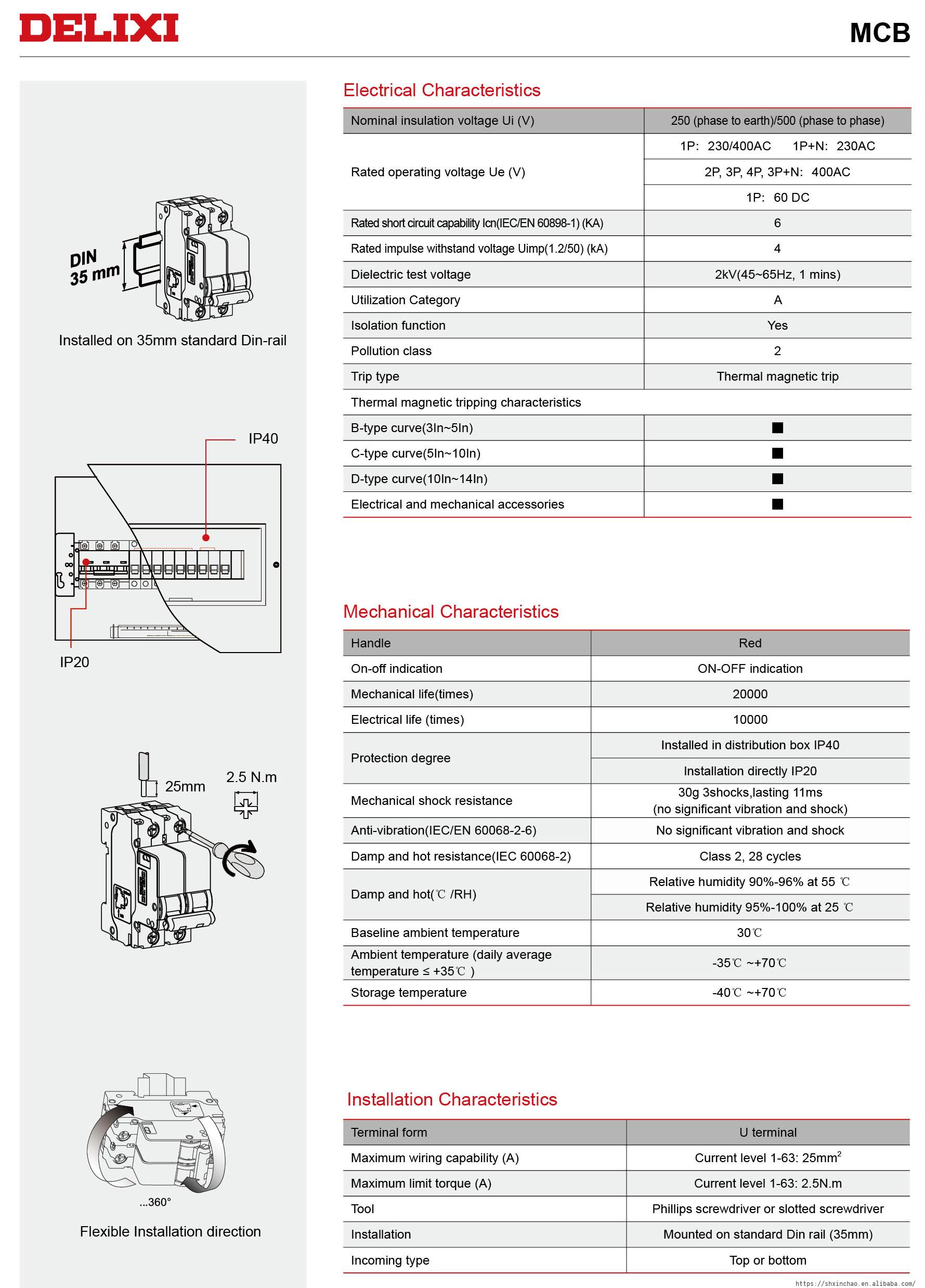

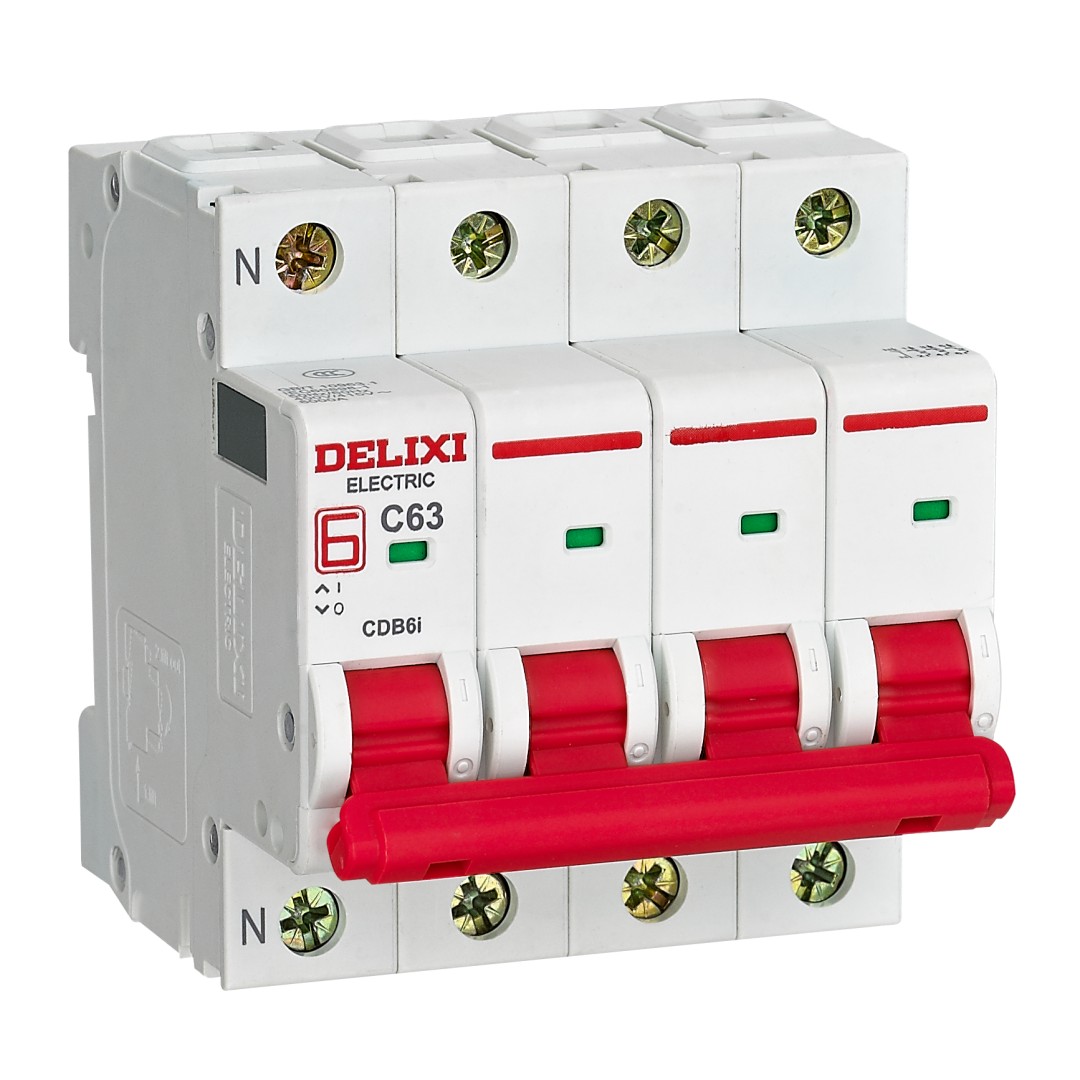

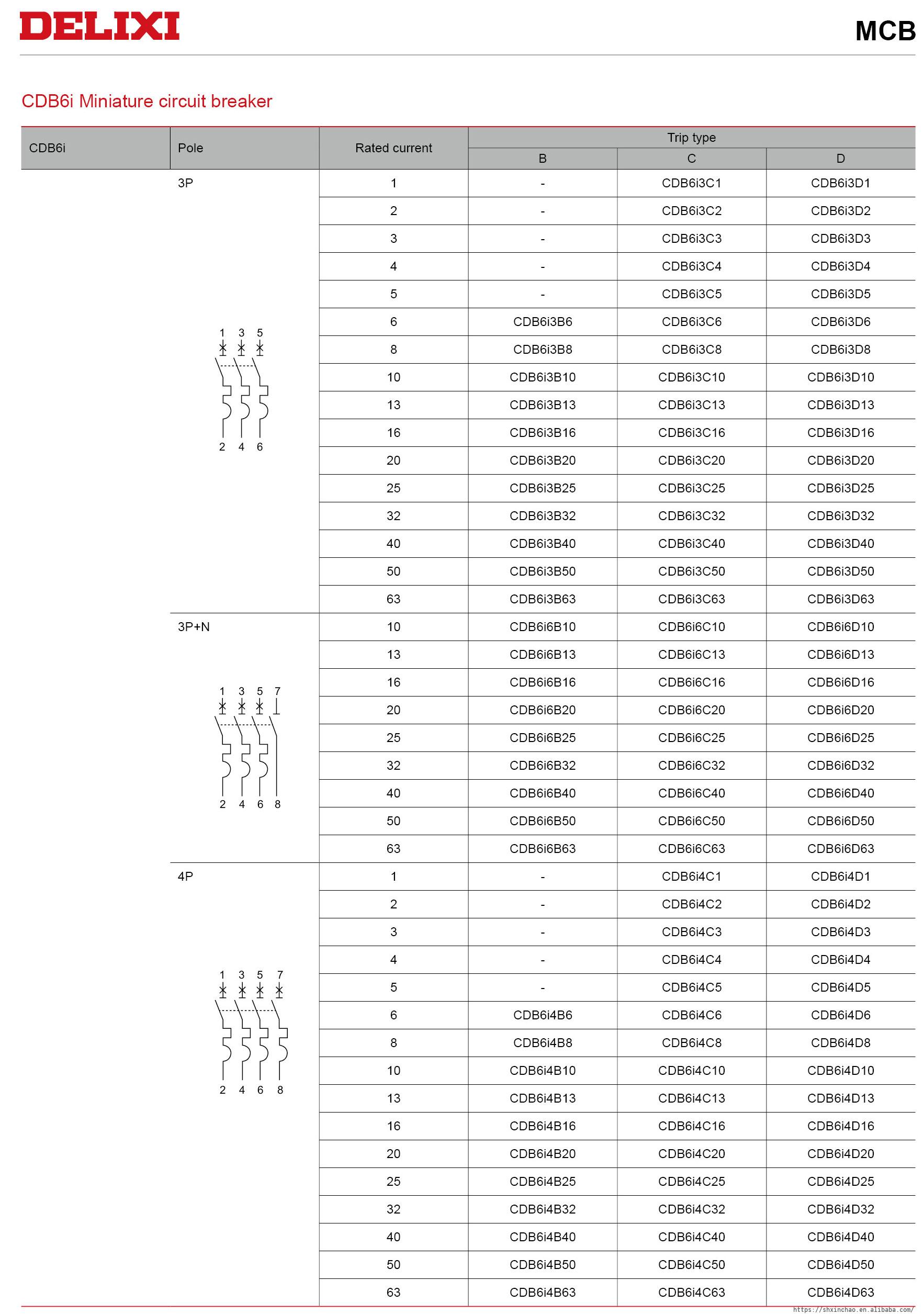

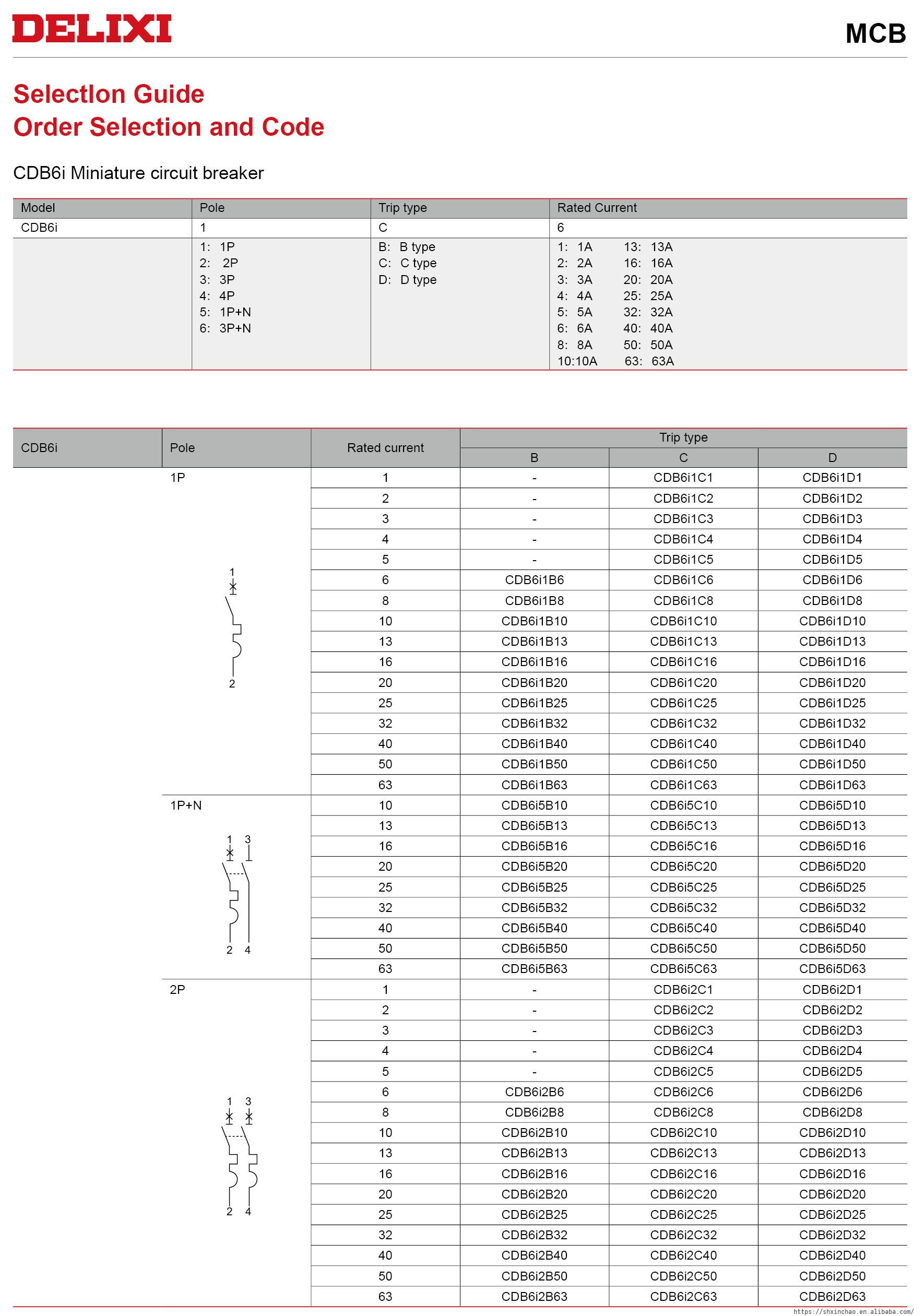

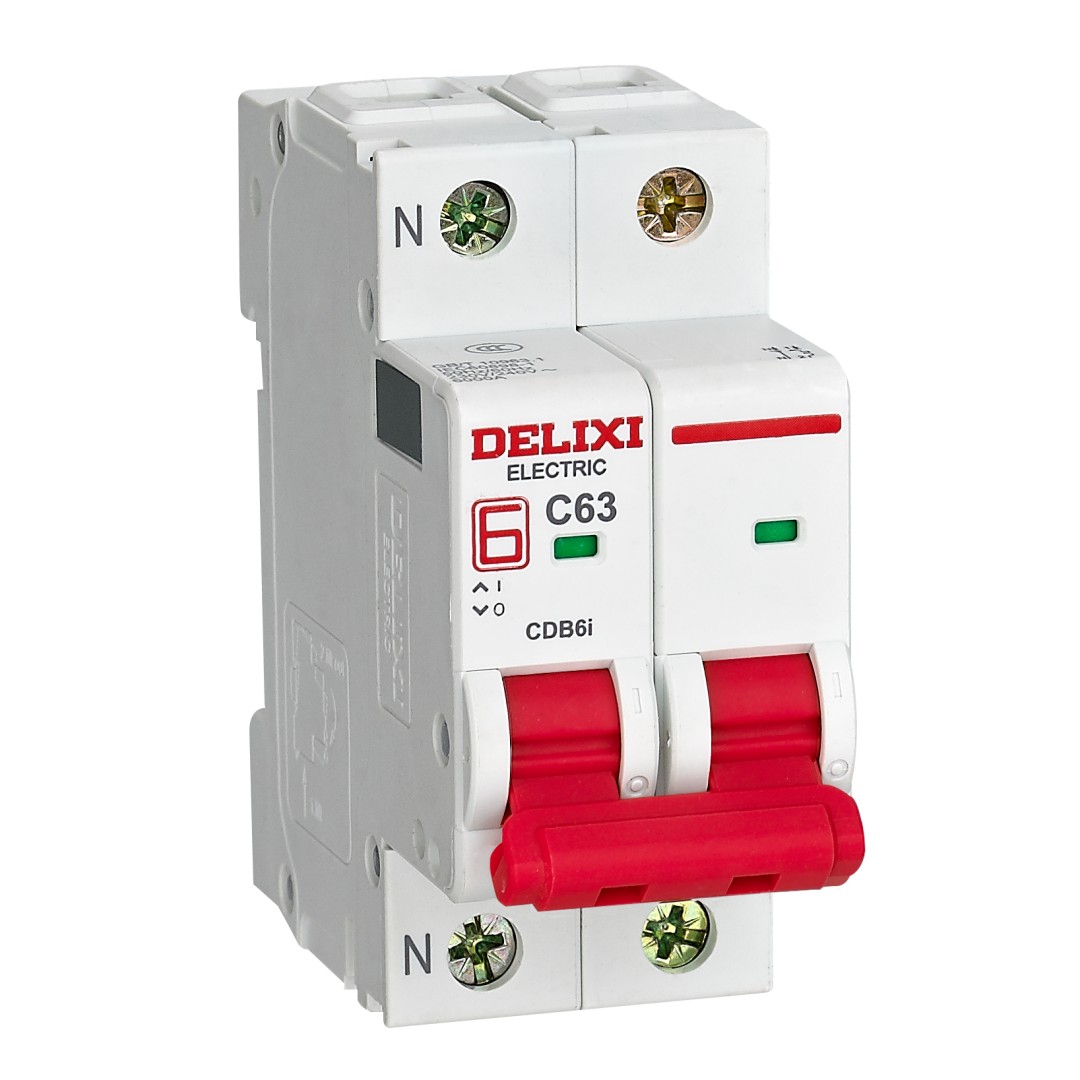

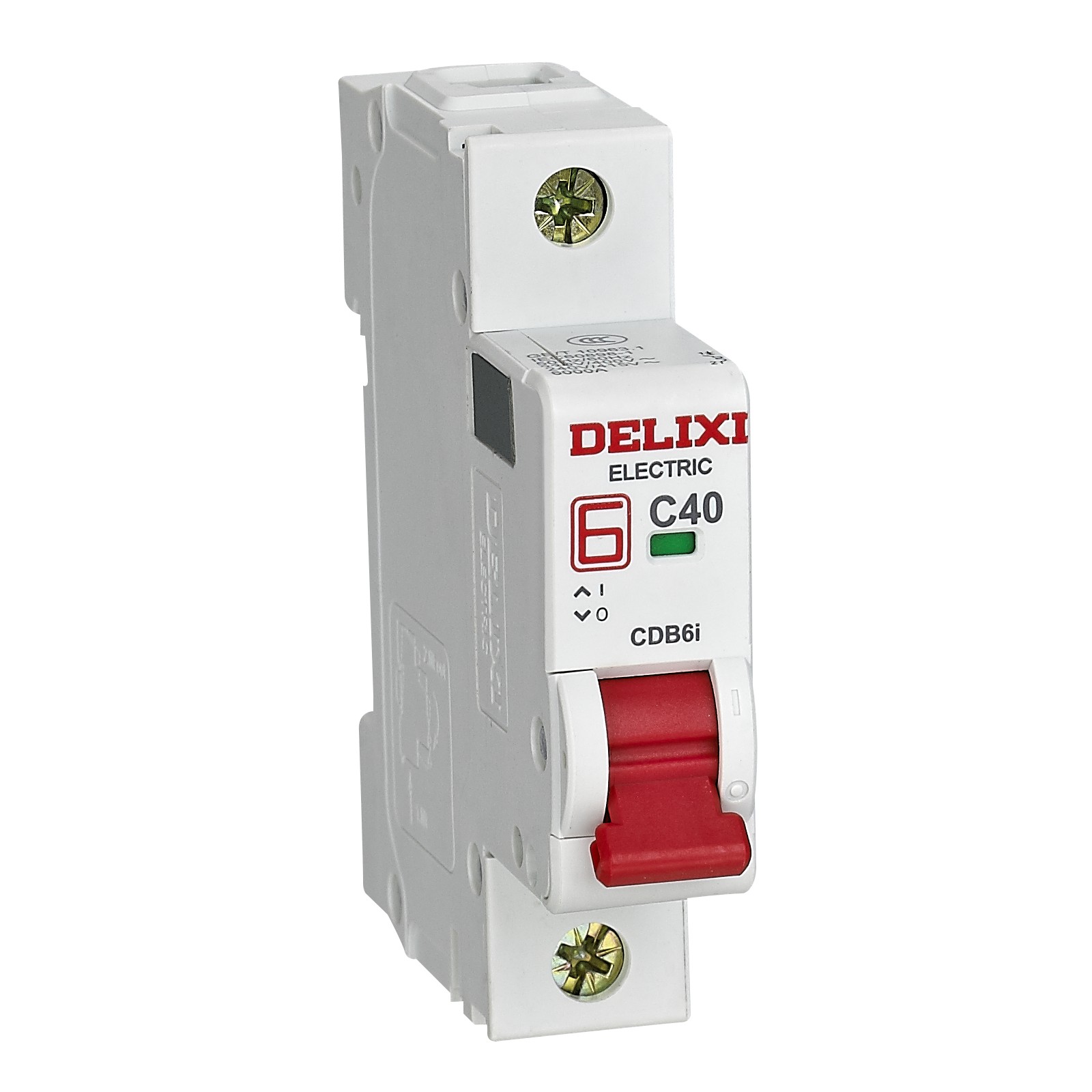

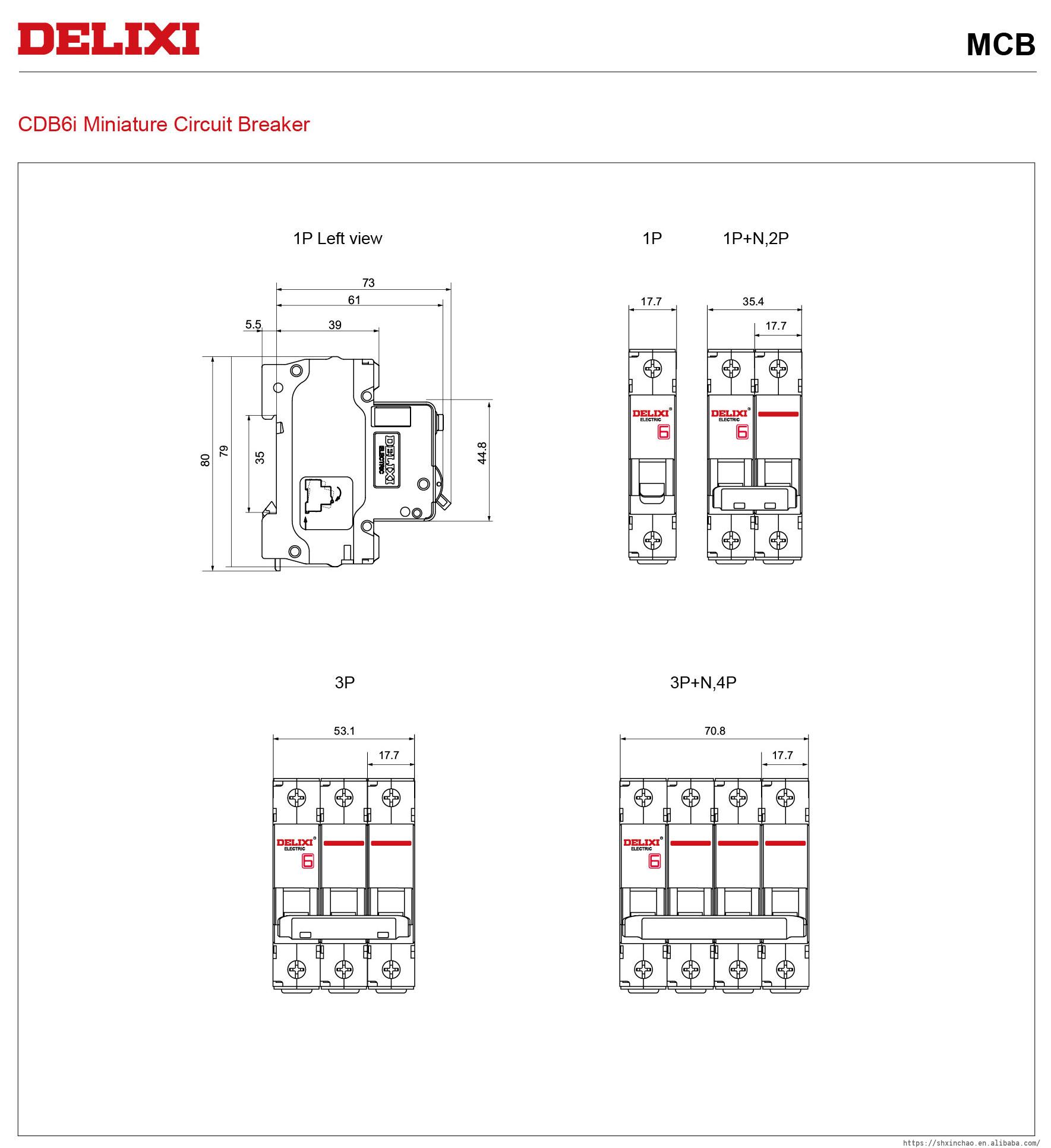

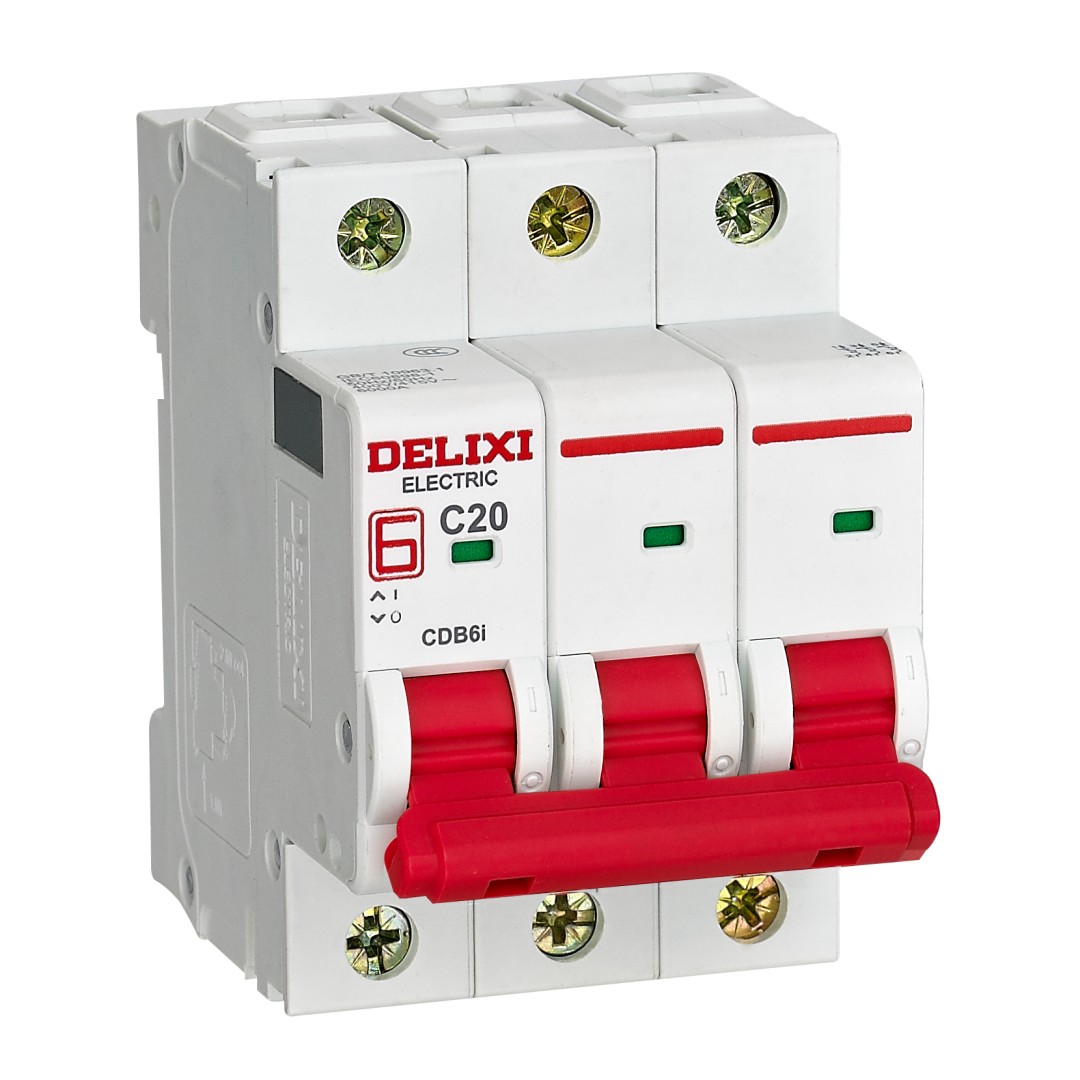

Delixi Electric CDB6i Miniature Circuit Breaker

Product Name
CDB6i Miniature Circuit breaker
Brand
DELIXI ELECTRIC
Pole Number
1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated current
1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Volatge
1P 230/400V AC
1P+N 230V AC
2P, 3P, 3P+N, 4P 400V AC
Breaking Capacity
6kA

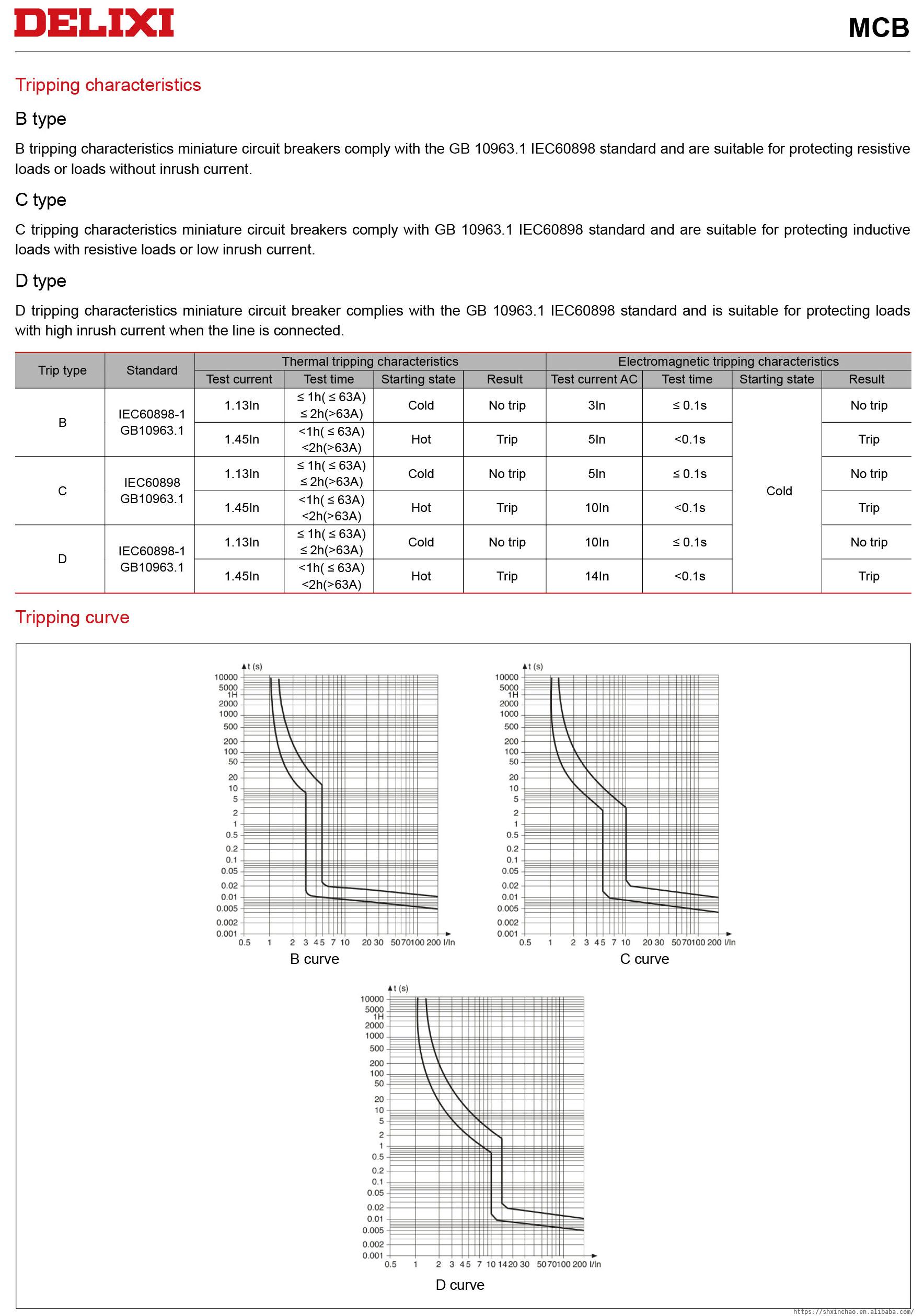

Trip curve
B, C, D
 Operating temperature
-35℃~70℃















Additional information
Weight 2 kg
Dimensions 25 × 25 × 25 cm
Rated Current

1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Number of Pole

1234
color

White
