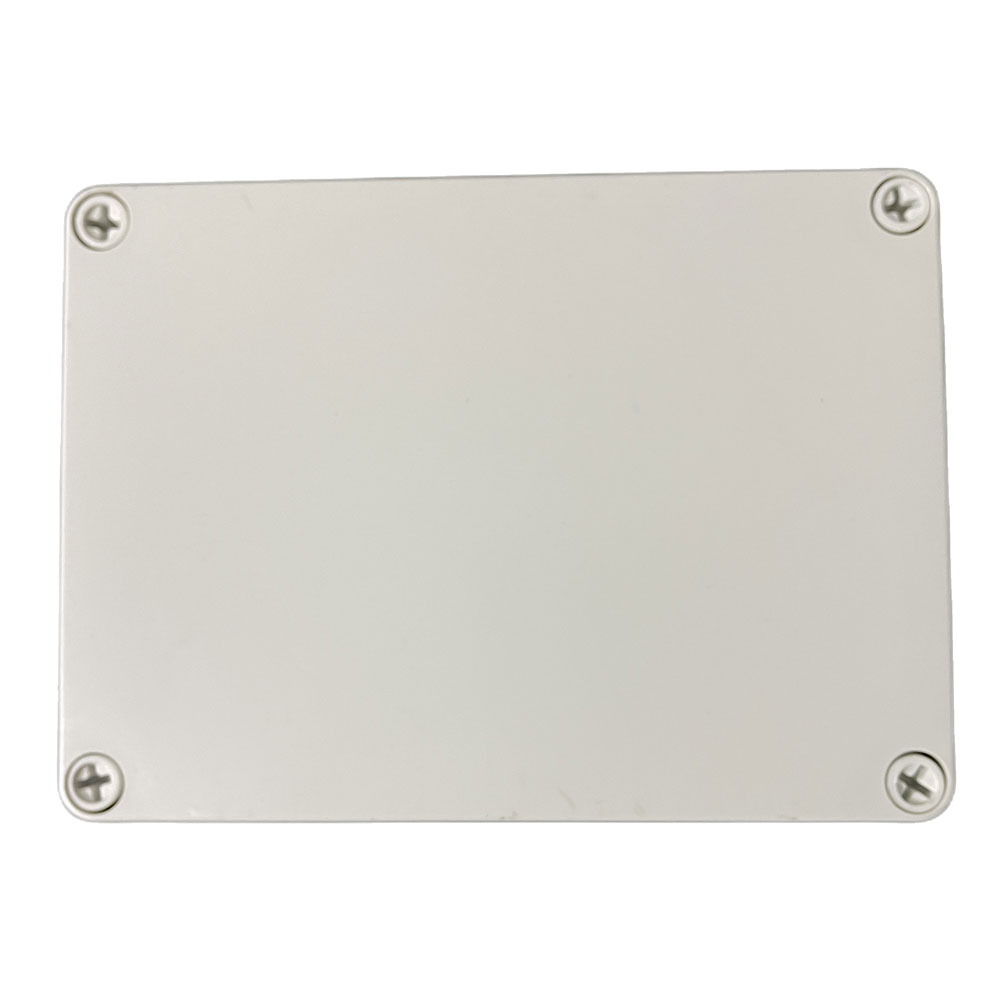

IP67 Waterproof 100x100x75mm 125x125x100mm 175x175x100mm 200x200x130mm ABS or Polycarbonate screw type Electrical Junction Box

$1.00

Type:Junction Box
Brand Name:Newtrend or OEM
Place of Origin:China
ip level:ip67
Model Number:KT series
SKU: 1770450257797193728 Category:
Description

IP67 Waterproof 100x100x75mm 125x125x100mm 175x175x100mm 200x200x130mm ABS or Polycarbonate screw type Electrical Junction Box



Body material: ABS

Stopper material: PVC

Material characteristics:

Impact heat low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.

Certificates: CE, ROHS



Application:

Suitable for indoor and outdoor eledria communicartion, fire lighting apparatus, iron and steel smelling, petrochemical industry, ©ledron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.

Installation:

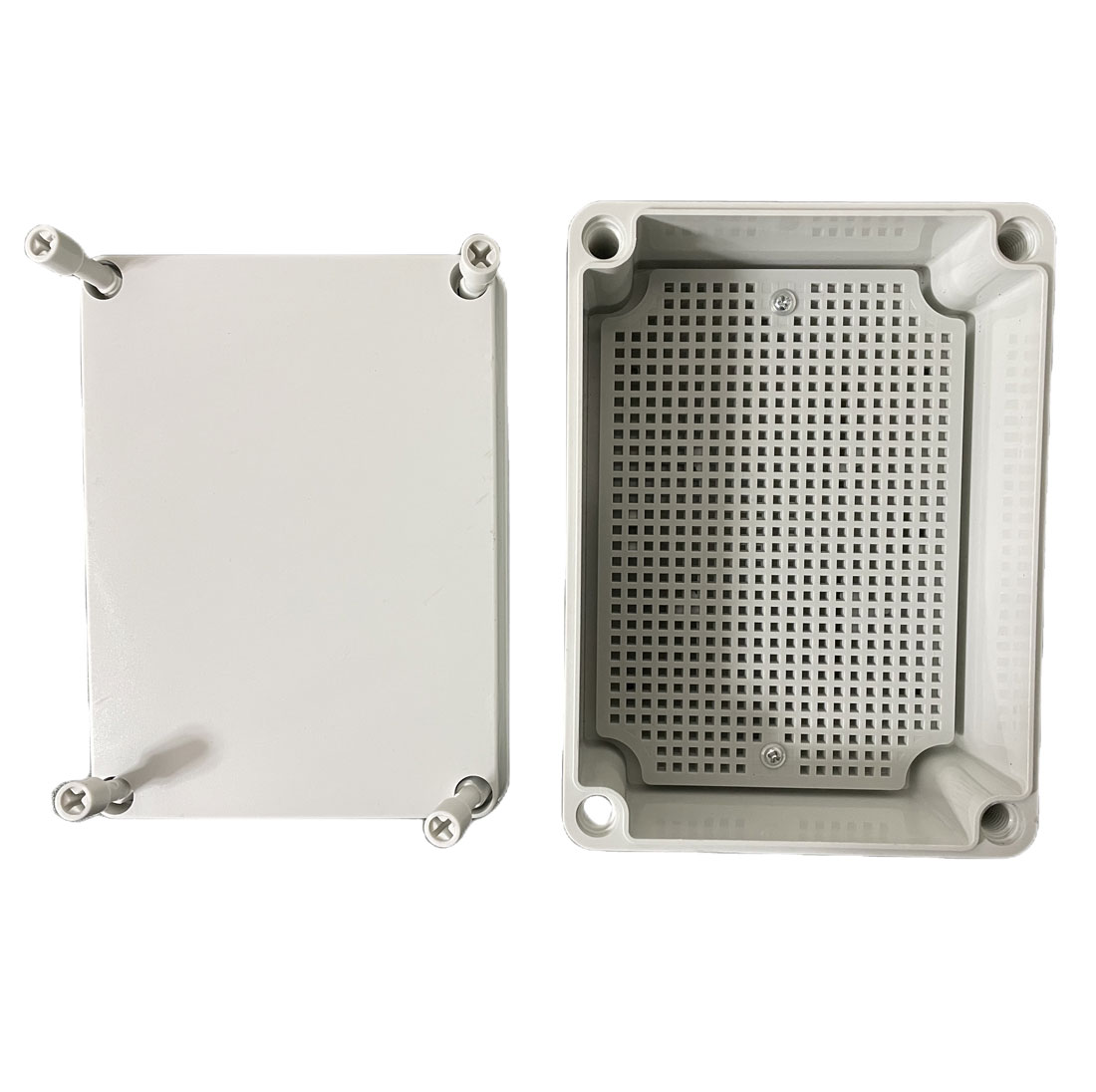

   1. lnside: There are the installation holes in the base for drcuit board ordin rail.

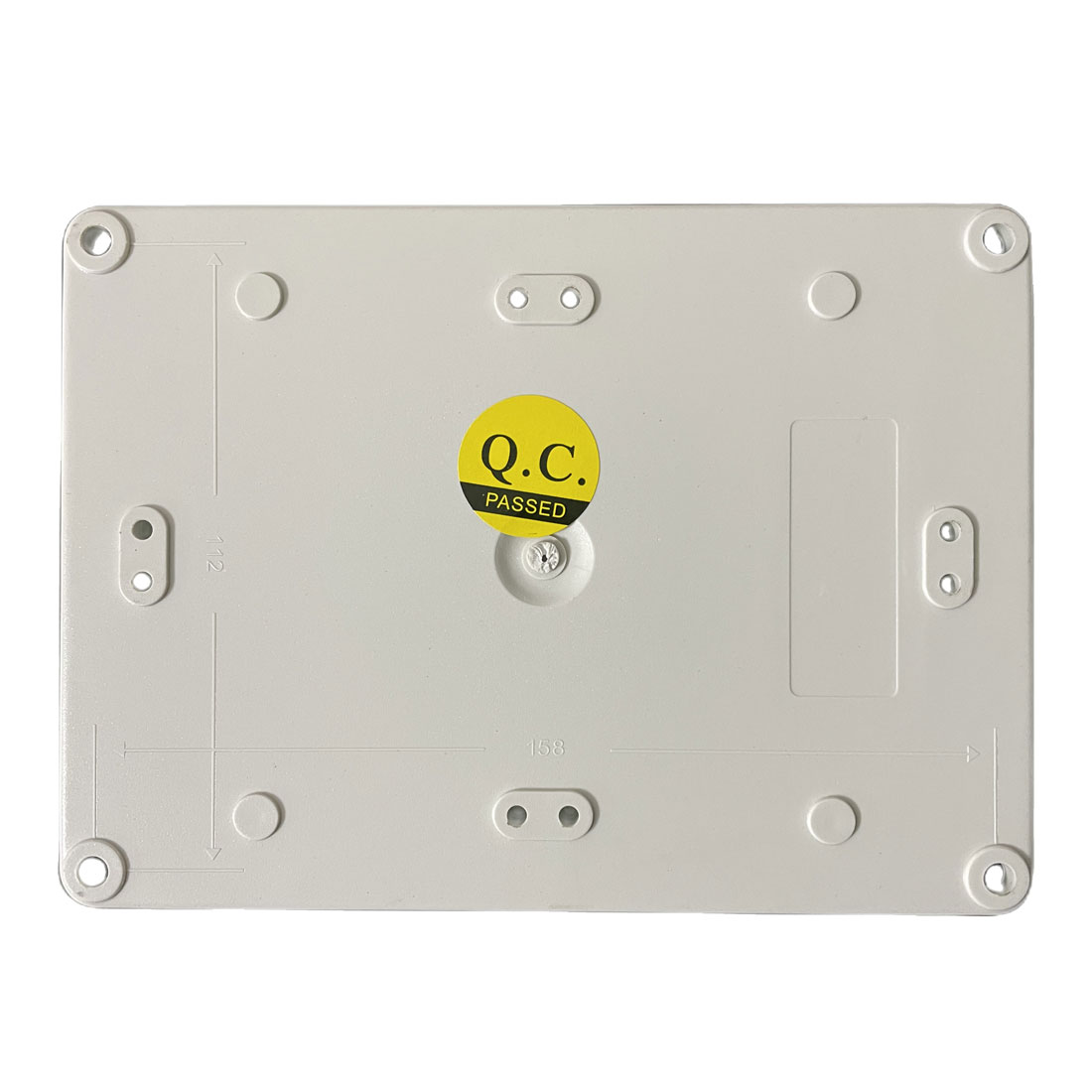

   2. Outside: The products can be directly fixed on the wall or other flat board with screws or nails via the screw holes In the base.

Outlet hole:

Holes can be opened on the box as customers' requirements, and installing cable gland can bring with better waterproof performance.



Model Code LxWxH Protection PCS/CTN
(mm)

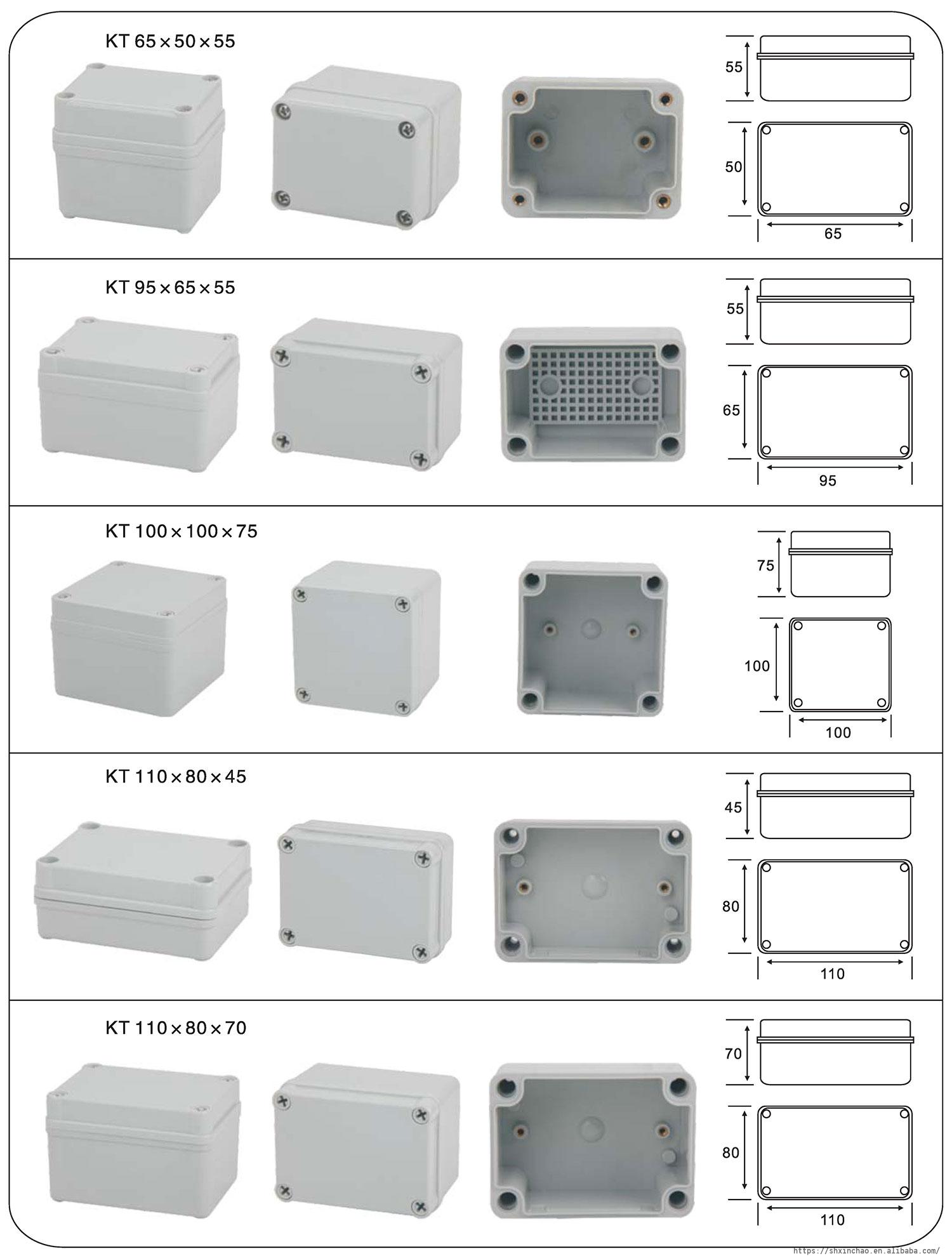

KT 65x50x55 65x50x55 mm IP67 300
KT 95x65x55 95x65x55 mm 240
KT 100x100x75 100x100x75 mm 100
KT 110x80x45 110x80x45 mm 200
KT 110x80x70 110x80x70 mm 120

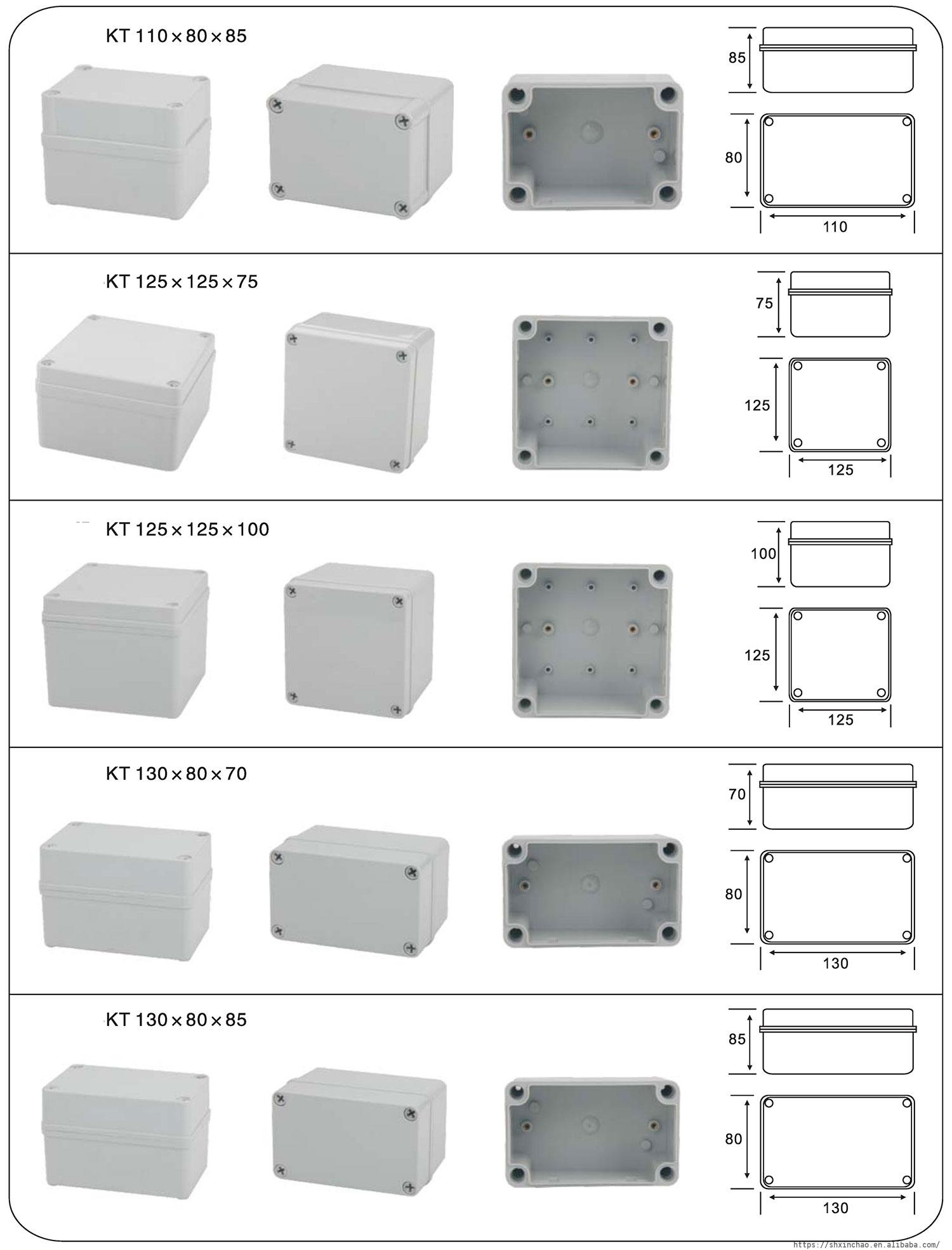

KT 110x80x85 110x80x85 mm 100
KT 125x125x75 125x125x75 mm 60
KT 125x125x100 125x125x100 mm 60
KT 130x80x70 130x80x70 mm 120
KT 130x80x85 130x80x85 mm 120
KT 160x80x55 160x80x55 mm 100
KT 160x80x95 160x80x95 mm 50

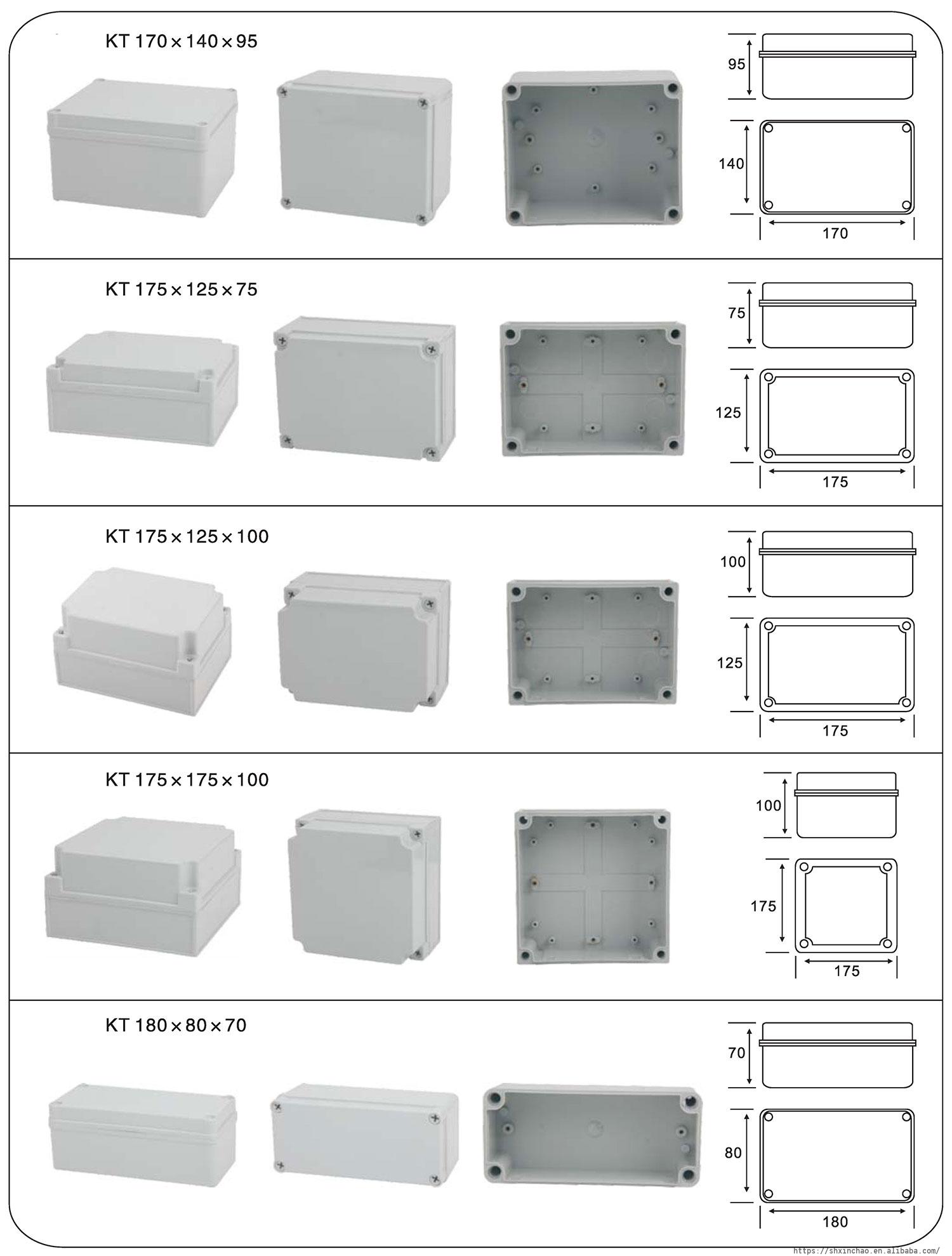

KT 170x140x95 170x140x95 mm 50
KT 175x125x75 175x125x75 mm 50
KT 175x125x100 175x125x100 mm 30
KT 175x175x100 175x175x100 mm 30
KT 180x80x70 180x80x70 mm 90

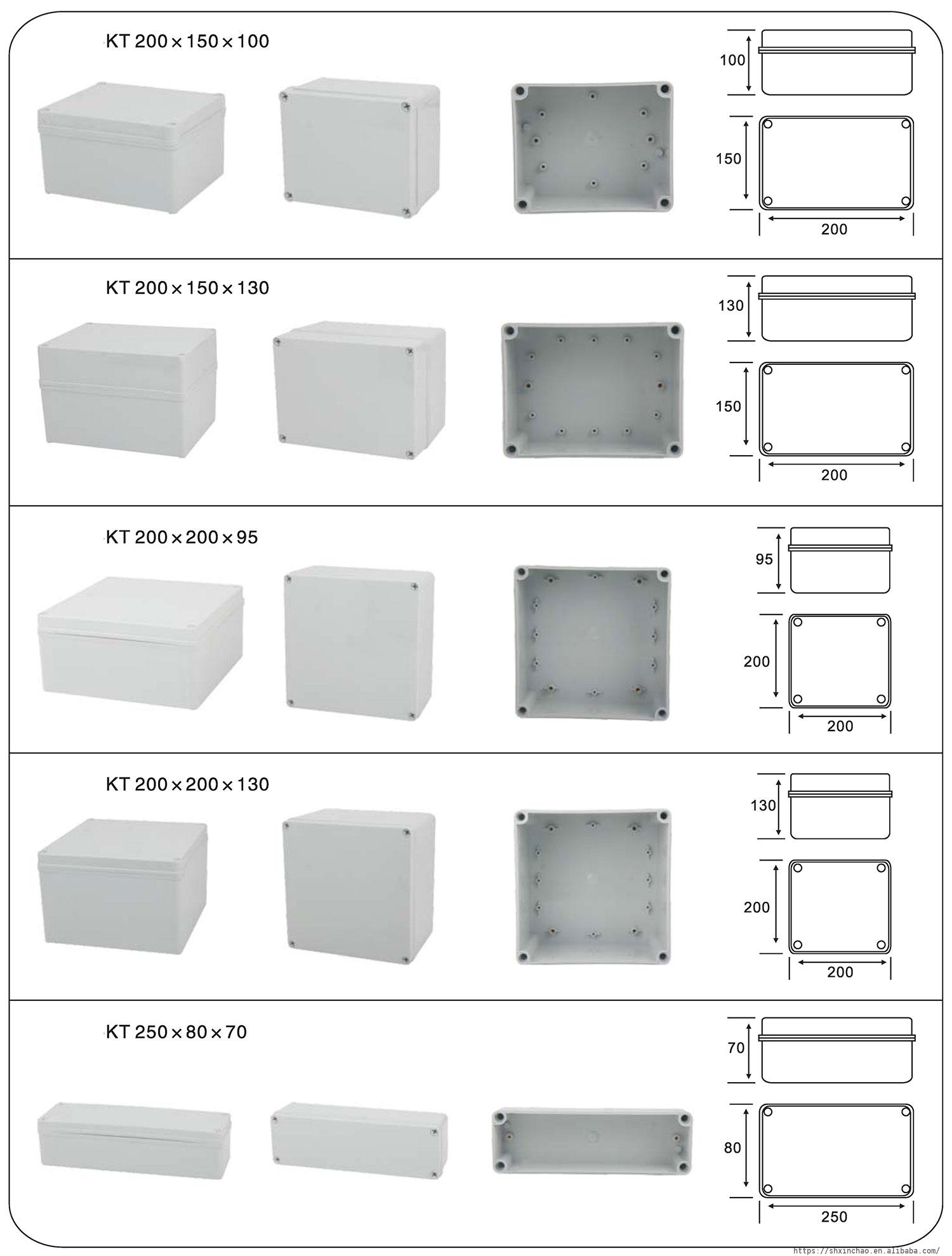

KT 200x150x100 200x150x100 mm 30
KT 200x150x130 200x150x130 mm 40
KT 200x200x95 200x200x95 mm 30
KT 200x200x130 200x200x130 mm 20
KT 250x80x70 250x80x70 mm 50

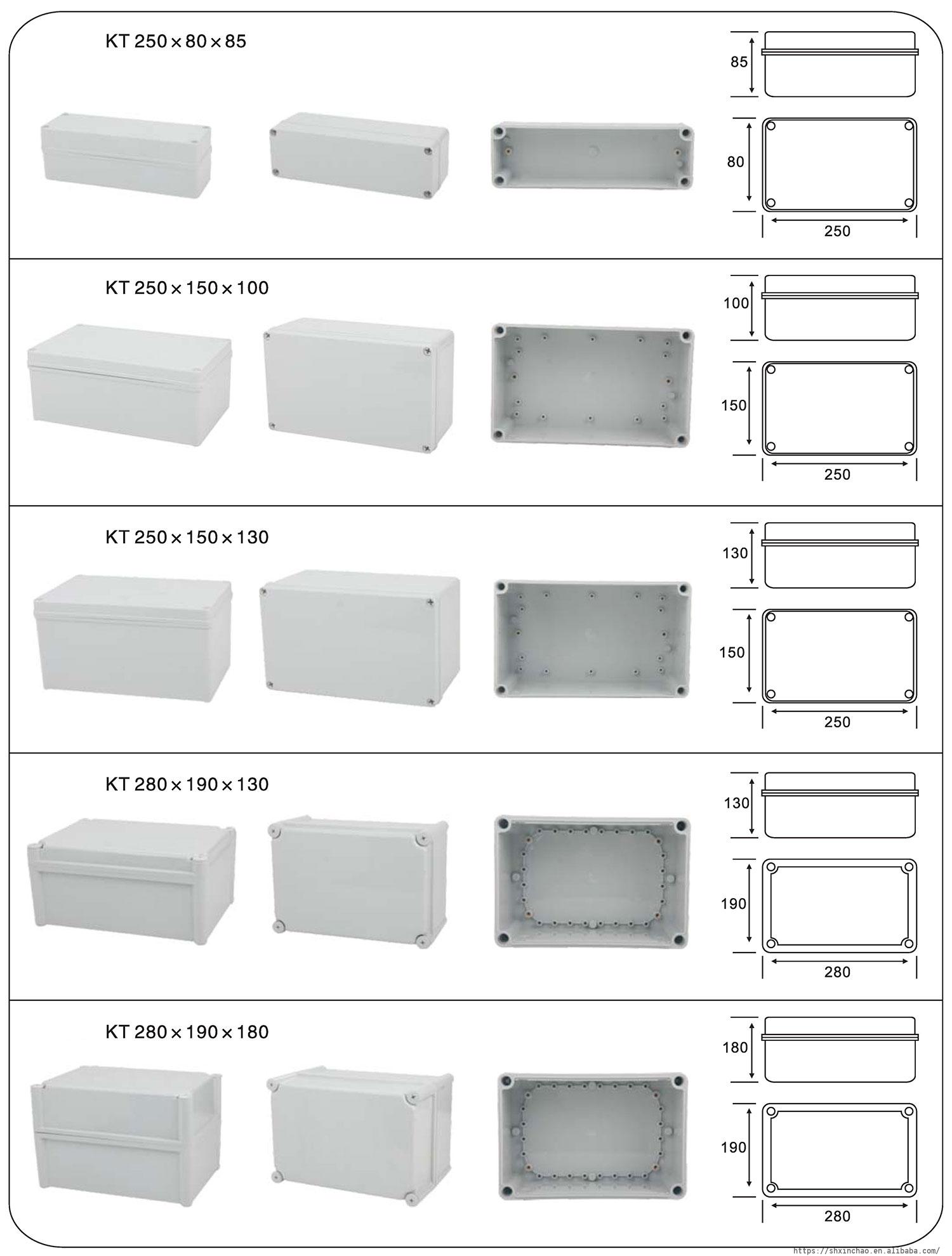

KT 250x80x85 250x80x85 mm 50
KT 250x150x100 250x150x100 mm 20
KT 250x150x130 250x150x130 mm 30
KT 280x190x130 280x190x130 mm 10
KT 280x190x180 280x190x180 mm 12
KT 280x280x130 280x280x130 mm 6
KT 280x280x180 280x280x180 mm 6
KT 340x280x130 340x280x130 mm 6
KT 340x280x180 340x280x180 mm 4

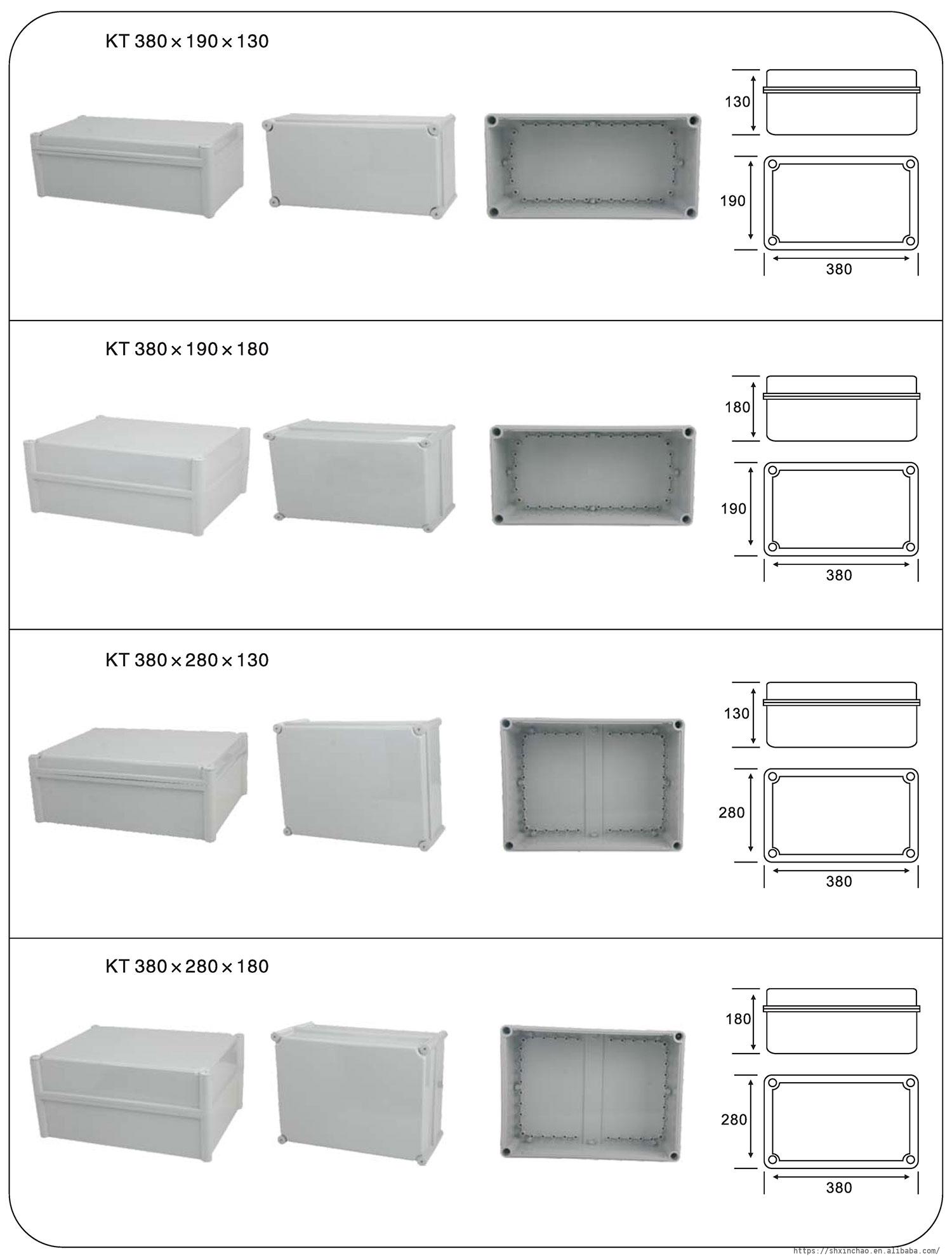

KT 380x190x130 380x190x130 mm 8
KT 380x190x180 380x190x180 mm 6
KT 380x280x130 380x280x130 mm 6
KT 380x280x180 380x280x180 mm 4
