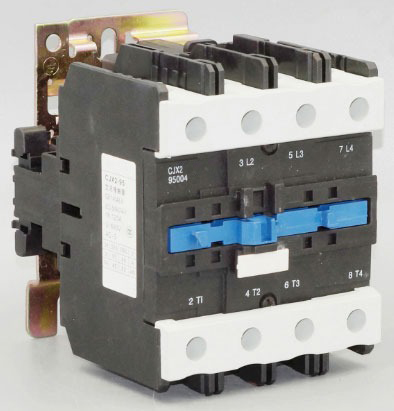

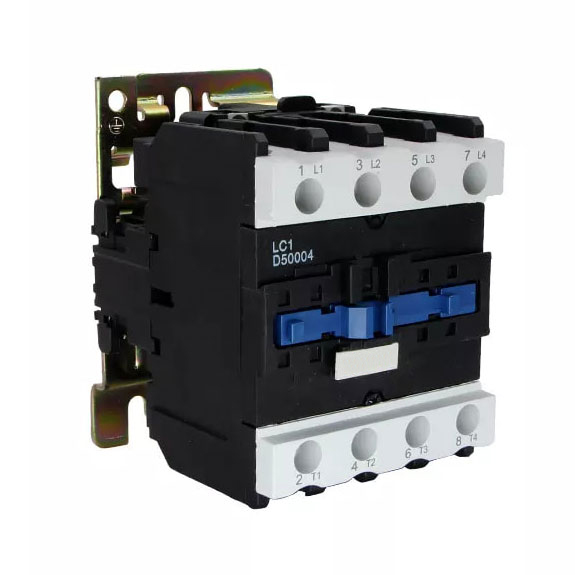

CJX2-95004 CJX2-80004 CJX2-65004 CJX2-50004 CJX2-32004 CJX2-18004 CJX2-12004 CJX2-09004 LC1-D95004 LC1D CJX2 4NO 4Pole Contactor
APPLICATION
CJX2 series AC contactor(hereinafter to be referred as contactor), it mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. When used in AC-3, and rated operational voltage is 380V, rated current up to 620A, for long distance breaking circuit and frequently starting or control the motor. Combined with proper thermal overload relay can protect load
circuit. Contactor can fre-quently start and control AC electromotor.
This product conforms to GB 14048.4,IEC60947-4-1 standard.
NORMAL RUNNING AND INSTALLATION CONDITIONS
– Amdient air temperature:-5℃~+40℃, the average value should not exceed+35℃ within 24 hours.
– Elevation: At most 2000m.
– Atmospheric conditions:When the temperature at 40, the relative humidity of atomsphere should de at the most 50%. When at relatively low thmperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.
– Class of pollution:Class 3
– Installation category.Ⅲ
– Installation conditions: Degree of inclination between fitting surface and verical surface should notexceed ±5°
– Impact shock: Product should be installed and used in the place where often shakes and impacts.
CONSTRUCTION FEATURES
– Adopt building block system to mount auxiliary contactor block, air delay auxiliary contactor, thermal overload relay and so on, which can be combined into multiple derved series product.
– Contactor has the advantage of Small volume, light, low consumption, high life, good safety.
– Main contactor below 32A has 1 N/C or 1 N/O, there is 1 N/C and 1 N/O adove 40A. Contactor can be assembled with F4,F8 auxiliary contact or Time-delay block.
– Contactor can not only use screw mounting, but also use 35mm[CJX-09~95], 75mm[CJX-40~95]and 2 ×35mm[CJX2-D115~170]international standard Din-rail mounting
MAIN TECHNICAL PARAMETER
OVERALL AND MOUNTING DIMENSIONS
