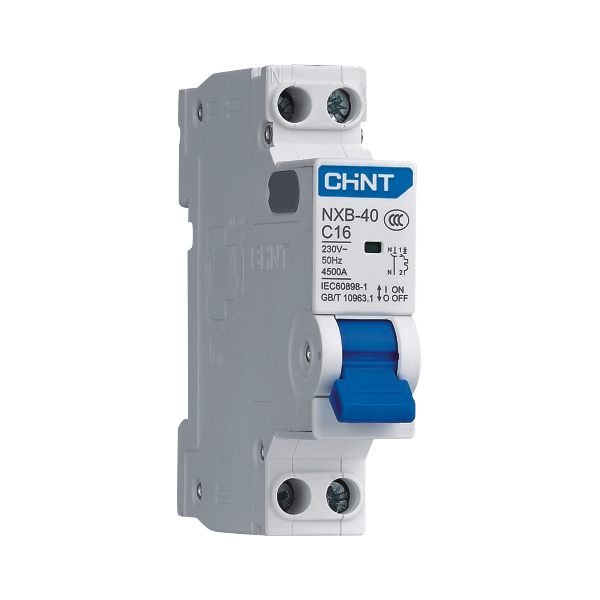

Chint original NXB-40 MCB 1P+N DPN 6A 10A 16A 20A 25A 32A 40A Chnt NXB-40 Miniature Circuit Breaker

$0.00

BCD Curve:C, D
Type:MCB
Brand Name:Chint
Place of Origin:China
Model Number:NXB-40
Rated Frequency (Hz):50Hz, 60Hz
Breaking Capacity:4500A
Rated Voltage:240V
Pole:1P+N
SKU: 1600455807727 Category:
Description

Chint NXB-40 Mini Circuit Breaker 1P+N DPN 6A 10A 16A 20A 25A 32A 40A Chint NXB-40 MCB



1. Functions:

Overload protection, short circuit protection, positive isolation

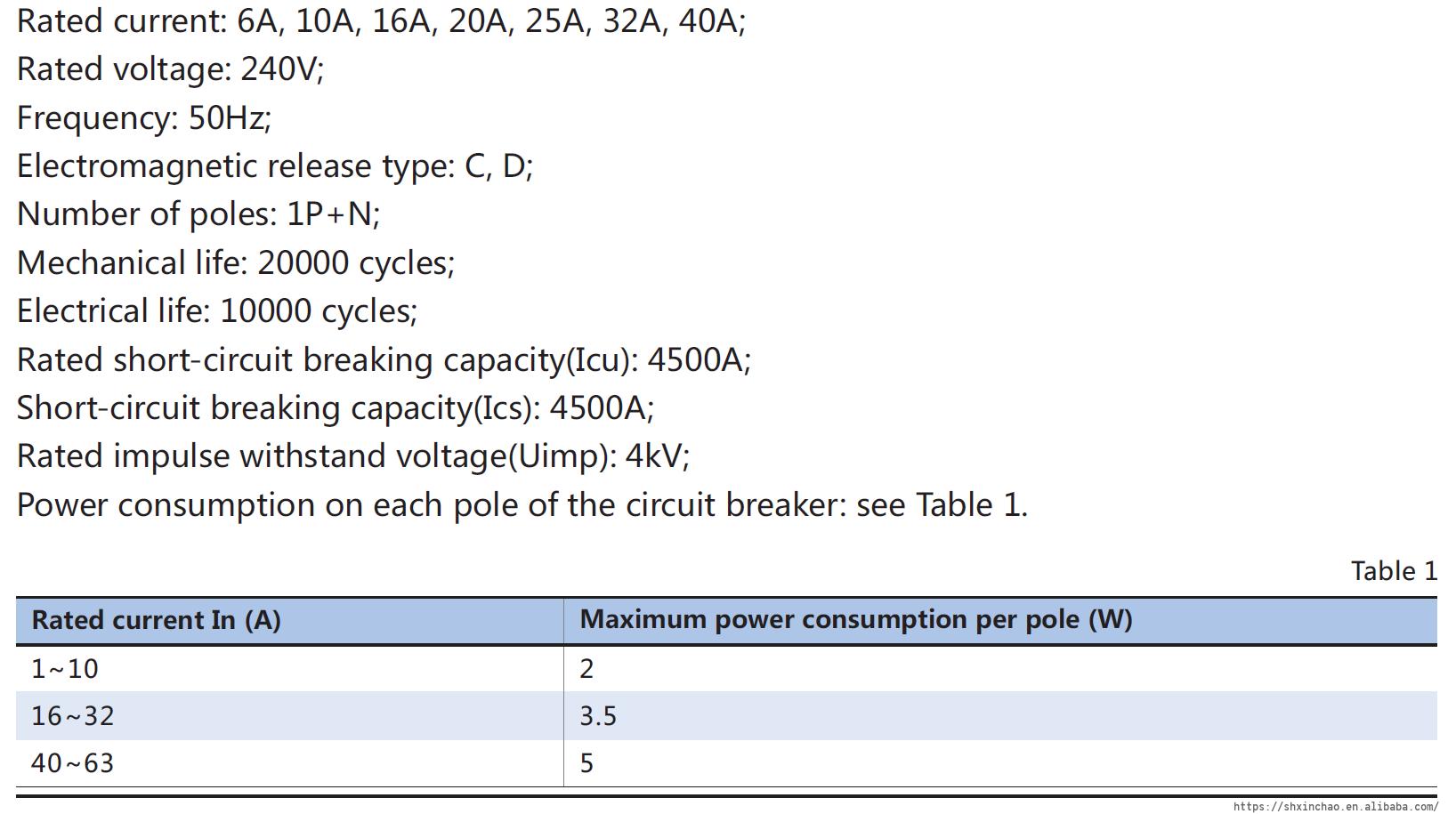

2. Technical parameters:

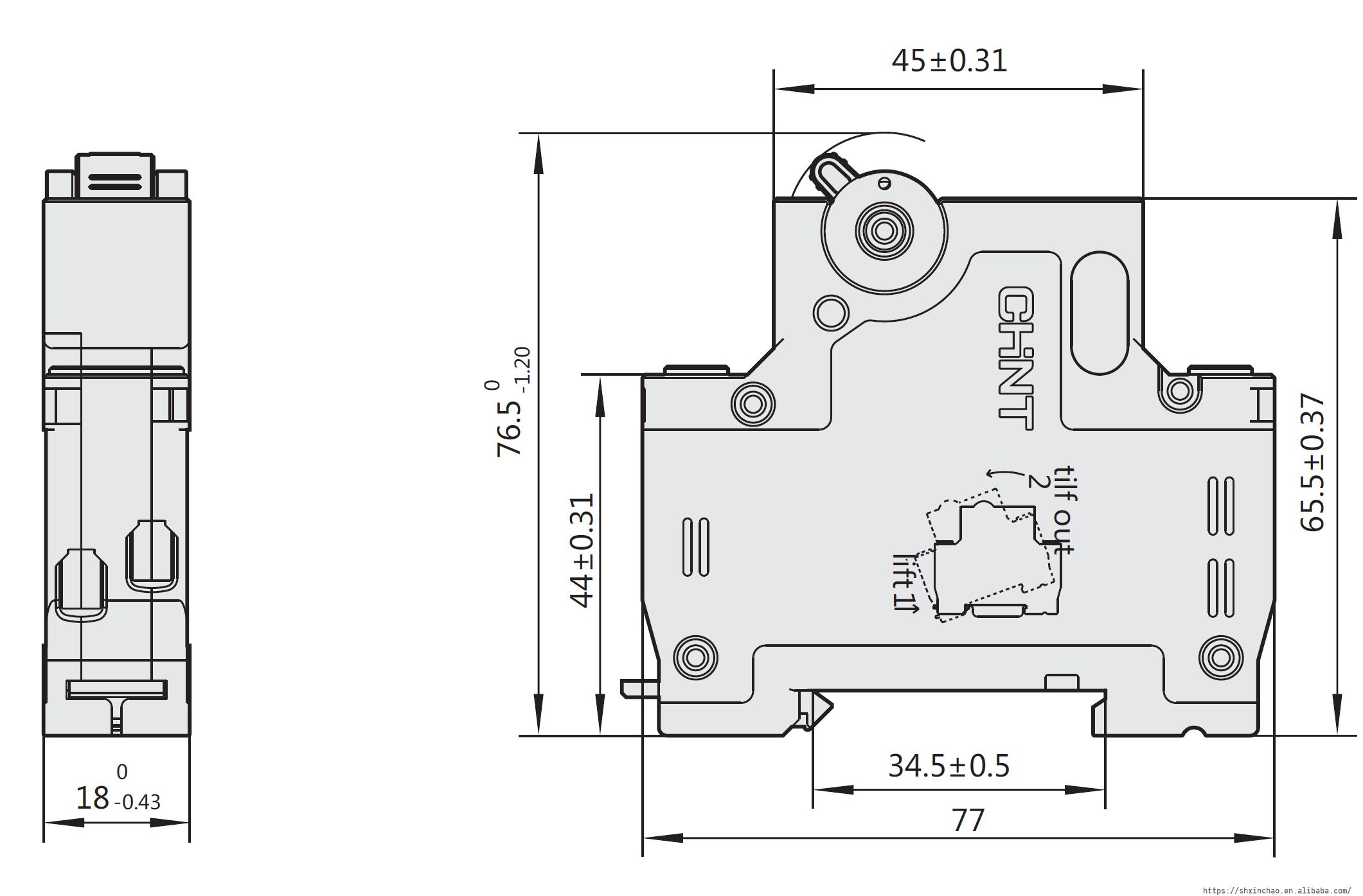

3. Diagram & Dimensions:



Chint NXB-40 Mini Circuit Breaker 1P+N DPN 6A 10A 16A 20A 25A 32A 40A Chint NXB-40 MCB

Additional information
Weight 0.11 kg
Dimensions 22 × 22 × 22 cm
Rated Current

6A, 10A, 16A, 20A, 25A, 32A, 40A
Number of Pole

1P+N
