Chint original NXB-40 DPN 6A 10A 16A 20A 25A 32A 40A Chnt 1P+N Mini Circuit Breaker

Chint original NXB-40 DPN 6A 10A 16A 20A 25A 32A 40A 1P+N Mini Circuit Breaker

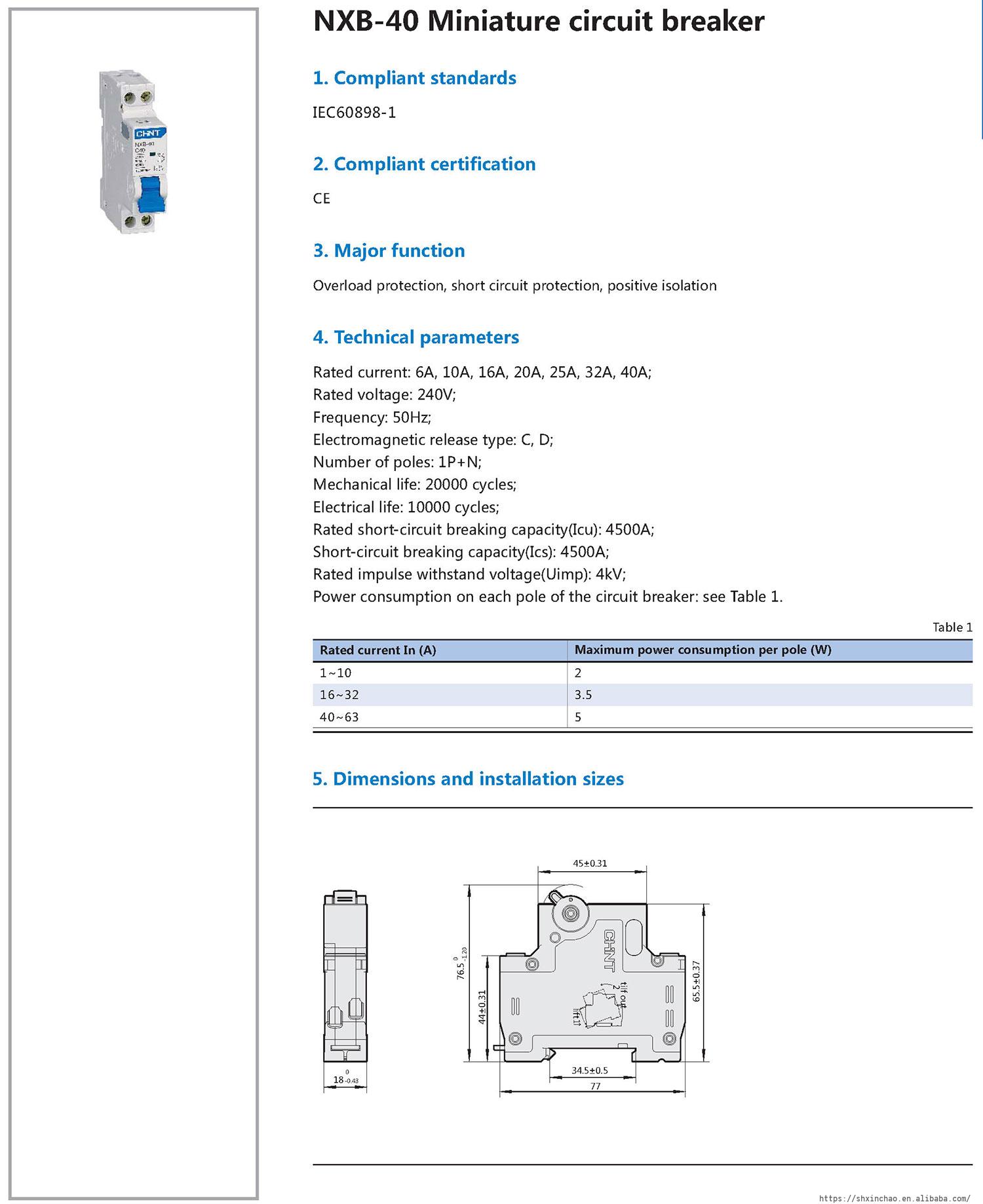

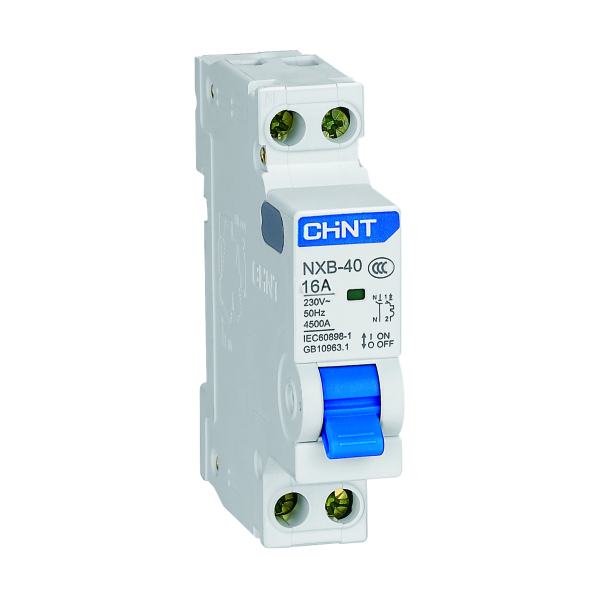

Chint NXB-40 Miniature circuit breaker

1. Compliant standards: IEC60898-1

2. Compliant certification: CCC, CE

3. Major function: Overload protection, short circuit protection, positive isolation

4. Technical parameters
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A;
Rated voltage: 240V;
Frequency: 50Hz;
Electromagnetic release type: C, D;
Number of poles: 1P+N;
Mechanical life: 20000 cycles;
Electrical life: 10000 cycles;
Rated short-circuit breaking capacity(Icu): 4500A;
Short-circuit breaking capacity(Ics): 4500A;
Rated impulse withstand voltage(Uimp): 4kV;
